COGIS - WELL SCOUT CARD

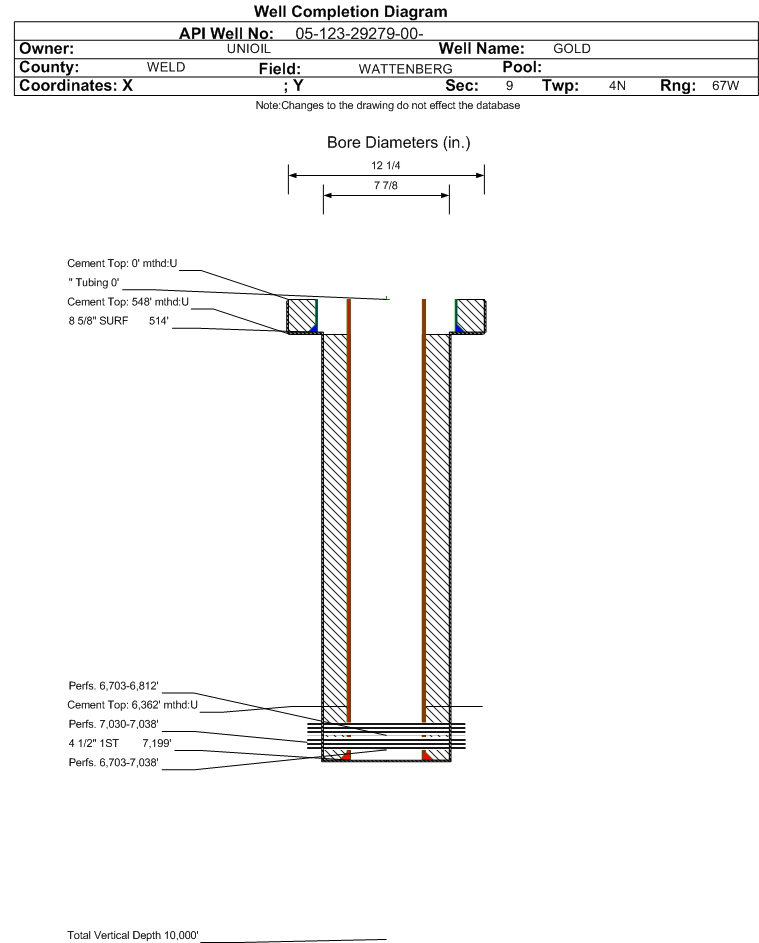

Click image to view related facilities. Related  Click image to view inspection information. InspClick image to view MIT information. MITClick image to access interactive map at well/facility location. GISClick image to view imaged documents for this well/facility. DocClick image to view imaged documents for this well/facility. COAClick image to view wellbore completion diagram. WellboreClick image to search for orders within this facility's section. OrdersClick image to view bradenhead scoutcard data. Bradenhead
 Surface Location
 API# 05-123-29279		Well Classification: OW Status: SI - 6/1/2024
Well Name/No:GOLD #9NU
(Click Well Name for Production Data)		Click Here for Transporter Gatherer Info
Operator:PDC ENERGY INC - 69175
(Click Operator Name for Company Detail Report)		Federal Or State Lease #:
Facility Status:SIStatus Date6/1/2024
FacilityID:299162LocationID:302527
County:WELD #123Location:NENW 9 4N67W 6
Field:WATTENBERG - #90750Elevation:4775 ft.
Basin:DENVER (DJ) BASIN
Planned Location:1320FNL  2615 FWLLat/Long: 40.330800 / -104.896720Lat/Long Source: Field Measured
As Drilled Location:Footages Not AvailableLat/Long: 40.330780 / -104.896690Lat/Long Source: Field Measured
 Wellbore And Formation Details -- select either a wellbore Or formation to expand.


Wellbore #00             Wellbore Classification: OW             Status: SI - 6/1/2024             Measured TD: 7237 ft.

 Wellbore Data for Original WellboreWellbore Classification: OW        SI - 6/1/2024
Wellbore Permit
Permit #:20085403 Expiration Date:10/20/2009
Proposed Depth/Form:7620 ft.
Surface Mineral Owner Same:No
Mineral Owner:FEESurface Owner:FEE
Unit: Unit Number:
Formation And Spacing:Code: JSND , Formation: J SAND , Order: 232-23 , Unit Acreage: 320, Drill Unit: N/2
Formation And Spacing:Code: NB-CD , Formation: NIOBRARA-CODELL , Order: 407-87 , Unit Acreage: 160, Drill Unit: GWA
Wellbore Completed
Completion Date:9/25/2009
Spud Date:9/20/2009Spud Date Is:ACTUAL
Measured TD:7237 ft.Measured PB depth:7178 ft.
True Vertical TD:True Vertical PB depth:
Log Types:CBL, CNL/CDL, DUAL INDUCTION
Casing:String Type: SURF, Hole Size: 12.25 in., Size: 8.625 in., Top: 0 ft., Depth: 514 ft., Weight: 24 , Citings Type: ACTUAL
Cement:Sacks: 370, Top: 0 ft., Bottom: 514 ft., Determination Method: VISU
Casing:String Type: 1ST, Hole Size: 7.875 in., Size: 4.5 in., Top: 0 ft., Depth: 7198 ft., Weight: 11.6 , Citings Type: ACTUAL
Cement:Sacks: 795, Top: 548 ft., Bottom: 7198 ft., Determination Method: CBL
FormationInterval TopLog BottomCoredDSTs
NIOBRARA6696 ft.NN
FORT HAYS7005 ft.NN
CODELL7026 ft.NN

Formation CODL                     Formation Classification:  OW                     Status:  CM - 12/31/2009                Interval Top: 7030 ft.    Interval Bottom: 7038 ft.

 Completed Information for Formation CODELL
1st Production Date:N/AChoke Size:
Formation Name:CODELLCommingled:Yes
Production Method:
Open Hole Completion:No
Formation Treatment
Treatment Date:10/13/2009
Treatment Summary:FRACD W/ 596 BBLS OF SLICKWATER PAD, 144 BBLS PHASER 20# PAD, 1992 BBLS PHASER 20# FLUID SYSTEM, 218240 LBS 30/50 WHITE SAND AND 8000 LBS OF SB EXCEL 20/40 RESIN COATED PROPPANT.
Tubing Size:Tubing Setting Depth:
Tubing Packer Depth:Tubing Multiple Packer:
Open Hole Top:Open Hole Bottom:
No Initial Test Data was found for formation CODL.
Perforation Data:
Interval Top:7030 ft.# Of Holes:24
Interval Bottom:7038 ft.Hole Size:0.34 in.

Formation NB-CD                   Formation Classification:  OW                   Status:  SI - 6/1/2024                  Interval Top: 6703 ft.    Interval Bottom: 7038 ft.

 Completed Information for Formation NIOBRARA-CODELL
1st Production Date:11/3/2009Choke Size:0.250 in.
Formation Name:NIOBRARA-CODELLCommingled:No
Production Method:
Open Hole Completion:No
Formation Treatment
Treatment Date:10/13/2009
Treatment Summary:
Tubing Size:Tubing Setting Depth:
Tubing Packer Depth:Tubing Multiple Packer:
Open Hole Top:Open Hole Bottom:
Initial Test Data:
Test Date:12/1/2009Test Method:FLOWING
Hours Tested:24Gas Type:SHALE
Gas Disposal:SOLD
Test TypeMeasure
BBLS_H2O 0
BBLS_OIL 129
BTU_GAS 1254
CALC_BBLS_H2O 0
CALC_BBLS_OIL 129
CALC_GOR 2109
CALC_MCF_GAS 272
CASING_PRESS 1546
GRAVITY_OIL 46
MCF_GAS 272
Perforation Data:
Interval Top:6703 ft.# Of Holes:46
Interval Bottom:7038 ft.Hole Size:0.42 in.

Formation NBRR                     Formation Classification:  OW                     Status:  CM - 12/31/2009                Interval Top: 6703 ft.    Interval Bottom: 6812 ft.

 Completed Information for Formation NIOBRARA
1st Production Date:N/AChoke Size:
Formation Name:NIOBRARACommingled:Yes
Production Method:
Open Hole Completion:No
Formation Treatment
Treatment Date:10/13/2009
Treatment Summary:PERFD NIO A 6703-6705 (4), NIO B 6806-6812 (18). FRACD W/ 24BBLS 15% HCL, 1667 BBLS SLICKWATER PAD, 144 BBLS PHASER 20# PAD, 2250 BBLS PHASER 20# FLUID SYSTEM, 238580 LBS 30/50 WHITE SAND & 12000 LBS SB EXCEL 20/40 RESIN COATED PROPPANT.
Tubing Size:Tubing Setting Depth:
Tubing Packer Depth:Tubing Multiple Packer:
Open Hole Top:Open Hole Bottom:
No Initial Test Data was found for formation NBRR.
Perforation Data:
Interval Top:6703 ft.# Of Holes:22
Interval Bottom:6812 ft.Hole Size:0.42 in.
Primary Well Designation:
Reported Plugged      i
            All DesignationsDate
Reported PluggedY12/05/2025
Out Of Service RepurposedN
Out Of ServiceYPlugging Due Date
03/31/2029
Inactive ExceptionN
Noticed InactiveN
Defined Inactive (SI )YDefined Inactive
05/31/2024
Low ProducingYProduction Period
10/2024 - 09/2025

BOE/MCFE/GOR Calculations
Production for Previous 12 Months
October 2024 - September 2025i
Total Oil Produced (Barrels)0
Total Gas Produced (MCF)0
GOR
GOR Determination
Average BOE per Day0.000
Average MCFE per Day0.000

 Federal Financial Assurance  i

 Tribal Well  i No
