Wellbore #00 Wellbore Classification: OW Status: PR - 1/1/2026 Measured TD: 15164 ft. Vertical TD: 7109 ft.| Wellbore Data for Original Wellbore | Wellbore Classification: OW PR - 1/1/2026 | | Wellbore Permit | HORIZONTAL | | Permit #: | | Expiration Date: | 9/16/2019 | | Proposed Top PZ Location: | Sec:2 Twp: 3N 68W | Footage: 2413 FNL 604 FEL | | Bottom Hole Location: | Sec:3 Twp: 3N 68W | Footage: 2402 FNL 2522 FEL | | Proposed Depth/Form: | 17362 ft. | | Surface Mineral Owner Same: | No | | Mineral Owner: | FEE | Surface Owner: | FEE | | Unit: | | Unit Number: | | | Formation And Spacing: | Code: NBRR , Formation: NIOBRARA , Order: , Unit Acreage: 1280, Drill Unit: GWA | | Casing: | String Type: SURF, Hole Size: 13.5 in., Size: 9.625 in., Top: 0 ft., Depth: 1500 ft., Weight: 36 , Citings Type: PLANNED | | Cement: | Sacks: 624, Top: 0 ft., Bottom: 1500 ft. | | Casing: | String Type: 1ST, Hole Size: 8.5 in., Size: 5.5 in., Top: 0 ft., Depth: 17462 ft., Weight: 17 , Citings Type: PLANNED | | Cement: | Sacks: 2236, Top: , Bottom: 17462 ft. |
| | |

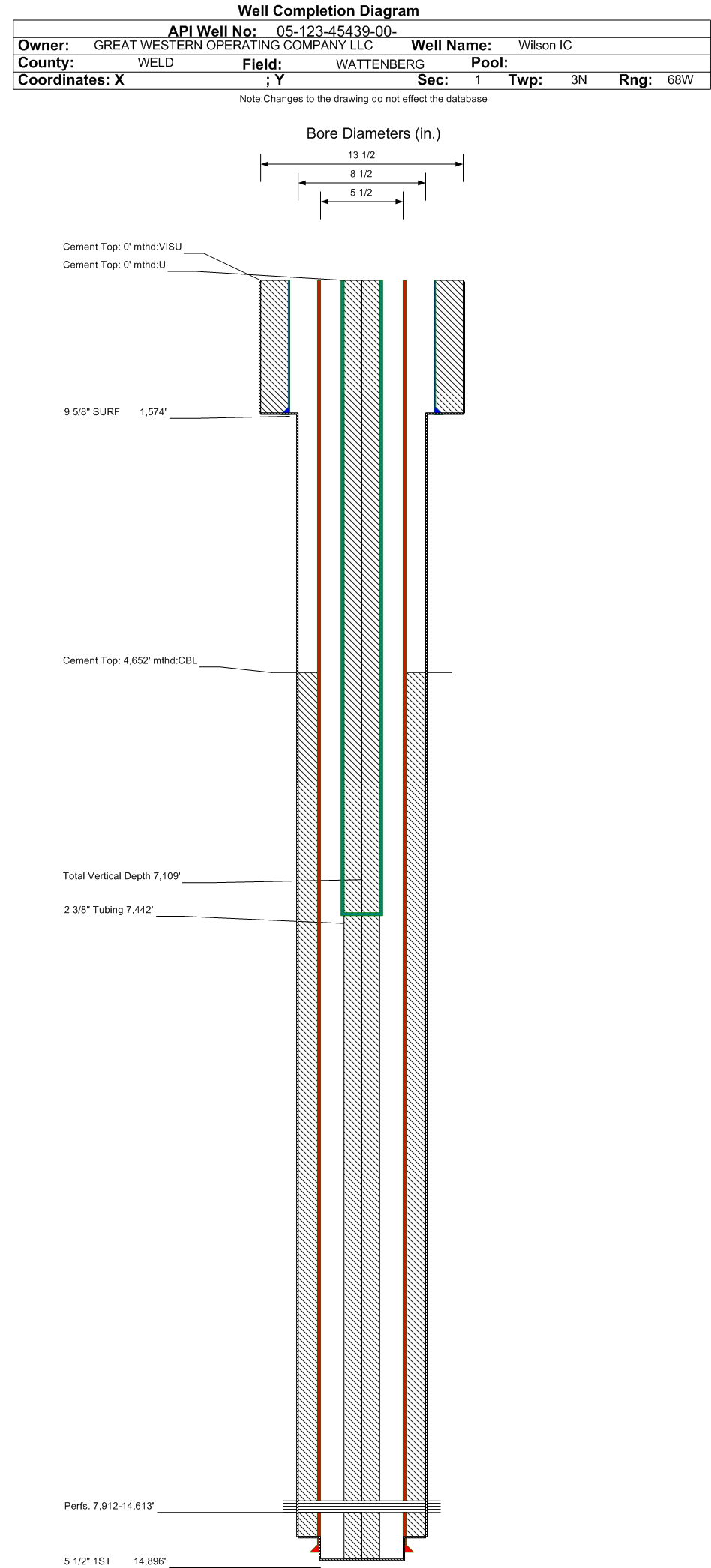

| Wellbore Completed | | Completion Date: | 5/27/2019 | | Spud Date: | 1/1/2019 | Spud Date Is: | ACTUAL | | Measured TD: | 15164 ft. | Measured PB depth: | 14887 ft. | | True Vertical TD: | 7109 ft. | True Vertical PB depth: | 7109 ft. | | Top PZ Location: | Sec:2 Twp: 3N 68W | Footage: 2413 FNL 604 FEL | | Bottom Hole Location: | Sec:3 Twp: 3N 68W | Footage: 2402 FNL 2522 FEL | | Log Types: | Mud, MWD/LWD, CBL (Composite in 123-45441) | | Casing: | String Type: SURF, Hole Size: 13.5 in., Size: 9.625 in., Top: 0 ft., Depth: 1574 ft., Weight: 36 , Citings Type: ACTUAL | | Cement: | Sacks: 727, Top: 0 ft., Bottom: 1574 ft., Determination Method: VISU | | Casing: | String Type: 1ST, Hole Size: 8.5 in., Size: 5.5 in., Top: 0 ft., Depth: 14896 ft., Weight: 17 , Citings Type: ACTUAL | | Cement: | Sacks: 1560, Top: 4652 ft., Bottom: 14896 ft., Determination Method: CBL | | Casing: | String Type: OPEN HOLE, Hole Size: 5.5 in., Size: , Top: 14896 ft., Depth: 15164 ft., Weight: , Citings Type: ACTUAL | | Cement: | Sacks: , Top: , Bottom: , Determination Method: | | Formation | Interval Top | Log Bottom | Cored | DSTs | | PARKMAN | 3661 ft. | 3704 ft. | N | N | | SUSSEX | 4130 ft. | 4292 ft. | N | N | | SHANNON | 4642 ft. | 4677 ft. | N | N | | SHARON SPRINGS | 7205 ft. | | N | N | | NIOBRARA | 7467 ft. | | N | N |
Formation NBRR Formation Classification: OW Status: PR - 1/1/2026 Interval Top: 7912 ft. Interval Bottom: 14613 ft.| Completed Information for Formation NIOBRARA | | 1st Production Date: | 8/12/2019 | Choke Size: | | | Formation Name: | NIOBRARA | Commingled: | No | | Production Method: | | | Open Hole Completion: | No |
| | Formation Treatment | | Treatment Type: | FRACTURE STIMULATION | | Treatment Date: | 6/8/2019 | Treatment End Date: | 6/19/2019 | | Treatment Summary: | 1,548 bbls 15% HCL Acid; 537,450# 100 Mesh Sand; 6,217,485# 20/40 Sand; 143,976 bbls Gelled Fluid; Flowback determined from well test separator | | Total fluid used in treatment (bbls): | 145524 | Max pressure during treatment (psi): | 4953 | | Total gas used in treatment (mcf): | | Fluid density (lbs/gal): | 8.33 | | Type Of gas: | | Number Of staged intervals: | 45 | | Total acid used in treatment (bbls): | 1548 | Min frac gradient (psi/ft): | 0.90 | | Recycled water used in treatment (bbls): | | Total flowback volume recovered (bbls): | 14545 | | Fresh water used in treatment (bbls): | 143976 | Disposition method For flowback: | DISPOSAL | | Total proppant used (lbs): | 6754935 | Green completions techniques utilized: | Yes | | Reason green techniques Not utilized: |
| | Tubing Size: | 2.375 in. | Tubing Setting Depth: | 7442 ft. | | Tubing Packer Depth: | | Tubing Multiple Packer: | | | Open Hole Top: | | Open Hole Bottom: | | | Initial Test Data: | | Test Date: | 8/23/2019 | Test Method: | Flowing | | Hours Tested: | 24 | Gas Type: | WET | | Gas Disposal: | SOLD | |
| Test Type | Measure |
|---|
| BBLS_H2O | 644 | | BBLS_OIL | 573 | | BTU_GAS | 1393 | | CALC_BBLS_H2O | 644 | | CALC_BBLS_OIL | 573 | | CALC_GOR | 1504 | | CALC_MCF_GAS | 862 | | CASING_PRESS | 1900 | | GRAVITY_OIL | 46 | | MCF_GAS | 862 | | TUBING_PRESS | 1550 |
| | Perforation Data: | | Interval Top: | 7912 ft. | # Of Holes: | 1170 | | Interval Bottom: | 14613 ft. | Hole Size: | 0.38 in. |
|
|
|
|
|
|
|
| Reported Plugged | N | |
| Out Of Service Repurposed | N | |
| Out Of Service | N | |
| Inactive Exception | N | |
| Noticed Inactive | N | |
| Defined Inactive | N | |
| Low Producing | N | |
| Total Oil Produced (Barrels) | 971 |
| Total Gas Produced (MCF) | 49476 |
| GOR | 50953 |
| GOR Determination | MCFE |
| Average BOE per Day | 26.030 |
| Average MCFE per Day | 150.945 |
| Federal Financial Assurance | i | |
|
|
