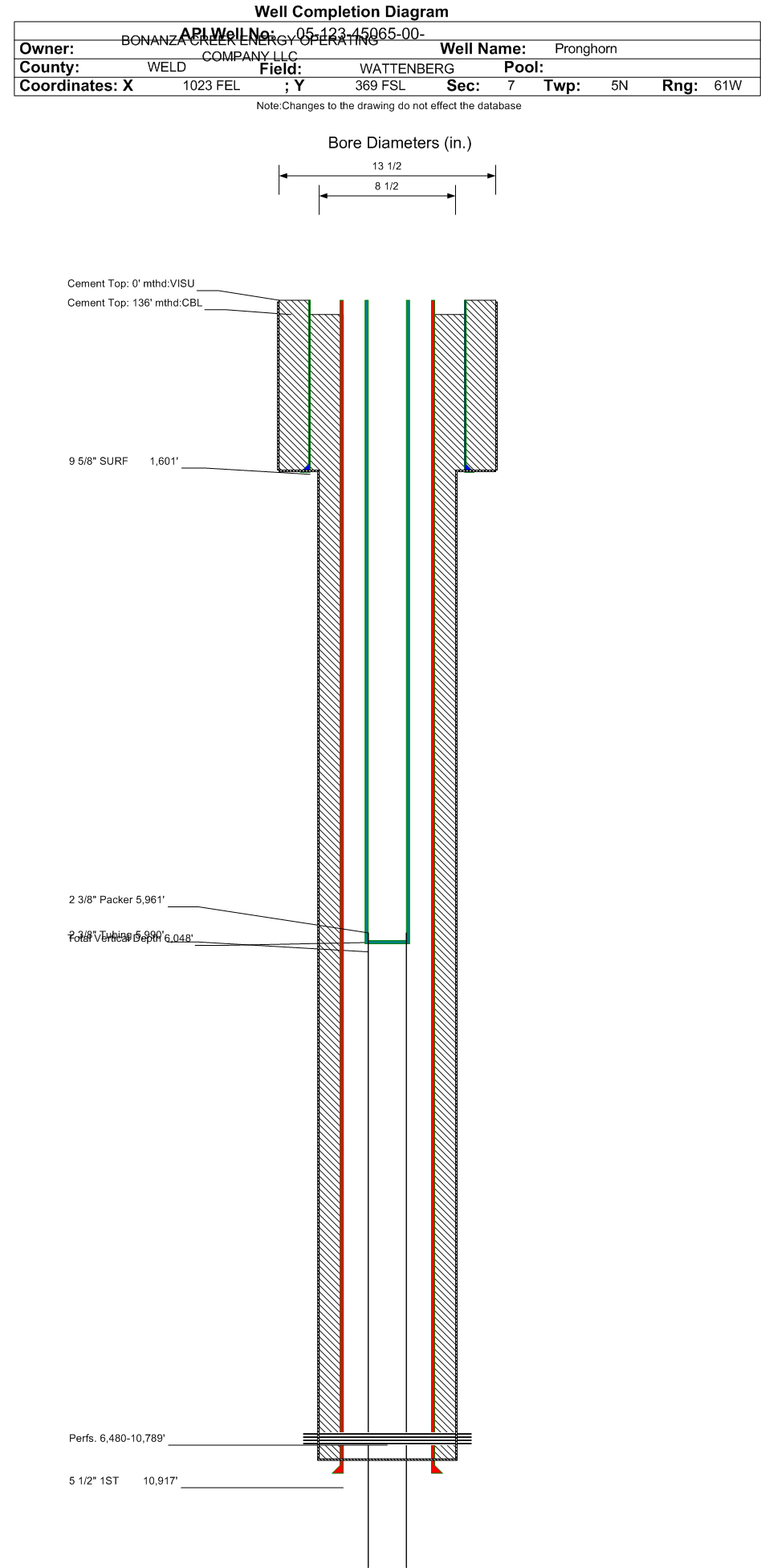

Wellbore #00 Wellbore Classification: OW Status: PR - 9/9/2019 Measured TD: 10927 ft. Vertical TD: 6048 ft.| Wellbore Data for Original Wellbore | Wellbore Classification: OW PR - 9/9/2019 | | Wellbore Permit | HORIZONTAL | | Permit #: | | Expiration Date: | 6/28/2019 | | Proposed Top PZ Location: | Sec:18 Twp: 5N 61W | Footage: 531 FNL 10 FEL | | Bottom Hole Location: | Sec:18 Twp: 5N 61 | Footage: 470 FSL 10 FEL | | Proposed Depth/Form: | 10816 ft. | | Surface Mineral Owner Same: | No | | Mineral Owner: | FEE | Surface Owner: | FEE | | Unit: | | Unit Number: | | | Formation And Spacing: | Code: NBRR , Formation: NIOBRARA , Order: , Unit Acreage: 320, Drill Unit: GWA | | Casing: | String Type: SURF, Hole Size: 13.5 in., Size: 9.625 in., Top: 0 ft., Depth: 1600 ft., Weight: 36 , Citings Type: PLANNED | | Cement: | Sacks: 894, Top: 0 ft., Bottom: 1600 ft. | | Casing: | String Type: 1ST, Hole Size: 8.75 in., Size: 5.5 in., Top: 0 ft., Depth: 10816 ft., Weight: 17 , Citings Type: PLANNED | | Cement: | Sacks: 1540, Top: 1500 ft., Bottom: 10816 ft. |
| | |
| Wellbore Completed | | Completion Date: | 12/19/2018 | | Spud Date: | 11/19/2018 | Spud Date Is: | ACTUAL | | Measured TD: | 10927 ft. | Measured PB depth: | 10874 ft. | | True Vertical TD: | 6048 ft. | True Vertical PB depth: | 6048 ft. | | Top PZ Location: | Sec:18 Twp: 5N 61W | Footage: 469 FNL 18 FEL | | Bottom Hole Location: | Sec:18 Twp: 5N 61W | Footage: 445 FSL 39 FEL | | Log Types: | CBL, Mud, MWD/LWD, (Resistivity on 123-45062). | | Casing: | String Type: SURF, Hole Size: 13.5 in., Size: 9.625 in., Top: 0 ft., Depth: 1601 ft., Weight: 36 , Citings Type: ACTUAL | | Cement: | Sacks: 720, Top: 0 ft., Bottom: 1601 ft., Determination Method: VISU | | Casing: | String Type: 1ST, Hole Size: 8.5 in., Size: 5.5 in., Top: 0 ft., Depth: 10917 ft., Weight: 17 , Citings Type: ACTUAL | | Cement: | Sacks: 1580, Top: 136 ft., Bottom: 10927 ft., Determination Method: CBL | | Formation | Interval Top | Log Bottom | Cored | DSTs | | PARKMAN | 3109 ft. | | | | | SHARON SPRINGS | 5965 ft. | | | | | NIOBRARA | 6168 ft. | | | |
Formation NBRR Formation Classification: OW Status: PR - 9/9/2019 Interval Top: 6480 ft. Interval Bottom: 10789 ft.| Completed Information for Formation NIOBRARA | | 1st Production Date: | 9/4/2019 | Choke Size: | | | Formation Name: | NIOBRARA | Commingled: | No | | Production Method: | | | Open Hole Completion: | No |
| | Formation Treatment | | Treatment Type: | FRACTURE STIMULATION | | Treatment Date: | 4/17/2019 | Treatment End Date: | 4/22/2019 | | Treatment Summary: | 34-stage plug-and-perf completion;
225905 total bbls fluid pumped: 225500 bbls fresh water (slurry) and 405 bbls 15% HCl acid;
9945000 total lbs proppant pumped: 9605000 lbs 40/70 Ottawa Sand and 340000 lbs 100 mesh. | | Total fluid used in treatment (bbls): | 225905 | Max pressure during treatment (psi): | 6792 | | Total gas used in treatment (mcf): | | Fluid density (lbs/gal): | 8.34 | | Type Of gas: | | Number Of staged intervals: | 34 | | Total acid used in treatment (bbls): | 405 | Min frac gradient (psi/ft): | 0.91 | | Recycled water used in treatment (bbls): | | Total flowback volume recovered (bbls): | 14303 | | Fresh water used in treatment (bbls): | 225500 | Disposition method For flowback: | DISPOSAL | | Total proppant used (lbs): | 9945000 | Green completions techniques utilized: | Yes | | Reason green techniques Not utilized: |
| | Tubing Size: | 2.375 in. | Tubing Setting Depth: | 5990 ft. | | Tubing Packer Depth: | 5981 ft. | Tubing Multiple Packer: | | | Open Hole Top: | | Open Hole Bottom: | | | Initial Test Data: | | Test Date: | 9/9/2019 | Test Method: | Flowing | | Hours Tested: | 24 | Gas Type: | WET | | Gas Disposal: | SOLD | |
| Test Type | Measure |
|---|
| BBLS_H2O | 278 | | BBLS_OIL | 325 | | BTU_GAS | 1357 | | CALC_BBLS_H2O | 278 | | CALC_BBLS_OIL | 325 | | CALC_GOR | 317 | | CALC_MCF_GAS | 103 | | CASING_PRESS | 293 | | GRAVITY_OIL | 39 | | MCF_GAS | 103 | | TUBING_PRESS | 336 |
| | Perforation Data: | | Interval Top: | 6480 ft. | # Of Holes: | 918 | | Interval Bottom: | 10789 ft. | Hole Size: | 0.35 in. |
|
|
|
|
|
|
|
| Reported Plugged | N | |
| Out Of Service Repurposed | N | |
| Out Of Service | N | |
| Inactive Exception | N | |
| Noticed Inactive | N | |
| Defined Inactive | N | |
| Low Producing | N | |
| Total Oil Produced (Barrels) | 7476 |
| Total Gas Produced (MCF) | 31333 |
| GOR | 4191 |
| GOR Determination | BOE |
| Average BOE per Day | 35.325 |
| Average MCFE per Day | 204.878 |
| Federal Financial Assurance | i | |
|
|
