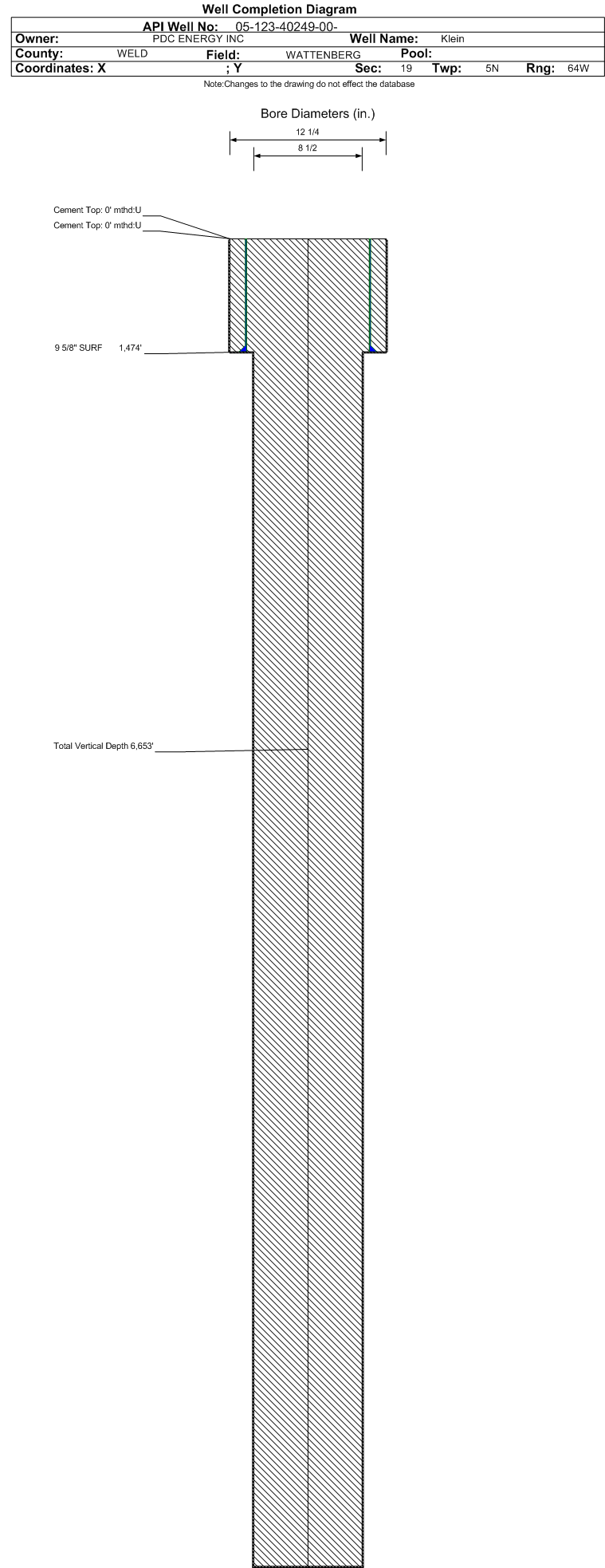

Wellbore #00 Wellbore Classification: OW Status: DG - 10/4/2016 Measured TD: 17302 ft. Vertical TD: 6653 ft.| Wellbore Data for Original Wellbore | Wellbore Classification: OW DG - 10/4/2016 | | Wellbore Permit | HORIZONTAL | | Permit #: | | Expiration Date: | 5/3/2018 | | Proposed Top PZ Location: | Sec:21 Twp: 5N 64W | Footage: 1203 FNL 2306 FEL | | Bottom Hole Location: | Sec:21 Twp: 5N 64W | Footage: 1203 FNL 2306 FEL | | Proposed Depth/Form: | 17269 ft. | | Surface Mineral Owner Same: | No | | Mineral Owner: | FEE | Surface Owner: | FEE | | Unit: | | Unit Number: | | | Formation And Spacing: | Code: NBRR , Formation: NIOBRARA , Order: , Unit Acreage: 480, Drill Unit: GWA | | Casing: | String Type: SURF, Hole Size: 12.5 in., Size: 9.625 in., Top: 0 ft., Depth: 1425 ft., Weight: 36 , Citings Type: PLANNED | | Cement: | Sacks: 920, Top: 0 ft., Bottom: 1425 ft. | | Casing: | String Type: 1ST, Hole Size: 8.5 in., Size: 5.5 in., Top: 0 ft., Depth: 17269 ft., Weight: 20 , Citings Type: PLANNED | | Cement: | Sacks: 2035, Top: 0 ft., Bottom: 17269 ft. |
| | |
| Wellbore Completed | | Completion Date: | 10/6/2016 | | Spud Date: | 10/5/2016 | Spud Date Is: | ACTUAL | | Measured TD: | 17302 ft. | Measured PB depth: | 17302 ft. | | True Vertical TD: | 6653 ft. | True Vertical PB depth: | 6653 ft. | | Bottom Hole Location: | Sec:21 Twp: 5N 64W | Footage: 1203 FNL 2306 FEL | | Log Types: | MWD (DIL in 123-20129) | | Casing: | String Type: SURF, Hole Size: 12.25 in., Size: 9.625 in., Top: 0 ft., Depth: 1474 ft., Weight: 36 , Citings Type: ACTUAL | | Cement: | Sacks: 680, Top: 0 ft., Bottom: 1474 ft., Determination Method: VISU | | Casing: | String Type: 1ST, Hole Size: 8.5 in., Size: , Top: 1474 ft., Depth: 17302 ft., Weight: , Citings Type: ACTUAL | | Cement: | Sacks: , Top: , Bottom: , Determination Method: | | Additional Cement: | String Type: 1ST , Top: 4447 ft., Depth: 5263 ft., Bottom: 5263 ft., Sacks: 200, Method: 1 INCH | | Formation | Interval Top | Log Bottom | Cored | DSTs | | PARKMAN | 3628 ft. | | | | | SUSSEX | 4262 ft. | | | | | SHANNON | 4992 ft. | | | | | SHARON SPRINGS | 6535 ft. | | | | | NIOBRARA | 6712 ft. | | | | | No formation data to display. |
Sidetrack #01 Wellbore Classification: OW Status: PR - 4/4/2017 Measured TD: 17317 ft. Vertical TD: 6654 ft.| Wellbore Data for Sidetrack #01 | Wellbore Classification: OW PR - 4/4/2017 | | Wellbore Permit | HORIZONTAL | | Permit #: | | Expiration Date: | 10/20/2018 | | Proposed Top PZ Location: | Sec:19 Twp: 5N 64W | Footage: 1133 FNL 2050 FEL | | Bottom Hole Location: | Sec:21 Twp: 5N 64W | Footage: 1167 FNL 2307 FEL | | Proposed Depth/Form: | 17269 ft. | | Surface Mineral Owner Same: | No | | Mineral Owner: | FEE | Surface Owner: | FEE | | Unit: | | Unit Number: | | | Formation And Spacing: | Code: NBRR , Formation: NIOBRARA , Order: , Unit Acreage: 720, Drill Unit: GWA | | Casing: | String Type: SURF, Hole Size: 12.25 in., Size: 9.625 in., Top: 0 ft., Depth: 1451 ft., Weight: 36 , Citings Type: PLANNED | | Cement: | Sacks: 680, Top: 0 ft., Bottom: 1451 ft. | | Casing: | String Type: 1ST, Hole Size: 8.5 in., Size: 5.5 in., Top: 0 ft., Depth: 17269 ft., Weight: 20 , Citings Type: PLANNED | | Cement: | Sacks: 2035, Top: 0 ft., Bottom: 17269 ft. |
| | |
| Wellbore Completed | | Completion Date: | 11/7/2016 | | Spud Date: | 10/5/2016 | Spud Date Is: | ACTUAL | | Measured TD: | 17317 ft. | Measured PB depth: | 13811 ft. | | True Vertical TD: | 6654 ft. | True Vertical PB depth: | 6693 ft. | | Top PZ Location: | Sec:19 Twp: 5N 64W | Footage: 1133 FNL 2050 FEL | | Bottom Hole Location: | Sec:21 Twp: 5N 64W | Footage: 1167 FNL 2307 FEL | | Log Types: | CBL, MWD (DIL in 123-20129) | | Casing: | String Type: SURF, Hole Size: 12.25 in., Size: 9.625 in., Top: 0 ft., Depth: 1474 ft., Weight: 36 , Citings Type: ACTUAL | | Cement: | Sacks: 680, Top: 0 ft., Bottom: 1474 ft., Determination Method: VISU | | Casing: | String Type: 1ST, Hole Size: 8.5 in., Size: 5.5 in., Top: 0 ft., Depth: 13836 ft., Weight: 20 , Citings Type: ACTUAL | | Cement: | Sacks: 1998, Top: 0 ft., Bottom: 13836 ft., Determination Method: VISU | | Formation | Interval Top | Log Bottom | Cored | DSTs | | PARKMAN | 3628 ft. | | | | | SUSSEX | 4262 ft. | | | | | SHANNON | 4992 ft. | | | | | SHARON SPRINGS | 6535 ft. | | | | | NIOBRARA | 6712 ft. | | | |
Formation NBRR Formation Classification: OW Status: PR - 4/4/2017 Interval Top: 7020 ft. Interval Bottom: 13769 ft.| Completed Information for Formation NIOBRARA | | 1st Production Date: | 3/22/2017 | Choke Size: | | | Formation Name: | NIOBRARA | Commingled: | No | | Production Method: | | | Open Hole Completion: | No |
| | Formation Treatment | | Treatment Type: | FRACTURE STIMULATION | | Treatment Date: | 2/15/2017 | Treatment End Date: | 2/26/2017 | | Treatment Summary: | 49 Stage Plug and Perf, Perf'd from 7020-13650, 1 Toe Sleeve from 13765-13769
Total Fluid: 154,786 bbls
Gel Fluid: 100,704 bbls
Slickwater Fluid: 52,664
15% HCl Acid: 1,418 bbls
Total Proppant: 8,646,632 lbs
Silica Proppant: 8,646,632 lbs
Method for determining flowback: measuring flowback tank volumes | | Total fluid used in treatment (bbls): | 154786 | Max pressure during treatment (psi): | 4119 | | Total gas used in treatment (mcf): | | Fluid density (lbs/gal): | 8.34 | | Type Of gas: | | Number Of staged intervals: | 49 | | Total acid used in treatment (bbls): | 1418 | Min frac gradient (psi/ft): | 0.91 | | Recycled water used in treatment (bbls): | | Total flowback volume recovered (bbls): | 10548 | | Fresh water used in treatment (bbls): | 153368 | Disposition method For flowback: | DISPOSAL | | Total proppant used (lbs): | 8646632 | Green completions techniques utilized: | Yes | | Reason green techniques Not utilized: |
| | Tubing Size: | 2.375 in. | Tubing Setting Depth: | 6876 ft. | | Tubing Packer Depth: | | Tubing Multiple Packer: | | | Open Hole Top: | | Open Hole Bottom: | | | Initial Test Data: | | Test Date: | 4/4/2017 | Test Method: | Flowing | | Hours Tested: | 24 | Gas Type: | WET | | Gas Disposal: | SOLD | |
| Test Type | Measure |
|---|
| BBLS_H2O | 389 | | BBLS_OIL | 364 | | BTU_GAS | 1351 | | CALC_BBLS_H2O | 389 | | CALC_BBLS_OIL | 364 | | CALC_GOR | 4574 | | CALC_MCF_GAS | 1665 | | CASING_PRESS | 2782 | | GRAVITY_OIL | 50 | | MCF_GAS | 1665 | | TUBING_PRESS | 1942 |
| | Perforation Data: | | Interval Top: | 7020 ft. | # Of Holes: | 1716 | | Interval Bottom: | 13769 ft. | Hole Size: | 0.42 in. |
|
|
|
|
|
|
|
| Reported Plugged | N | |
| Out Of Service Repurposed | N | |
| Out Of Service | N | |
| Inactive Exception | N | |
| Noticed Inactive | N | |
| Defined Inactive | N | |
| Low Producing | N | |
| Total Oil Produced (Barrels) | 6052 |
| Total Gas Produced (MCF) | 118237 |
| GOR | 19536 |
| GOR Determination | MCFE |
| Average BOE per Day | 72.391 |
| Average MCFE per Day | 419.869 |
| Federal Financial Assurance | i | |
|
|
