Wellbore #00 Wellbore Classification: OW Status: PR - 1/2/2026 Measured TD: 17440 ft. Vertical TD: 6809 ft.| Wellbore Data for Original Wellbore | Wellbore Classification: OW PR - 1/2/2026 | | Wellbore Permit | HORIZONTAL | | Permit #: | | Expiration Date: | 5/3/2018 | | Proposed Top PZ Location: | Sec:19 Twp: 5N 64W | Footage: 26 FNL 1826 FEL | | Bottom Hole Location: | Sec:21 Twp: 5N 64W | Footage: 105 FNL 2306 FEL | | Proposed Depth/Form: | 17445 ft. | | Surface Mineral Owner Same: | No | | Mineral Owner: | FEE | Surface Owner: | FEE | | Unit: | | Unit Number: | | | Formation And Spacing: | Code: CODL , Formation: CODELL , Order: , Unit Acreage: 720, Drill Unit: GWA | | Casing: | String Type: SURF, Hole Size: 12.5 in., Size: 9.625 in., Top: 0 ft., Depth: 1425 ft., Weight: 36 , Citings Type: PLANNED | | Cement: | Sacks: 920, Top: 0 ft., Bottom: 1425 ft. | | Casing: | String Type: 1ST, Hole Size: 8.5 in., Size: 5.5 in., Top: 0 ft., Depth: 17445 ft., Weight: 20 , Citings Type: PLANNED | | Cement: | Sacks: 2035, Top: 0 ft., Bottom: 17445 ft. |
| | |

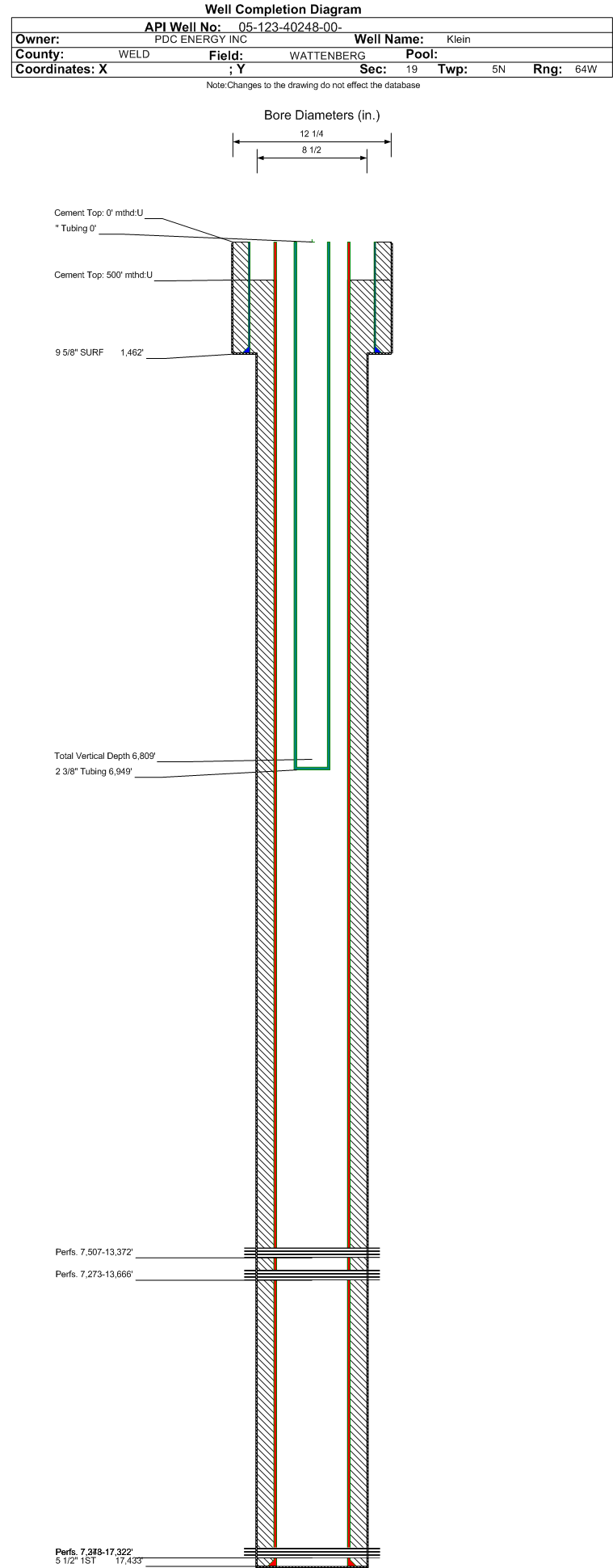

| Wellbore Completed | | Completion Date: | 12/10/2016 | | Spud Date: | 11/22/2016 | Spud Date Is: | ACTUAL | | Measured TD: | 17440 ft. | Measured PB depth: | 17419 ft. | | True Vertical TD: | 6809 ft. | True Vertical PB depth: | 6809 ft. | | Top PZ Location: | Sec:19 Twp: 5N 64W | Footage: 29 FNL 1920 FEL | | Bottom Hole Location: | Sec:21 Twp: 5N 64W | Footage: 79 FNL 2966 FWL | | Log Types: | CBL, MWD, Cased hole neutron (DIL in 123-20129) | | Casing: | String Type: SURF, Hole Size: 12.25 in., Size: 8.625 in., Top: 0 ft., Depth: 1462 ft., Weight: 36 , Citings Type: ACTUAL | | Cement: | Sacks: 680, Top: 0 ft., Bottom: 1462 ft., Determination Method: VISU | | Casing: | String Type: 1ST, Hole Size: 8.5 in., Size: 5.5 in., Top: 0 ft., Depth: 17433 ft., Weight: 20 , Citings Type: ACTUAL | | Cement: | Sacks: 2130, Top: 710 ft., Bottom: 17433 ft., Determination Method: CBL | | Formation | Interval Top | Log Bottom | Cored | DSTs | | PARKMAN | 3677 ft. | | | | | SUSSEX | 4264 ft. | | | | | SHANNON | 4953 ft. | | | | | SHARON SPRINGS | 6511 ft. | | | | | NIOBRARA | 6679 ft. | | | | | FORT HAYS | 7233 ft. | | | | | CODELL | 7345 ft. | | | | | CARLILE | 7533 ft. | | | |
Formation CARL Formation Classification: OW Status: CM - 1/2/2026 Interval Top: 7555 ft. Interval Bottom: 17371 ft.| Completed Information for Formation CARLILE | | 1st Production Date: | 3/18/2017 | Choke Size: | | | Formation Name: | CARLILE | Commingled: | Yes | | Production Method: | | | Open Hole Completion: | No |
| | Formation Treatment | | Treatment Type: | | | Treatment Date: | 8/14/2017 | Treatment End Date: | N/A | | Treatment Summary: | Completed Depths: 7507-7848, 9726-9866, 13251-13372 | | Total fluid used in treatment (bbls): | | Max pressure during treatment (psi): | | | Total gas used in treatment (mcf): | | Fluid density (lbs/gal): | | | Type Of gas: | | Number Of staged intervals: | | | Total acid used in treatment (bbls): | | Min frac gradient (psi/ft): | | | Recycled water used in treatment (bbls): | | Total flowback volume recovered (bbls): | | | Fresh water used in treatment (bbls): | | Disposition method For flowback: | | | Total proppant used (lbs): | | Green completions techniques utilized: | -- | | Reason green techniques Not utilized: |
| | Tubing Size: | | Tubing Setting Depth: | | | Tubing Packer Depth: | | Tubing Multiple Packer: | | | Open Hole Top: | | Open Hole Bottom: | | | No Initial Test Data was found for formation CARL. |
| | Perforation Data: | | Interval Top: | 7555 ft. | # Of Holes: | 2688 | | Interval Bottom: | 17371 ft. | Hole Size: | 0.42 in. |
|
Formation CODL Formation Classification: OW Status: CM - 1/2/2026 Interval Top: 7367 ft. Interval Bottom: 7533 ft.| Completed Information for Formation CODELL | | 1st Production Date: | 3/8/2017 | Choke Size: | | | Formation Name: | CODELL | Commingled: | Yes | | Production Method: | | | Open Hole Completion: | No |
| | Formation Treatment | | Treatment Type: | | | Treatment Date: | 8/14/2017 | Treatment End Date: | N/A | | Treatment Summary: | Completed Depths: 7348-7507, 7848-9726, 9866-10123, 10442-13251, 13372-13656, 13666-17322 | | Total fluid used in treatment (bbls): | | Max pressure during treatment (psi): | | | Total gas used in treatment (mcf): | | Fluid density (lbs/gal): | | | Type Of gas: | | Number Of staged intervals: | | | Total acid used in treatment (bbls): | | Min frac gradient (psi/ft): | | | Recycled water used in treatment (bbls): | | Total flowback volume recovered (bbls): | | | Fresh water used in treatment (bbls): | | Disposition method For flowback: | | | Total proppant used (lbs): | | Green completions techniques utilized: | -- | | Reason green techniques Not utilized: |
| | Tubing Size: | | Tubing Setting Depth: | | | Tubing Packer Depth: | | Tubing Multiple Packer: | | | Open Hole Top: | | Open Hole Bottom: | | | No Initial Test Data was found for formation CODL. |
| | Perforation Data: | | Interval Top: | 7367 ft. | # Of Holes: | 84 | | Interval Bottom: | 7533 ft. | Hole Size: | 0.42 in. |
|
Formation CLCDFH Formation Classification: OW Status: PR - 1/2/2026 Interval Top: 7273 ft. Interval Bottom: 17371 ft.| Completed Information for Formation CARLILE-CODELL-FORT HAYS | | 1st Production Date: | 3/8/2017 | Choke Size: | | | Formation Name: | CARLILE-CODELL-FORT HAYS | Commingled: | No | | Production Method: | | | Open Hole Completion: | No |
| | Formation Treatment | | Treatment Type: | FRACTURE STIMULATION | | Treatment Date: | 2/15/2017 | Treatment End Date: | 3/3/2017 | | Treatment Summary: | 72 Stage Plug and Perf, Perf'd from 7273-17207, 1 Toe Sleeve from 17318-17322
Total Fluid: 253,766 bbls
Gel Fluid: 171,215 bbls
Slickwater Fluid: 80,309 bbls
15% HCl Acid: 2,242 bbls
Total Proppant: 11,674,430 lbs
Silica Proppant: 11,674,430 lbs
Method for determining flowback: measuring flowback tank volumes | | Total fluid used in treatment (bbls): | 253766 | Max pressure during treatment (psi): | 5557 | | Total gas used in treatment (mcf): | | Fluid density (lbs/gal): | 8.34 | | Type Of gas: | | Number Of staged intervals: | 72 | | Total acid used in treatment (bbls): | 2242 | Min frac gradient (psi/ft): | 0.91 | | Recycled water used in treatment (bbls): | | Total flowback volume recovered (bbls): | 10043 | | Fresh water used in treatment (bbls): | 251524 | Disposition method For flowback: | DISPOSAL | | Total proppant used (lbs): | 11674430 | Green completions techniques utilized: | Yes | | Reason green techniques Not utilized: |
| | Tubing Size: | | Tubing Setting Depth: | | | Tubing Packer Depth: | | Tubing Multiple Packer: | | | Open Hole Top: | | Open Hole Bottom: | | | Initial Test Data: | | Test Date: | N/A | Test Method: | | | Hours Tested: | | Gas Type: | | | Gas Disposal: | | |
| Test Type | Measure |
|---|
| BBLS_H2O | 612 | | BBLS_OIL | 308 | | BTU_GAS | 1351 | | CALC_BBLS_H2O | 612 | | CALC_BBLS_OIL | 308 | | CALC_GOR | 1785 | | CALC_MCF_GAS | 550 | | CASING_PRESS | 2614 | | GRAVITY_OIL | 50 | | MCF_GAS | 550 | | TUBING_PRESS | 1543 |
| | Perforation Data: | | Interval Top: | 7273 ft. | # Of Holes: | 2796 | | Interval Bottom: | 17371 ft. | Hole Size: | 0.42 in. |
|
Formation FTHYS Formation Classification: OW Status: CM - 1/2/2026 Interval Top: 7273 ft. Interval Bottom: 7322 ft.| Completed Information for Formation FORT HAYS | | 1st Production Date: | 3/8/2017 | Choke Size: | | | Formation Name: | FORT HAYS | Commingled: | Yes | | Production Method: | | | Open Hole Completion: | No |
| | Formation Treatment | | Treatment Type: | | | Treatment Date: | 8/14/2017 | Treatment End Date: | N/A | | Treatment Summary: | Completed Depths: 7273-7348, 10123-10442, 13656-13666 | | Total fluid used in treatment (bbls): | | Max pressure during treatment (psi): | | | Total gas used in treatment (mcf): | | Fluid density (lbs/gal): | | | Type Of gas: | | Number Of staged intervals: | | | Total acid used in treatment (bbls): | | Min frac gradient (psi/ft): | | | Recycled water used in treatment (bbls): | | Total flowback volume recovered (bbls): | | | Fresh water used in treatment (bbls): | | Disposition method For flowback: | | | Total proppant used (lbs): | | Green completions techniques utilized: | -- | | Reason green techniques Not utilized: |
| | Tubing Size: | | Tubing Setting Depth: | | | Tubing Packer Depth: | | Tubing Multiple Packer: | | | Open Hole Top: | | Open Hole Bottom: | | | No Initial Test Data was found for formation FTHYS. |
| | Perforation Data: | | Interval Top: | 7273 ft. | # Of Holes: | 24 | | Interval Bottom: | 7322 ft. | Hole Size: | 0.42 in. |
|
|
|
|
|
|
|
| Reported Plugged | N | |
| Out Of Service Repurposed | N | |
| Out Of Service | N | |
| Inactive Exception | N | |
| Noticed Inactive | N | |
| Defined Inactive | N | |
| Low Producing | N | |
| Total Oil Produced (Barrels) | 3681 |
| Total Gas Produced (MCF) | 19048 |
| GOR | 5174 |
| GOR Determination | BOE |
| Average BOE per Day | 19.157 |
| Average MCFE per Day | 111.094 |
| Federal Financial Assurance | i | |
|
|
