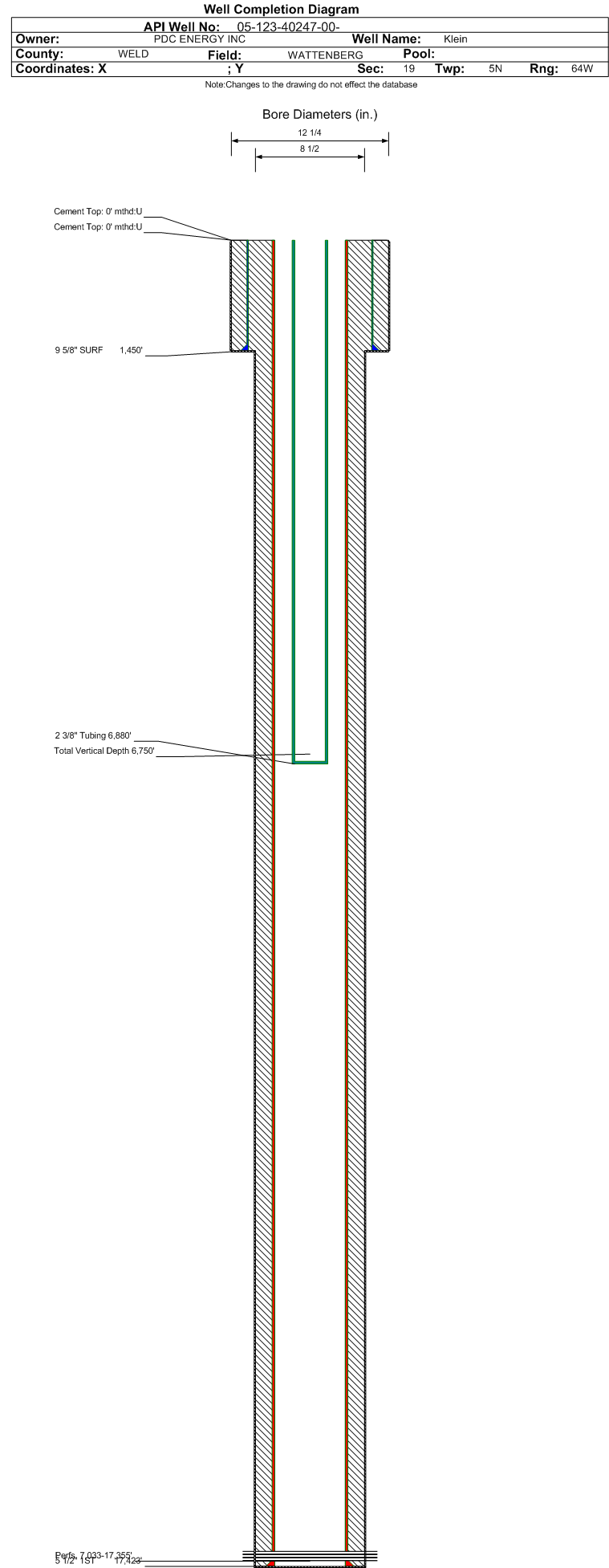

Wellbore #00 Wellbore Classification: OW Status: PR - 3/29/2017 Measured TD: 17429 ft. Vertical TD: 6750 ft.| Wellbore Data for Original Wellbore | Wellbore Classification: OW PR - 3/29/2017 | | Wellbore Permit | HORIZONTAL | | Permit #: | | Expiration Date: | 5/3/2018 | | Proposed Top PZ Location: | Sec:19 Twp: 5N 64W | Footage: 764 FNL 2109 FEL | | Bottom Hole Location: | Sec:21 Twp: 5N 64W | Footage: 829 FNL 2305 FEL | | Proposed Depth/Form: | 17329 ft. | | Surface Mineral Owner Same: | No | | Mineral Owner: | FEE | Surface Owner: | FEE | | Unit: | | Unit Number: | | | Formation And Spacing: | Code: NBRR , Formation: NIOBRARA , Order: , Unit Acreage: 360, Drill Unit: GWA | | Casing: | String Type: SURF, Hole Size: 12.5 in., Size: 9.625 in., Top: 0 ft., Depth: 1425 ft., Weight: 36 , Citings Type: PLANNED | | Cement: | Sacks: 920, Top: 0 ft., Bottom: 1425 ft. | | Casing: | String Type: 1ST, Hole Size: 8.5 in., Size: 5.5 in., Top: 0 ft., Depth: 17329 ft., Weight: 20 , Citings Type: PLANNED | | Cement: | Sacks: 2035, Top: 0 ft., Bottom: 17329 ft. |
| | |
| Wellbore Completed | | Completion Date: | 10/5/2016 | | Spud Date: | 9/23/2016 | Spud Date Is: | ACTUAL | | Measured TD: | 17429 ft. | Measured PB depth: | 17399 ft. | | True Vertical TD: | 6750 ft. | True Vertical PB depth: | 6752 ft. | | Top PZ Location: | Sec:19 Twp: 5N 64W | Footage: 764 FNL 2109 FEL | | Bottom Hole Location: | Sec:21 Twp: 5N 64W | Footage: 829 FNL 2305 FEL | | Log Types: | CBL, MWD (DIL in 123-20129) | | Casing: | String Type: SURF, Hole Size: 12.25 in., Size: 9.625 in., Top: 0 ft., Depth: 1450 ft., Weight: 36 , Citings Type: ACTUAL | | Cement: | Sacks: 670, Top: 0 ft., Bottom: 1450 ft., Determination Method: VISU | | Casing: | String Type: 1ST, Hole Size: 8.5 in., Size: 5.5 in., Top: 0 ft., Depth: 17423 ft., Weight: 20 , Citings Type: ACTUAL | | Cement: | Sacks: 2501, Top: 0 ft., Bottom: 17423 ft., Determination Method: VISU | | Formation | Interval Top | Log Bottom | Cored | DSTs | | PARKMAN | 3589 ft. | | | | | SUSSEX | 4383 ft. | | | | | SHANNON | 4986 ft. | | | | | SHARON SPRINGS | 6463 ft. | | | | | NIOBRARA | 6636 ft. | | | |
Formation NBRR Formation Classification: OW Status: PR - 3/29/2017 Interval Top: 7033 ft. Interval Bottom: 17355 ft.| Completed Information for Formation NIOBRARA | | 1st Production Date: | 3/18/2017 | Choke Size: | | | Formation Name: | NIOBRARA | Commingled: | No | | Production Method: | | | Open Hole Completion: | No |
| | Formation Treatment | | Treatment Type: | FRACTURE STIMULATION | | Treatment Date: | 2/15/2017 | Treatment End Date: | 3/3/2017 | | Treatment Summary: | 74 Stage Plug and Perf, Perf'd from 7033-17235, 1 Toe Sleeve from 17352-17355
Total Fluid: 252,550 bbls
Gel Fluid: 165,541 bbls
Slickwater Fluid: 84,911 bbls
15% HCl Acid: 2,098 bbls
Total Proppand: 13,121,460 lbs
Silica Proppant: 13,121,460 lbs
Method for determining flowback: measuring flowback tank volumes | | Total fluid used in treatment (bbls): | 252550 | Max pressure during treatment (psi): | 4956 | | Total gas used in treatment (mcf): | | Fluid density (lbs/gal): | 8.34 | | Type Of gas: | | Number Of staged intervals: | 74 | | Total acid used in treatment (bbls): | 2098 | Min frac gradient (psi/ft): | 0.94 | | Recycled water used in treatment (bbls): | | Total flowback volume recovered (bbls): | 16927 | | Fresh water used in treatment (bbls): | 250452 | Disposition method For flowback: | DISPOSAL | | Total proppant used (lbs): | 13121460 | Green completions techniques utilized: | Yes | | Reason green techniques Not utilized: |
| | Tubing Size: | 2.375 in. | Tubing Setting Depth: | 6880 ft. | | Tubing Packer Depth: | | Tubing Multiple Packer: | | | Open Hole Top: | | Open Hole Bottom: | | | Initial Test Data: | | Test Date: | 3/29/2017 | Test Method: | Flowing | | Hours Tested: | 24 | Gas Type: | WET | | Gas Disposal: | SOLD | |
| Test Type | Measure |
|---|
| BBLS_H2O | 594 | | BBLS_OIL | 419 | | BTU_GAS | 1351 | | CALC_BBLS_H2O | 594 | | CALC_BBLS_OIL | 419 | | CALC_GOR | 3281 | | CALC_MCF_GAS | 1375 | | CASING_PRESS | 2798 | | GRAVITY_OIL | 50 | | MCF_GAS | 1375 | | TUBING_PRESS | 2066 |
| | Perforation Data: | | Interval Top: | 7033 ft. | # Of Holes: | 2628 | | Interval Bottom: | 17355 ft. | Hole Size: | 0.42 in. |
|
|
|
|
|
|
|
| Reported Plugged | N | |
| Out Of Service Repurposed | N | |
| Out Of Service | N | |
| Inactive Exception | N | |
| Noticed Inactive | N | |
| Defined Inactive | N | |
| Low Producing | N | |
| Total Oil Produced (Barrels) | 8399 |
| Total Gas Produced (MCF) | 106158 |
| GOR | 12639 |
| GOR Determination | BOE |
| Average BOE per Day | 73.131 |
| Average MCFE per Day | 424.131 |
| Federal Financial Assurance | i | |
|
|
