Wellbore #00 Wellbore Classification: OW Status: PR - 12/1/2023 Measured TD: 13296 ft. Vertical TD: 7302 ft.| Wellbore Data for Original Wellbore | Wellbore Classification: OW PR - 12/1/2023 | | Wellbore Permit | HORIZONTAL | | Permit #: | | Expiration Date: | 5/25/2016 | | Proposed Top PZ Location: | Sec:25 Twp: 3N 66W | Footage: 360 FNL 790 FEL | | Bottom Hole Location: | Sec:24 Twp: 3N 66W | Footage: 1 FNL 790 FEL | | Proposed Depth/Form: | 13434 ft. | | Surface Mineral Owner Same: | No | | Mineral Owner: | FEE | Surface Owner: | FEE | | Unit: | | Unit Number: | | | Formation And Spacing: | Code: NBRR , Formation: NIOBRARA , Order: , Unit Acreage: 240, Drill Unit: GWA | | Casing: | String Type: SURF, Hole Size: 13.5 in., Size: 9.625 in., Top: 0 ft., Depth: 1161 ft., Weight: 36 , Citings Type: PLANNED | | Cement: | Sacks: 440, Top: 0 ft., Bottom: 1161 ft. | | Casing: | String Type: 1ST, Hole Size: 8.75 in., Size: 7 in., Top: 0 ft., Depth: 7793 ft., Weight: 26 , Citings Type: PLANNED | | Cement: | Sacks: 820, Top: 0 ft., Bottom: 7793 ft. | | Casing: | String Type: 1ST LINER, Hole Size: 6.125 in., Size: 4.5 in., Top: 6796 ft., Depth: 13434 ft., Weight: 11.6 , Citings Type: PLANNED | | Cement: | Sacks: , Top: , Bottom: |
| | |

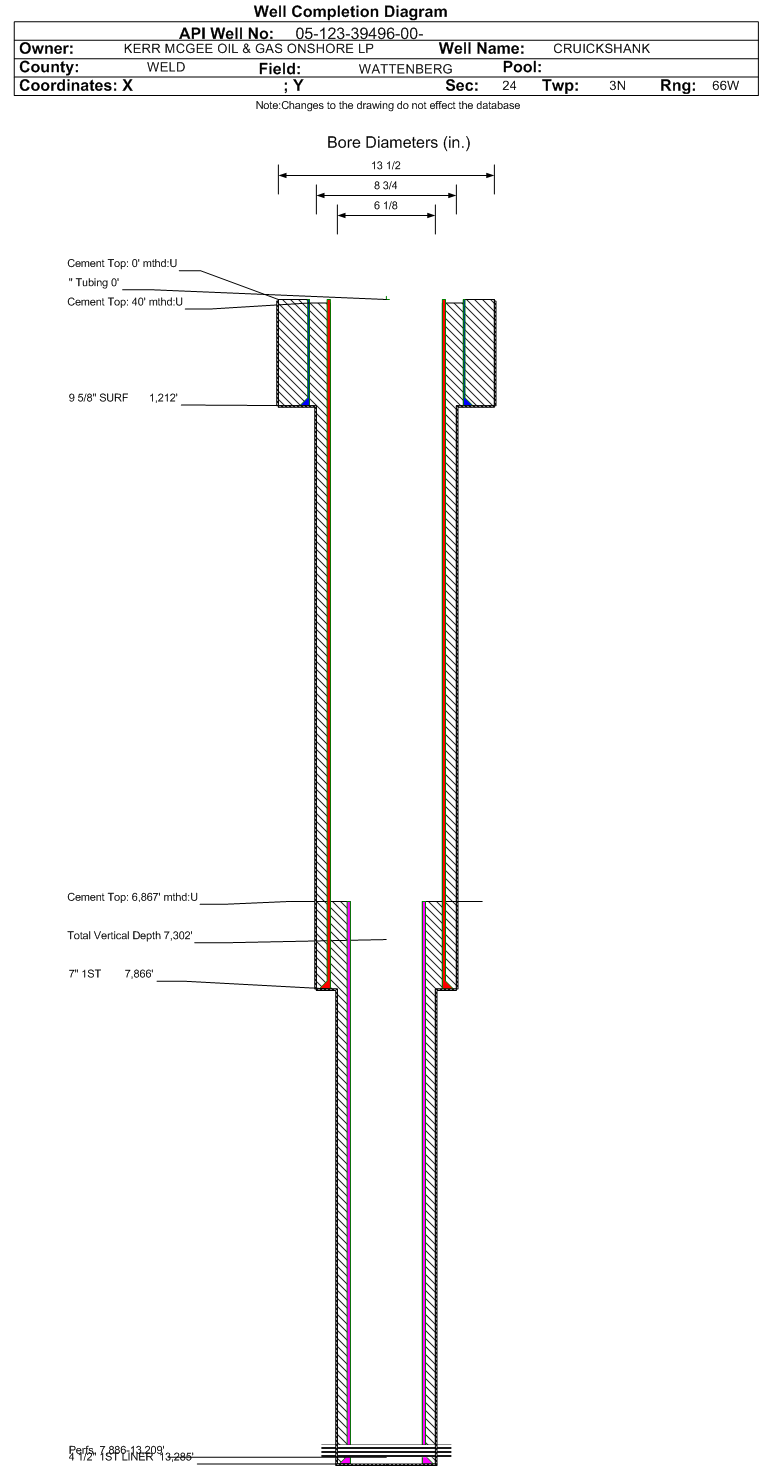

| Wellbore Completed | | Completion Date: | 9/28/2014 | | Spud Date: | 7/12/2014 | Spud Date Is: | ACTUAL | | Measured TD: | 13296 ft. | Measured PB depth: | 13238 ft. | | True Vertical TD: | 7302 ft. | True Vertical PB depth: | 7301 ft. | | Top PZ Location: | Sec:24 Twp: 3N 66W | Footage: 157 FSL 738 FEL | | Bottom Hole Location: | Sec:24 Twp: 3N 66W | Footage: 6 FNL 840 FEL | | Log Types: | CBL, GR, (IND in API# 05-123-16872) | | Casing: | String Type: SURF, Hole Size: 13.5 in., Size: 9.625 in., Top: 0 ft., Depth: 1212 ft., Weight: 36 , Citings Type: ACTUAL | | Cement: | Sacks: 476, Top: 0 ft., Bottom: 1212 ft., Determination Method: VISU | | Casing: | String Type: 1ST, Hole Size: 8.75 in., Size: 7 in., Top: 0 ft., Depth: 7866 ft., Weight: 26 , Citings Type: ACTUAL | | Cement: | Sacks: 820, Top: 40 ft., Bottom: 7866 ft., Determination Method: CBL | | Casing: | String Type: 1ST LINER, Hole Size: 6.125 in., Size: 4.5 in., Top: 6867 ft., Depth: 13285 ft., Weight: 11.6 , Citings Type: ACTUAL | | Cement: | Sacks: 420, Top: 6867 ft., Bottom: 13285 ft., Determination Method: CBL | | Formation | Interval Top | Log Bottom | Cored | DSTs | | SUSSEX | 4689 ft. | | | | | SHARON SPRINGS | 7338 ft. | | | | | NIOBRARA | 7421 ft. | | | |
Formation NBRR Formation Classification: OW Status: PR - 12/1/2023 Interval Top: 7886 ft. Interval Bottom: 13209 ft.| Completed Information for Formation NIOBRARA | | 1st Production Date: | 3/28/2015 | Choke Size: | | | Formation Name: | NIOBRARA | Commingled: | No | | Production Method: | | | Open Hole Completion: | No |
| | Formation Treatment | | Treatment Type: | FRACTURE STIMULATION | | Treatment Date: | 3/19/2015 | Treatment End Date: | 3/24/2015 | | Treatment Summary: | "PERF AND FRAC FROM 7886-13,209.
631 BBL ACID, 148,196 BBL SLICKWATER, 3,184 BBL WATER, - 152,011 BBL TOTAL FLUID
1,390,740# 30/50 OTTAWA/ST. PETERS, 3,077,850# 40/70 OTTAWA/ST. PETERS, - 4,468,590# TOTAL SAND."
| | Total fluid used in treatment (bbls): | 152011 | Max pressure during treatment (psi): | 7679 | | Total gas used in treatment (mcf): | 0 | Fluid density (lbs/gal): | 8.30 | | Type Of gas: | | Number Of staged intervals: | 27 | | Total acid used in treatment (bbls): | 631 | Min frac gradient (psi/ft): | 0.94 | | Recycled water used in treatment (bbls): | 0 | Total flowback volume recovered (bbls): | 1273 | | Fresh water used in treatment (bbls): | 151380 | Disposition method For flowback: | DISPOSAL | | Total proppant used (lbs): | 4468590 | Green completions techniques utilized: | Yes | | Reason green techniques Not utilized: |
| | Tubing Size: | | Tubing Setting Depth: | | | Tubing Packer Depth: | | Tubing Multiple Packer: | | | Open Hole Top: | | Open Hole Bottom: | | | Initial Test Data: | | Test Date: | 4/4/2015 | Test Method: | FLOWING | | Hours Tested: | 24 | Gas Type: | WET | | Gas Disposal: | SOLD | |
| Test Type | Measure |
|---|
| BBLS_H2O | 600 | | BBLS_OIL | 124 | | BTU_GAS | 1207 | | CALC_BBLS_H2O | 600 | | CALC_BBLS_OIL | 124 | | CALC_GOR | 4758 | | CALC_MCF_GAS | 590 | | CASING_PRESS | 1700 | | GRAVITY_OIL | 56 | | MCF_GAS | 590 |
| | Perforation Data: | | Interval Top: | 7886 ft. | # Of Holes: | 648 | | Interval Bottom: | 13209 ft. | Hole Size: | 0.37 in. |
|
|
|
|
|
|
|
| Reported Plugged | N | |
| Out Of Service Repurposed | N | |
| Out Of Service | N | |
| Inactive Exception | N | |
| Noticed Inactive | N | |
| Defined Inactive | N | |
| Low Producing | N | |
| Total Oil Produced (Barrels) | 7239 |
| Total Gas Produced (MCF) | 108763 |
| GOR | 15024 |
| GOR Determination | MCFE |
| Average BOE per Day | 71.076 |
| Average MCFE per Day | 412.245 |
| Federal Financial Assurance | i | |
|
|
