Wellbore #00 Wellbore Classification: OW Status: SI - 6/1/2024 Measured TD: 9948 ft. Vertical TD: 5567 ft.| Wellbore Data for Original Wellbore | Wellbore Classification: OW SI - 6/1/2024 | | Wellbore Permit | HORIZONTAL | | Permit #: | | Expiration Date: | 5/2/2016 | | Proposed Top PZ Location: | Sec:2 Twp: 10N 57W | Footage: 768 FNL 1149 FWL | | Bottom Hole Location: | Sec:2 Twp: 10N 57W | Footage: 626 FSL 1149 FWL | | Proposed Depth/Form: | 9573 ft. | | Surface Mineral Owner Same: | No | | Mineral Owner: | FEE | Surface Owner: | FEE | | Unit: | | Unit Number: | | | Formation And Spacing: | Code: NBRR , Formation: NIOBRARA , Order: 535-413 , Unit Acreage: 643, Drill Unit: S.2:All | | Casing: | String Type: CONDUCTOR, Hole Size: 28 in., Size: 16 in., Top: 0 ft., Depth: 80 ft., Weight: 65 , Citings Type: PLANNED | | Cement: | Sacks: 179, Top: 0 ft., Bottom: 80 ft. | | Casing: | String Type: SURF, Hole Size: 13.5 in., Size: 9.625 in., Top: 0 ft., Depth: 1700 ft., Weight: 36 , Citings Type: PLANNED | | Cement: | Sacks: 754, Top: 0 ft., Bottom: 1700 ft. | | Casing: | String Type: 1ST, Hole Size: 8.75 in., Size: 7 in., Top: 0 ft., Depth: 5947 ft., Weight: 29 , Citings Type: PLANNED | | Cement: | Sacks: 398, Top: 0 ft., Bottom: 5947 ft. | | Casing: | String Type: 1ST LINER, Hole Size: 6 in., Size: 4.5 in., Top: 5166 ft., Depth: 9573 ft., Weight: 11.6 , Citings Type: PLANNED | | Cement: | Sacks: 304, Top: 5166 ft., Bottom: 9573 ft. |
| | |
| Wellbore Completed | | Completion Date: | 10/15/2014 | | Spud Date: | 10/7/2014 | Spud Date Is: | ACTUAL | | Measured TD: | 9948 ft. | Measured PB depth: | 9948 ft. | | True Vertical TD: | 5567 ft. | True Vertical PB depth: | 5567 ft. | | Top PZ Location: | Sec:2 Twp: 10N 57W | Footage: 768 FNL 1149 FWL | | Bottom Hole Location: | Sec:2 Twp: 10N 57W | Footage: 626 FSL 1149 FWL | | Log Types: | LWD, MUD, CBL, Neutron logs, Caliper, Density, Induction, Triple Combo, Spectral Gamma. | | Casing: | String Type: CONDUCTOR, Hole Size: 19.25 in., Size: 16 in., Top: 0 ft., Depth: 109 ft., Weight: 42.09 , Citings Type: ACTUAL | | Cement: | Sacks: , Top: 0 ft., Bottom: 109 ft., Determination Method: VISU | | Casing: | String Type: SURF, Hole Size: 13.5 in., Size: 9.625 in., Top: 0 ft., Depth: 1738 ft., Weight: 36.00 , Citings Type: ACTUAL | | Cement: | Sacks: 740, Top: 0 ft., Bottom: 1738 ft., Determination Method: VISU | | Casing: | String Type: 1ST, Hole Size: 8.75 in., Size: 7 in., Top: 0 ft., Depth: 6028 ft., Weight: 29.00 , Citings Type: ACTUAL | | Cement: | Sacks: 655, Top: 680 ft., Bottom: 6028 ft., Determination Method: CBL | | Casing: | String Type: 1ST LINER, Hole Size: 6 in., Size: 4.5 in., Top: 4829 ft., Depth: 9938 ft., Weight: 11.60 , Citings Type: ACTUAL | | Cement: | Sacks: 375, Top: 4829 ft., Bottom: 9938 ft., Determination Method: CALC | | Formation | Interval Top | Log Bottom | Cored | DSTs | | PIERRE | 1520 ft. | | N | N | | HYGIENE | 3330 ft. | | N | N | | SHARON SPRINGS | 5413 ft. | | N | N | | NIOBRARA | 5421 ft. | | N | N |
Formation NBRR Formation Classification: OW Status: SI - 6/1/2024 Interval Top: 6053 ft. Interval Bottom: 9873 ft.| Completed Information for Formation NIOBRARA | | 1st Production Date: | 1/18/2015 | Choke Size: | | | Formation Name: | NIOBRARA | Commingled: | No | | Production Method: | | | Open Hole Completion: | No |
| | Formation Treatment | | Treatment Type: | FRACTURE STIMULATION | | Treatment Date: | 11/10/2014 | Treatment End Date: | 11/18/2014 | | Treatment Summary: | Cemented liner: 30 staged intervals, 85070 bbl YF822LpH XL Gel, 91499 bbl Linear Gel, 17513 bbl Slickwater, 376 bbl 15% HCL
Total Proppant: 4088075#20/40 White Sand ; 90656#40/70 White Sand

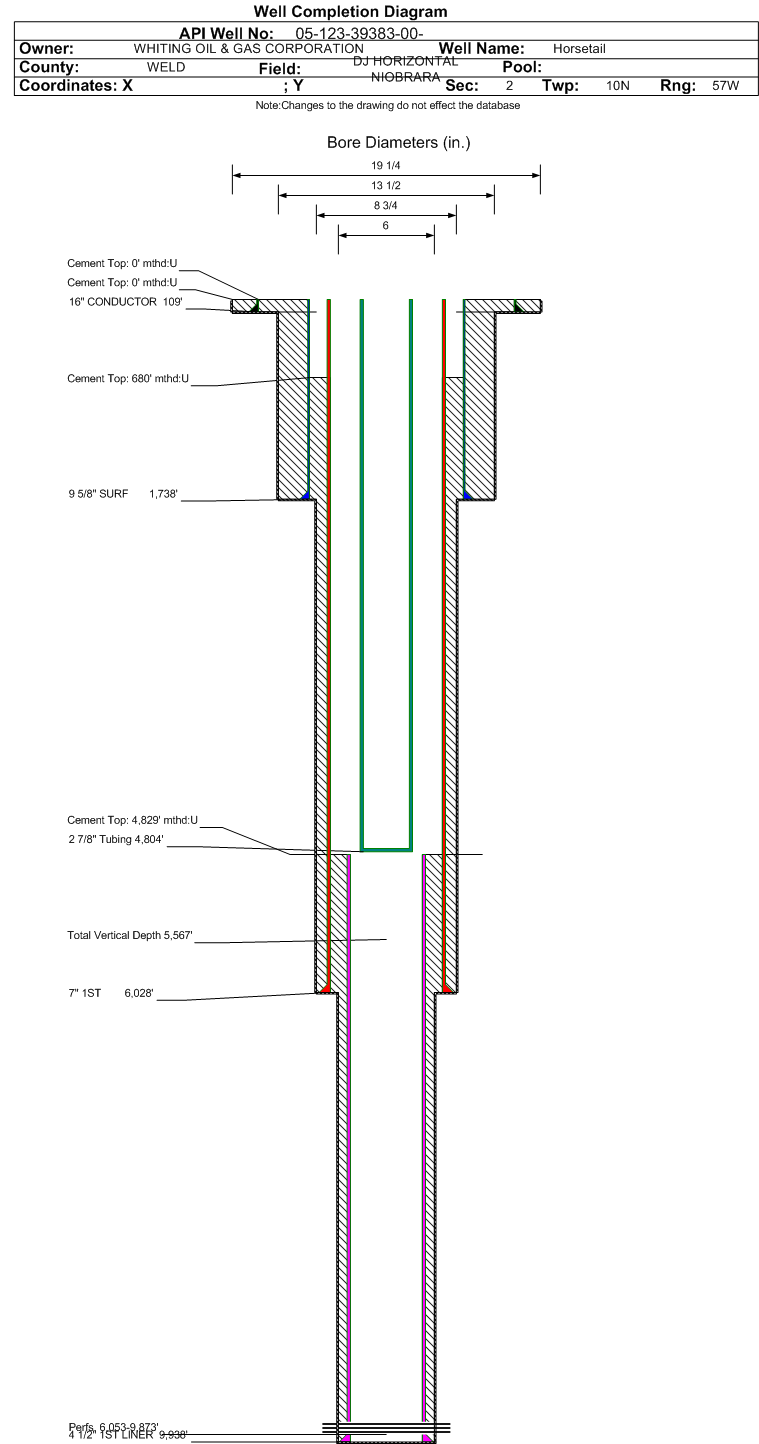

See attached Frac Summary Report and Wellbore Diagram for details. | | Total fluid used in treatment (bbls): | 89328 | Max pressure during treatment (psi): | 7991 | | Total gas used in treatment (mcf): | 0 | Fluid density (lbs/gal): | 8.33 | | Type Of gas: | | Number Of staged intervals: | 30 | | Total acid used in treatment (bbls): | 376 | Min frac gradient (psi/ft): | 0.73 | | Recycled water used in treatment (bbls): | 0 | Total flowback volume recovered (bbls): | 10881 | | Fresh water used in treatment (bbls): | 88952 | Disposition method For flowback: | DISPOSAL | | Total proppant used (lbs): | 4178731 | Green completions techniques utilized: | -- | | Reason green techniques Not utilized: PIPELINE |
| | Tubing Size: | 2.875 in. | Tubing Setting Depth: | 4804 ft. | | Tubing Packer Depth: | | Tubing Multiple Packer: | | | Open Hole Top: | | Open Hole Bottom: | | | Initial Test Data: | | Test Date: | 1/19/2015 | Test Method: | Separator | | Hours Tested: | 24 | Gas Type: | DRY | | Gas Disposal: | FLARED | |
| Test Type | Measure |
|---|
| BBLS_H2O | 543 | | BBLS_OIL | 248 | | BTU_GAS | 1973 | | CALC_BBLS_H2O | 543 | | CALC_BBLS_OIL | 248 | | CALC_GOR | 331 | | CALC_MCF_GAS | 82 | | CASING_PRESS | 110 | | GRAVITY_OIL | 31 | | MCF_GAS | 82 | | TUBING_PRESS | 85 |
| | Perforation Data: | | Interval Top: | 6053 ft. | # Of Holes: | 1080 | | Interval Bottom: | 9873 ft. | Hole Size: | 2.666667 in. |
|
|
|
|
|
|
|
| Reported Plugged | N | |
| Out Of Service Repurposed | N | |
| Out Of Service | N | |
| Inactive Exception | N | |
| Noticed Inactive | N | |
| Defined Inactive (SI ) | Y | Defined Inactive
05/31/2024 |
| Low Producing | Y | Production Period
12/2024 - 11/2025 |
| Total Oil Produced (Barrels) | 0 |
| Total Gas Produced (MCF) | 0 |
| GOR | |
| GOR Determination | |
| Average BOE per Day | 0.000 |
| Average MCFE per Day | 0.000 |
