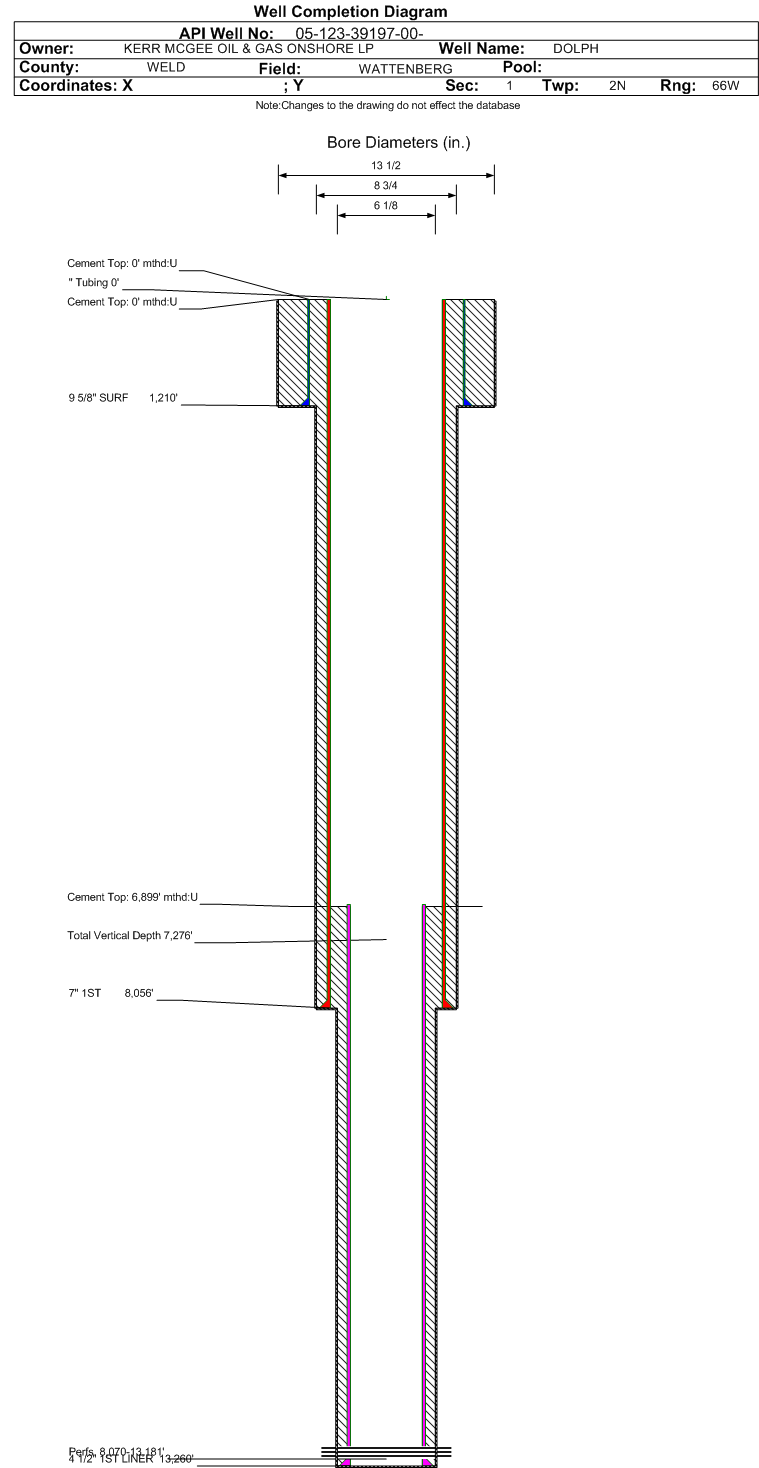

Wellbore #00 Wellbore Classification: OW Status: PR - 5/1/2023 Measured TD: 13280 ft. Vertical TD: 7276 ft.| Wellbore Data for Original Wellbore | Wellbore Classification: OW PR - 5/1/2023 | | Wellbore Permit | HORIZONTAL | | Permit #: | | Expiration Date: | 3/30/2016 | | Proposed Top PZ Location: | Sec:12 Twp: 2N 66W | Footage: 421 FNL 314 FWL | | Bottom Hole Location: | Sec:1 Twp: 2N 66W | Footage: 485 FNL 343 FWL | | Proposed Depth/Form: | 12150 ft. | | Surface Mineral Owner Same: | No | | Mineral Owner: | FEE | Surface Owner: | FEE | | Unit: | | Unit Number: | | | Formation And Spacing: | Code: NBRR , Formation: NIOBRARA , Order: , Unit Acreage: 400, Drill Unit: GWA | | Casing: | String Type: SURF, Hole Size: 13.5 in., Size: 9.625 in., Top: 0 ft., Depth: 1228 ft., Weight: 36 , Citings Type: PLANNED | | Cement: | Sacks: 470, Top: 0 ft., Bottom: 1228 ft. | | Casing: | String Type: 1ST, Hole Size: 8.75 in., Size: 7 in., Top: 0 ft., Depth: 8026 ft., Weight: 26 , Citings Type: PLANNED | | Cement: | Sacks: 840, Top: 0 ft., Bottom: 8026 ft. | | Casing: | String Type: 1ST LINER, Hole Size: 6.125 in., Size: 4.5 in., Top: 6971 ft., Depth: 13347 ft., Weight: 11.6 , Citings Type: PLANNED | | Cement: | Sacks: , Top: , Bottom: |
| | |
| Wellbore Completed | | Completion Date: | 9/17/2014 | | Spud Date: | 7/8/2014 | Spud Date Is: | ACTUAL | | Measured TD: | 13280 ft. | Measured PB depth: | 13210 ft. | | True Vertical TD: | 7276 ft. | True Vertical PB depth: | 7270 ft. | | Top PZ Location: | Sec:12 Twp: 2N 66W | Footage: 421 FNL 314 FWL | | Bottom Hole Location: | Sec:1 Twp: 2N 66W | Footage: 485 FNL 343 FWL | | Log Types: | CBL, GR, (DIL in API# 05-123-22073) | | Casing: | String Type: SURF, Hole Size: 13.5 in., Size: 9.625 in., Top: 0 ft., Depth: 1210 ft., Weight: 36 , Citings Type: ACTUAL | | Cement: | Sacks: 489, Top: 0 ft., Bottom: 1210 ft., Determination Method: VISU | | Casing: | String Type: 1ST, Hole Size: 8.75 in., Size: 7 in., Top: 0 ft., Depth: 8056 ft., Weight: 26 , Citings Type: ACTUAL | | Cement: | Sacks: 735, Top: 0 ft., Bottom: 8056 ft., Determination Method: CBL | | Casing: | String Type: 1ST LINER, Hole Size: 6.125 in., Size: 4.5 in., Top: 6877 ft., Depth: 13260 ft., Weight: 11.6 , Citings Type: ACTUAL | | Cement: | Sacks: 340, Top: 6899 ft., Bottom: 13260 ft., Determination Method: CBL | | Formation | Interval Top | Log Bottom | Cored | DSTs | | SUSSEX | 4737 ft. | | | | | SHARON SPRINGS | 7559 ft. | | | | | NIOBRARA | 7688 ft. | | | |
Formation NBRR Formation Classification: OW Status: PR - 5/1/2023 Interval Top: 8070 ft. Interval Bottom: 13181 ft.| Completed Information for Formation NIOBRARA | | 1st Production Date: | 2/10/2015 | Choke Size: | | | Formation Name: | NIOBRARA | Commingled: | No | | Production Method: | | | Open Hole Completion: | No |
| | Formation Treatment | | Treatment Type: | FRACTURE STIMULATION | | Treatment Date: | 1/26/2015 | Treatment End Date: | 2/3/2015 | | Treatment Summary: | "PERF AND FRAC FROM 8070-13,181.
36 BBL ACID, 149,009 BBL SLICKWATER, 5,588 BBL WATER, - 154,633 BBL TOTAL FLUID
4,390,451# 40/70 GENOA/SAND HILLS, - 4,390,451# TOTAL SAND."
| | Total fluid used in treatment (bbls): | 154633 | Max pressure during treatment (psi): | 7672 | | Total gas used in treatment (mcf): | 0 | Fluid density (lbs/gal): | 8.30 | | Type Of gas: | | Number Of staged intervals: | 26 | | Total acid used in treatment (bbls): | 36 | Min frac gradient (psi/ft): | 0.88 | | Recycled water used in treatment (bbls): | 0 | Total flowback volume recovered (bbls): | 764 | | Fresh water used in treatment (bbls): | 154597 | Disposition method For flowback: | DISPOSAL | | Total proppant used (lbs): | 4390451 | Green completions techniques utilized: | Yes | | Reason green techniques Not utilized: |
| | Tubing Size: | | Tubing Setting Depth: | | | Tubing Packer Depth: | | Tubing Multiple Packer: | | | Open Hole Top: | | Open Hole Bottom: | | | Initial Test Data: | | Test Date: | 2/13/2015 | Test Method: | FLOWING | | Hours Tested: | 24 | Gas Type: | WET | | Gas Disposal: | SOLD | |
| Test Type | Measure |
|---|
| BBLS_H2O | 175 | | BBLS_OIL | 103 | | BTU_GAS | 1244 | | CALC_BBLS_H2O | 175 | | CALC_BBLS_OIL | 103 | | CALC_GOR | 2378 | | CALC_MCF_GAS | 245 | | CASING_PRESS | 1100 | | GRAVITY_OIL | 54 | | MCF_GAS | 245 |
| | Perforation Data: | | Interval Top: | 8070 ft. | # Of Holes: | 624 | | Interval Bottom: | 13181 ft. | Hole Size: | 0.37 in. |
|
|
|
|
|
|
|
| Reported Plugged | N | |
| Out Of Service Repurposed | N | |
| Out Of Service | N | |
| Inactive Exception | N | |
| Noticed Inactive | N | |
| Defined Inactive | N | |
| Low Producing | N | |
| Total Oil Produced (Barrels) | 6222 |
| Total Gas Produced (MCF) | 51933 |
| GOR | 8346 |
| GOR Determination | BOE |
| Average BOE per Day | 41.716 |
| Average MCFE per Day | 241.952 |
| Federal Financial Assurance | i | |
|
|
