Wellbore #00 Wellbore Classification: OW Status: PR - 1/1/2023 Measured TD: 16718 ft. Vertical TD: 7412 ft.| Wellbore Data for Original Wellbore | Wellbore Classification: OW PR - 1/1/2023 | | Wellbore Permit | HORIZONTAL | | Permit #: | | Expiration Date: | 2/22/2016 | | Proposed Top PZ Location: | Sec:13 Twp: 2N 67W | Footage: 1165 FSL 1504 FWL | | Bottom Hole Location: | Sec:12 Twp: 2N 67W | Footage: 485 FNL 1342 FWL | | Proposed Depth/Form: | 17409 ft. | | Surface Mineral Owner Same: | No | | Mineral Owner: | FEE | Surface Owner: | FEE | | Unit: | | Unit Number: | | | Formation And Spacing: | Code: CODL , Formation: CODELL , Order: , Unit Acreage: 640, Drill Unit: GWA | | Casing: | String Type: SURF, Hole Size: 13.5 in., Size: 9.625 in., Top: 0 ft., Depth: 1000 ft., Weight: 36 , Citings Type: PLANNED | | Cement: | Sacks: 380, Top: 0 ft., Bottom: 1000 ft. | | Casing: | String Type: 1ST, Hole Size: 8.75 in., Size: 7 in., Top: 0 ft., Depth: 7788 ft., Weight: 26 , Citings Type: PLANNED | | Cement: | Sacks: 820, Top: 0 ft., Bottom: 7788 ft. | | Casing: | String Type: 1ST LINER, Hole Size: 6.125 in., Size: 4.5 in., Top: 6788 ft., Depth: 16696 ft., Weight: 11.6 , Citings Type: PLANNED | | Cement: | Sacks: , Top: , Bottom: |
| | |

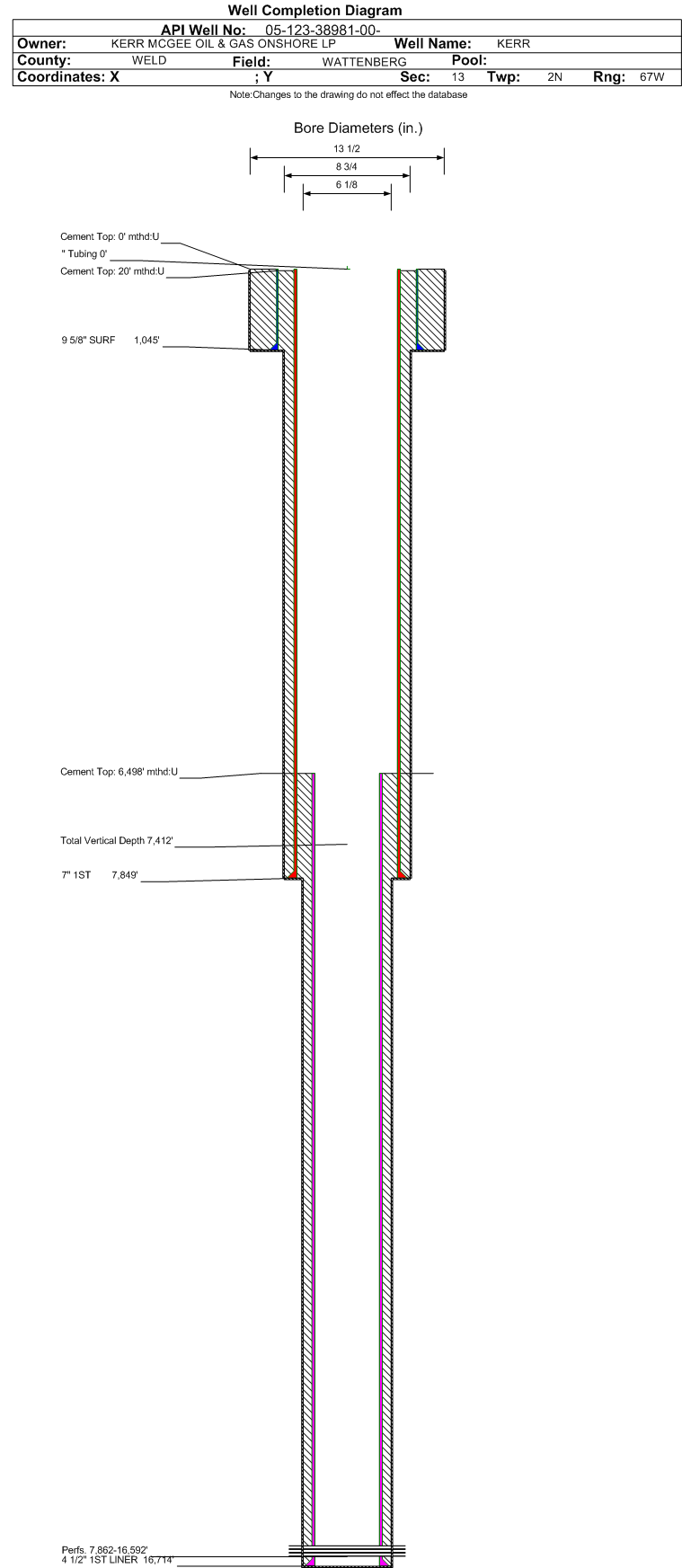

| Wellbore Completed | | Completion Date: | 12/7/2014 | | Spud Date: | 10/10/2014 | Spud Date Is: | ACTUAL | | Measured TD: | 16718 ft. | Measured PB depth: | 16665 ft. | | True Vertical TD: | 7412 ft. | True Vertical PB depth: | 7411 ft. | | Top PZ Location: | Sec:13 Twp: 2N 67W | Footage: 1165 FSL 1504 FWL | | Bottom Hole Location: | Sec:12 Twp: 2N 67W | Footage: 485 FNL 1342 FWL | | Log Types: | CBL, LWD with GR, MUD, (IND in API# 05-123-21506) | | Casing: | String Type: SURF, Hole Size: 13.5 in., Size: 9.625 in., Top: 0 ft., Depth: 1045 ft., Weight: 36 , Citings Type: ACTUAL | | Cement: | Sacks: 409, Top: 0 ft., Bottom: 1045 ft., Determination Method: VISU | | Casing: | String Type: 1ST, Hole Size: 8.75 in., Size: 7 in., Top: 0 ft., Depth: 7849 ft., Weight: 26 , Citings Type: ACTUAL | | Cement: | Sacks: 770, Top: 20 ft., Bottom: 7849 ft., Determination Method: CBL | | Casing: | String Type: 1ST LINER, Hole Size: 6.125 in., Size: 4.5 in., Top: 6498 ft., Depth: 16714 ft., Weight: 11.6 , Citings Type: ACTUAL | | Cement: | Sacks: 680, Top: 6498 ft., Bottom: 16714 ft., Determination Method: CBL | | Formation | Interval Top | Log Bottom | Cored | DSTs | | SUSSEX | 4392 ft. | | | | | SHARON SPRINGS | 7169 ft. | | | | | NIOBRARA | 7269 ft. | | | | | FORT HAYS | 7693 ft. | | | | | CODELL | 7790 ft. | | | |
Formation CODL Formation Classification: OW Status: PR - 1/1/2023 Interval Top: 7862 ft. Interval Bottom: 16592 ft.| Completed Information for Formation CODELL | | 1st Production Date: | 6/19/2015 | Choke Size: | | | Formation Name: | CODELL | Commingled: | No | | Production Method: | | | Open Hole Completion: | No |
| | Formation Treatment | | Treatment Type: | FRACTURE STIMULATION | | Treatment Date: | 5/17/2015 | Treatment End Date: | 5/29/2015 | | Treatment Summary: | "PERF AND FRAC FROM 7862-16,592.
238 BBL ACID, 161,640 BBL SLICKWATER, 5,881 BBL WATER, - 167,759 BBL TOTAL FLUID
4,980,620# 40/70 GENOA, - 4,980,620# TOTAL SAND."
| | Total fluid used in treatment (bbls): | 167759 | Max pressure during treatment (psi): | 7388 | | Total gas used in treatment (mcf): | 0 | Fluid density (lbs/gal): | 8.30 | | Type Of gas: | | Number Of staged intervals: | 29 | | Total acid used in treatment (bbls): | 238 | Min frac gradient (psi/ft): | 0.69 | | Recycled water used in treatment (bbls): | 0 | Total flowback volume recovered (bbls): | 963 | | Fresh water used in treatment (bbls): | 167521 | Disposition method For flowback: | DISPOSAL | | Total proppant used (lbs): | 4980620 | Green completions techniques utilized: | Yes | | Reason green techniques Not utilized: |
| | Tubing Size: | | Tubing Setting Depth: | | | Tubing Packer Depth: | | Tubing Multiple Packer: | | | Open Hole Top: | | Open Hole Bottom: | | | Initial Test Data: | | Test Date: | 6/25/2015 | Test Method: | FLOWING | | Hours Tested: | 24 | Gas Type: | WET | | Gas Disposal: | SOLD | |
| Test Type | Measure |
|---|
| BBLS_H2O | 83 | | BBLS_OIL | 22 | | BTU_GAS | 1408 | | CALC_BBLS_H2O | 83 | | CALC_BBLS_OIL | 22 | | CALC_GOR | 5364 | | CALC_MCF_GAS | 118 | | CASING_PRESS | 550 | | GRAVITY_OIL | 49 | | MCF_GAS | 118 |
| | Perforation Data: | | Interval Top: | 7862 ft. | # Of Holes: | 702 | | Interval Bottom: | 16592 ft. | Hole Size: | 0.37 in. |
|
|
|
|
|
|
|
| Reported Plugged | N | |
| Out Of Service Repurposed | N | |
| Out Of Service | N | |
| Inactive Exception | N | |
| Noticed Inactive | N | |
| Defined Inactive | N | |
| Low Producing | N | |
| Total Oil Produced (Barrels) | 9576 |
| Total Gas Produced (MCF) | 209773 |
| GOR | 21906 |
| GOR Determination | MCFE |
| Average BOE per Day | 125.322 |
| Average MCFE per Day | 726.868 |
| Federal Financial Assurance | i | |
|
|
