Wellbore #00 Wellbore Classification: OW Status: PR - 10/1/2017 Measured TD: 12124 ft. Vertical TD: 5697 ft.| Wellbore Data for Original Wellbore | Wellbore Classification: OW PR - 10/1/2017 | | Wellbore Permit | HORIZONTAL | | Permit #: | | Expiration Date: | 10/21/2015 | | Proposed Top PZ Location: | Sec:26 Twp: 10N 58W | Footage: 1422 FSL 1884 FEL | | Bottom Hole Location: | Sec:35 Twp: 10N 58W | Footage: 600 FSL 2145 FEL | | Proposed Depth/Form: | 12135 ft. | | Surface Mineral Owner Same: | No | | Mineral Owner: | FEE | Surface Owner: | FEE | | Unit: | | Unit Number: | | | Formation And Spacing: | Code: NBRR , Formation: NIOBRARA , Order: 535-314 , Unit Acreage: 960, Drill Unit: S26:S2,S35:All | | Casing: | String Type: CONDUCTOR, Hole Size: 16.063 in., Size: 16 in., Top: 0 ft., Depth: 80 ft., Weight: 65 , Citings Type: PLANNED | | Cement: | Sacks: , Top: , Bottom: | | Casing: | String Type: SURF, Hole Size: 13.5 in., Size: 9.625 in., Top: 0 ft., Depth: 1500 ft., Weight: 36 , Citings Type: PLANNED | | Cement: | Sacks: 719, Top: 0 ft., Bottom: 1500 ft. | | Casing: | String Type: 1ST, Hole Size: 8.75 in., Size: 7 in., Top: 0 ft., Depth: 5986 ft., Weight: 29 , Citings Type: PLANNED | | Cement: | Sacks: 419, Top: 0 ft., Bottom: 5986 ft. | | Casing: | String Type: 1ST LINER, Hole Size: 6 in., Size: 4.5 in., Top: 5204 ft., Depth: 12135 ft., Weight: 11.6 , Citings Type: PLANNED | | Cement: | Sacks: , Top: , Bottom: |
| | |

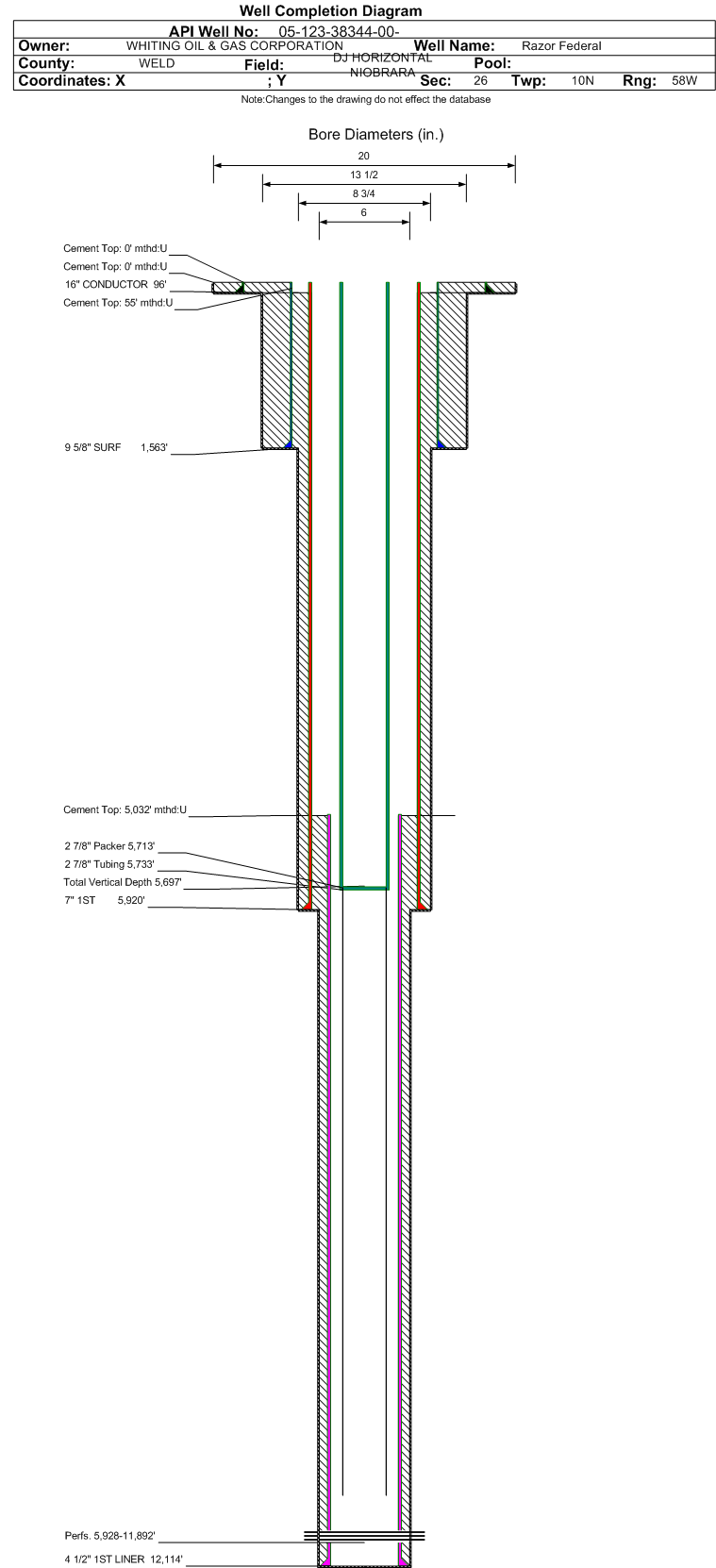

| Wellbore Completed | | Completion Date: | 3/12/2014 | | Spud Date: | 2/28/2014 | Spud Date Is: | ACTUAL | | Measured TD: | 12124 ft. | Measured PB depth: | 12064 ft. | | True Vertical TD: | 5697 ft. | True Vertical PB depth: | 5697 ft. | | Top PZ Location: | Sec:26 Twp: 10N 58W | Footage: 1524 FSL 1987 FEL | | Bottom Hole Location: | Sec:35 Twp: 10N 58W | Footage: 650 FSL 2133 FEL | | Log Types: | LWD/MUD/CBL/Triple Combo, GR, and IND run in API: 123-37495 | | Casing: | String Type: CONDUCTOR, Hole Size: 20 in., Size: 16 in., Top: 0 ft., Depth: 96 ft., Weight: 75 , Citings Type: ACTUAL | | Cement: | Sacks: , Top: 0 ft., Bottom: 96 ft., Determination Method: VISU | | Casing: | String Type: SURF, Hole Size: 13.5 in., Size: 9.625 in., Top: 0 ft., Depth: 1563 ft., Weight: 36 , Citings Type: ACTUAL | | Cement: | Sacks: 505, Top: 0 ft., Bottom: 1563 ft., Determination Method: VISU | | Casing: | String Type: 1ST, Hole Size: 8.75 in., Size: 7 in., Top: 0 ft., Depth: 5920 ft., Weight: 29 , Citings Type: ACTUAL | | Cement: | Sacks: 709, Top: 55 ft., Bottom: 5920 ft., Determination Method: CBL | | Casing: | String Type: 1ST LINER, Hole Size: 6 in., Size: 4.5 in., Top: 5020 ft., Depth: 12114 ft., Weight: 11.60 , Citings Type: ACTUAL | | Cement: | Sacks: 440, Top: 5032 ft., Bottom: 12114 ft., Determination Method: CALC | | Formation | Interval Top | Log Bottom | Cored | DSTs | | PIERRE | 1691 ft. | | N | N | | HYGIENE | 3513 ft. | | N | N | | SHARON SPRINGS | 5583 ft. | | N | N | | NIOBRARA | 5588 ft. | | N | N |
Formation NBRR Formation Classification: OW Status: PR - 10/1/2017 Interval Top: 5928 ft. Interval Bottom: 11892 ft.| Completed Information for Formation NIOBRARA | | 1st Production Date: | 8/20/2014 | Choke Size: | | | Formation Name: | NIOBRARA | Commingled: | No | | Production Method: | | | Open Hole Completion: | No |
| | Formation Treatment | | Treatment Type: | FRACTURE STIMULATION | | Treatment Date: | 7/29/2014 | Treatment End Date: | 8/4/2014 | | Treatment Summary: | 40 stage Clearstar 30 XL Gel 72225 bbl; 30# Linear Gel 13133 bbl; Slickwater 24814 bbl; 15% HCl 353 bbl. Proppant: 20/40 White Sand: 5479620 lb; 40/70 White Sand: 138670 lb.
| | Total fluid used in treatment (bbls): | 110525 | Max pressure during treatment (psi): | 7258 | | Total gas used in treatment (mcf): | | Fluid density (lbs/gal): | 8.33 | | Type Of gas: | | Number Of staged intervals: | 40 | | Total acid used in treatment (bbls): | 353 | Min frac gradient (psi/ft): | 0.85 | | Recycled water used in treatment (bbls): | 0 | Total flowback volume recovered (bbls): | 12567 | | Fresh water used in treatment (bbls): | 110172 | Disposition method For flowback: | DISPOSAL | | Total proppant used (lbs): | 5618290 | Green completions techniques utilized: | Yes | | Reason green techniques Not utilized: |
| | Tubing Size: | 2.875 in. | Tubing Setting Depth: | 5733 ft. | | Tubing Packer Depth: | 5733 ft. | Tubing Multiple Packer: | | | Open Hole Top: | | Open Hole Bottom: | | | Initial Test Data: | | Test Date: | 10/24/2014 | Test Method: | Separator | | Hours Tested: | 24 | Gas Type: | DRY | | Gas Disposal: | SOLD | |
| Test Type | Measure |
|---|
| BBLS_H2O | 54 | | BBLS_OIL | 479 | | BTU_GAS | 1430 | | CALC_BBLS_H2O | 54 | | CALC_BBLS_OIL | 479 | | CALC_GOR | 535 | | CALC_MCF_GAS | 256 | | CASING_PRESS | 850 | | GRAVITY_OIL | 37 | | MCF_GAS | 256 | | TUBING_PRESS | 375 |
| | Perforation Data: | | Interval Top: | 5928 ft. | # Of Holes: | 1440 | | Interval Bottom: | 11892 ft. | Hole Size: | 0.375 in. |
|
|
|
|
|
|
|
| Reported Plugged | N | |
| Out Of Service Repurposed | N | |
| Out Of Service | N | |
| Inactive Exception | N | |
| Noticed Inactive | N | |
| Defined Inactive | N | |
| Low Producing | N | |
| Total Oil Produced (Barrels) | 2419 |
| Total Gas Produced (MCF) | 37045 |
| GOR | 15314 |
| GOR Determination | MCFE |
| Average BOE per Day | 23.068 |
| Average MCFE per Day | 133.787 |
| Federal Financial Assurance | i | |
|
|
