Wellbore #00 Wellbore Classification: OW Status: PR - 10/27/2017 Measured TD: 12740 ft. Vertical TD: 5852 ft.| Wellbore Data for Original Wellbore | Wellbore Classification: OW PR - 10/27/2017 | | Wellbore Permit | HORIZONTAL | | Permit #: | | Expiration Date: | 1/30/2015 | | Proposed Top PZ Location: | Sec:7 Twp: 10N 57W | Footage: 1924 FNL 651 FWL | | Bottom Hole Location: | Sec:6 Twp: 10N 57W | Footage: 670 FNL 659 FWL | | Proposed Depth/Form: | 12870 ft. | | Surface Mineral Owner Same: | Yes | | Mineral Owner: | FEE | Surface Owner: | FEE | | Unit: | | Unit Number: | | | Formation And Spacing: | Code: NBRR , Formation: NIOBRARA , Order: 535-179 , Unit Acreage: 960, Drill Unit: N/2 sec 7, all sec 6 | | Casing: | String Type: CONDUCTOR, Hole Size: 20 in., Size: 20 in., Top: 0 ft., Depth: 80 ft., Weight: , Citings Type: PLANNED | | Cement: | Sacks: , Top: , Bottom: | | Casing: | String Type: SURF, Hole Size: 13.5 in., Size: 9.625 in., Top: 0 ft., Depth: 1850 ft., Weight: 36 , Citings Type: PLANNED | | Cement: | Sacks: 917, Top: 0 ft., Bottom: 1850 ft. | | Casing: | String Type: 1ST, Hole Size: 8.75 in., Size: 7 in., Top: 0 ft., Depth: 6277 ft., Weight: 29 , Citings Type: PLANNED | | Cement: | Sacks: 436, Top: 0 ft., Bottom: 6277 ft. | | Casing: | String Type: 2ND, Hole Size: 6 in., Size: 4.5 in., Top: 5459 ft., Depth: 12870 ft., Weight: 11.6 , Citings Type: PLANNED | | Cement: | Sacks: , Top: , Bottom: |
| | |

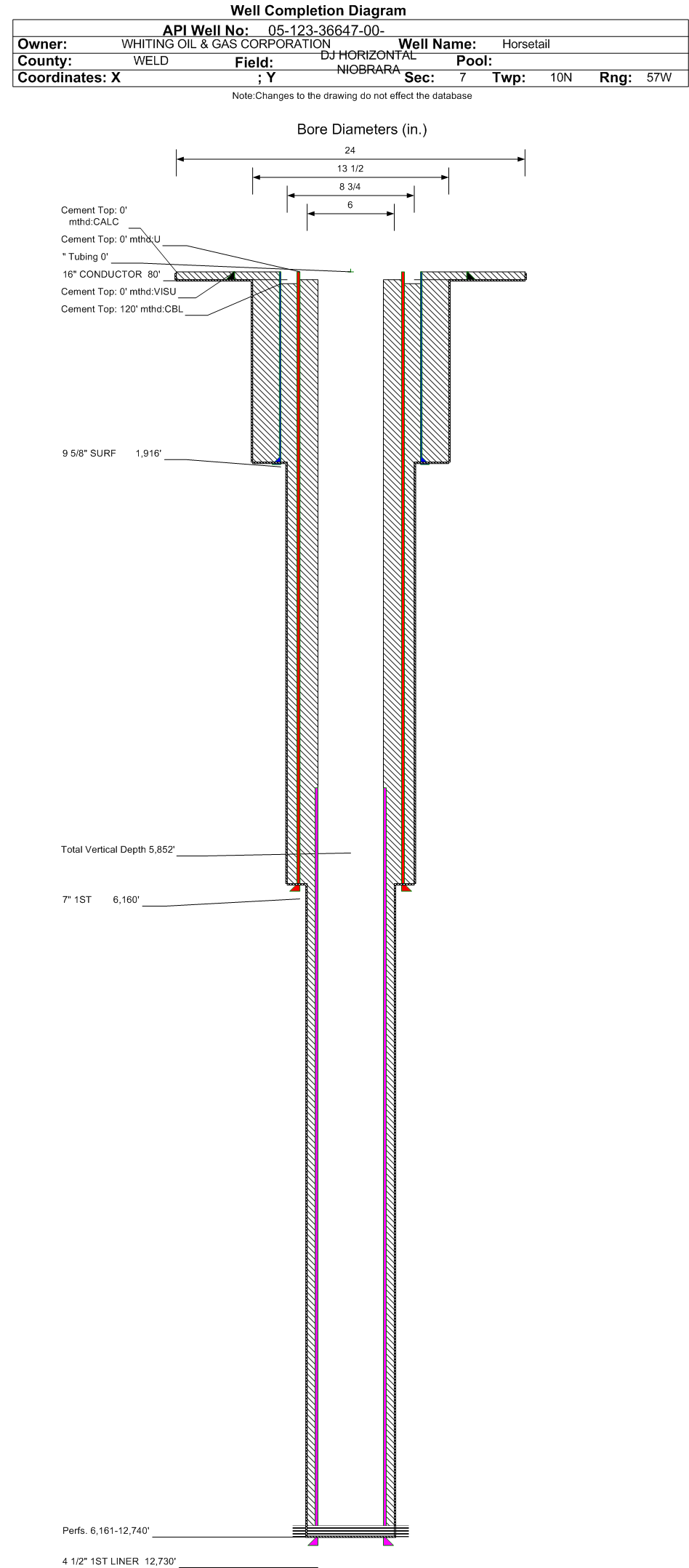

| Wellbore Completed | | Completion Date: | 5/30/2013 | | Spud Date: | 5/20/2013 | Spud Date Is: | ACTUAL | | Measured TD: | 12740 ft. | Measured PB depth: | 12740 ft. | | True Vertical TD: | 5852 ft. | True Vertical PB depth: | 5852 ft. | | Top PZ Location: | Sec:7 Twp: 10N 57W | Footage: 1924 FNL 651 FWL | | Bottom Hole Location: | Sec:6 Twp: 10N 57W | Footage: 670 FNL 659 FWL | | Log Types: | GR, Mud, RCBL | | Casing: | String Type: CONDUCTOR, Hole Size: 24 in., Size: 16 in., Top: 0 ft., Depth: 80 ft., Weight: 32 , Citings Type: ACTUAL | | Cement: | Sacks: , Top: 0 ft., Bottom: 80 ft., Determination Method: CALC | | Casing: | String Type: SURF, Hole Size: 13.5 in., Size: 9.625 in., Top: 0 ft., Depth: 1916 ft., Weight: 36 , Citings Type: ACTUAL | | Cement: | Sacks: 884, Top: 0 ft., Bottom: 1916 ft., Determination Method: VISU | | Casing: | String Type: 1ST, Hole Size: 8.75 in., Size: 7 in., Top: 0 ft., Depth: 6160 ft., Weight: 29 , Citings Type: ACTUAL | | Cement: | Sacks: 436, Top: 120 ft., Bottom: 6160 ft., Determination Method: CBL | | Casing: | String Type: 1ST LINER, Hole Size: 6 in., Size: 4.5 in., Top: 5195 ft., Depth: 12730 ft., Weight: 11.6 , Citings Type: ACTUAL | | Cement: | Sacks: , Top: , Bottom: , Determination Method: | | Formation | Interval Top | Log Bottom | Cored | DSTs | | PIERRE | 1710 ft. | | N | N | | HYGIENE | 3612 ft. | | N | N | | SHARON SPRINGS | 5759 ft. | | N | N | | NIOBRARA | 5766 ft. | | N | N |
Formation NBRR Formation Classification: OW Status: PR - 10/27/2017 Interval Top: 6161 ft. Interval Bottom: 12740 ft.| Completed Information for Formation NIOBRARA | | 1st Production Date: | N/A | Choke Size: | | | Formation Name: | NIOBRARA | Commingled: | | | Production Method: | | | Open Hole Completion: | |
| | Formation Treatment | | Treatment Type: | FRACTURE STIMULATION | | Treatment Date: | 9/25/2013 | Treatment End Date: | 10/3/2013 | | Treatment Summary: | 40 stages: 25# pHaser Frac: 404,638# 40/70 Prem white sand, 5,788,438# 20/40 Prem white sand, 431,020# CRC 20/40, 159,504 bbls slickwater. | | Total fluid used in treatment (bbls): | 159504 | Max pressure during treatment (psi): | 8607 | | Total gas used in treatment (mcf): | 0 | Fluid density (lbs/gal): | 8.33 | | Type Of gas: | | Number Of staged intervals: | 40 | | Total acid used in treatment (bbls): | 0 | Min frac gradient (psi/ft): | 0.79 | | Recycled water used in treatment (bbls): | 0 | Total flowback volume recovered (bbls): | 37500 | | Fresh water used in treatment (bbls): | 159504 | Disposition method For flowback: | DISPOSAL | | Total proppant used (lbs): | 6633101 | Green completions techniques utilized: | -- | | Reason green techniques Not utilized: PIPELINE |
| | Tubing Size: | | Tubing Setting Depth: | | | Tubing Packer Depth: | | Tubing Multiple Packer: | | | Open Hole Top: | | Open Hole Bottom: | | | Initial Test Data: | | Test Date: | N/A | Test Method: | | | Hours Tested: | | Gas Type: | | | Gas Disposal: | | |
| Test Type | Measure |
|---|
| BBLS_H2O | 790 | | BBLS_OIL | 419 | | BTU_GAS | 1575 | | CALC_BBLS_H2O | 790 | | CALC_BBLS_OIL | 419 | | CALC_GOR | 1019 | | CALC_MCF_GAS | 427 | | CASING_PRESS | 400 | | GRAVITY_OIL | 33 | | MCF_GAS | 427 | | TUBING_PRESS | 400 |
| | Perforation Data: | | Interval Top: | 6161 ft. | # Of Holes: | 936 | | Interval Bottom: | 12740 ft. | Hole Size: | |
|
|
|
|
|
|
|
| Reported Plugged | N | |
| Out Of Service Repurposed | N | |
| Out Of Service | N | |
| Inactive Exception | N | |
| Noticed Inactive | N | |
| Defined Inactive | N | |
| Low Producing | N | |
| Total Oil Produced (Barrels) | 1188 |
| Total Gas Produced (MCF) | 34337 |
| GOR | 28903 |
| GOR Determination | MCFE |
| Average BOE per Day | 19.025 |
| Average MCFE per Day | 110.343 |
| Federal Financial Assurance | i | |
|
|
