COGIS - WELL SCOUT CARD
Click image to view related facilities. Related  Click image to view inspection information. InspClick image to view MIT information. MITClick image to access interactive map at well/facility location. GISClick image to view imaged documents for this well/facility. DocClick image to view imaged documents for this well/facility. COAClick image to view wellbore completion diagram. WellboreClick image to search for orders within this facility's section. OrdersClick image to view bradenhead scoutcard data. Bradenhead
 Surface Location
 API# 05-123-36589		Well Classification: OW Status: PA - 8/30/2024
Well Name/No:Land JG #31-35D
(Click Well Name for Production Data)		Click Here for Transporter Gatherer Info
Operator:PDC ENERGY INC - 69175
(Click Operator Name for Company Detail Report)		Federal Or State Lease #:
Facility Status:PAStatus Date8/30/2024
FacilityID:431397LocationID:431392
Municipality/County:HUDSON / WELD #123Location:LOT2 31 2N64W 6
Field:WATTENBERG - #90750Elevation:4933 ft.
Basin:DENVER (DJ) BASIN
Planned Location:209FSL  929 FWLLat/Long: 40.088047 / -104.599353Lat/Long Source: Field Measured
As Drilled Location:Footages Not AvailableLat/Long: 40.088047 / -104.599356Lat/Long Source: Field Measured
 Wellbore And Formation Details -- select either a wellbore Or formation to expand.


Wellbore #00             Wellbore Classification: OW             Status: AB - 8/30/2024             Measured TD: 7480 ft.    Vertical TD: 7456 ft.

 Wellbore Data for Original WellboreWellbore Classification: OW        AB - 8/30/2024
Wellbore PermitDIRECTIONAL
Permit #: Expiration Date:1/16/2015
Proposed Top PZ Location:Sec:31 Twp: 2N 64W Footage: 0 FSL  1126 FWL
Bottom Hole Location:Sec:31 Twp: 2N 64W Footage: 0 FSL  1126 FWL
Proposed Depth/Form:7396 ft.
Surface Mineral Owner Same:No
Mineral Owner:FEESurface Owner:FEE
Unit: Unit Number:
Formation And Spacing:Code: NB-CD , Formation: NIOBRARA-CODELL , Order: , Unit Acreage: 160, Drill Unit: GWA
Casing:String Type: SURF, Hole Size: 12.25 in., Size: 8.625 in., Top: 0 ft., Depth: 1000 ft., Weight: 24 , Citings Type: PLANNED
Cement:Sacks: 462, Top: 0 ft., Bottom: 1000 ft.
Casing:String Type: 1ST, Hole Size: 7.875 in., Size: 4.5 in., Top: 0 ft., Depth: 7396 ft., Weight: 11.6 , Citings Type: PLANNED
Cement:Sacks: 6663, Top: 3850 ft., Bottom: 7396 ft.
Wellbore Completed
Completion Date:2/12/2013
Spud Date:2/6/2013Spud Date Is:ACTUAL
Measured TD:7480 ft.Measured PB depth:7442 ft.
True Vertical TD:7456 ft.True Vertical PB depth:7410 ft.
Bottom Hole Location:Sec:31 Twp: 2N 64WFootage: 4 FSL  1166 FWL
Log Types:CBL, Composite

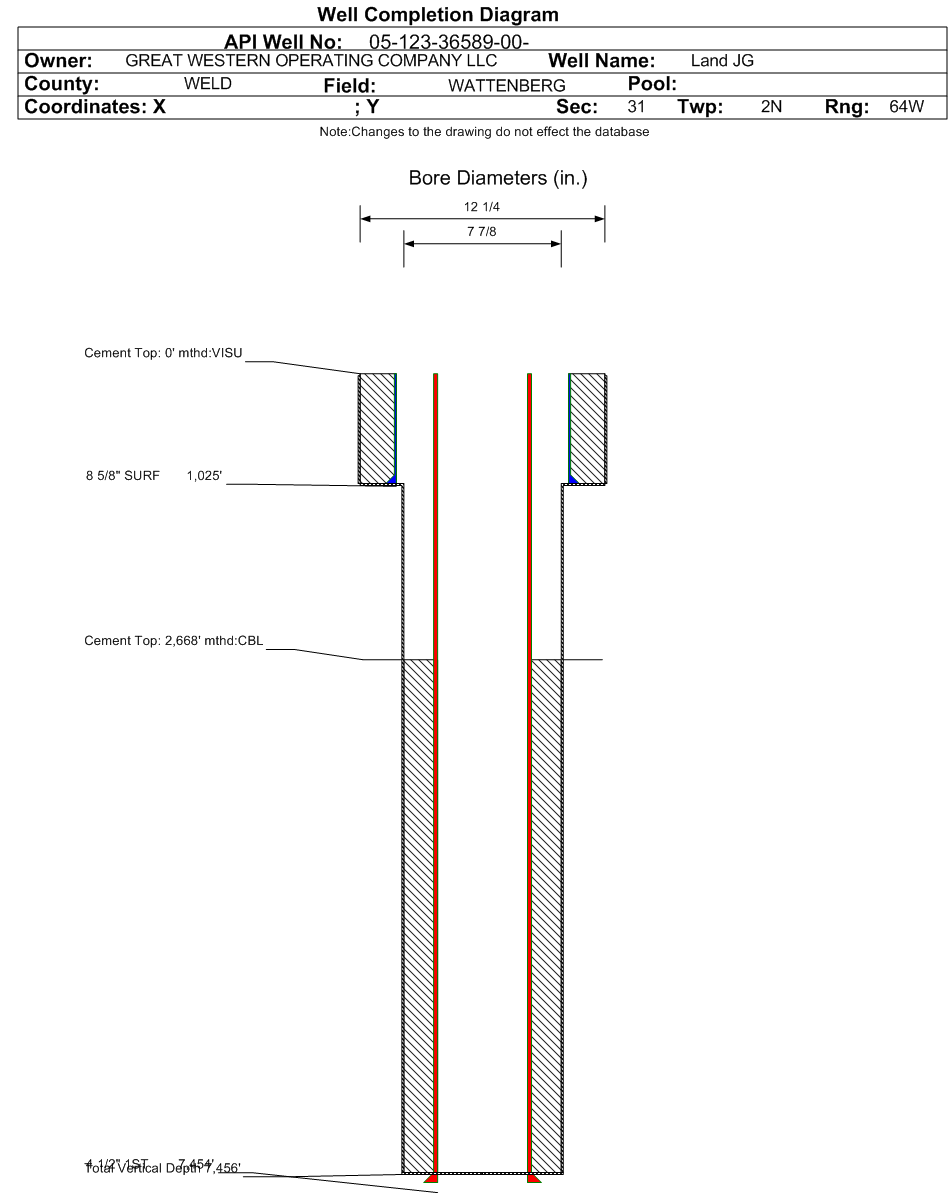

Casing:String Type: SURF, Hole Size: 12.25 in., Size: 8.625 in., Top: 0 ft., Depth: 1025 ft., Weight: 24 , Citings Type: ACTUAL
Cement:Sacks: 670, Top: 0 ft., Bottom: 1025 ft., Determination Method: VISU
Casing:String Type: 1ST, Hole Size: 7.875 in., Size: 4.5 in., Top: 0 ft., Depth: 7454 ft., Weight: 11.6 , Citings Type: ACTUAL
Cement:Sacks: 585, Top: 2668 ft., Bottom: 7454 ft., Determination Method: CBL
FormationInterval TopLog BottomCoredDSTs
PARKMAN4077 ft.4203 ft.NN
SUSSEX4562 ft.4661 ft.NN
SHANNON5170 ft.5244 ft.NN
SHARON SPRINGS6770 ft.NN
NIOBRARA6873 ft.NN
FORT HAYS7178 ft.NN
CODELL7188 ft.NN
CARLILE7201 ft.NN
GREENHORN7260 ft.NN
  No formation data to display.
Primary Well Designation:
None      i
            All DesignationsDate
Reported PluggedY08/30/2024
Out Of Service RepurposedN
Out Of ServiceN
Inactive ExceptionN
Noticed InactiveYNoticed Date
09/30/2024
Defined InactiveN
Low ProducingN

BOE/MCFE/GOR Calculations
Production for Previous 12 Months
October 2024 - September 2025i
Total Oil Produced (Barrels)0
Total Gas Produced (MCF)0
GOR
GOR Determination
Average BOE per Day0.000
Average MCFE per Day0.000

 Federal Financial Assurance  i

 Tribal Well  i No
