Wellbore #00 Wellbore Classification: OW Status: PR - 10/1/2025 Measured TD: 10920 ft. Vertical TD: 6585 ft.| Wellbore Data for Original Wellbore | Wellbore Classification: OW PR - 10/1/2025 | | Wellbore Permit | HORIZONTAL | | Permit #: | | Expiration Date: | 1/10/2015 | | Proposed Top PZ Location: | Sec:3 Twp: 7N 62W | Footage: 650 FSL 650 FEL | | Bottom Hole Location: | Sec:3 Twp: 7N 62W | Footage: 650 FNL 650 FEL | | Proposed Depth/Form: | 11022 ft. | | Surface Mineral Owner Same: | Yes | | Mineral Owner: | FEE | Surface Owner: | FEE | | Unit: | | Unit Number: | | | Formation And Spacing: | Code: NBRR , Formation: NIOBRARA , Order: 407-642 , Unit Acreage: 640, Drill Unit: Sect 3 All | | Casing: | String Type: SURF, Hole Size: 12.25 in., Size: 9.625 in., Top: 0 ft., Depth: 1400 ft., Weight: 36 , Citings Type: PLANNED | | Cement: | Sacks: 534, Top: 0 ft., Bottom: 1400 ft. | | Casing: | String Type: 1ST, Hole Size: 8.75 in., Size: 7 in., Top: 0 ft., Depth: 6823 ft., Weight: 23 , Citings Type: PLANNED | | Cement: | Sacks: 713, Top: 1400 ft., Bottom: 6823 ft. | | Casing: | String Type: 1ST LINER, Hole Size: 6.25 in., Size: 4.5 in., Top: 6107 ft., Depth: 11022 ft., Weight: 11.6 , Citings Type: PLANNED | | Cement: | Sacks: , Top: , Bottom: |
| | |

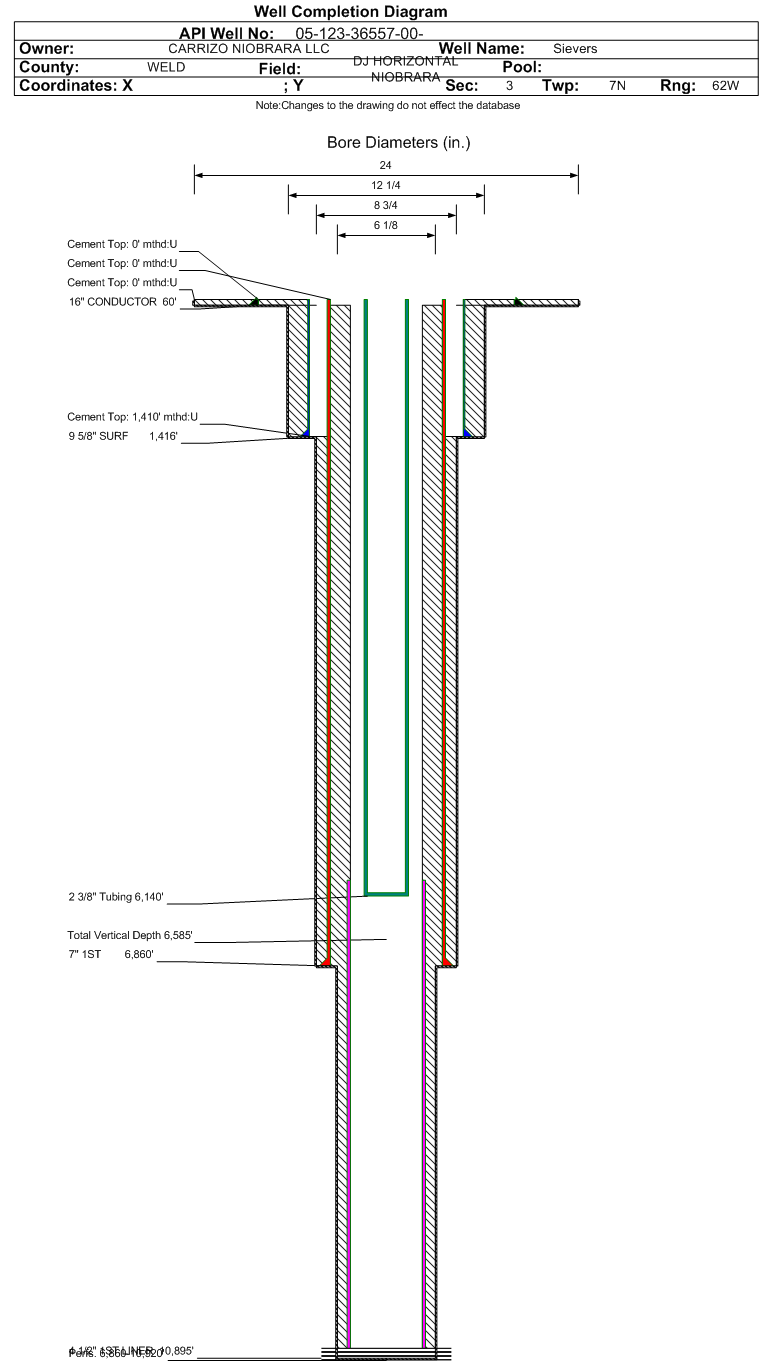

| Wellbore Completed | | Completion Date: | 5/18/2013 | | Spud Date: | 5/7/2013 | Spud Date Is: | ACTUAL | | Measured TD: | 10920 ft. | Measured PB depth: | 10845 ft. | | True Vertical TD: | 6585 ft. | True Vertical PB depth: | 6583 ft. | | Top PZ Location: | Sec:3 Twp: 7N 62W | Footage: 591 FSL 640 FEL | | Bottom Hole Location: | Sec:3 Twp: 7N 62W | Footage: 652 FNL 674 FEL | | Log Types: | MWD, CBL | | Casing: | String Type: CONDUCTOR, Hole Size: 24 in., Size: 16 in., Top: 0 ft., Depth: 60 ft., Weight: 36.9 , Citings Type: ACTUAL | | Cement: | Sacks: 8, Top: 0 ft., Bottom: 60 ft., Determination Method: VISU | | Casing: | String Type: SURF, Hole Size: 12.25 in., Size: 9.625 in., Top: 0 ft., Depth: 1416 ft., Weight: 36 , Citings Type: ACTUAL | | Cement: | Sacks: 653, Top: 0 ft., Bottom: 1416 ft., Determination Method: VISU | | Casing: | String Type: 1ST, Hole Size: 8.75 in., Size: 7 in., Top: 0 ft., Depth: 6860 ft., Weight: 23 , Citings Type: ACTUAL | | Cement: | Sacks: 595, Top: 1410 ft., Bottom: 6860 ft., Determination Method: CBL | | Casing: | String Type: 1ST LINER, Hole Size: 6.125 in., Size: 4.5 in., Top: 5977 ft., Depth: 10895 ft., Weight: 11.6 , Citings Type: ACTUAL | | Cement: | Sacks: , Top: , Bottom: , Determination Method: | | Formation | Interval Top | Log Bottom | Cored | DSTs | | SHARON SPRINGS | 6450 ft. | 6572 ft. | N | N | | NIOBRARA | 6572 ft. | | N | N |
Formation NBRR Formation Classification: OW Status: PR - 10/1/2025 Interval Top: 6860 ft. Interval Bottom: 10920 ft.| Completed Information for Formation NIOBRARA | | 1st Production Date: | 6/15/2013 | Choke Size: | | | Formation Name: | NIOBRARA | Commingled: | No | | Production Method: | | | Open Hole Completion: | Yes |
| | Formation Treatment | | Treatment Type: | FRACTURE STIMULATION | | Treatment Date: | 5/29/2013 | Treatment End Date: | 5/31/2013 | | Treatment Summary: | FRACTURE STIMULATED THROUGH A PORT AND PACKER SYSTEM WITH 2,749,222 LBS 20/40 SAND AND 51,172 BBLS FRESH WATER. NO ACID OR GAS USED IN THIS TREATMENT. | | Total fluid used in treatment (bbls): | 51172 | Max pressure during treatment (psi): | 6974 | | Total gas used in treatment (mcf): | | Fluid density (lbs/gal): | 8.90 | | Type Of gas: | | Number Of staged intervals: | 14 | | Total acid used in treatment (bbls): | | Min frac gradient (psi/ft): | 0.84 | | Recycled water used in treatment (bbls): | | Total flowback volume recovered (bbls): | 19445 | | Fresh water used in treatment (bbls): | 51172 | Disposition method For flowback: | DISPOSAL | | Total proppant used (lbs): | 2749222 | Green completions techniques utilized: | No | | Reason green techniques Not utilized: PIPELINE |
| | Tubing Size: | 2.375 in. | Tubing Setting Depth: | 6140 ft. | | Tubing Packer Depth: | | Tubing Multiple Packer: | | | Open Hole Top: | | Open Hole Bottom: | | | Initial Test Data: | | Test Date: | 6/18/2013 | Test Method: | | | Hours Tested: | 24 | Gas Type: | WET | | Gas Disposal: | FLARED | |
| Test Type | Measure |
|---|
| BBLS_H2O | 643 | | BBLS_OIL | 239 | | BTU_GAS | 1322 | | CALC_BBLS_H2O | 643 | | CALC_BBLS_OIL | 239 | | CALC_GOR | 481 | | CALC_MCF_GAS | 115 | | CASING_PRESS | 180 | | GRAVITY_OIL | 36 | | MCF_GAS | 115 | | TUBING_PRESS | 2000 |
| | Perforation Data: | | Interval Top: | 6860 ft. | # Of Holes: | | | Interval Bottom: | 10920 ft. | Hole Size: | |
|
|
|
|
|
|
|
| Reported Plugged | N | |
| Out Of Service Repurposed | N | |
| Out Of Service | N | |
| Inactive Exception | N | |
| Noticed Inactive | N | |
| Defined Inactive | N | |
| Low Producing | Y | Production Period
09/2024 - 08/2025 |
| Total Oil Produced (Barrels) | 0 |
| Total Gas Produced (MCF) | 0 |
| GOR | |
| GOR Determination | |
| Average BOE per Day | 0.000 |
| Average MCFE per Day | 0.000 |
| Federal Financial Assurance | i | |
|
|
