Wellbore #00 Wellbore Classification: OW Status: AB - 7/3/2025 Measured TD: 10610 ft. Vertical TD: 6063 ft.| Wellbore Data for Original Wellbore | Wellbore Classification: OW AB - 7/3/2025 | | Wellbore Permit | HORIZONTAL | | Permit #: | | Expiration Date: | 12/2/2014 | | Proposed Top PZ Location: | Sec:7 Twp: 5N 61W | Footage: 771 FSL 705 FEL | | Bottom Hole Location: | Sec:7 Twp: 5N 61W | Footage: 469 FNL 665 FEL | | Proposed Depth/Form: | 10671 ft. | | Surface Mineral Owner Same: | No | | Mineral Owner: | FEE | Surface Owner: | FEE | | Unit: | | Unit Number: | | | Formation And Spacing: | Code: NBRR , Formation: NIOBRARA , Order: 407-633 , Unit Acreage: 640, Drill Unit: Sect 7 All | | Casing: | String Type: SURF, Hole Size: 13.5 in., Size: 9.625 in., Top: 0 ft., Depth: 410 ft., Weight: 36 , Citings Type: PLANNED | | Cement: | Sacks: 200, Top: 0 ft., Bottom: 410 ft. | | Casing: | String Type: 1ST, Hole Size: 8.75 in., Size: 7 in., Top: 0 ft., Depth: 6383 ft., Weight: 26 , Citings Type: PLANNED | | Cement: | Sacks: 500, Top: 2500 ft., Bottom: 6383 ft. | | Casing: | String Type: 1ST LINER, Hole Size: 6.125 in., Size: 4.5 in., Top: 6283 ft., Depth: 10671 ft., Weight: 11.6 , Citings Type: PLANNED | | Cement: | Sacks: , Top: , Bottom: |
| | |

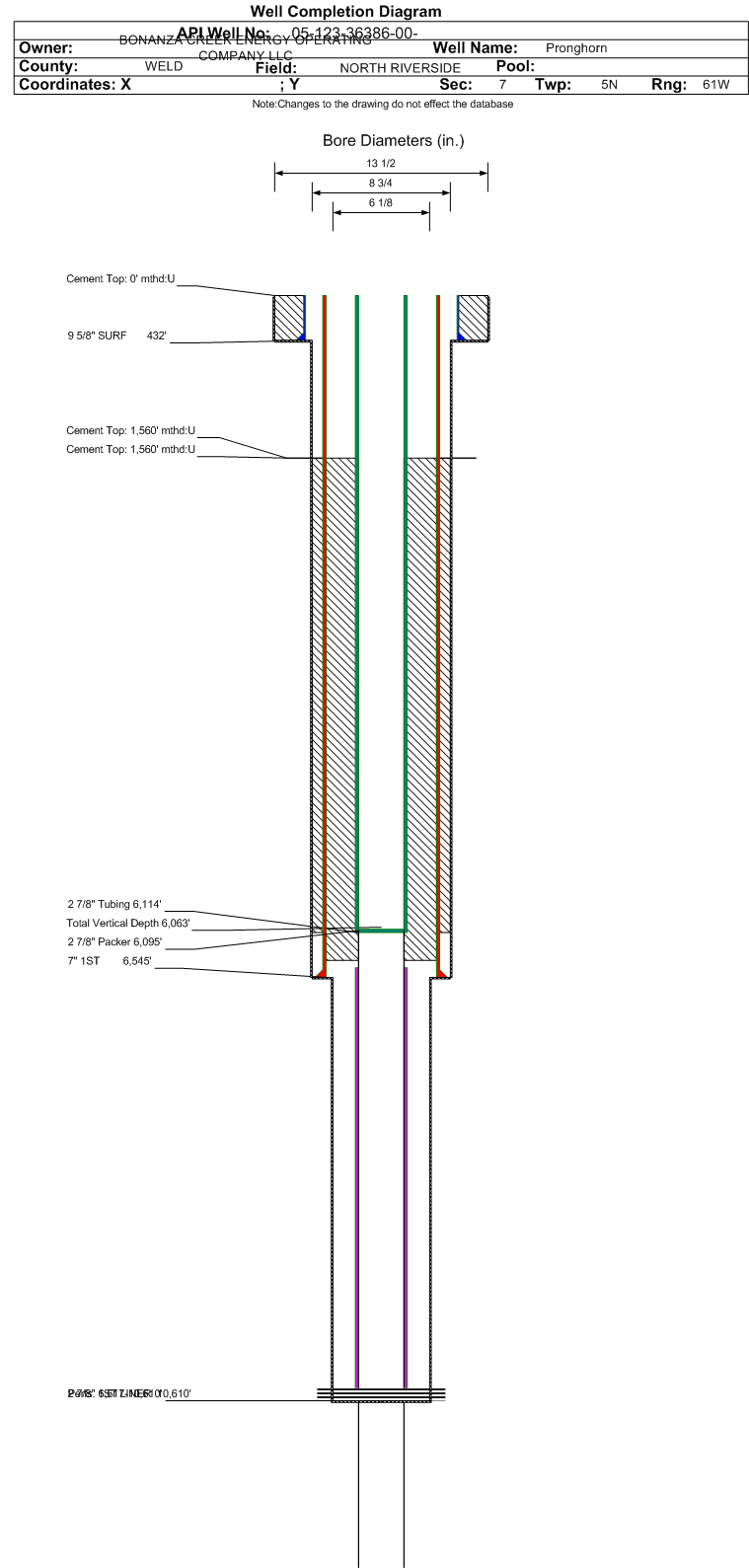

| Wellbore Completed | | Completion Date: | 1/19/2013 | | Spud Date: | 1/19/2013 | Spud Date Is: | Actual | | Measured TD: | 10610 ft. | Measured PB depth: | 10559 ft. | | True Vertical TD: | 6063 ft. | True Vertical PB depth: | 6063 ft. | | Top PZ Location: | Sec:7 Twp: 5N 61W | Footage: 771 FSL 705 FEL | | Bottom Hole Location: | Sec:7 Twp: 5N 61W | Footage: 469 FNL 665 FEL | | Log Types: | CBL, MUD | | Casing: | String Type: SURF, Hole Size: 13.5 in., Size: 9.625 in., Top: 0 ft., Depth: 432 ft., Weight: 36 , Citings Type: ACTUAL | | Cement: | Sacks: 360, Top: 0 ft., Bottom: 432 ft., Determination Method: VISU | | Casing: | String Type: 1ST, Hole Size: 8.75 in., Size: , Top: 0 ft., Depth: 6545 ft., Weight: 26 , Citings Type: ACTUAL | | Cement: | Sacks: 659, Top: 830 ft., Bottom: 6545 ft., Determination Method: CBL | | Casing: | String Type: 1ST LINER, Hole Size: 6.125 in., Size: 4.5 in., Top: 6452 ft., Depth: 10603 ft., Weight: 11.6 , Citings Type: ACTUAL | | Cement: | Sacks: , Top: , Bottom: , Determination Method: | | Formation | Interval Top | Log Bottom | Cored | DSTs | | SHARON SPRINGS | 5922 ft. | | | | | NIOBRARA | 6076 ft. | | | |
Formation NBRR Formation Classification: OW Status: AB - 7/3/2025 Interval Top: 6617 ft. Interval Bottom: 10610 ft.| Completed Information for Formation NIOBRARA | | 1st Production Date: | 3/28/2013 | Choke Size: | | | Formation Name: | NIOBRARA | Commingled: | No | | Production Method: | | | Open Hole Completion: | Yes |
| | Formation Treatment | | Treatment Type: | FRACTURE STIMULATION | | Treatment Date: | 3/7/2013 | Treatment End Date: | 3/12/2013 | | Treatment Summary: | 1 stage: Niobrara pumped a total of 52405 bbls of fluid and 3728775# of sand, Avrg Rate 46.2 bpm, Avg P 4282 psi, Final ISDP 3055 psi, completed with sliding sleeves and casing packers. | | Total fluid used in treatment (bbls): | 52405 | Max pressure during treatment (psi): | 4292 | | Total gas used in treatment (mcf): | 0 | Fluid density (lbs/gal): | 8.34 | | Type Of gas: | | Number Of staged intervals: | 1 | | Total acid used in treatment (bbls): | 0 | Min frac gradient (psi/ft): | 0.88 | | Recycled water used in treatment (bbls): | 0 | Total flowback volume recovered (bbls): | 13260 | | Fresh water used in treatment (bbls): | 52405 | Disposition method For flowback: | DISPOSAL | | Total proppant used (lbs): | 3728775 | Green completions techniques utilized: | Yes | | Reason green techniques Not utilized: |
| | Tubing Size: | 2.875 in. | Tubing Setting Depth: | 6114 ft. | | Tubing Packer Depth: | 6115 ft. | Tubing Multiple Packer: | | | Open Hole Top: | | Open Hole Bottom: | | | Initial Test Data: | | Test Date: | 4/2/2013 | Test Method: | Flowing | | Hours Tested: | 72 | Gas Type: | WET | | Gas Disposal: | SOLD | |
| Test Type | Measure |
|---|
| BBLS_H2O | 315 | | BBLS_OIL | 1185 | | BTU_GAS | 1311 | | CALC_BBLS_H2O | 105 | | CALC_BBLS_OIL | 396 | | CALC_GOR | 1225 | | CALC_MCF_GAS | 484 | | GRAVITY_OIL | 43 | | MCF_GAS | 1452 | | TUBING_PRESS | 180 |
| | Perforation Data: | | Interval Top: | 6617 ft. | # Of Holes: | | | Interval Bottom: | 10610 ft. | Hole Size: | |
|
|
|
|
|
|
|
| Reported Plugged | Y | 07/03/2025 |
| Out Of Service Repurposed | N | |
| Out Of Service | Y | Plugging Due Date
12/31/2028 |
| Inactive Exception | N | |
| Noticed Inactive | N | |
| Defined Inactive | N | |
| Low Producing | N | |
| Total Oil Produced (Barrels) | 0 |
| Total Gas Produced (MCF) | 0 |
| GOR | |
| GOR Determination | |
| Average BOE per Day | 0.000 |
| Average MCFE per Day | 0.000 |
| Federal Financial Assurance | i | |
|
|
