Wellbore #00 Wellbore Classification: OW Status: PR - 11/1/2020 Measured TD: 12397 ft. Vertical TD: 7257 ft.| Wellbore Data for Original Wellbore | Wellbore Classification: OW PR - 11/1/2020 | | Wellbore Permit | HORIZONTAL | | Permit #: | | Expiration Date: | 10/25/2014 | | Proposed Top PZ Location: | Sec:19 Twp: 2N 65W | Footage: 691 FSL 1038 FWL | | Bottom Hole Location: | Sec:18 Twp: 2N 65W | Footage: 100 FSL 1024 FWL | | Proposed Depth/Form: | 12678 ft. | | Surface Mineral Owner Same: | No | | Mineral Owner: | FEE | Surface Owner: | FEE | | Unit: | | Unit Number: | | | Formation And Spacing: | Code: NBRR , Formation: NIOBRARA , Order: , Unit Acreage: 400, Drill Unit: GWA | | Casing: | String Type: SURF, Hole Size: 13.5 in., Size: 9.625 in., Top: 0 ft., Depth: 980 ft., Weight: 36.0 , Citings Type: PLANNED | | Cement: | Sacks: 730, Top: 0 ft., Bottom: 980 ft. | | Casing: | String Type: 1ST, Hole Size: 8.75 in., Size: 7 in., Top: 0 ft., Depth: 7537 ft., Weight: 26.0 , Citings Type: PLANNED | | Cement: | Sacks: 720, Top: 0 ft., Bottom: 7537 ft. | | Casing: | String Type: 1ST LINER, Hole Size: 6.125 in., Size: 4.5 in., Top: 6506 ft., Depth: 12678 ft., Weight: 11.6 , Citings Type: PLANNED | | Cement: | Sacks: , Top: , Bottom: |
| | |

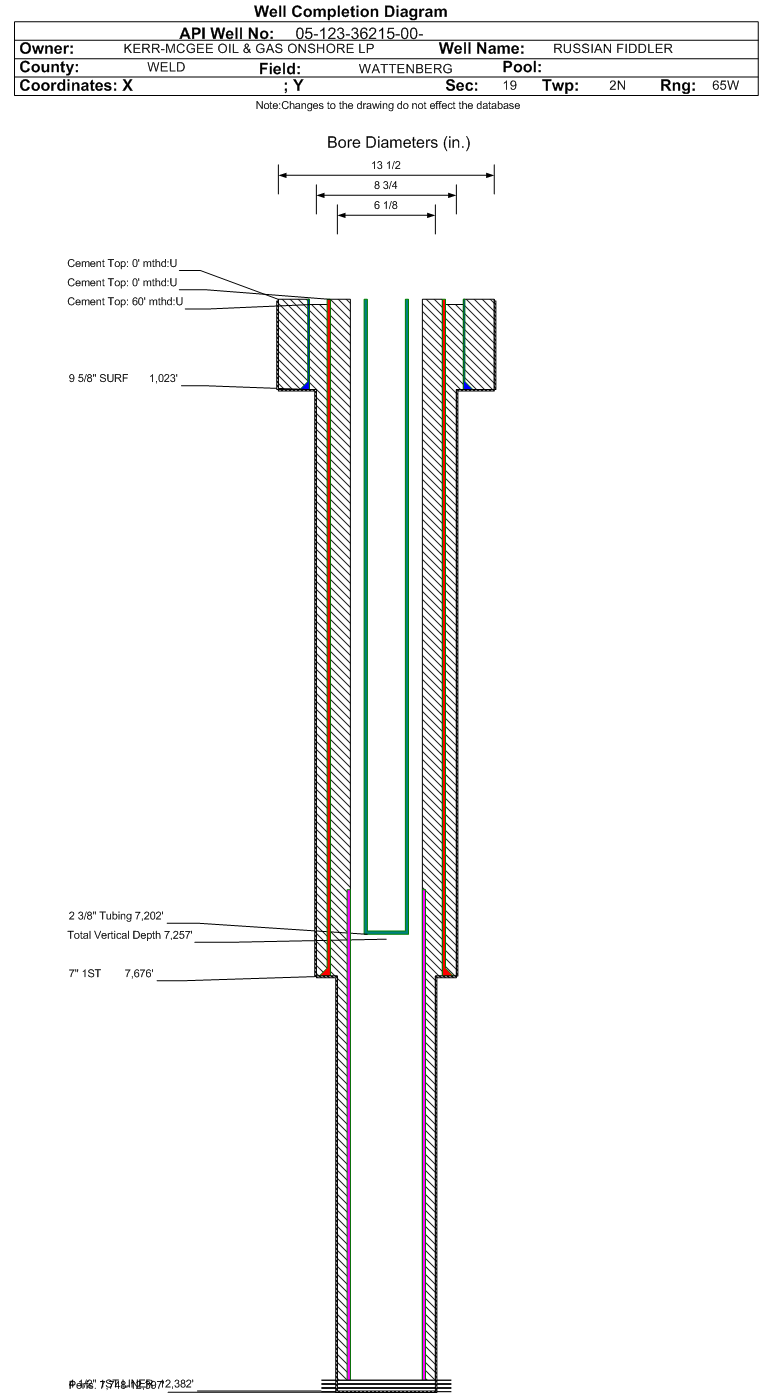

| Wellbore Completed | | Completion Date: | 4/17/2013 | | Spud Date: | 4/4/2013 | Spud Date Is: | ACTUAL | | Measured TD: | 12397 ft. | Measured PB depth: | 12373 ft. | | True Vertical TD: | 7257 ft. | True Vertical PB depth: | 7258 ft. | | Top PZ Location: | Sec:19 Twp: 2N 65W | Footage: 691 FSL 1038 FWL | | Bottom Hole Location: | Sec:18 Twp: 2N 65W | Footage: 100 FSL 1024 FWL | | Log Types: | CBL; GR; MUD | | Casing: | String Type: SURF, Hole Size: 13.5 in., Size: 9.625 in., Top: 0 ft., Depth: 1023 ft., Weight: 36 , Citings Type: ACTUAL | | Cement: | Sacks: 438, Top: 0 ft., Bottom: 1023 ft., Determination Method: VISU | | Casing: | String Type: 1ST, Hole Size: 8.75 in., Size: 7 in., Top: 0 ft., Depth: 7676 ft., Weight: 26 , Citings Type: ACTUAL | | Cement: | Sacks: 780, Top: 60 ft., Bottom: 7676 ft., Determination Method: CBL | | Casing: | String Type: 1ST LINER, Hole Size: 6.125 in., Size: 4.5 in., Top: 6696 ft., Depth: 12382 ft., Weight: 11.6 , Citings Type: ACTUAL | | Cement: | Sacks: , Top: , Bottom: , Determination Method: | | Formation | Interval Top | Log Bottom | Cored | DSTs | | SHARON SPRINGS | 7116 ft. | | | | | NIOBRARA | 7196 ft. | | | |
Formation NBRR Formation Classification: OW Status: PR - 11/1/2020 Interval Top: 7748 ft. Interval Bottom: 12397 ft.| Completed Information for Formation NIOBRARA | | 1st Production Date: | 8/25/2013 | Choke Size: | | | Formation Name: | NIOBRARA | Commingled: | No | | Production Method: | | | Open Hole Completion: | Yes |
| | Formation Treatment | | Treatment Type: | FRACTURE STIMULATION | | Treatment Date: | 8/13/2013 | Treatment End Date: | 8/19/2013 | | Treatment Summary: | COMPLETED THROUGH AN OPEN HOLE LINER FROM 7748-12397.
48 BBL ACID,10596 BBL CROSSLINK GEL,2924 BBL LINEAR GEL,69544 BBL SLICKWATER,83112 BBL TOTAL FLUID.
653585# 30/50 OTTAWA/ST. PETERS SAND,1179706# 40/70 OTTAWA/ST. PETERS SAND,1833291# TOTAL SAND.
| | Total fluid used in treatment (bbls): | 83112 | Max pressure during treatment (psi): | 7215 | | Total gas used in treatment (mcf): | 0 | Fluid density (lbs/gal): | 8.30 | | Type Of gas: | | Number Of staged intervals: | 40 | | Total acid used in treatment (bbls): | 0 | Min frac gradient (psi/ft): | 0.96 | | Recycled water used in treatment (bbls): | 0 | Total flowback volume recovered (bbls): | 11596 | | Fresh water used in treatment (bbls): | 0 | Disposition method For flowback: | DISPOSAL | | Total proppant used (lbs): | 1833291 | Green completions techniques utilized: | Yes | | Reason green techniques Not utilized: |
| | Tubing Size: | 2.375 in. | Tubing Setting Depth: | 7202 ft. | | Tubing Packer Depth: | | Tubing Multiple Packer: | | | Open Hole Top: | | Open Hole Bottom: | | | Initial Test Data: | | Test Date: | 9/7/2013 | Test Method: | FLOWING | | Hours Tested: | 24 | Gas Type: | SHALE | | Gas Disposal: | SOLD | |
| Test Type | Measure |
|---|
| BBLS_OIL | 459 | | BTU_GAS | 1295 | | CALC_BBLS_OIL | 459 | | CALC_GOR | 1645 | | CALC_MCF_GAS | 755 | | CASING_PRESS | 2514 | | GRAVITY_OIL | 47 | | MCF_GAS | 755 | | TUBING_PRESS | 1957 |
| | Perforation Data: | | Interval Top: | 7748 ft. | # Of Holes: | 0 | | Interval Bottom: | 12397 ft. | Hole Size: | 0 in. |
|
|
|
|
|
|
|
| Reported Plugged | N | |
| Out Of Service Repurposed | N | |
| Out Of Service | N | |
| Inactive Exception | N | |
| Noticed Inactive | N | |
| Defined Inactive | N | |
| Low Producing | N | |
| Total Oil Produced (Barrels) | 1112 |
| Total Gas Produced (MCF) | 31536 |
| GOR | 28359 |
| GOR Determination | MCFE |
| Average BOE per Day | 17.880 |
| Average MCFE per Day | 103.716 |
| Federal Financial Assurance | i | |
|
|
