Wellbore #00 Wellbore Classification: OW Status: PA - 5/23/2022 Measured TD: 10502 ft. Vertical TD: 6092 ft.| Wellbore Data for Original Wellbore | Wellbore Classification: OW PA - 5/23/2022 | | Wellbore Permit | HORIZONTAL | | Permit #: | | Expiration Date: | 12/26/2013 | | Proposed Top PZ Location: | Sec:5 Twp: 5n 61w | Footage: 810 FNL 495 FWL | | Bottom Hole Location: | Sec:5 Twp: 5n 61w | Footage: 461 FSL 673 FWL | | Proposed Depth/Form: | 10450 ft. | | Surface Mineral Owner Same: | No | | Mineral Owner: | FEE | Surface Owner: | FEE | | Unit: | | Unit Number: | | | Formation And Spacing: | Code: NBRR , Formation: NIOBRARA , Order: 407-380 , Unit Acreage: 640, Drill Unit: All | | Casing: | String Type: SURF, Hole Size: 12.25 in., Size: 9.625 in., Top: 0 ft., Depth: 410 ft., Weight: 36# , Citings Type: PLANNED | | Cement: | Sacks: 128, Top: 0 ft., Bottom: 410 ft. | | Casing: | String Type: 1ST, Hole Size: 8.75 in., Size: 7 in., Top: 0 ft., Depth: 6600 ft., Weight: 26# , Citings Type: PLANNED | | Cement: | Sacks: 787, Top: 0 ft., Bottom: 6600 ft. | | Casing: | String Type: 1ST LINER, Hole Size: 6.125 in., Size: 4.5 in., Top: 0 ft., Depth: 10420 ft., Weight: 11.6# , Citings Type: PLANNED | | Cement: | Sacks: , Top: , Bottom: |
| | |

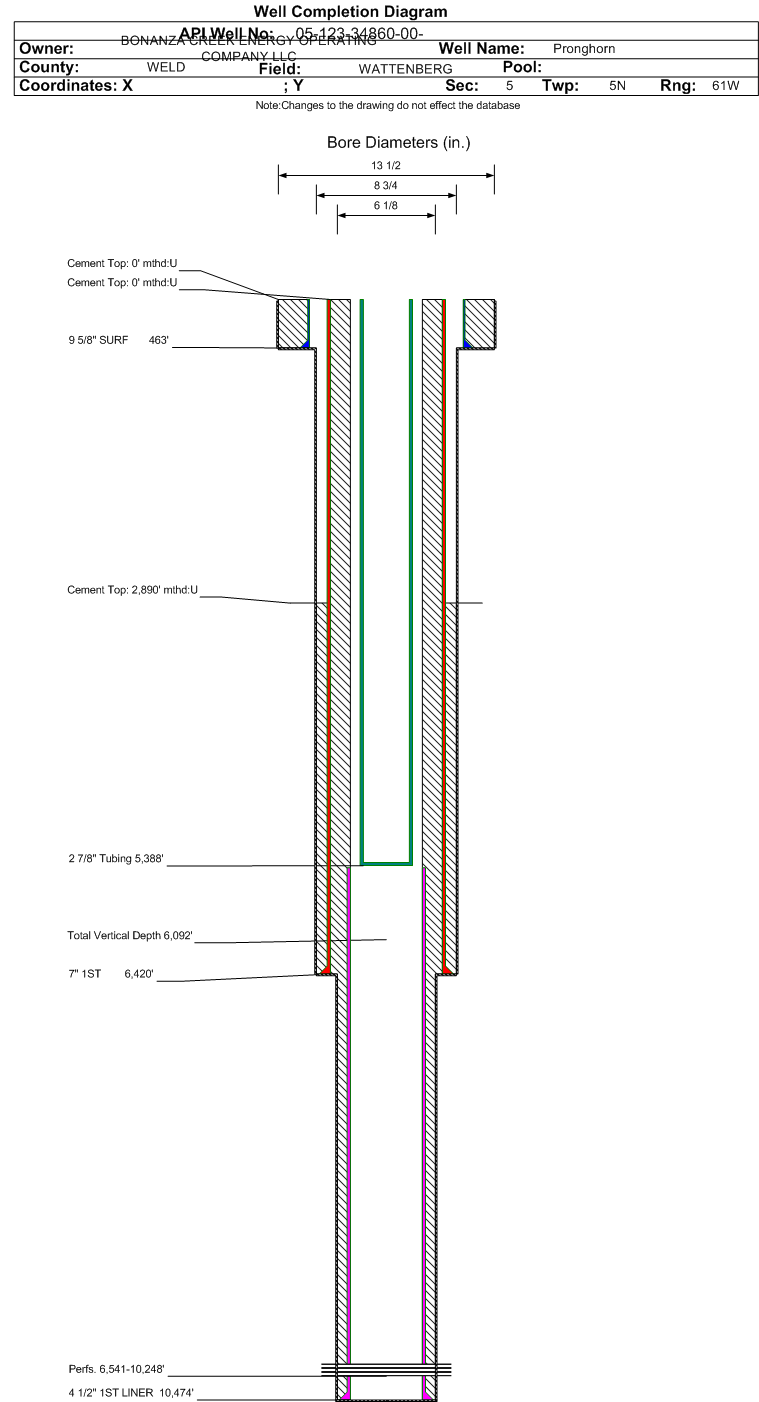

| Wellbore Completed | | Completion Date: | 1/18/2012 | | Spud Date: | 1/18/2012 | Spud Date Is: | ACTUAL | | Measured TD: | 10502 ft. | Measured PB depth: | 10502 ft. | | True Vertical TD: | 6092 ft. | True Vertical PB depth: | 6092 ft. | | Top PZ Location: | Sec:5 Twp: 5n 61w | Footage: 810 FNL 495 FWL | | Bottom Hole Location: | Sec:5 Twp: 5n 61w | Footage: 461 FSL 673 FWL | | Log Types: | Cement Bond Log & Gamma Ray Log | | Casing: | String Type: SURF, Hole Size: 13.5 in., Size: 9.625 in., Top: 0 ft., Depth: 463 ft., Weight: 36 , Citings Type: ACTUAL | | Cement: | Sacks: 307, Top: 0 ft., Bottom: 463 ft., Determination Method: CALC | | Casing: | String Type: 1ST, Hole Size: 8.75 in., Size: , Top: 0 ft., Depth: 6420 ft., Weight: 26 , Citings Type: ACTUAL | | Cement: | Sacks: 290, Top: 2890 ft., Bottom: 6420 ft., Determination Method: CBL | | Casing: | String Type: 1ST LINER, Hole Size: 6.125 in., Size: 4.5 in., Top: 5409 ft., Depth: 10474 ft., Weight: 11.6 , Citings Type: ACTUAL | | Cement: | Sacks: , Top: , Bottom: , Determination Method: | | Formation | Interval Top | Log Bottom | Cored | DSTs | | PARKMAN | 3258 ft. | | | | | SUSSEX | 5148 ft. | | | | | SHARON SPRINGS | 5888 ft. | | | | | NIOBRARA | 5996 ft. | | | |
Formation NBRR Formation Classification: OW Status: AB - 7/29/2022 Interval Top: 6541 ft. Interval Bottom: 10248 ft.| Completed Information for Formation NIOBRARA | | 1st Production Date: | 3/1/2012 | Choke Size: | | | Formation Name: | NIOBRARA | Commingled: | No | | Production Method: | | | Open Hole Completion: | No |
| | Formation Treatment | | Treatment Date: | 2/20/2012 | | Treatment Summary: | Pumped 52787 bbls of pHaserFrac fluid with 37571200 lbs CRC 20/40, Premium White 40/70 & 30/50 sand, completed with sliding sleeves and casing packers. ATP 4435, ATR 48.2, Final IDSP 2984. |
| | Tubing Size: | 2.875 in. | Tubing Setting Depth: | 5388 ft. | | Tubing Packer Depth: | | Tubing Multiple Packer: | | | Open Hole Top: | | Open Hole Bottom: | | | Initial Test Data: | | Test Date: | N/A | Test Method: | Flowing | | Hours Tested: | 72 | Gas Type: | WET | | Gas Disposal: | SOLD | |
| Test Type | Measure |
|---|
| BBLS_H2O | 7 | | BBLS_OIL | 607 | | BTU_GAS | 1311 | | CALC_BBLS_H2O | 2 | | CALC_BBLS_OIL | 202 | | CALC_GOR | 4450 | | CALC_MCF_GAS | 899 | | CASING_PRESS | 273 | | GRAVITY_OIL | 43 | | MCF_GAS | 2697 | | TUBING_PRESS | 242 |
| | Perforation Data: | | Interval Top: | 6541 ft. | # Of Holes: | | | Interval Bottom: | 10248 ft. | Hole Size: | |
|
|
|
|
|
|
|
| Reported Plugged | Y | 07/29/2022 |
| Out Of Service Repurposed | N | |
| Out Of Service | N | |
| Inactive Exception | N | |
| Noticed Inactive | N | |
| Defined Inactive | N | |
| Low Producing | N | |
| Total Oil Produced (Barrels) | 0 |
| Total Gas Produced (MCF) | 0 |
| GOR | |
| GOR Determination | |
| Average BOE per Day | 0.000 |
| Average MCFE per Day | 0.000 |
| Federal Financial Assurance | i | |
|
|
