COGIS - WELL SCOUT CARD
Click image to view related facilities. Related  Click image to view inspection information. InspClick image to view MIT information. MITClick image to access interactive map at well/facility location. GISClick image to view imaged documents for this well/facility. DocClick image to view imaged documents for this well/facility. COAClick image to view wellbore completion diagram. WellboreClick image to search for orders within this facility's section. OrdersClick image to view bradenhead scoutcard data. Bradenhead
 Surface Location
 API# 05-123-34640		Well Classification: OW Status: PR - 2/1/2018
Well Name/No:Westmoor 5 #2-6-2
(Click Well Name for Production Data)		Click Here for Transporter Gatherer Info
Operator:PDC ENERGY INC - 69175
(Click Operator Name for Company Detail Report)		Federal Or State Lease #:
Facility Status:PRStatus Date2/1/2018
FacilityID:426310LocationID:423325
Municipality/County:GREELEY / WELD #123Location:SENE 2 5N66W 6
Field:WATTENBERG - #90750Elevation:4701 ft.
Basin:DENVER (DJ) BASIN
Planned Location:2313FNL  1240 FELLat/Long: 40.431040 / -104.739450Lat/Long Source: Field Measured
As Drilled Location:Footages Not AvailableLat/Long: 40.431040 / -104.739460Lat/Long Source: Field Measured

FracFocus
Disclosure: Sidetrack #00
Start Date: 2/14/2013
End Date: 2/14/2013
Reported: 6/26/2013
Days to report: 132
 Wellbore And Formation Details -- select either a wellbore Or formation to expand.


Wellbore #00             Wellbore Classification: OW             Status: PR - 2/1/2018             Measured TD: 8338 ft.    Vertical TD: 7331 ft.

 Wellbore Data for Original WellboreWellbore Classification: OW        PR - 2/1/2018
Wellbore PermitDIRECTIONAL
Permit #: Expiration Date:10/31/2013
Proposed Top PZ Location:Sec:2 Twp: 5N 66W Footage: 1392 FSL  1566 FWL
Bottom Hole Location:Sec:2 Twp: 5N 66W Footage: 1347 FSL  1498 FWL
Proposed Depth/Form:8757 ft.
Surface Mineral Owner Same:No
Mineral Owner:FEESurface Owner:FEE
Unit: Unit Number:
Formation And Spacing:Code: JSND , Formation: J SAND , Order: UNSPACED , Unit Acreage: 160, Drill Unit: SW/4
Formation And Spacing:Code: NB-CD , Formation: NIOBRARA-CODELL , Order: 407-87 , Unit Acreage: 160, Drill Unit: SW/4
Casing:String Type: SURF, Hole Size: 12.25 in., Size: 8.625 in., Top: 0 ft., Depth: 440 ft., Weight: 24 , Citings Type: PLANNED
Cement:Sacks: 264, Top: 0 ft., Bottom: 440 ft.
Casing:String Type: 1ST, Hole Size: 7.875 in., Size: 4.5 in., Top: 0 ft., Depth: 8757 ft., Weight: 11.6 , Citings Type: PLANNED
Cement:Sacks: 346, Top: 7373 ft., Bottom: 8757 ft.

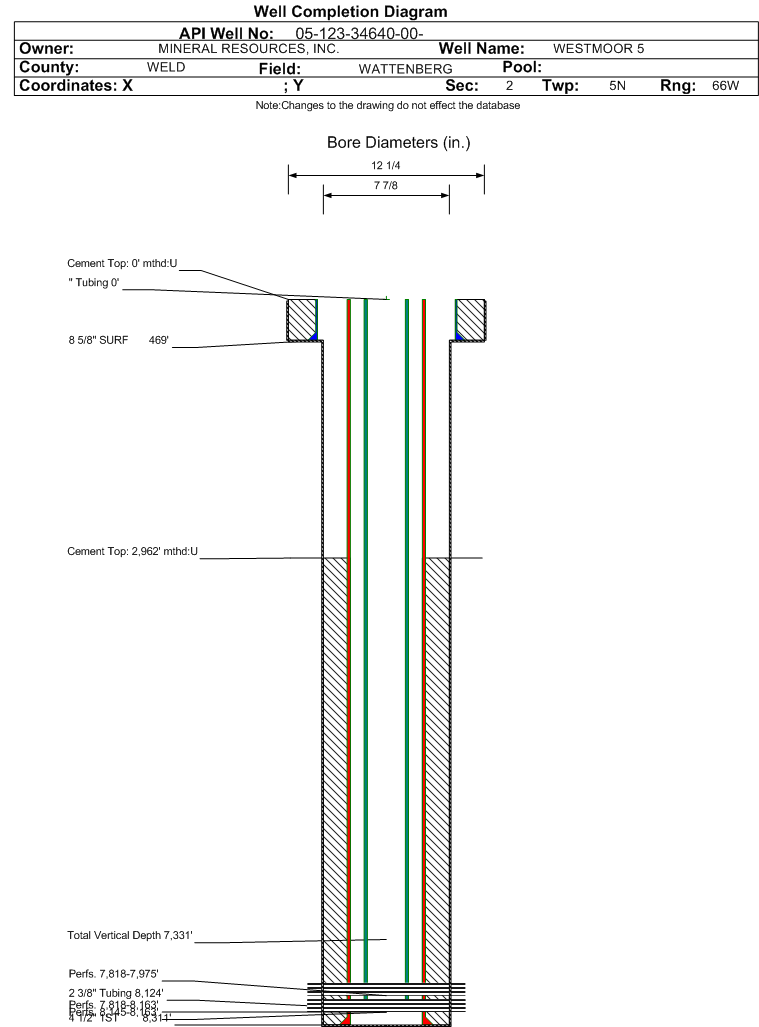

Wellbore Completed
Completion Date:6/7/2012
Spud Date:5/31/2012Spud Date Is:ACTUAL
Measured TD:8338 ft.Measured PB depth:8312 ft.
True Vertical TD:7331 ft.True Vertical PB depth:7306 ft.
Top PZ Location:Sec:2 Twp: 5N 66WFootage: 1392 FSL  1566 FWL
Bottom Hole Location:Sec:2 Twp: 5N 66WFootage: 1347 FSL  1498 FWL
Log Types:CDL, CNL , DIL, Radial CBL
Casing:String Type: SURF, Hole Size: 12.25 in., Size: 8.625 in., Top: 0 ft., Depth: 469 ft., Weight: 24 , Citings Type: ACTUAL
Cement:Sacks: 250, Top: 0 ft., Bottom: 469 ft., Determination Method: VISU
Casing:String Type: 1ST, Hole Size: 7.875 in., Size: 4.5 in., Top: 0 ft., Depth: 8311 ft., Weight: 11.6 , Citings Type: ACTUAL
Cement:Sacks: 735, Top: 2962 ft., Bottom: 8311 ft., Determination Method: CBL
FormationInterval TopLog BottomCoredDSTs
PARKMAN4038 ft.NN
SUSSEX4995 ft.NN
SHANNON6243 ft.NN
NIOBRARA7818 ft.NN
FORT HAYS8125 ft.NN
CODELL8145 ft.NN

Formation CODL                     Formation Classification:  OW                     Status:  CM - 3/24/2014                 Interval Top: 8145 ft.    Interval Bottom: 8163 ft.

 Completed Information for Formation CODELL
1st Production Date:N/AChoke Size:
Formation Name:CODELLCommingled:Yes
Production Method:
Open Hole Completion:No
Formation Treatment
Treatment Type:FRACTURE STIMULATION
Treatment Date:2/14/2013Treatment End Date:2/14/2013
Treatment Summary:4,315 bbls total fluid, 317,871# 20/40 & 30/50 Sand
Total fluid used in treatment (bbls):4315Max pressure during treatment (psi):4820
Total gas used in treatment (mcf):0Fluid density (lbs/gal):0.25
Type Of gas:Number Of staged intervals:1
Total acid used in treatment (bbls):24Min frac gradient (psi/ft):
Recycled water used in treatment (bbls):0Total flowback volume recovered (bbls):3452
Fresh water used in treatment (bbls):3955Disposition method For flowback:DISPOSAL
Total proppant used (lbs):317871Green completions techniques utilized:No
Reason green techniques Not utilized: PIPELINE
Tubing Size:Tubing Setting Depth:
Tubing Packer Depth:Tubing Multiple Packer:
Open Hole Top:Open Hole Bottom:
No Initial Test Data was found for formation CODL.
Perforation Data:
Interval Top:8145 ft.# Of Holes:72
Interval Bottom:8163 ft.Hole Size:0.45 in.

Formation NB-CD                   Formation Classification:  OW                   Status:  AB - 9/28/2023                 Interval Top: 7818 ft.    Interval Bottom: 8163 ft.

 Completed Information for Formation NIOBRARA-CODELL
1st Production Date:2/23/2013Choke Size:
Formation Name:NIOBRARA-CODELLCommingled:No
Production Method:
Open Hole Completion:No
Tubing Size:Tubing Setting Depth:
Tubing Packer Depth:Tubing Multiple Packer:
Open Hole Top:Open Hole Bottom:
Initial Test Data:
Test Date:N/ATest Method:
Hours Tested:Gas Type:
Gas Disposal:
Test TypeMeasure
BBLS_H2O 80
BBLS_OIL 144
BTU_GAS 1301
CALC_BBLS_H2O 80
CALC_BBLS_OIL 144
CALC_GOR 4284
CALC_MCF_GAS 617
GRAVITY_OIL 58
MCF_GAS 617
Perforation Data:
Interval Top:7818 ft.# Of Holes:132
Interval Bottom:8163 ft.Hole Size:0.45 in.

Formation NBRR                     Formation Classification:  OW                     Status:  CM - 8/20/2014                 Interval Top: 7818 ft.    Interval Bottom: 7975 ft.

 Completed Information for Formation NIOBRARA
1st Production Date:N/AChoke Size:
Formation Name:NIOBRARACommingled:Yes
Production Method:
Open Hole Completion:No
Formation Treatment
Treatment Type:FRACTURE STIMULATION
Treatment Date:2/14/2013Treatment End Date:2/14/2013
Treatment Summary:3,401 bbls total fluid used, 250,540# 20/40 & 30/50 Sand
Total fluid used in treatment (bbls):3401Max pressure during treatment (psi):4964
Total gas used in treatment (mcf):0Fluid density (lbs/gal):0.25
Type Of gas:Number Of staged intervals:1
Total acid used in treatment (bbls):0Min frac gradient (psi/ft):0.62
Recycled water used in treatment (bbls):0Total flowback volume recovered (bbls):2721
Fresh water used in treatment (bbls):3263Disposition method For flowback:DISPOSAL
Total proppant used (lbs):250540Green completions techniques utilized:No
Reason green techniques Not utilized: PIPELINE
Tubing Size:Tubing Setting Depth:
Tubing Packer Depth:Tubing Multiple Packer:
Open Hole Top:Open Hole Bottom:
No Initial Test Data was found for formation NBRR.
Perforation Data:
Interval Top:7818 ft.# Of Holes:60
Interval Bottom:7975 ft.Hole Size:0.45 in.
Primary Well Designation:
Low Producing      i
            All DesignationsDate
Reported PluggedN
Out Of Service RepurposedN
Out Of ServiceN
Inactive ExceptionN
Noticed InactiveN
Defined InactiveN
Low ProducingYProduction Period
11/2024 - 10/2025

BOE/MCFE/GOR Calculations
Production for Previous 12 Months
November 2024 - October 2025i
Total Oil Produced (Barrels)0
Total Gas Produced (MCF)0
GOR
GOR Determination
Average BOE per Day0.000
Average MCFE per Day0.000

 Federal Financial Assurance  i

 Tribal Well  i No
