Facility Detail

COGIS - WELL SCOUT CARD

Related Insp MIT GIS Doc COA Wellbore Orders Bradenhead
Surface Location API# 05-123-34046		Well Classification: OW	Status: PA - 9/22/2014
Well Name/No:	LOVELAND 12-9-67 #1H (Click Well Name for Production Data)	Click Here for Transporter Gatherer Info
Operator:	CHESAPEAKE OPERATING LLC - 16660 (Click Operator Name for Company Detail Report)	Federal Or State Lease #:
Facility Status:	PA	Status Date	9/22/2014
FacilityID:	424467	LocationID:	424466
County:	WELD #123	Location:	SESW 12 9N67W 6
Field:	WILDCAT - #99999	Elevation:	5343 ft.
Basin:	DENVER (DJ) BASIN
Planned Location:	270FSL 1980 FWL	Lat/Long: 40.755197 / -104.841738	Lat/Long Source: Field Measured
As Drilled Location:	Footages Not Available	Lat/Long: 40.755202 / -104.841739	Lat/Long Source: Field Measured

Wellbore And Formation Details -- select either a wellbore Or formation to expand.

Wellbore #00 Wellbore Classification: OW Status: PA - 9/22/2014 Measured TD: 11755 ft. Vertical TD: 7636 ft.

Wellbore Data for Original Wellbore		Wellbore Classification: OW PA - 9/22/2014
Wellbore Permit			HORIZONTAL
Permit #:		Expiration Date:	7/26/2013
Proposed Top PZ Location:	Sec:12 Twp: 9N 67W	Footage: 850 FSL 1981 FWL
Bottom Hole Location:	Sec:12 Twp: 9N 67W	Footage: 513 FNL 1861 FWL
Proposed Depth/Form:	11872 ft.
Surface Mineral Owner Same:	Yes
Mineral Owner:	FEE	Surface Owner:	FEE
Unit:		Unit Number:
Formation And Spacing:	Code: NBRR , Formation: NIOBRARA , Order: 535-2 , Unit Acreage: 640, Drill Unit: ALL
Casing:	String Type: SURF, Hole Size: 12.25 in., Size: 9.625 in., Top: 0 ft., Depth: 1200 ft., Weight: 40 , Citings Type: PLANNED
Cement:	Sacks: 381, Top: 0 ft., Bottom: 1200 ft.
Casing:	String Type: 1ST, Hole Size: 8.75 in., Size: 4.5 in., Top: 0 ft., Depth: 11872 ft., Weight: 11.6 , Citings Type: PLANNED
Cement:	Sacks: 1995, Top: , Bottom: 11872 ft.

Wellbore Completed
Completion Date:	8/29/2011
Spud Date:	8/13/2011	Spud Date Is:	ACTUAL
Measured TD:	11755 ft.	Measured PB depth:	11755 ft.
True Vertical TD:	7636 ft.	True Vertical PB depth:	7636 ft.
Bottom Hole Location:	Sec:12 Twp: 9N 67W	Footage: 513 FNL 1861 FWL
Log Types:	1" MD MWD/Directional Survey Logs 1" TVD MWD/Directional Survey Logs 5" MD MWD/Directional Survey Logs 5" TVD MWD/Directional Survey Logs MUD/Gamma Ray
Log Types:	Directional, Mud, CBL, Gamma Ray CCL, VDL

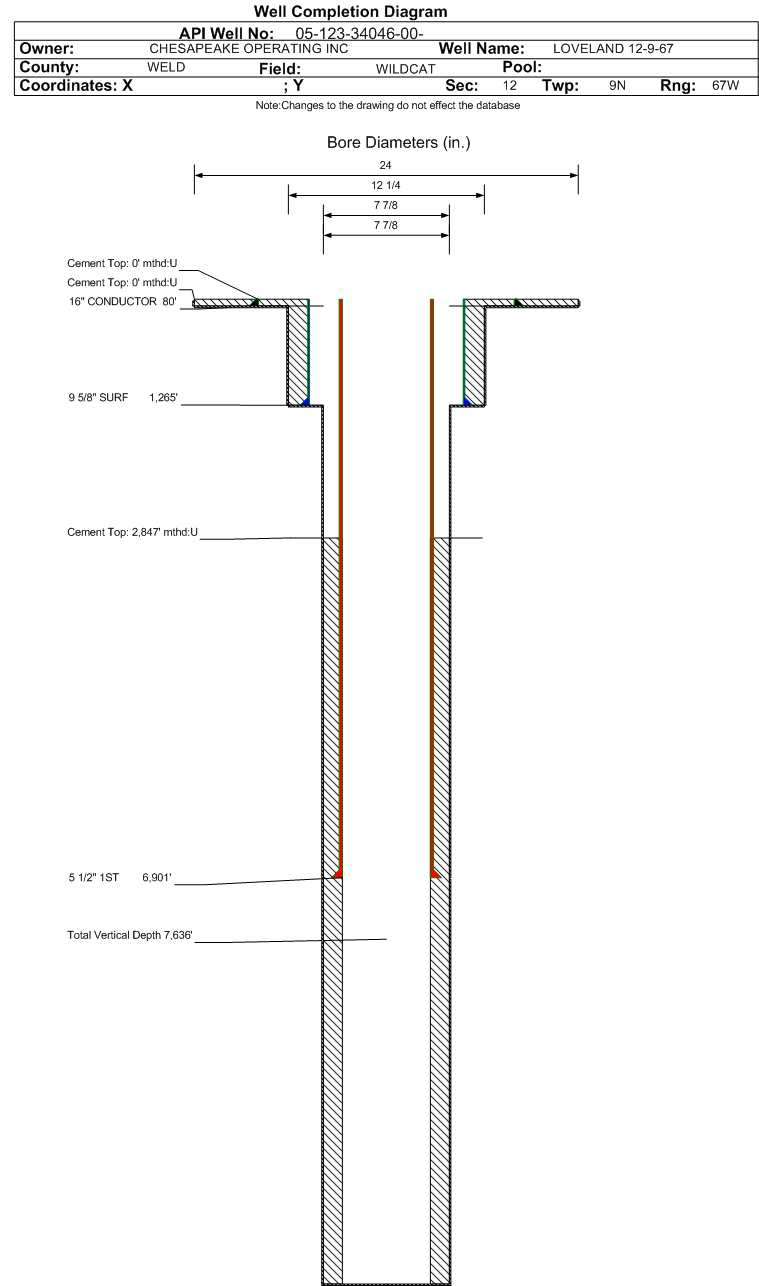

Casing:	String Type: CONDUCTOR, Hole Size: 24 in., Size: 16 in., Top: 0 ft., Depth: 80 ft., Weight: , Citings Type: ACTUAL
Cement:	Sacks: , Top: 0 ft., Bottom: 80 ft., Determination Method: CALC
Casing:	String Type: SURF, Hole Size: 12.25 in., Size: 9.625 in., Top: , Depth: 1265 ft., Weight: 40 , Citings Type: ACTUAL
Cement:	Sacks: 340, Top: 0 ft., Bottom: 1265 ft., Determination Method: CALC
Casing:	String Type: 1ST, Hole Size: 7.875 in., Size: 5.5 in., Top: , Depth: 6901 ft., Weight: 17 , Citings Type: ACTUAL
Cement:	Sacks: 540, Top: 2847 ft., Bottom: 11750 ft., Determination Method: CBL
Casing:	String Type: 1ST TAPER, Hole Size: 7.875 in., Size: 4.5 in., Top: , Depth: 11750 ft., Weight: 11.6 , Citings Type: ACTUAL
Cement:	Sacks: 1160, Top: 6901 ft., Bottom: 11750 ft., Determination Method: CALC
Formation	Interval Top	Log Bottom	Cored	DSTs
RICHARD	3841 ft.
SHANNON	5211 ft.
SHARON SPRINGS	7320 ft.
NIOBRARA	7529 ft.
No formation data to display.

All Designations		Date
Primary Well Designation: None i
Reported Plugged	Y	09/22/2014
Out Of Service Repurposed	N
Out Of Service	N
Inactive Exception	N
Noticed Inactive	N
Defined Inactive	N
Low Producing	N

November 2024 - October 2025	i
BOE/MCFE/GOR Calculations Production for Previous 12 Months
Total Oil Produced (Barrels)	0
Total Gas Produced (MCF)	0
GOR
GOR Determination
Average BOE per Day	0.000
Average MCFE per Day	0.000

Federal Financial Assurance

Tribal Well
