Wellbore #00 Wellbore Classification: OW Status: SI - 1/1/2024 Measured TD: 10371 ft. Vertical TD: 6620 ft.| Wellbore Data for Original Wellbore | Wellbore Classification: OW SI - 1/1/2024 | | Wellbore Permit | HORIZONTAL | | Permit #: | | Expiration Date: | 5/16/2013 | | Proposed Top PZ Location: | Sec:16 Twp: 3 63 | Footage: 1325 FNL 524 FWL | | Bottom Hole Location: | Sec:16 Twp: 3 63 | Footage: 770 FSL 612 FWL | | Proposed Depth/Form: | 10699 ft. | | Surface Mineral Owner Same: | Yes | | Mineral Owner: | STATE | Surface Owner: | STATE | | Unit: | | Unit Number: | | | Formation And Spacing: | Code: NBRR , Formation: NIOBRARA , Order: , Unit Acreage: 640, Drill Unit: ALL | | Casing: | String Type: CONDUCTOR, Hole Size: 24 in., Size: 20 in., Top: 0 ft., Depth: 40 ft., Weight: , Citings Type: PLANNED | | Cement: | Sacks: , Top: , Bottom: | | Casing: | String Type: SURF, Hole Size: 16 in., Size: 13.375 in., Top: 0 ft., Depth: 800 ft., Weight: 54.5 , Citings Type: PLANNED | | Cement: | Sacks: 350, Top: 0 ft., Bottom: 800 ft. | | Casing: | String Type: 1ST, Hole Size: 12.25 in., Size: 9.625 in., Top: 0 ft., Depth: 6756 ft., Weight: 40 , Citings Type: PLANNED | | Cement: | Sacks: 1350, Top: 0 ft., Bottom: 6756 ft. | | Casing: | String Type: 2ND, Hole Size: 7.875 in., Size: 5.5 in., Top: 0 ft., Depth: 12470 ft., Weight: 20 , Citings Type: PLANNED | | Cement: | Sacks: 760, Top: 5765 ft., Bottom: 12470 ft. |
| | |

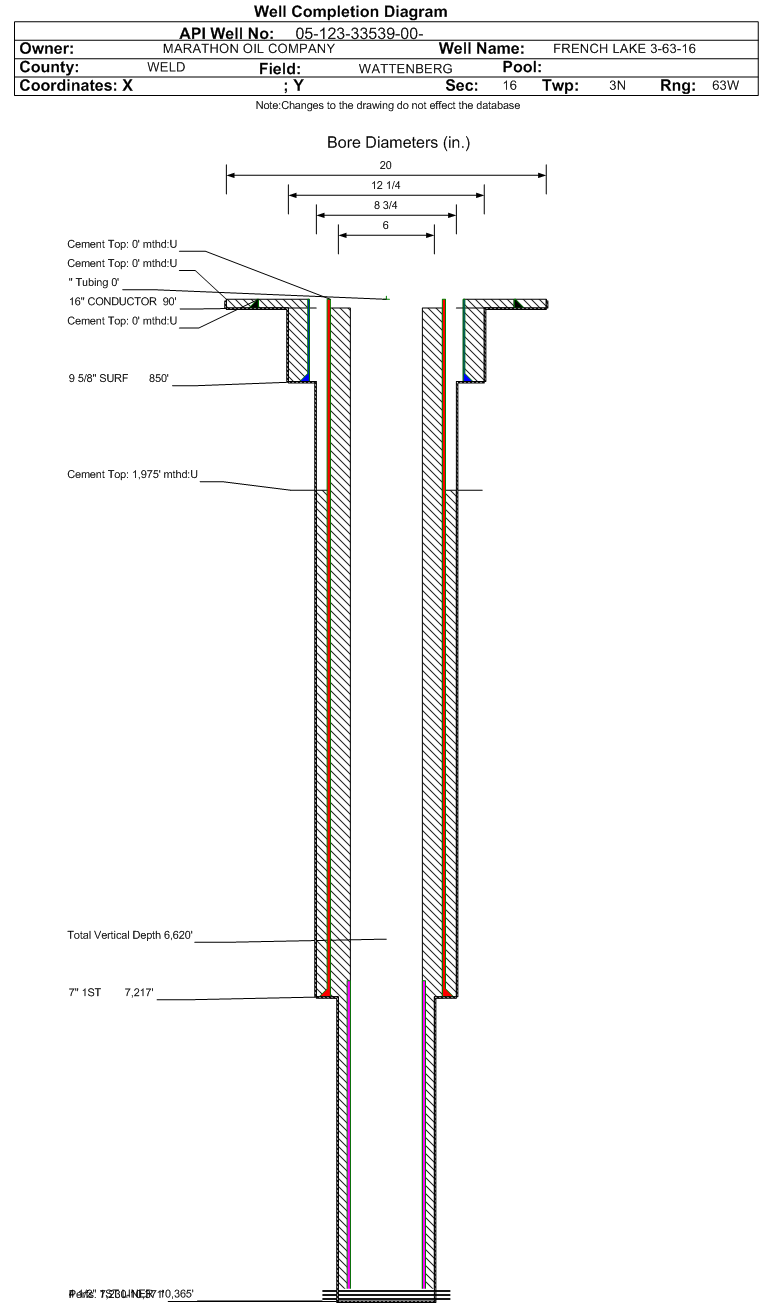

| Wellbore Completed | | Completion Date: | 3/26/2012 | | Spud Date: | 3/14/2012 | Spud Date Is: | ACTUAL | | Measured TD: | 10371 ft. | Measured PB depth: | 10365 ft. | | True Vertical TD: | 6620 ft. | True Vertical PB depth: | 6614 ft. | | Top PZ Location: | Sec:16 Twp: 3 63 | Footage: 1325 FNL 524 FWL | | Bottom Hole Location: | Sec:16 Twp: 3 63 | Footage: 770 FSL 612 FWL | | Log Types: | Mud logs, cement bond, tripple combination | | Casing: | String Type: CONDUCTOR, Hole Size: 20 in., Size: 16 in., Top: 0 ft., Depth: 90 ft., Weight: 84 , Citings Type: ACTUAL | | Cement: | Sacks: , Top: 0 ft., Bottom: 90 ft., Determination Method: | | Casing: | String Type: SURF, Hole Size: 12.25 in., Size: 9.625 in., Top: 0 ft., Depth: 850 ft., Weight: 40 , Citings Type: ACTUAL | | Cement: | Sacks: 273, Top: 0 ft., Bottom: 850 ft., Determination Method: CALC | | Casing: | String Type: 1ST, Hole Size: 8.75 in., Size: 7 in., Top: 0 ft., Depth: 7217 ft., Weight: 32 , Citings Type: ACTUAL | | Cement: | Sacks: 718, Top: 1975 ft., Bottom: 7230 ft., Determination Method: CBL | | Casing: | String Type: 1ST LINER, Hole Size: 6 in., Size: 4.5 in., Top: 7051 ft., Depth: 10365 ft., Weight: 11.6 , Citings Type: ACTUAL | | Cement: | Sacks: , Top: , Bottom: , Determination Method: | | Formation | Interval Top | Log Bottom | Cored | DSTs | | PARKMAN | 3662 ft. | 4295 ft. | N | N | | SUSSEX | 4295 ft. | 5158 ft. | N | N | | SHANNON | 5158 ft. | 5786 ft. | N | N | | PIERRE | 5786 ft. | 6470 ft. | N | N | | SHARON SPRINGS | 6470 ft. | 6776 ft. | N | N | | NIOBRARA | 6776 ft. | | N | N |
Formation NBRR Formation Classification: OW Status: SI - 1/1/2024 Interval Top: 7230 ft. Interval Bottom: 10371 ft.| Completed Information for Formation NIOBRARA | | 1st Production Date: | 4/23/2012 | Choke Size: | | | Formation Name: | NIOBRARA | Commingled: | No | | Production Method: | | | Open Hole Completion: | No |
| | Formation Treatment | | Treatment Date: | 4/19/2012 | | Treatment Summary: | Pumped a total of 2,739,581 lbs of sand: 751,493 lbs of 40/70 white sand, 1,689,445 lbs of 20/40 white sand and 298,643 lbs of 20/40 Super LC. Hybrid Sleeve system (A Baker Hughes system name) |
| | Tubing Size: | | Tubing Setting Depth: | | | Tubing Packer Depth: | | Tubing Multiple Packer: | | | Open Hole Top: | | Open Hole Bottom: | | | Initial Test Data: | | Test Date: | 5/12/2012 | Test Method: | | | Hours Tested: | 24 | Gas Type: | SHALE | | Gas Disposal: | | |
| Test Type | Measure |
|---|
| BBLS_H2O | 58 | | BBLS_OIL | 295 | | CALC_BBLS_H2O | 58 | | CALC_BBLS_OIL | 295 | | CALC_GOR | 1296 | | CALC_MCF_GAS | 381 | | CASING_PRESS | 478 | | MCF_GAS | 381 |
| | Perforation Data: | | Interval Top: | 7230 ft. | # Of Holes: | 15 | | Interval Bottom: | 10371 ft. | Hole Size: | |
|
|
|
|
|
|
|
| Reported Plugged | N | |
| Out Of Service Repurposed | N | |
| Out Of Service | Y | Plugging Due Date
12/09/2029 |
| Inactive Exception | N | |
| Noticed Inactive | Y | Noticed Date
11/19/2024 |
| Defined Inactive (SI ) | Y | Defined Inactive
06/30/2023 |
| Low Producing | Y | Production Period
09/2024 - 08/2025 |
| Total Oil Produced (Barrels) | 0 |
| Total Gas Produced (MCF) | 0 |
| GOR | |
| GOR Determination | |
| Average BOE per Day | 0.000 |
| Average MCFE per Day | 0.000 |
| Federal Financial Assurance | i | |
|
|
