COGIS - WELL SCOUT CARD

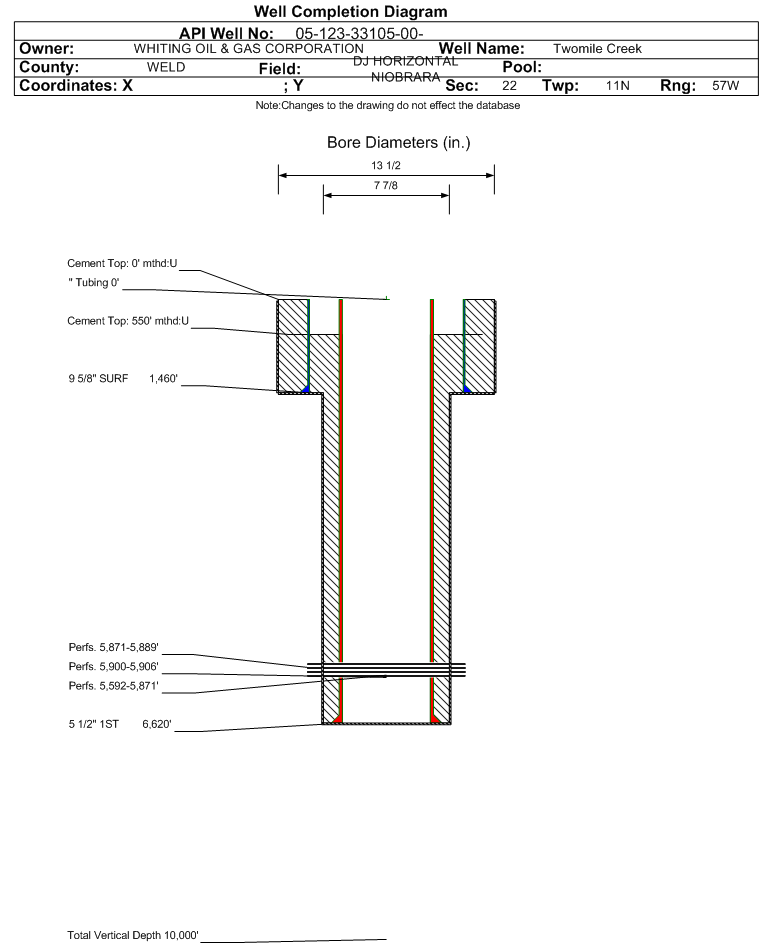

Click image to view related facilities. Related  Click image to view inspection information. InspClick image to view MIT information. MITClick image to access interactive map at well/facility location. GISClick image to view imaged documents for this well/facility. DocClick image to view imaged documents for this well/facility. COAClick image to view wellbore completion diagram. WellboreClick image to search for orders within this facility's section. OrdersClick image to view bradenhead scoutcard data. Bradenhead
 Surface Location
 API# 05-123-33105		Well Classification: OBW Status: PA - 7/24/2019
Well Name/No:Twomile Creek #22-33M
(Click Well Name for Production Data)		Click Here for Transporter Gatherer Info
Operator:FUNDARE RESOURCES OPERATING COMPANY LLC - 10773
(Click Operator Name for Company Detail Report)		Federal Or State Lease #:
Facility Status:PAStatus Date7/24/2019
FacilityID:421903LocationID:421914
County:WELD #123Location:NWSE 22 11N57W 6
Field:DJ HORIZONTAL NIOBRARA - #16950Elevation:4882 ft.
Basin:DENVER (DJ) BASIN
Planned Location:1965FSL  2525 FELLat/Long: 40.910330 / -103.736640Lat/Long Source: Field Measured
As Drilled Location:Footages Not AvailableLat/Long: 40.910340 / -103.736640Lat/Long Source: Field Measured
 Wellbore And Formation Details -- select either a wellbore Or formation to expand.


Wellbore #00             Wellbore Classification: OW             Status: PA - 7/24/2019             Measured TD: 6630 ft.

 Wellbore Data for Original WellboreWellbore Classification: OW        PA - 7/24/2019
Wellbore Permit
Permit #: Expiration Date:3/6/2013
Proposed Depth/Form:6639 ft.
Surface Mineral Owner Same:No
Mineral Owner:FEESurface Owner:FEE
Unit: Unit Number:
Formation And Spacing:Code: DSND , Formation: D SAND , Order: , Unit Acreage: , Drill Unit:
Formation And Spacing:Code: JSND , Formation: J SAND , Order: , Unit Acreage: , Drill Unit:
Formation And Spacing:Code: NBRR , Formation: NIOBRARA , Order: , Unit Acreage: , Drill Unit:
Casing:String Type: SURF, Hole Size: 12.25 in., Size: 9.625 in., Top: 0 ft., Depth: 400 ft., Weight: 36 , Citings Type: PLANNED
Cement:Sacks: 136, Top: , Bottom: 400 ft.
Casing:String Type: 1ST, Hole Size: 7.875 in., Size: 5.5 in., Top: 0 ft., Depth: 6639 ft., Weight: 17 , Citings Type: PLANNED
Cement:Sacks: 345, Top: , Bottom: 6639 ft.
Wellbore Completed
Completion Date:5/1/2011
Spud Date:4/19/2011Spud Date Is:ACTUAL
Measured TD:6630 ft.Measured PB depth:6552 ft.
True Vertical TD:True Vertical PB depth:
Log Types:PEX TRIPLE COMBO, CV, AI/LC, CN/DL, HNGS, ML, CB/GR/VDL/CCL
Casing:String Type: SURF, Hole Size: 13.5 in., Size: 9.625 in., Top: 0 ft., Depth: 1460 ft., Weight: 36 , Citings Type: ACTUAL
Cement:Sacks: 771, Top: 0 ft., Bottom: 1460 ft., Determination Method: VISU
Casing:String Type: 1ST, Hole Size: 7.875 in., Size: 5.5 in., Top: 0 ft., Depth: 6620 ft., Weight: 17 , Citings Type: ACTUAL
Cement:Sacks: 601, Top: 550 ft., Bottom: 6620 ft., Determination Method: CBL
FormationInterval TopLog BottomCoredDSTs
PIERRE1689 ft.
HYGIENE3490 ft.
SHARON SPRINGS5521 ft.
NIOBRARA5558 ft.Y
FORT HAYS5867 ft.
CODELL5893 ft.
CARLILE5908 ft.
GREENHORN6043 ft.
GRANEROS6044 ft.
X BENTONITE6270 ft.
D SAND6370 ft.
J SAND6440 ft.
SKULL CREEK6555 ft.

Formation CODL                     Formation Classification:  OBW                     Status:  AB - 7/24/2019                 Interval Top: 5900 ft.    Interval Bottom: 5906 ft.

 Completed Information for Formation CODELL
1st Production Date:N/AChoke Size:
Formation Name:CODELLCommingled:No
Production Method:
Open Hole Completion:No
Formation Treatment
Treatment Type:
Treatment Date:6/28/2013Treatment End Date:N/A
Treatment Summary:This zone was perforated and swabbed. No stimulation treatment done.
Total fluid used in treatment (bbls):Max pressure during treatment (psi):
Total gas used in treatment (mcf):Fluid density (lbs/gal):
Type Of gas:Number Of staged intervals:
Total acid used in treatment (bbls):Min frac gradient (psi/ft):
Recycled water used in treatment (bbls):Total flowback volume recovered (bbls):
Fresh water used in treatment (bbls):Disposition method For flowback:
Total proppant used (lbs):Green completions techniques utilized:--
Reason green techniques Not utilized:
Tubing Size:Tubing Setting Depth:
Tubing Packer Depth:Tubing Multiple Packer:
Open Hole Top:Open Hole Bottom:
Initial Test Data:
Test Date:5/7/2013Test Method:Swab
Hours Tested:24Gas Type:
Gas Disposal:
Test TypeMeasure
BBLS_H2O 130
CALC_BBLS_H2O 130
Perforation Data:
Interval Top:5900 ft.# Of Holes:25
Interval Bottom:5906 ft.Hole Size:0.375 in.

Formation FTHYS                   Formation Classification:  OBW                   Status:  AB - 7/24/2019                 Interval Top: 5871 ft.    Interval Bottom: 5889 ft.

 Completed Information for Formation FORT HAYS
1st Production Date:N/AChoke Size:
Formation Name:FORT HAYSCommingled:No
Production Method:
Open Hole Completion:No
Formation Treatment
Treatment Type:
Treatment Date:10/7/2015Treatment End Date:N/A
Treatment Summary:This zone was perforated for DFIT and swabbed. No stimulation treatment done.
Total fluid used in treatment (bbls):Max pressure during treatment (psi):
Total gas used in treatment (mcf):Fluid density (lbs/gal):
Type Of gas:Number Of staged intervals:
Total acid used in treatment (bbls):Min frac gradient (psi/ft):
Recycled water used in treatment (bbls):Total flowback volume recovered (bbls):
Fresh water used in treatment (bbls):Disposition method For flowback:
Total proppant used (lbs):Green completions techniques utilized:--
Reason green techniques Not utilized:
Tubing Size:Tubing Setting Depth:
Tubing Packer Depth:Tubing Multiple Packer:
Open Hole Top:Open Hole Bottom:
Initial Test Data:
Test Date:7/8/2013Test Method:Swab
Hours Tested:24Gas Type:
Gas Disposal:
Test TypeMeasure
BBLS_H2O 42
CALC_BBLS_H2O 42
Perforation Data:
Interval Top:5871 ft.# Of Holes:109
Interval Bottom:5889 ft.Hole Size:0.375 in.

Formation NBRR                     Formation Classification:  OBW                     Status:  AB - 7/24/2019                 Interval Top: 5592 ft.    Interval Bottom: 5871 ft.

 Completed Information for Formation NIOBRARA
1st Production Date:N/AChoke Size:
Formation Name:NIOBRARACommingled:No
Production Method:
Open Hole Completion:No
Formation Treatment
Treatment Type:
Treatment Date:10/7/2015Treatment End Date:N/A
Treatment Summary:This zone was perforated for DFIT. No stimulation treatment or swabbing done.
Total fluid used in treatment (bbls):Max pressure during treatment (psi):
Total gas used in treatment (mcf):Fluid density (lbs/gal):
Type Of gas:Number Of staged intervals:
Total acid used in treatment (bbls):Min frac gradient (psi/ft):
Recycled water used in treatment (bbls):Total flowback volume recovered (bbls):
Fresh water used in treatment (bbls):Disposition method For flowback:
Total proppant used (lbs):Green completions techniques utilized:--
Reason green techniques Not utilized:
Tubing Size:Tubing Setting Depth:
Tubing Packer Depth:Tubing Multiple Packer:
Open Hole Top:Open Hole Bottom:
No Initial Test Data was found for formation NBRR.
Perforation Data:
Interval Top:5592 ft.# Of Holes:174
Interval Bottom:5871 ft.Hole Size:0.375 in.
Primary Well Designation:
None      i
            All DesignationsDate
Reported PluggedY07/24/2019
Out Of Service RepurposedN
Out Of ServiceN
Inactive ExceptionN
Noticed InactiveN
Defined InactiveN
Low ProducingN

BOE/MCFE/GOR Calculations
Production for Previous 12 Months
September 2024 - August 2025i
Total Oil Produced (Barrels)0
Total Gas Produced (MCF)0
GOR
GOR Determination
Average BOE per Day0.000
Average MCFE per Day0.000

 Federal Financial Assurance  i

 Tribal Well  i No
