COGIS - WELL SCOUT CARD

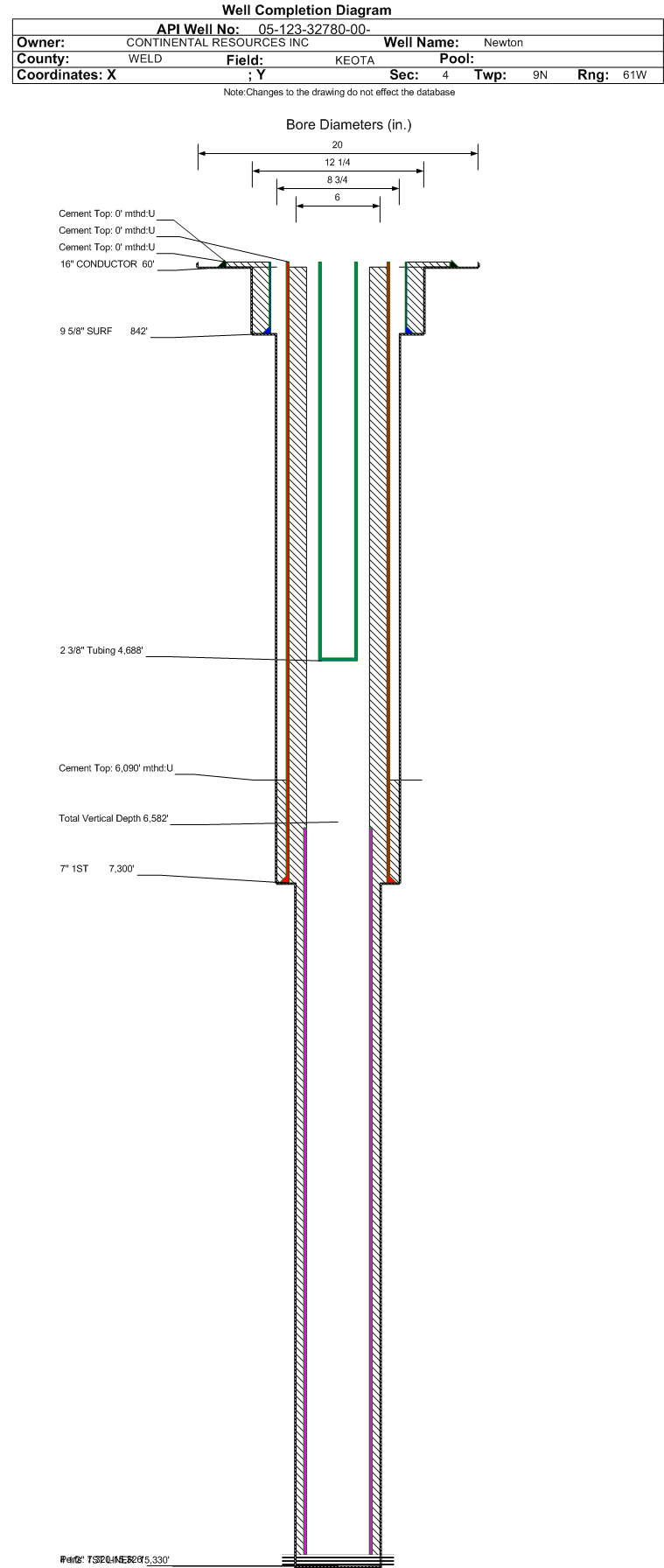

Click image to view related facilities. Related  Click image to view inspection information. InspClick image to view MIT information. MITClick image to access interactive map at well/facility location. GISClick image to view imaged documents for this well/facility. DocClick image to view imaged documents for this well/facility. COAClick image to view wellbore completion diagram. WellboreClick image to search for orders within this facility's section. OrdersClick image to view bradenhead scoutcard data. Bradenhead
 Surface Location
 API# 05-123-32780		Well Classification: OW Status: SI - 8/1/2024
Well Name/No:Newton #1-4H
(Click Well Name for Production Data)		Click Here for Transporter Gatherer Info
Operator:HELENA RESOURCES INC - 10547
(Click Operator Name for Company Detail Report)		Federal Or State Lease #:
Facility Status:SIStatus Date8/1/2024
FacilityID:421002LocationID:421003
County:WELD #123Location:LOT 1 4 9N61W 6
Field:DJ HORIZONTAL NIOBRARA - #16950Elevation:4985 ft.
Basin:DENVER (DJ) BASIN
Planned Location:250FNL  700 FELLat/Long: 40.783082 / -104.203972Lat/Long Source: Field Measured
As Drilled Location:Footages Not AvailableLat/Long: 40.783084 / -104.204003Lat/Long Source: Field Measured
 Wellbore And Formation Details -- select either a wellbore Or formation to expand.


Wellbore #00             Wellbore Classification: OW             Status: SI - 8/1/2024             Measured TD: 15360 ft.    Vertical TD: 6582 ft.

 Wellbore Data for Original WellboreWellbore Classification: OW        SI - 8/1/2024
Wellbore PermitHORIZONTAL
Permit #: Expiration Date:12/28/2012
Proposed Top PZ Location:Sec:4 Twp: 9N 61W Footage: 600 FNL  700 FEL
Bottom Hole Location:Sec:9 Twp: 9N 61W Footage: 652 FSL  702 FEL
Proposed Depth/Form:15522 ft.
Surface Mineral Owner Same:No
Mineral Owner:FEESurface Owner:FEE
Unit: Unit Number:
Formation And Spacing:Code: NBRR , Formation: NIOBRARA , Order: 10-11 , Unit Acreage: 1280, Drill Unit: Sec 4 & 9
Casing:String Type: CONDUCTOR, Hole Size: 26 in., Size: , Top: 0 ft., Depth: 80 ft., Weight: , Citings Type: PLANNED
Cement:Sacks: , Top: 0 ft., Bottom: 80 ft.
Casing:String Type: SURF, Hole Size: 12.25 in., Size: 9.625 in., Top: 0 ft., Depth: 805 ft., Weight: 36 , Citings Type: PLANNED
Cement:Sacks: 360, Top: 0 ft., Bottom: 805 ft.
Casing:String Type: 1ST, Hole Size: 8.75 in., Size: 7 in., Top: 0 ft., Depth: 6862 ft., Weight: 26 , Citings Type: PLANNED
Cement:Sacks: 956, Top: 0 ft., Bottom: 6862 ft.
Casing:String Type: 1ST LINER, Hole Size: 6.125 in., Size: 4.5 in., Top: 6062 ft., Depth: 15522 ft., Weight: 11.6 , Citings Type: PLANNED
Cement:Sacks: , Top: , Bottom:
Wellbore Completed
Completion Date:2/15/2011
Spud Date:2/2/2011Spud Date Is:ACTUAL
Measured TD:15360 ft.Measured PB depth:15360 ft.
True Vertical TD:6582 ft.True Vertical PB depth:6582 ft.
Top PZ Location:Sec:4 Twp: 9N 61WFootage: 600 FNL  700 FEL
Bottom Hole Location:Sec:9 Twp: 9N 61WFootage: 652 FSL  702 FEL
Log Types:MUD LOGS AND CBL
Casing:String Type: CONDUCTOR, Hole Size: , Size: 16 in., Top: 0 ft., Depth: 60 ft., Weight: , Citings Type: ACTUAL
Cement:Sacks: 5, Top: 0 ft., Bottom: 60 ft., Determination Method: CALC
Casing:String Type: SURF, Hole Size: 12.25 in., Size: 9.625 in., Top: 0 ft., Depth: 842 ft., Weight: , Citings Type: ACTUAL
Cement:Sacks: 377, Top: 0 ft., Bottom: 842 ft., Determination Method: CALC
Casing:String Type: 1ST, Hole Size: 8.75 in., Size: 7 in., Top: 0 ft., Depth: 7300 ft., Weight: , Citings Type: ACTUAL
Cement:Sacks: 115, Top: 6090 ft., Bottom: 7300 ft., Determination Method: CBL
Casing:String Type: 1ST LINER, Hole Size: 6 in., Size: 4.5 in., Top: 6650 ft., Depth: 15330 ft., Weight: , Citings Type: ACTUAL
Cement:Sacks: , Top: , Bottom: , Determination Method:
FormationInterval TopLog BottomCoredDSTs
PIERRE572 ft.
LARAMIE3642 ft.
PARKMAN3729 ft.
NIOBRARA6474 ft.

Formation NBRR                     Formation Classification:  OW                     Status:  SI - 8/1/2024                  Interval Top: 7320 ft.    Interval Bottom: 15326 ft.

 Completed Information for Formation NIOBRARA
1st Production Date:4/27/2011Choke Size:
Formation Name:NIOBRARACommingled:
Production Method:
Open Hole Completion:
Formation Treatment
Treatment Date:3/22/2011
Treatment Summary:WELL STIMULATED IN 24 STAGES WITH 65,881 BBLS OF WATER AD 3,991,289 LBS OF SAND IN TOTAL. STATE DIVERSION ACHIEVED WITH OPEN-HOLE SWELL PACKERS AND A COMBINATION OF SLIDING SLEEVES (17 STAGES) AND PERFORATIONS (6 STAGES). STAGE 1 WAS STIMULATED VIA PRE-PERFORATED LINER.
Tubing Size:2.375 in.Tubing Setting Depth:4688 ft.
Tubing Packer Depth:Tubing Multiple Packer:
Open Hole Top:Open Hole Bottom:
Initial Test Data:
Test Date:5/8/2011Test Method:flowing
Hours Tested:24Gas Type:SHALE
Gas Disposal:
Test TypeMeasure
BBLS_H2O 342
BBLS_OIL 23
CALC_BBLS_H2O 342
CALC_BBLS_OIL 23
CASING_PRESS 150
GRAVITY_OIL 29
TUBING_PRESS 2800
Perforation Data:
Interval Top:7320 ft.# Of Holes:0
Interval Bottom:15326 ft.Hole Size:
Primary Well Designation:
Defined Inactive      i
            All DesignationsDate
Reported PluggedN
Out Of Service RepurposedN
Out Of ServiceN
Inactive ExceptionN
Noticed InactiveN
Defined Inactive (SI )YDefined Inactive
07/31/2024
Low ProducingYProduction Period
11/2024 - 10/2025

BOE/MCFE/GOR Calculations
Production for Previous 12 Months
November 2024 - October 2025i
Total Oil Produced (Barrels)0
Total Gas Produced (MCF)0
GOR
GOR Determination
Average BOE per Day0.000
Average MCFE per Day0.000

 Federal Financial Assurance  i

 Tribal Well  i No
