COGIS - WELL SCOUT CARD

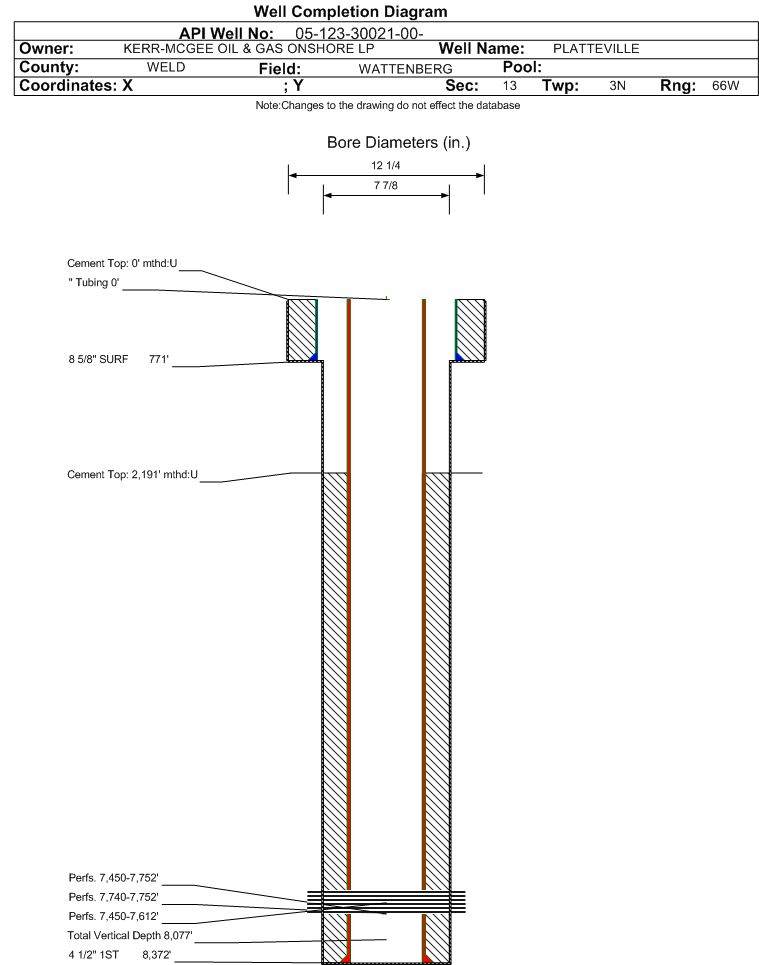

Click image to view related facilities. Related  Click image to view inspection information. InspClick image to view MIT information. MITClick image to access interactive map at well/facility location. GISClick image to view imaged documents for this well/facility. DocClick image to view imaged documents for this well/facility. COAClick image to view wellbore completion diagram. WellboreClick image to search for orders within this facility's section. OrdersClick image to view bradenhead scoutcard data. Bradenhead
 Surface Location
 API# 05-123-30021		Well Classification: GW Status: PA - 3/7/2022
Well Name/No:PLATTEVILLE #41-13
(Click Well Name for Production Data)		Click Here for Transporter Gatherer Info
Operator:KERR MCGEE OIL & GAS ONSHORE LP - 47120
(Click Operator Name for Company Detail Report)		Federal Or State Lease #:
Facility Status:PAStatus Date3/7/2022
FacilityID:301432LocationID:332583
County:WELD #123Location:NESE 13 3N66W 6
Field:WATTENBERG - #90750Elevation:5033 ft.
Basin:DENVER (DJ) BASIN
Planned Location:2230FSL  487 FELLat/Long: 40.224260 / -104.717500Lat/Long Source: Field Measured
As Drilled Location:Footages Not AvailableLat/Long: 40.224279 / -104.717511Lat/Long Source: Field Measured
 Wellbore And Formation Details -- select either a wellbore Or formation to expand.


Wellbore #00             Wellbore Classification: GW             Status: PA - 3/7/2022             Measured TD: 8382 ft.    Vertical TD: 8077 ft.

 Wellbore Data for Original WellboreWellbore Classification: GW        PA - 3/7/2022
Wellbore PermitDIRECTIONAL
Permit #:20090041 Expiration Date:2/9/2010
Proposed Top PZ Location:Sec:13 Twp: 3N 66W Footage: 1324 FNL  65 FEL
Bottom Hole Location:Sec:13 Twp: 3N 66W Footage: 1324 FNL  65 FEL
Proposed Depth/Form:8383 ft.
Surface Mineral Owner Same:No
Mineral Owner:FEESurface Owner:FEE
Unit: Unit Number:
Formation And Spacing:Code: JSND , Formation: J SAND , Order: 232 , Unit Acreage: 160, Drill Unit: GWA
Formation And Spacing:Code: NB-CD , Formation: NIOBRARA-CODELL , Order: 407 , Unit Acreage: 160, Drill Unit: GWA
Wellbore Completed
Completion Date:5/23/2009
Spud Date:5/11/2009Spud Date Is:ACTUAL
Measured TD:8382 ft.Measured PB depth:8356 ft.
True Vertical TD:8077 ft.True Vertical PB depth:8051 ft.
Top PZ Location:Sec:13 Twp: 3N 66WFootage: 1324 FNL  65 FEL
Bottom Hole Location:Sec:13 Twp: 3N 66WFootage: 1324 FNL  65 FEL
Log Types:CDL-GR-CAL-CNL-DIL-ML, CBL
Casing:String Type: SURF, Hole Size: 12.25 in., Size: 8.625 in., Top: 0 ft., Depth: 771 ft., Weight: 24 , Citings Type: ACTUAL
Cement:Sacks: 490, Top: 0 ft., Bottom: 771 ft., Determination Method: VISU
Casing:String Type: 1ST, Hole Size: 7.875 in., Size: 4.5 in., Top: 0 ft., Depth: 8372 ft., Weight: 11.6 , Citings Type: ACTUAL
Cement:Sacks: 848, Top: 2800 ft., Bottom: 8372 ft., Determination Method: CBL
FormationInterval TopLog BottomCoredDSTs
GREELEY SAND3408 ft.NN
PARKMAN4256 ft.NN
SUSSEX4688 ft.NN
NIOBRARA7442 ft.NN
FORT HAYS7714 ft.NN
CODELL7738 ft.NN
J SAND8191 ft.NN

Formation CODL                     Formation Classification:  GW                     Status:  CM - 9/27/2009                 Interval Top: 7740 ft.    Interval Bottom: 7752 ft.

 Completed Information for Formation CODELL
1st Production Date:8/26/2009Choke Size:
Formation Name:CODELLCommingled:Yes
Production Method:
Open Hole Completion:No
Formation Treatment
Treatment Date:6/10/2009
Treatment Summary:208,876 GAL FLUID; 150,060# 40/70 SAND; 4,000# 20/40 SB EXCEL
Tubing Size:Tubing Setting Depth:
Tubing Packer Depth:Tubing Multiple Packer:
Open Hole Top:Open Hole Bottom:
No Initial Test Data was found for formation CODL.
Perforation Data:
Interval Top:7740 ft.# Of Holes:48
Interval Bottom:7752 ft.Hole Size:0.38 in.

Formation NB-CD                   Formation Classification:  GW                   Status:  AB - 3/7/2022                  Interval Top: 7450 ft.    Interval Bottom: 7752 ft.

 Completed Information for Formation NIOBRARA-CODELL
1st Production Date:8/26/2009Choke Size:0.281 in.
Formation Name:NIOBRARA-CODELLCommingled:No
Production Method:
Open Hole Completion:No
Formation Treatment
Treatment Date:5/23/2009
Treatment Summary:
Tubing Size:Tubing Setting Depth:
Tubing Packer Depth:Tubing Multiple Packer:
Open Hole Top:Open Hole Bottom:
Initial Test Data:
Test Date:9/27/2009Test Method:FLOWING
Hours Tested:Gas Type:SHALE
Gas Disposal:SOLD
Test TypeMeasure
BTU_GAS 1236
CALC_BBLS_H2O 0
CALC_BBLS_OIL 27
CALC_GOR 9450
CALC_MCF_GAS 255
CASING_PRESS 27
GRAVITY_OIL 50
Perforation Data:
Interval Top:7450 ft.# Of Holes:100
Interval Bottom:7752 ft.Hole Size:0.38 in.

Formation NBRR                     Formation Classification:  GW                     Status:  CM - 9/27/2009                 Interval Top: 7450 ft.    Interval Bottom: 7612 ft.

 Completed Information for Formation NIOBRARA
1st Production Date:8/26/2009Choke Size:
Formation Name:NIOBRARACommingled:Yes
Production Method:
Open Hole Completion:No
Formation Treatment
Treatment Date:6/11/2009
Treatment Summary:1,000 GAL ACID; 248,713 GAL FLUID; 200,600# 40/70 SAND; 4,000# 20/40 SB EXCEL
Tubing Size:Tubing Setting Depth:
Tubing Packer Depth:Tubing Multiple Packer:
Open Hole Top:Open Hole Bottom:
No Initial Test Data was found for formation NBRR.
Perforation Data:
Interval Top:7450 ft.# Of Holes:52
Interval Bottom:7612 ft.Hole Size:0.42 in.
Primary Well Designation:
None      i
            All DesignationsDate
Reported PluggedY03/07/2022
Out Of Service RepurposedN
Out Of ServiceN
Inactive ExceptionN
Noticed InactiveN
Defined InactiveN
Low ProducingN

BOE/MCFE/GOR Calculations
Production for Previous 12 Months
October 2024 - September 2025i
Total Oil Produced (Barrels)0
Total Gas Produced (MCF)0
GOR
GOR DeterminationMCFE
Average BOE per Day0.000
Average MCFE per Day0.000

 Federal Financial Assurance  i

 Tribal Well  i No
