COGIS - WELL SCOUT CARD

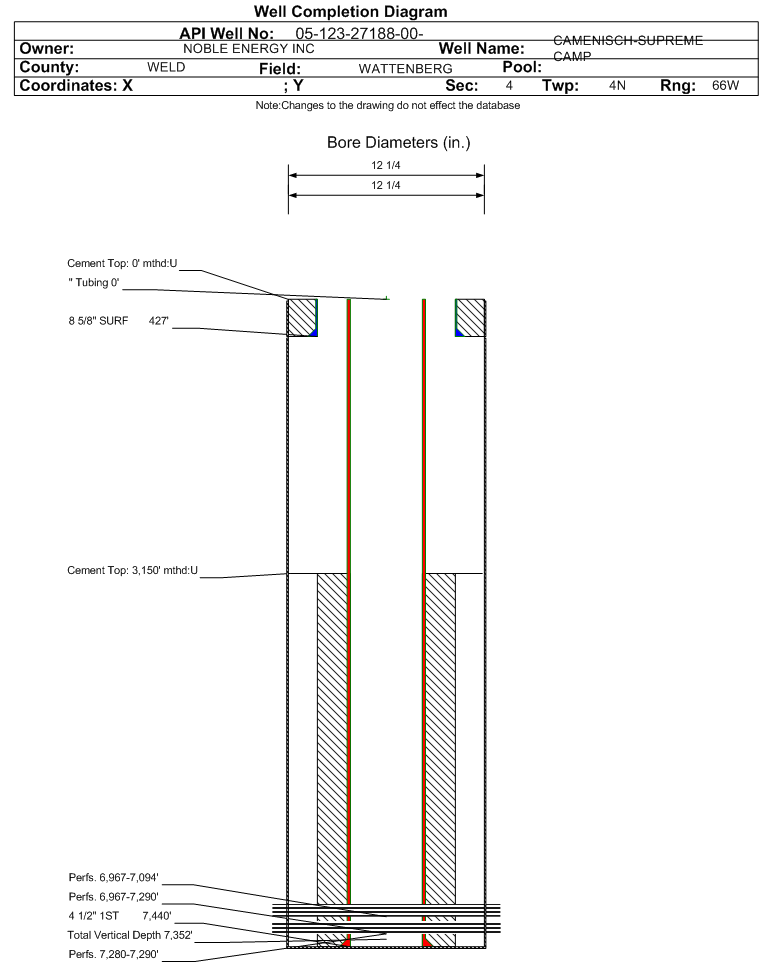

Click image to view related facilities. Related  Click image to view inspection information. InspClick image to view MIT information. MITClick image to access interactive map at well/facility location. GISClick image to view imaged documents for this well/facility. DocClick image to view imaged documents for this well/facility. COAClick image to view wellbore completion diagram. WellboreClick image to search for orders within this facility's section. OrdersClick image to view bradenhead scoutcard data. Bradenhead
 Surface Location
 API# 05-123-27188		Well Classification: GW Status: PA - 4/12/2023
Well Name/No:CAMENISCH-SUPREME CAMP #8-4B
(Click Well Name for Production Data)		Click Here for Transporter Gatherer Info
Operator:PDC ENERGY INC - 69175
(Click Operator Name for Company Detail Report)		Federal Or State Lease #:
Facility Status:PAStatus Date4/12/2023
FacilityID:297556LocationID:310887
Municipality/County:EVANS / WELD #123Location:SENE 4 4N66W 6
Field:WATTENBERG - #90750Elevation:4689 ft.
Basin:DENVER (DJ) BASIN
Planned Location:2008FNL  614 FELLat/Long: 40.343640 / -104.776240Lat/Long Source: Field Measured
As Drilled Location:Footages Not AvailableLat/Long: 40.343860 / -104.776170Lat/Long Source: Field Measured
 Wellbore And Formation Details -- select either a wellbore Or formation to expand.


Wellbore #00             Wellbore Classification: GW             Status: PA - 4/12/2023             Measured TD: 7440 ft.    Vertical TD: 7352 ft.

 Wellbore Data for Original WellboreWellbore Classification: GW        PA - 4/12/2023
Wellbore PermitDIRECTIONAL
Permit #:20082621 Expiration Date:8/4/2009
Proposed Top PZ Location:Sec:4 Twp: 4N 66W Footage: 2807 FNL  53 FEL
Bottom Hole Location:Sec:4 Twp: 4N 66W Footage: 2807 FNL  53 FEL
Proposed Depth/Form:7479 ft.
Surface Mineral Owner Same:Yes
Mineral Owner:FEESurface Owner:FEE
Unit: Unit Number:
Formation And Spacing:Code: CODL , Formation: CODELL , Order: 407-87 , Unit Acreage: 80, Drill Unit: SWNW
Formation And Spacing:Code: NBRR , Formation: NIOBRARA , Order: 407-87 , Unit Acreage: 160, Drill Unit: SENE
Wellbore Completed
Completion Date:2/1/2009
Spud Date:1/24/2009Spud Date Is:ACTUAL
Measured TD:7440 ft.Measured PB depth:7367 ft.
True Vertical TD:7352 ft.True Vertical PB depth:7279 ft.
Top PZ Location:Sec:4 Twp: 4N 66WFootage: 2807 FNL  53 FEL
Bottom Hole Location:Sec:4 Twp: 4N 66WFootage: 2807 FNL  53 FEL
Log Types:DIL, CDL, CNL, GR, SP, CAL, CBL
Casing:String Type: SURF, Hole Size: 12.25 in., Size: 8.625 in., Top: 0 ft., Depth: 427 ft., Weight: 24 , Citings Type: ACTUAL
Cement:Sacks: 320, Top: 0 ft., Bottom: 427 ft., Determination Method: VISU
Casing:String Type: 1ST, Hole Size: 7.875 in., Size: 4.5 in., Top: 0 ft., Depth: 7440 ft., Weight: 11.6 , Citings Type: ACTUAL
Cement:Sacks: 525, Top: 3170 ft., Bottom: 7440 ft., Determination Method: CBL
FormationInterval TopLog BottomCoredDSTs
PIERRE1288 ft.NN
PARKMAN3688 ft.NN
SUSSEX4354 ft.NN
SHANNON4821 ft.NN
NIOBRARA6951 ft.NN
FORT HAYS7256 ft.NN
CODELL7279 ft.NN

Formation CODL                     Formation Classification:  GW                     Status:  CM - 10/12/2011                Interval Top: 7280 ft.    Interval Bottom: 7290 ft.

 Completed Information for Formation CODELL
1st Production Date:4/19/2009Choke Size:
Formation Name:CODELLCommingled:Yes
Production Method:
Open Hole Completion:No
Formation Treatment
Treatment Date:4/3/2009
Treatment Summary:FRAC'D WITH 143,152 GAL 26# SILVERSTIM HYBRID CROSS-LINKED GEL CONTAINING 270,580# 20/40 SAND.
Tubing Size:Tubing Setting Depth:
Tubing Packer Depth:Tubing Multiple Packer:
Open Hole Top:Open Hole Bottom:
No Initial Test Data was found for formation CODL.
Perforation Data:
Interval Top:7280 ft.# Of Holes:40
Interval Bottom:7290 ft.Hole Size:0.41 in.

Formation NB-CD                   Formation Classification:  GW                   Status:  AB - 4/12/2023                 Interval Top: 6967 ft.    Interval Bottom: 7290 ft.

 Completed Information for Formation NIOBRARA-CODELL
1st Production Date:4/16/2009Choke Size:0.438 in.
Formation Name:NIOBRARA-CODELLCommingled:No
Production Method:
Open Hole Completion:No
Formation Treatment
Treatment Date:4/3/2009
Treatment Summary:SEE INDIVIDUAL FORMATIONS BELOW
Tubing Size:Tubing Setting Depth:
Tubing Packer Depth:Tubing Multiple Packer:
Open Hole Top:Open Hole Bottom:
Initial Test Data:
Test Date:5/12/2009Test Method:FLOWING
Hours Tested:24Gas Type:SHALE
Gas Disposal:SOLD
Test TypeMeasure
BBLS_H2O 2
BBLS_OIL 22
BTU_GAS 1206
CALC_BBLS_H2O 2
CALC_BBLS_OIL 22
CALC_GOR 21955
CALC_MCF_GAS 483
CASING_PRESS 840
GRAVITY_OIL 59
MCF_GAS 483
Perforation Data:
Interval Top:6967 ft.# Of Holes:88
Interval Bottom:7290 ft.Hole Size:0.41 in.

Formation NBRR                     Formation Classification:  GW                     Status:  CM - 10/12/2011                Interval Top: 6967 ft.    Interval Bottom: 7094 ft.

 Completed Information for Formation NIOBRARA
1st Production Date:4/19/2009Choke Size:
Formation Name:NIOBRARACommingled:Yes
Production Method:
Open Hole Completion:No
Formation Treatment
Treatment Date:4/3/2009
Treatment Summary:FRAC'D WITH 69384 GAL SLICKWATER AND 105,588 GAL 20#-18# SILVERSTIM HYBRID X-LINKED GEL CONTAINING 238,480# 20/40 SAND AND 12,000 20/40 SB EXCEL.
Tubing Size:Tubing Setting Depth:
Tubing Packer Depth:Tubing Multiple Packer:
Open Hole Top:Open Hole Bottom:
No Initial Test Data was found for formation NBRR.
Perforation Data:
Interval Top:6967 ft.# Of Holes:48
Interval Bottom:7094 ft.Hole Size:0.41 in.
Primary Well Designation:
None      i
            All DesignationsDate
Reported PluggedY04/12/2023
Out Of Service RepurposedN
Out Of ServiceN
Inactive ExceptionN
Noticed InactiveN
Defined InactiveN
Low ProducingN

BOE/MCFE/GOR Calculations
Production for Previous 12 Months
October 2024 - September 2025i
Total Oil Produced (Barrels)0
Total Gas Produced (MCF)0
GOR
GOR DeterminationMCFE
Average BOE per Day0.000
Average MCFE per Day0.000

 Federal Financial Assurance  i

 Tribal Well  i No
