Wellbore #00 Wellbore Classification: GW Status: AB - 5/12/2024 Measured TD: 9600 ft. Vertical TD: 6997 ft.| Wellbore Data for Original Wellbore | Wellbore Classification: GW AB - 5/12/2024 | | Wellbore Permit | HORIZONTAL | | Permit #: | 20081462 | Expiration Date: | 6/9/2009 | | Proposed Top PZ Location: | Sec:14 Twp: 3N 65W | Footage: 510 FNL 1070 FEL | | Bottom Hole Location: | Sec:14 Twp: 3N 65W | Footage: 1924 FNL 2256 FWL | | Proposed Depth/Form: | 9560 ft. | | Surface Mineral Owner Same: | Yes | | Mineral Owner: | FEE | Surface Owner: | FEE | | Unit: | | Unit Number: | | | Formation And Spacing: | Code: NBRR , Formation: NIOBRARA , Order: 407 , Unit Acreage: 320, Drill Unit: N/2 | | Casing: | String Type: 1ST LINER, Hole Size: 7.875 in., Size: 4.5 in., Top: , Depth: 9560 ft., Weight: 11.5 , Citings Type: PLANNED | | Cement: | Sacks: , Top: 6350 ft., Bottom: 9560 ft. |
| | |

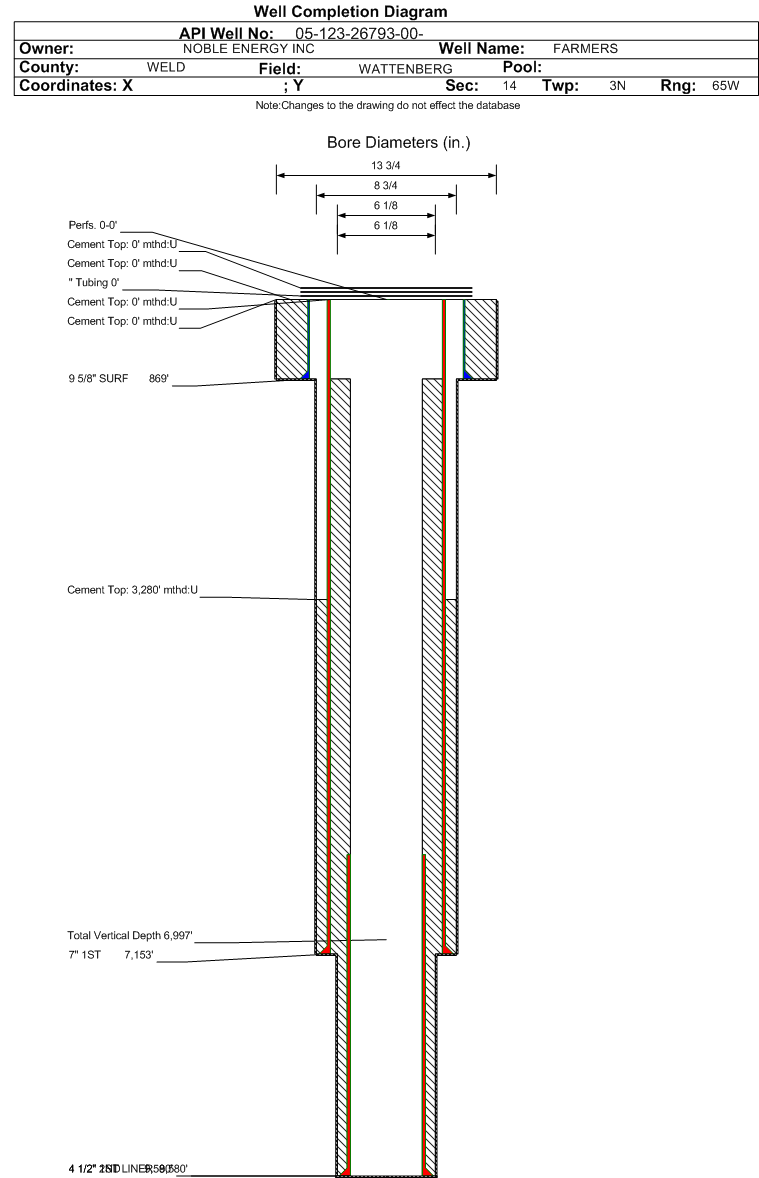

| Wellbore Completed | | Completion Date: | 7/28/2008 | | Spud Date: | 7/10/2008 | Spud Date Is: | ACTUAL | | Measured TD: | 9600 ft. | Measured PB depth: | 9600 ft. | | True Vertical TD: | 6997 ft. | True Vertical PB depth: | 6997 ft. | | Top PZ Location: | Sec:14 Twp: 3N 65W | Footage: 510 FNL 1070 FEL | | Bottom Hole Location: | Sec:14 Twp: 3N 65W | Footage: 1924 FNL 2256 FWL | | Log Types: | CBL, MUD, NO OPEN HOLE LOGS | | Log Types: | CBL-2 | | Casing: | String Type: CONDUCTOR, Hole Size: , Size: , Top: , Depth: , Weight: , Citings Type: ACTUAL | | Cement: | Sacks: , Top: , Bottom: , Determination Method: CALC | | Casing: | String Type: SURF, Hole Size: 13.75 in., Size: 9.625 in., Top: 0 ft., Depth: 868 ft., Weight: 40 , Citings Type: ACTUAL | | Cement: | Sacks: 530, Top: 0 ft., Bottom: 868 ft., Determination Method: VISU | | Casing: | String Type: 1ST, Hole Size: 8.75 in., Size: , Top: 0 ft., Depth: 7153 ft., Weight: 26 , Citings Type: ACTUAL | | Cement: | Sacks: 370, Top: 3280 ft., Bottom: 7157 ft., Determination Method: CBL | | Casing: | String Type: S.C. 1.1, Hole Size: 8.75 in., Size: , Top: 0 ft., Depth: 7153 ft., Weight: 26 , Citings Type: ACTUAL | | Cement: | Sacks: 200, Top: 1280 ft., Bottom: 1446 ft., Determination Method: CBL | | Casing: | String Type: S.C. 1.2, Hole Size: 8.75 in., Size: , Top: 0 ft., Depth: 7153 ft., Weight: 26 , Citings Type: ACTUAL | | Cement: | Sacks: 50, Top: 846 ft., Bottom: 1070 ft., Determination Method: CBL | | Casing: | String Type: 1ST LINER, Hole Size: 6.125 in., Size: 4.5 in., Top: 6068 ft., Depth: 9580 ft., Weight: 11.6 , Citings Type: ACTUAL | | Cement: | Sacks: , Top: , Bottom: , Determination Method: | | Formation | Interval Top | Log Bottom | Cored | DSTs | | SUSSEX | 4401 ft. | | N | N | | NIOBRARA | 6917 ft. | | N | N |
Formation NBRR Formation Classification: GW Status: AB - 5/12/2024 Interval Top: 7263 ft. Interval Bottom: 9466 ft.| Completed Information for Formation NIOBRARA | | 1st Production Date: | 9/6/2008 | Choke Size: | | | Formation Name: | NIOBRARA | Commingled: | No | | Production Method: | | | Open Hole Completion: | No |
| | Formation Treatment | | Treatment Date: | 9/4/2008 | | Treatment Summary: | HORIZONTAL WELL FRAC'D THRU SLOTTED LINER BETWEEN 7263'-9466'. 1000 GALS ACID & 388,000 GALS FRAC PAD & 647,000 GALS FLUID & 1,495,000 LBS 20/40 SAND 60,000 LBS 20/40 SB EXCEL SAND. |
| | Tubing Size: | | Tubing Setting Depth: | | | Tubing Packer Depth: | | Tubing Multiple Packer: | | | Open Hole Top: | | Open Hole Bottom: | | | Initial Test Data: | | Test Date: | N/A | Test Method: | | | Hours Tested: | | Gas Type: | | | Gas Disposal: | | |
| Test Type | Measure |
|---|
| BTU_GAS | 1347 | | CALC_BBLS_H2O | 0 | | CALC_BBLS_OIL | 88 | | CALC_GOR | 2012 | | CALC_MCF_GAS | 177 | | CASING_PRESS | 810 | | GRAVITY_OIL | 51 |
| | Perforation Data: | | Interval Top: | 7263 ft. | # Of Holes: | 1 | | Interval Bottom: | 9466 ft. | Hole Size: | |
|
|
|
|
|
|
|
| Reported Plugged | Y | 05/12/2024 |
| Out Of Service Repurposed | N | |
| Out Of Service | Y | Plugging Due Date
12/31/2030 |
| Inactive Exception | N | |
| Noticed Inactive | N | |
| Defined Inactive | N | |
| Low Producing | N | |
| Total Oil Produced (Barrels) | 0 |
| Total Gas Produced (MCF) | 0 |
| GOR | |
| GOR Determination | MCFE |
| Average BOE per Day | 0.000 |
| Average MCFE per Day | 0.000 |
| Federal Financial Assurance | i | |
|
|
