COGIS - WELL SCOUT CARD

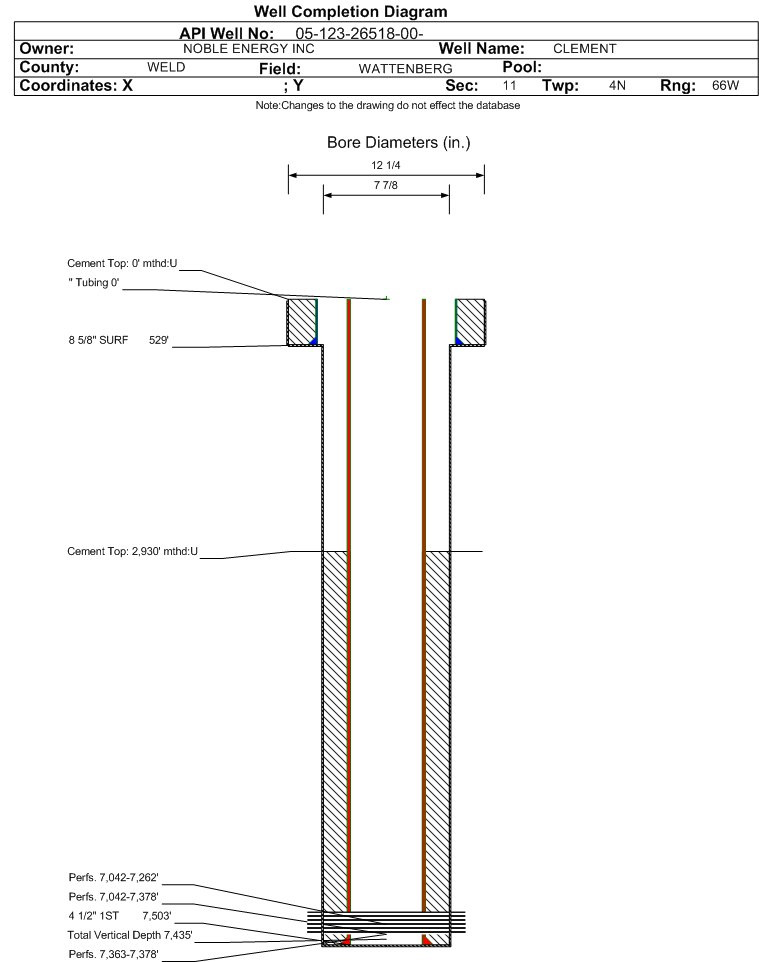

Click image to view related facilities. Related  Click image to view inspection information. InspClick image to view MIT information. MITClick image to access interactive map at well/facility location. GISClick image to view imaged documents for this well/facility. DocClick image to view imaged documents for this well/facility. COAClick image to view wellbore completion diagram. WellboreClick image to search for orders within this facility's section. OrdersClick image to view bradenhead scoutcard data. Bradenhead
 Surface Location
 API# 05-123-26518		Well Classification: GW Status: SI - 1/1/2025
Well Name/No:CLEMENT #32-11
(Click Well Name for Production Data)		Click Here for Transporter Gatherer Info
Operator:PDC ENERGY INC - 69175
(Click Operator Name for Company Detail Report)		Federal Or State Lease #:
Facility Status:SIStatus Date1/1/2025
FacilityID:293240LocationID:332590
County:WELD #123Location:NWSW 11 4N66W 6
Field:WATTENBERG - #90750Elevation:4716 ft.
Basin:DENVER (DJ) BASIN
Planned Location:2015FSL  618 FWLLat/Long: 40.324670 / -104.751780Lat/Long Source: Field Measured
As Drilled Location:Footages Not AvailableLat/Long: 40.324650 / -104.751797Lat/Long Source: Field Measured
 Wellbore And Formation Details -- select either a wellbore Or formation to expand.


Wellbore #00             Wellbore Classification: GW             Status: SI - 1/1/2025             Measured TD: 7520 ft.    Vertical TD: 7435 ft.

 Wellbore Data for Original WellboreWellbore Classification: GW        SI - 1/1/2025
Wellbore PermitDIRECTIONAL
Permit #:20075043 Expiration Date:10/29/2008
Proposed Top PZ Location:Sec:11 Twp: 4N 66W Footage: 2609 FSL  58 FWL
Bottom Hole Location:Sec:11 Twp: 4N 66W Footage: 2609 FSL  58 FWL
Proposed Depth/Form:7455 ft.
Surface Mineral Owner Same:No
Mineral Owner:FEESurface Owner:FEE
Unit: Unit Number:
Formation And Spacing:Code: NB-CD , Formation: NIOBRARA-CODELL , Order: 318A , Unit Acreage: 160, Drill Unit: GWA
Wellbore Completed
Completion Date:12/10/2007
Spud Date:12/5/2007Spud Date Is:ACTUAL
Measured TD:7520 ft.Measured PB depth:7487 ft.
True Vertical TD:7435 ft.True Vertical PB depth:7402 ft.
Top PZ Location:Sec:11 Twp: 4N 66WFootage: 2609 FSL  58 FWL
Bottom Hole Location:Sec:11 Twp: 4N 66WFootage: 2609 FSL  58 FWL
Log Types:CBL, GIL/GL/GR, CDL/CNL/ML
Casing:String Type: SURF, Hole Size: 12.25 in., Size: 8.625 in., Top: 0 ft., Depth: 529 ft., Weight: 24 , Citings Type: ACTUAL
Cement:Sacks: 295, Top: 0 ft., Bottom: 529 ft., Determination Method: VISU
Casing:String Type: 1ST, Hole Size: 7.875 in., Size: 4.5 in., Top: 0 ft., Depth: 7503 ft., Weight: 11.6 , Citings Type: ACTUAL
Cement:Sacks: 630, Top: 2930 ft., Bottom: 7503 ft., Determination Method: CBL
FormationInterval TopLog BottomCoredDSTs
PARKMAN3728 ft.NN
SUSSEX4362 ft.NN
NIOBRARA7033 ft.NN
FORT HAYS7339 ft.NN
CODELL7361 ft.NN

Formation CODL                     Formation Classification:  GW                     Status:  CM - 4/15/2008                 Interval Top: 7363 ft.    Interval Bottom: 7378 ft.

 Completed Information for Formation CODELL
1st Production Date:3/4/2008Choke Size:
Formation Name:CODELLCommingled:Yes
Production Method:
Open Hole Completion:No
Formation Treatment
Treatment Date:1/10/2008
Treatment Summary:166,098 GALS FLUID & 116,960 LBS 40/70 SAND & 4000 LBS 20/40 SAND
Tubing Size:Tubing Setting Depth:
Tubing Packer Depth:Tubing Multiple Packer:
Open Hole Top:Open Hole Bottom:
No Initial Test Data was found for formation CODL.
Perforation Data:
Interval Top:7363 ft.# Of Holes:60
Interval Bottom:7378 ft.Hole Size:0.38 in.

Formation NB-CD                   Formation Classification:  GW                   Status:  SI - 11/1/2024                 Interval Top: 7042 ft.    Interval Bottom: 7378 ft.

 Completed Information for Formation NIOBRARA-CODELL
1st Production Date:3/4/2008Choke Size:0.188 in.
Formation Name:NIOBRARA-CODELLCommingled:No
Production Method:
Open Hole Completion:No
Formation Treatment
Treatment Date:12/10/2007
Treatment Summary:
Tubing Size:Tubing Setting Depth:
Tubing Packer Depth:Tubing Multiple Packer:
Open Hole Top:Open Hole Bottom:
Initial Test Data:
Test Date:4/15/2008Test Method:FLOWING
Hours Tested:Gas Type:SHALE
Gas Disposal:SOLD
Test TypeMeasure
BTU_GAS 1226
CALC_BBLS_OIL 5
CALC_GOR 15600
CALC_MCF_GAS 78
CASING_PRESS 240
GRAVITY_OIL 52
Perforation Data:
Interval Top:7042 ft.# Of Holes:176
Interval Bottom:7378 ft.Hole Size:0.38 in.

Formation NBRR                     Formation Classification:  GW                     Status:  CM - 4/15/2008                 Interval Top: 7042 ft.    Interval Bottom: 7262 ft.

 Completed Information for Formation NIOBRARA
1st Production Date:3/4/2008Choke Size:
Formation Name:NIOBRARACommingled:Yes
Production Method:
Open Hole Completion:No
Formation Treatment
Treatment Date:1/10/2008
Treatment Summary:367,164 GALS FLUID & 300,000 LBS 30/50 SAND & 8000 LBS 20/40 SAND
Tubing Size:Tubing Setting Depth:
Tubing Packer Depth:Tubing Multiple Packer:
Open Hole Top:Open Hole Bottom:
No Initial Test Data was found for formation NBRR.
Perforation Data:
Interval Top:7042 ft.# Of Holes:116
Interval Bottom:7262 ft.Hole Size:0.42 in.
Primary Well Designation:
Low Producing      i
            All DesignationsDate
Reported PluggedN
Out Of Service RepurposedN
Out Of ServiceN
Inactive ExceptionN
Noticed InactiveN
Defined InactiveN
Low ProducingYProduction Period
10/2024 - 09/2025

BOE/MCFE/GOR Calculations
Production for Previous 12 Months
October 2024 - September 2025i
Total Oil Produced (Barrels)14
Total Gas Produced (MCF)0
GOR
GOR DeterminationBOE
Average BOE per Day0.038
Average MCFE per Day0.218

 Federal Financial Assurance  i

 Tribal Well  i No
