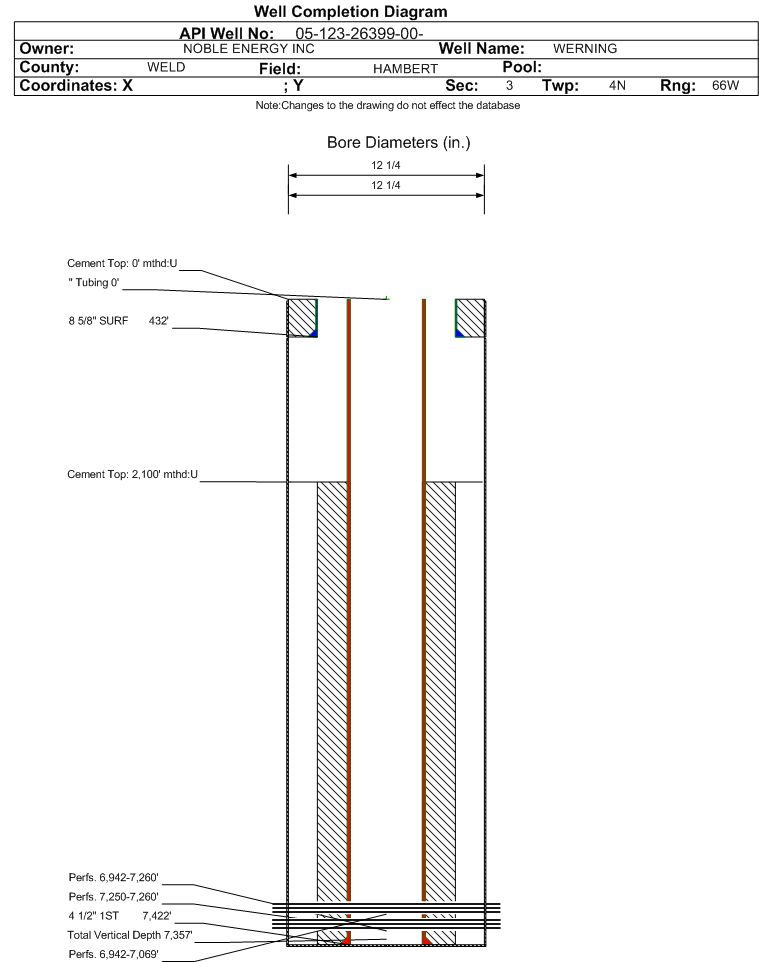

Click image to view related facilities. Related  Click image to view inspection information. InspClick image to view MIT information. MITGIS Map GISOld GIS Map Old GISClick image to view imaged documents for this well/facility. DocClick image to view imaged documents for this well/facility. COAClick image to view wellbore completion diagram. WellboreClick image to search for orders within this facility's section. OrdersClick image to view bradenhead scoutcard data. Bradenhead
 Surface Location
 API# 05-123-26399		Well Classification: GW Status: PA - 9/29/2025
Well Name/No:WERNING #1-2B
(Click Well Name for Production Data)		Click Here for Transporter Gatherer Info
Operator:PDC ENERGY INC - 69175
(Click Operator Name for Company Detail Report)		Federal Or State Lease #:
Facility Status:PAStatus Date9/29/2025
FacilityID:292820LocationID:332845
Municipality/County:EVANS / WELD #123Location:SENE 3 4N66W 6
Field:HAMBERT - #33530Elevation:4681 ft.
Basin:DENVER (DJ) BASIN
Planned Location:1775FNL  469 FELLat/Long: 40.343770 / -104.755610Lat/Long Source: Field Measured
As Drilled Location:Footages Not AvailableLat/Long: 40.343760 / -104.755580Lat/Long Source: Field Measured
 Wellbore And Formation Details -- select either a wellbore Or formation to expand.


Wellbore #00             Wellbore Classification: GW             Status: AB - 9/29/2025             Measured TD: 7447 ft.    Vertical TD: 7357 ft.

 Wellbore Data for Original WellboreWellbore Classification: GW        AB - 9/29/2025
Wellbore PermitDIRECTIONAL
Permit #:20073887 Expiration Date:10/4/2008
Proposed Top PZ Location:Sec:2 Twp: 4N 66W Footage: 2594 FNL  12 FWL
Bottom Hole Location:Sec:2 Twp: 4N 66W Footage: 2594 FNL  12 FWL
Proposed Depth/Form:7454 ft.
Surface Mineral Owner Same:Yes
Mineral Owner:FEESurface Owner:FEE
Unit: Unit Number:
Formation And Spacing:Code: CODL , Formation: CODELL , Order: 407-87 , Unit Acreage: 160, Drill Unit: ALL
Formation And Spacing:Code: NBRR , Formation: NIOBRARA , Order: 40-87 , Unit Acreage: 160, Drill Unit: ALL
Wellbore Completed
Completion Date:12/21/2007
Spud Date:12/14/2007Spud Date Is:ACTUAL
Measured TD:7447 ft.Measured PB depth:7406 ft.
True Vertical TD:7357 ft.True Vertical PB depth:7316 ft.
Top PZ Location:Sec:2 Twp: 4N 66WFootage: 2594 FNL  12 FWL
Bottom Hole Location:Sec:2 Twp: 4N 66WFootage: 2594 FNL  12 FWL
Log Types:DIL, CDL, CNL, GR, SP, CAL (COMBO) CBL
Casing:String Type: SURF, Hole Size: 12.25 in., Size: 8.625 in., Top: 0 ft., Depth: 432 ft., Weight: 24 , Citings Type: ACTUAL
Cement:Sacks: 390, Top: 0 ft., Bottom: 432 ft., Determination Method: VISU
Casing:String Type: 1ST, Hole Size: 7.875 in., Size: 4.5 in., Top: 0 ft., Depth: 7422 ft., Weight: 11.6 , Citings Type: ACTUAL
Cement:Sacks: 725, Top: 2039 ft., Bottom: 7422 ft., Determination Method: CBL
FormationInterval TopLog BottomCoredDSTs
PIERRE1295 ft.NN
SUSSEX4351 ft.NN
SHANNON4840 ft.NN
NIOBRARA6926 ft.NN
FORT HAYS7227 ft.NN
CODELL7249 ft.NN

Formation CODL                     Formation Classification:  GW                     Status:  CM - 11/10/2011                Interval Top: 7250 ft.    Interval Bottom: 7260 ft.

 Completed Information for Formation CODELL
1st Production Date:4/10/2008Choke Size:
Formation Name:CODELLCommingled:Yes
Production Method:
Open Hole Completion:No
Formation Treatment
Treatment Date:4/7/2008
Treatment Summary:FRACD 135828 GAL SILVERSTIM CONTAINING 270600# 20/40 SAND
Tubing Size:Tubing Setting Depth:
Tubing Packer Depth:Tubing Multiple Packer:
Open Hole Top:Open Hole Bottom:
No Initial Test Data was found for formation CODL.
Perforation Data:
Interval Top:7250 ft.# Of Holes:40
Interval Bottom:7260 ft.Hole Size:0.42 in.

Formation NB-CD                   Formation Classification:  GW                   Status:  AB - 9/16/2024                 Interval Top: 6942 ft.    Interval Bottom: 7260 ft.

 Completed Information for Formation NIOBRARA-CODELL
1st Production Date:4/10/2008Choke Size:
Formation Name:NIOBRARA-CODELLCommingled:No
Production Method:
Open Hole Completion:No
Formation Treatment
Treatment Date:4/7/2008
Treatment Summary:SEE INDIVIDUAL FORMATIONS BELOW
Tubing Size:Tubing Setting Depth:
Tubing Packer Depth:Tubing Multiple Packer:
Open Hole Top:Open Hole Bottom:
Initial Test Data:
Test Date:N/ATest Method:
Hours Tested:Gas Type:
Gas Disposal:
Test TypeMeasure
BBLS_H2O 26
BBLS_OIL 52
BTU_GAS 1193
CALC_BBLS_H2O 28
CALC_BBLS_OIL 57
CALC_GOR 15923
CALC_MCF_GAS 903
CASING_PRESS 660
GRAVITY_OIL 65
MCF_GAS 828
Perforation Data:
Interval Top:6942 ft.# Of Holes:112
Interval Bottom:7260 ft.Hole Size:0.42 in.

Formation NBRR                     Formation Classification:  GW                     Status:  CM - 11/10/2011                Interval Top: 6942 ft.    Interval Bottom: 7069 ft.

 Completed Information for Formation NIOBRARA
1st Production Date:4/10/2008Choke Size:
Formation Name:NIOBRARACommingled:Yes
Production Method:
Open Hole Completion:No
Formation Treatment
Treatment Date:4/7/2008
Treatment Summary:FRACD WITH 167034 GAL SILVERSTIM CONTAINING 239240# 20/40 SAND AND 12000# 12/20 SB EXCEL
Tubing Size:Tubing Setting Depth:
Tubing Packer Depth:Tubing Multiple Packer:
Open Hole Top:Open Hole Bottom:
No Initial Test Data was found for formation NBRR.
Perforation Data:
Interval Top:6942 ft.# Of Holes:72
Interval Bottom:7069 ft.Hole Size:
Primary Well Designation:
None      i
            All DesignationsDate
Reported PluggedY09/29/2025
Out Of Service RepurposedN
Out Of ServiceN
Inactive ExceptionN
Noticed InactiveYNoticed Date
02/29/2024
Defined InactiveN
Low ProducingN

BOE/MCFE/GOR Calculations
Production for Previous 12 Months
January 2025 - December 2025i
Total Oil Produced (Barrels)0
Total Gas Produced (MCF)0
GOR
GOR DeterminationMCFE
Average BOE per Day0.000
Average MCFE per Day0.000

 Federal Financial Assurance  i

 Tribal Well  i No
