COGIS - WELL SCOUT CARD

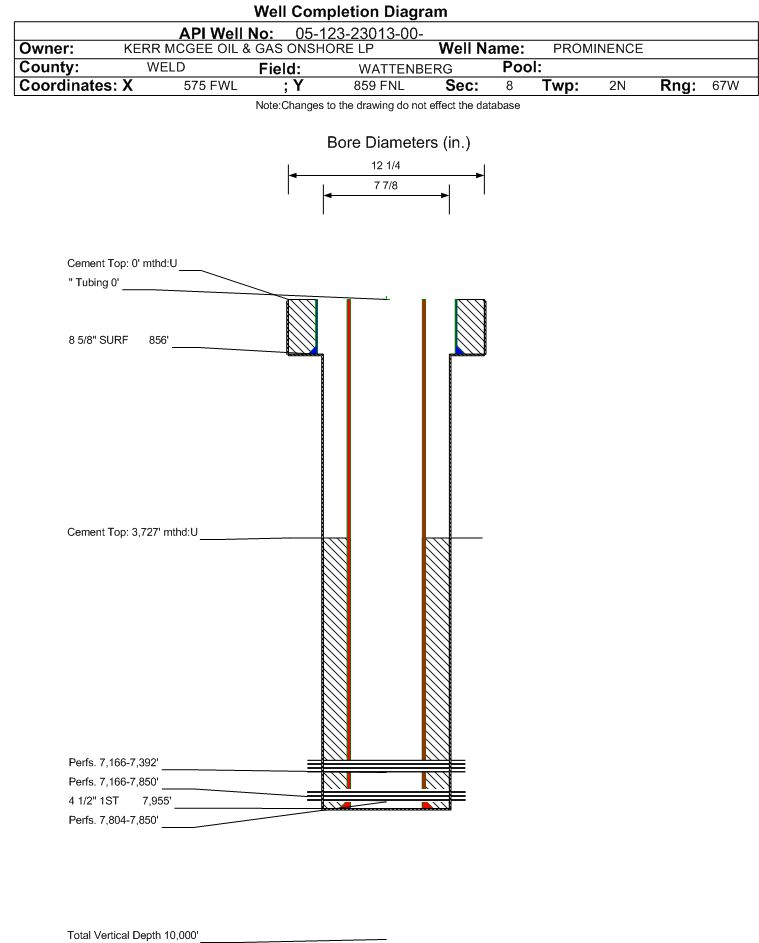

Click image to view related facilities. Related  Click image to view inspection information. InspClick image to view MIT information. MITClick image to access interactive map at well/facility location. GISClick image to view imaged documents for this well/facility. DocClick image to view imaged documents for this well/facility. COAClick image to view wellbore completion diagram. WellboreClick image to search for orders within this facility's section. OrdersClick image to view bradenhead scoutcard data. Bradenhead
 Surface Location
 API# 05-123-23013		Well Classification: GW Status: PA - 1/6/2023
Well Name/No:PROMINENCE #4-8
(Click Well Name for Production Data)		Click Here for Transporter Gatherer Info
Operator:KERR MCGEE OIL & GAS ONSHORE LP - 47120
(Click Operator Name for Company Detail Report)		Federal Or State Lease #:
Facility Status:PAStatus Date1/6/2023
FacilityID:278114LocationID:305465
County:WELD #123Location:NWNW 8 2N67W 6
Field:WATTENBERG - #90750Elevation:4880 ft.
Planned Location:859FNL  575 FWLLat/Long: 40.157950 / -104.921740Lat/Long Source: Field Measured
As Drilled Location:859 FNL  575 FWLLat/Long: 40.157945 / -104.921712Lat/Long Source: Field Measured
 Wellbore And Formation Details -- select either a wellbore Or formation to expand.


Wellbore #00             Wellbore Classification: GW             Status: PA - 1/6/2023             Measured TD: 7965 ft.

 Wellbore Data for Original WellboreWellbore Classification: GW        PA - 1/6/2023
Wellbore Permit
Permit #:Expiration Date:9/29/2010
Proposed Depth/Form:7965 ft.
Surface Mineral Owner Same:No
Mineral Owner:FEESurface Owner:FEE
Unit: Unit Number:
Formation And Spacing:Code: JSND , Formation: J SAND , Order: 232 , Unit Acreage: 320, Drill Unit: N/2
Formation And Spacing:Code: NB-CD , Formation: NIOBRARA-CODELL , Order: 407 , Unit Acreage: 160, Drill Unit: NW/4
Casing:String Type: SURF, Hole Size: 12.25 in., Size: 8.625 in., Top: , Depth: 856 ft., Weight: 24 , Citings Type: PLANNED
Cement:Sacks: 600, Top: 0 ft., Bottom: 856 ft.
Casing:String Type: 1ST, Hole Size: 7.875 in., Size: 4.5 in., Top: , Depth: 7955 ft., Weight: 11.6 , Citings Type: PLANNED
Cement:Sacks: 720, Top: 3727 ft., Bottom: 7955 ft.
Wellbore Completed
Completion Date:7/26/2005
Spud Date:7/7/2005Spud Date Is:ACTUAL
Measured TD:7965 ft.Measured PB depth:7939 ft.
True Vertical TD:True Vertical PB depth:
Log Types:DIGL, GR, CBL, CDCN
Log Types:
Casing:String Type: SURF, Hole Size: 12.25 in., Size: 8.625 in., Top: 0 ft., Depth: 856 ft., Weight: 24 , Citings Type: ACTUAL
Cement:Sacks: 600, Top: 0 ft., Bottom: 856 ft., Determination Method: VISU
Casing:String Type: 1ST, Hole Size: 7.875 in., Size: 4.5 in., Top: 0 ft., Depth: 7969 ft., Weight: 11.6 , Citings Type: ACTUAL
Cement:Sacks: 720, Top: 3727 ft., Bottom: 7969 ft., Determination Method: CALC
Casing:String Type: S.C. 1.1, Hole Size: 7.875 in., Size: 4.5 in., Top: , Depth: 7969 ft., Weight: 11.6 , Citings Type: ACTUAL
Cement:Sacks: 215, Top: 528 ft., Bottom: 1491 ft., Determination Method: CBL
FormationInterval TopLog BottomCoredDSTs
SUSSEX4234 ft.NN
SHANNON4753 ft.NN
NIOBRARA7114 ft.NN
FORT HAYS7351 ft.NN
CODELL7373 ft.NN
J SAND7802 ft.NN

Formation JSND                     Formation Classification:  OW                     Status:  AB - 1/6/2023                  Interval Top: 7804 ft.    Interval Bottom: 7850 ft.

 Completed Information for Formation J SAND
1st Production Date:8/3/2005Choke Size:
Formation Name:J SANDCommingled:Yes
Production Method:
Open Hole Completion:No
Formation Treatment
Treatment Date:8/30/2011
Treatment Summary:REMOVED SAND PLUG SET @ 7650-7939 TO COMMINGLE JSND WITH NB/CD
Formation Treatment
Treatment Date:3/30/2010
Treatment Summary:SPOT 1800# 20/40 FRAC SAND ACROSS J SAND FOR MECHANICAL INTEGRITY. OUR INTENT IS TO DRILL OUT SAND AND COMMINGLE THE WELL IN THE NEXT SIX MONTHS.
Tubing Size:Tubing Setting Depth:
Tubing Packer Depth:Tubing Multiple Packer:
Open Hole Top:Open Hole Bottom:
Initial Test Data:
Test Date:N/ATest Method:
Hours Tested:Gas Type:
Gas Disposal:
Test TypeMeasure
BBLS_OIL 1
CALC_BBLS_OIL 1
CALC_GOR 256000
CALC_MCF_GAS 265
CASING_PRESS 613
GRAVITY_OIL 56
MCF_GAS 256
TUBING_PRESS 306
Perforation Data:
Interval Top:7804 ft.# Of Holes:111
Interval Bottom:7850 ft.Hole Size:0.38 in.

Formation JNBCD                   Formation Classification:  OW                   Status:  CM - 9/21/2011                 Interval Top: 7166 ft.    Interval Bottom: 7850 ft.

 Completed Information for Formation J-NIOBRARA-CODELL
1st Production Date:9/2/2011Choke Size:
Formation Name:J-NIOBRARA-CODELLCommingled:No
Production Method:
Open Hole Completion:No
Formation Treatment
Treatment Date:8/30/2011
Treatment Summary:REMOVED SAND PLUG SET @ 7650-7939 TO COMMINGLE JSND WITH NB/CD
Tubing Size:Tubing Setting Depth:
Tubing Packer Depth:Tubing Multiple Packer:
Open Hole Top:Open Hole Bottom:
Initial Test Data:
Test Date:9/21/2011Test Method:FLOWING
Hours Tested:24Gas Type:WET
Gas Disposal:SOLD
Test TypeMeasure
BBLS_OIL 9
BTU_GAS 1273
CALC_BBLS_OIL 9
CALC_GOR 5333
CALC_MCF_GAS 48
CASING_PRESS 648
GRAVITY_OIL 50
MCF_GAS 48
Perforation Data:
Interval Top:7166 ft.# Of Holes:231
Interval Bottom:7850 ft.Hole Size:0.42 in.

Formation NB-CD                   Formation Classification:  GW                   Status:  AB - 1/6/2023                  Interval Top: 7166 ft.    Interval Bottom: 7392 ft.

 Completed Information for Formation NIOBRARA-CODELL
1st Production Date:4/14/2010Choke Size:0.188 in.
Formation Name:NIOBRARA-CODELLCommingled:No
Production Method:
Open Hole Completion:No
Formation Treatment
Treatment Date:4/8/2010
Treatment Summary:NB PERF 7166-7254 HOLES 66 SIZE 0.42. CD PERF 7374-7392 HOLES 54 SIZE 0.38. FRAC NB W/500 GAL 15% HC1 & 243,142 GAL SW W/201,220# 40/70 & 4,000# 20/40 SB EXCEL. FRAC CD W/192,444 GAL SW W/150,120# 40/70 & 4,000# 20/40 SB EXCEL.
Tubing Size:Tubing Setting Depth:
Tubing Packer Depth:Tubing Multiple Packer:
Open Hole Top:Open Hole Bottom:
Initial Test Data:
Test Date:4/28/2010Test Method:FLOWING
Hours Tested:Gas Type:SHALE
Gas Disposal:SOLD
Test TypeMeasure
BTU_GAS 1277
CALC_BBLS_H2O 0
CALC_BBLS_OIL 86
CALC_GOR 4686
CALC_MCF_GAS 403
CASING_PRESS 1400
GRAVITY_OIL 48
Perforation Data:
Interval Top:7166 ft.# Of Holes:120
Interval Bottom:7392 ft.Hole Size:0.38 in.
Primary Well Designation:
None      i
            All DesignationsDate
Reported PluggedY01/06/2023
Out Of Service RepurposedN
Out Of ServiceYPlugging Due Date
12/31/2030
Inactive ExceptionN
Noticed InactiveN
Defined InactiveN
Low ProducingN

BOE/MCFE/GOR Calculations
Production for Previous 12 Months
February 2024 - January 2025i
Total Oil Produced (Barrels)0
Total Gas Produced (MCF)0
GOR
GOR DeterminationMCFE
Average BOE per Day0.000
Average MCFE per Day0.000

 Federal Financial Assurance  i

 Tribal Well  i No
