COGIS - WELL SCOUT CARD

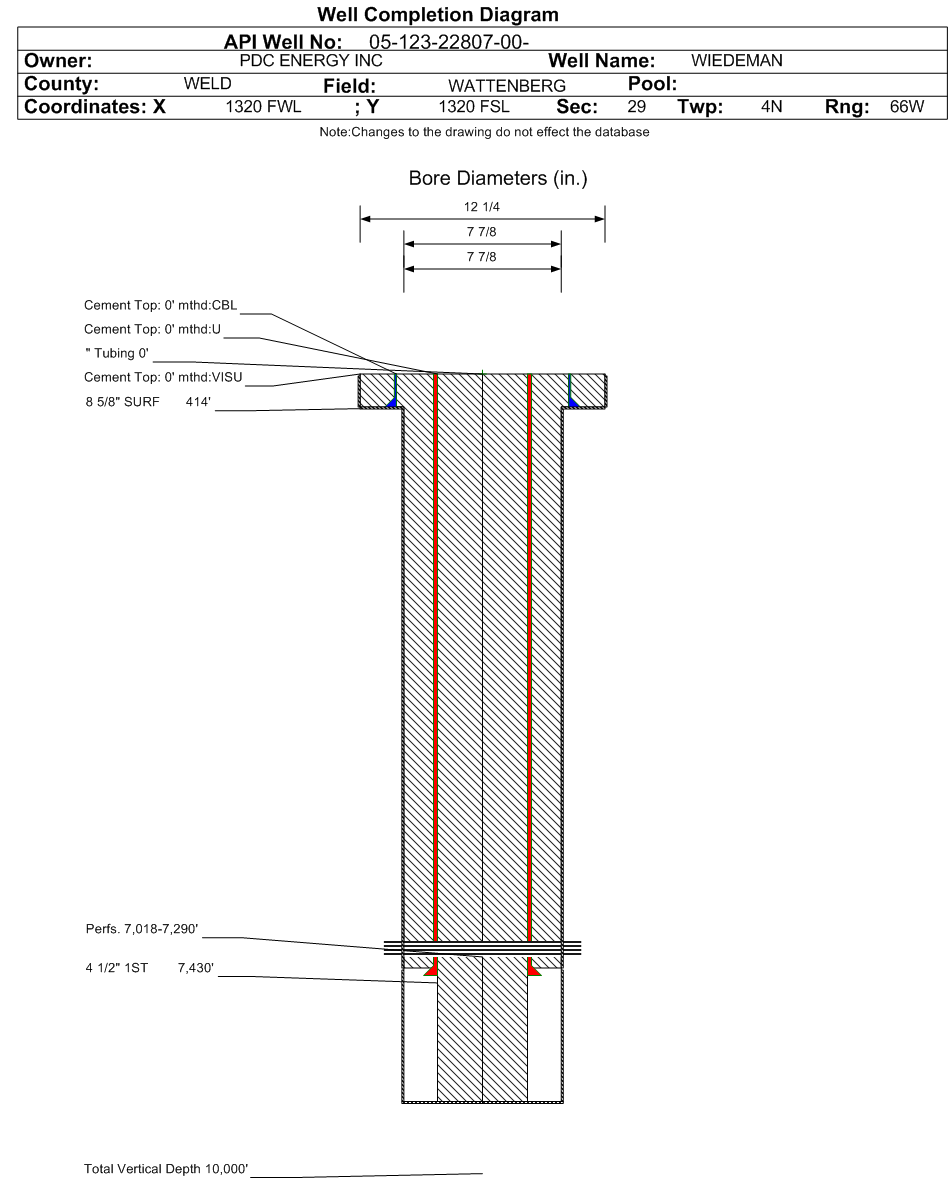

Click image to view related facilities. Related  Click image to view inspection information. InspClick image to view MIT information. MITClick image to access interactive map at well/facility location. GISClick image to view imaged documents for this well/facility. DocClick image to view imaged documents for this well/facility. COAClick image to view wellbore completion diagram. WellboreClick image to search for orders within this facility's section. OrdersClick image to view bradenhead scoutcard data. Bradenhead
 Surface Location
 API# 05-123-22807		Well Classification: GW Status: PA - 2/21/2020
Well Name/No:WIEDEMAN #5
(Click Well Name for Production Data)		Click Here for Transporter Gatherer Info
Operator:PDC ENERGY INC - 69175
(Click Operator Name for Company Detail Report)		Federal Or State Lease #:
Facility Status:PAStatus Date2/21/2020
FacilityID:276678LocationID:305329
County:WELD #123Location:SWSW 29 4N66W 6
Field:WATTENBERG - #90750Elevation:4758 ft.
Basin:DENVER (DJ) BASIN
Planned Location:1320FSL  1320 FWLLat/Long: 40.278796 / -104.806222Lat/Long Source: Calculated From Footages
As Drilled Location:Footages Not AvailableLat/Long: 40.278889 / -104.806389Lat/Long Source: Field Measured
 Wellbore And Formation Details -- select either a wellbore Or formation to expand.


Wellbore #00             Wellbore Classification: GW             Status: PA - 2/21/2020             Measured TD: 9098 ft.

 Wellbore Data for Original WellboreWellbore Classification: GW        PA - 2/21/2020
Wellbore PermitDRIFTED
Permit #:20050473 Expiration Date:3/20/2006
Proposed Depth/Form:7400 ft.
Surface Mineral Owner Same:Yes
Mineral Owner:FEESurface Owner:FEE
Unit: Unit Number:
Formation And Spacing:Code: NB-CD , Formation: NIOBRARA-CODELL , Order: 407.87 , Unit Acreage: 160, Drill Unit: SW/4
Wellbore Completed
Completion Date:4/26/2005
Spud Date:3/24/2005Spud Date Is:ACTUAL
Measured TD:9098 ft.Measured PB depth:
True Vertical TD:True Vertical PB depth:
Log Types:COMPENSATED NEUTRON/LITHO DENSITY/MICRO RESISTIVITY/ARRAY INDUCTION/LINEAR CORRELATION/CALIPER
Casing:String Type: SURF, Hole Size: 12.25 in., Size: 8.625 in., Top: 0 ft., Depth: 414 ft., Weight: 24 , Citings Type: ACTUAL
Cement:Sacks: 340, Top: 0 ft., Bottom: 414 ft., Determination Method: VISU
Casing:String Type: 1ST, Hole Size: 7.875 in., Size: 4.5 in., Top: 0 ft., Depth: 7430 ft., Weight: 11.6 , Citings Type: ACTUAL
Cement:Sacks: 820, Top: 1850 ft., Bottom: 7430 ft., Determination Method: CBL
Casing:String Type: OPEN HOLE, Hole Size: 7.875 in., Size: , Top: , Depth: 9098 ft., Weight: , Citings Type: ACTUAL
Cement:Sacks: , Top: , Bottom: , Determination Method:
FormationInterval TopLog BottomCoredDSTs
PARKMAN3755 ft.NN
SUSSEX4262 ft.NN
SHANNON4780 ft.NN
NIOBRARA7012 ft.NN
CODELL7273 ft.NN
J SAND7722 ft.NN
DAKOTA7931 ft.NN
MORRISON8093 ft.NN
ENTRADA8326 ft.NN
LYONS8982 ft.NN

Formation NB-CD                   Formation Classification:  GW                   Status:  AB - 2/21/2020                 Interval Top: 7018 ft.    Interval Bottom: 7290 ft.

 Completed Information for Formation NIOBRARA-CODELL
1st Production Date:N/AChoke Size:
Formation Name:NIOBRARA-CODELLCommingled:
Production Method:
Open Hole Completion:
Formation Treatment
Treatment Date:4/26/2005
Treatment Summary:SEE SCANNED DOC #01260272
Tubing Size:Tubing Setting Depth:
Tubing Packer Depth:Tubing Multiple Packer:
Open Hole Top:Open Hole Bottom:
Initial Test Data:
Test Date:N/ATest Method:
Hours Tested:Gas Type:
Gas Disposal:
Test TypeMeasure
BBLS_H2O 9
BBLS_OIL 8
CALC_GOR 46250
CASING_PRESS 650
MCF_GAS 370
TUBING_PRESS 350
Perforation Data:
Interval Top:7018 ft.# Of Holes:256
Interval Bottom:7290 ft.Hole Size:
Primary Well Designation:
None      i
            All DesignationsDate
Reported PluggedY02/21/2020
Out Of Service RepurposedN
Out Of ServiceN
Inactive ExceptionN
Noticed InactiveN
Defined InactiveN
Low ProducingN

BOE/MCFE/GOR Calculations
Production for Previous 12 Months
September 2024 - August 2025i
Total Oil Produced (Barrels)0
Total Gas Produced (MCF)0
GOR
GOR Determination
Average BOE per Day0.000
Average MCFE per Day0.000

 Federal Financial Assurance  i

 Tribal Well  i No
