COGIS - WELL SCOUT CARD

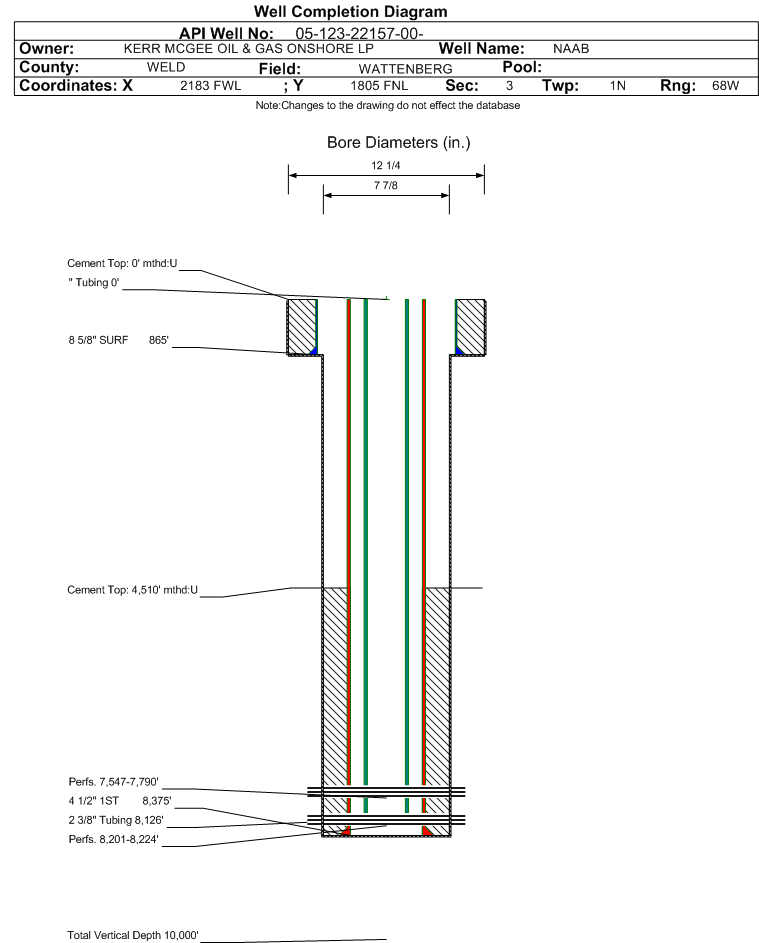

Click image to view related facilities. Related  Click image to view inspection information. InspClick image to view MIT information. MITClick image to access interactive map at well/facility location. GISClick image to view imaged documents for this well/facility. DocClick image to view imaged documents for this well/facility. COAClick image to view wellbore completion diagram. WellboreClick image to search for orders within this facility's section. OrdersClick image to view bradenhead scoutcard data. Bradenhead
 Surface Location
 API# 05-123-22157		Well Classification: GW Status: PA - 10/12/2017
Well Name/No:NAAB #22-3
(Click Well Name for Production Data)		Click Here for Transporter Gatherer Info
Operator:KERR MCGEE OIL & GAS ONSHORE LP - 47120
(Click Operator Name for Company Detail Report)		Federal Or State Lease #:
Facility Status:PAStatus Date10/12/2017
FacilityID:271992LocationID:332328
County:WELD #123Location:SENW 3 1N68W 6
Field:WATTENBERG - #90750Elevation:5040 ft.
Basin:DENVER (DJ) BASIN
Planned Location:1805FNL  2183 FWLLat/Long: 40.082717 / -104.991126Lat/Long Source: Calculated From Footages
As Drilled Location:Footages Not AvailableLat/Long: 40.082720 / -104.991110Lat/Long Source: Field Measured
 Wellbore And Formation Details -- select either a wellbore Or formation to expand.


Wellbore #00             Wellbore Classification: GW             Status: PA - 10/12/2017             Measured TD: 8377 ft.

 Wellbore Data for Original WellboreWellbore Classification: GW        PA - 10/12/2017
Wellbore PermitDRIFTED
Permit #:20040751 Expiration Date:4/19/2005
Proposed Depth/Form:8400 ft.
Surface Mineral Owner Same:No
Mineral Owner:FEESurface Owner:FEE
Unit: Unit Number:
Formation And Spacing:Code: JSND , Formation: J SAND , Order: 232 , Unit Acreage: 320, Drill Unit: N2
Formation And Spacing:Code: NB-CD , Formation: NIOBRARA-CODELL , Order: 160 , Unit Acreage: 160, Drill Unit: NW4
Wellbore Completed
Completion Date:8/26/2004
Spud Date:7/22/2004Spud Date Is:ACTUAL
Measured TD:8377 ft.Measured PB depth:8362 ft.
True Vertical TD:True Vertical PB depth:
Log Types:COMPENSATED DENSITY/COMPENSATED NEUTRON/DUAL IND;CBL
Casing:String Type: SURF, Hole Size: 12.25 in., Size: 8.625 in., Top: 0 ft., Depth: 865 ft., Weight: 24 , Citings Type: ACTUAL
Cement:Sacks: 565, Top: 0 ft., Bottom: 865 ft., Determination Method: VISU
Casing:String Type: 1ST, Hole Size: 7.875 in., Size: 4.5 in., Top: 0 ft., Depth: 8375 ft., Weight: 11.6 , Citings Type: ACTUAL
Cement:Sacks: 515, Top: 4510 ft., Bottom: 8375 ft., Determination Method: CBL
FormationInterval TopLog BottomCoredDSTs
SUSSEX4544 ft.NN
NIOBRARA7444 ft.NN
CODELL7769 ft.NN
J SAND8201 ft.NN

Formation JSND                     Formation Classification:  GW                     Status:  AB - 10/12/2017                Interval Top: 8201 ft.    Interval Bottom: 8224 ft.

 Completed Information for Formation J SAND
1st Production Date:N/AChoke Size:
Formation Name:J SANDCommingled:Yes
Production Method:
Open Hole Completion:
Formation Treatment
Treatment Date:8/26/2004
Treatment Summary:FRAC WITH 107,982 GAL OF 25 & 30 SATURN 1 FLUID, 242,440# 20/40 SAND, 8000# SUPER LC 20/40 SAND. J SAND PERFS; 8201-05" 8212-24'.
Tubing Size:Tubing Setting Depth:
Tubing Packer Depth:Tubing Multiple Packer:
Open Hole Top:Open Hole Bottom:
Initial Test Data:
Test Date:N/ATest Method:
Hours Tested:Gas Type:
Gas Disposal:
Test TypeMeasure
BBLS_H2O 14
CASING_PRESS 320
MCF_GAS 198
TUBING_PRESS 260
Perforation Data:
Interval Top:8201 ft.# Of Holes:64
Interval Bottom:8224 ft.Hole Size:0.4 in.

Formation NB-CD                   Formation Classification:  GW                   Status:  AB - 10/12/2017                Interval Top: 7547 ft.    Interval Bottom: 7790 ft.

 Completed Information for Formation NIOBRARA-CODELL
1st Production Date:N/AChoke Size:
Formation Name:NIOBRARA-CODELLCommingled:No
Production Method:
Open Hole Completion:No
Formation Treatment
Treatment Date:8/26/2004
Treatment Summary:FRAC W/1,000 GAL 15% HC1, 40,000 GAL FR WTR, 20,000 GAL FR WTR W/ 1/2 PPG, 23,000 GAL FR WTR W/1 PPG, 105,348 GAL OF SILVERSTIM & 350,500# 20/40 SAND.
Tubing Size:2.375 in.Tubing Setting Depth:8126 ft.
Tubing Packer Depth:Tubing Multiple Packer:
Open Hole Top:Open Hole Bottom:
Initial Test Data:
Test Date:3/4/2005Test Method:PLUNGER LIFT
Hours Tested:24Gas Type:SHALE
Gas Disposal:SOLD
Test TypeMeasure
BBLS_H2O 1
BBLS_OIL 14
CALC_GOR 10643
CASING_PRESS 1000
MCF_GAS 149
TUBING_PRESS 180
Perforation Data:
Interval Top:7547 ft.# Of Holes:172
Interval Bottom:7790 ft.Hole Size:0.4 in.
Primary Well Designation:
None      i
            All DesignationsDate
Reported PluggedY10/12/2017
Out Of Service RepurposedN
Out Of ServiceN
Inactive ExceptionN
Noticed InactiveN
Defined InactiveN
Low ProducingN

BOE/MCFE/GOR Calculations
Production for Previous 12 Months
November 2024 - October 2025i
Total Oil Produced (Barrels)0
Total Gas Produced (MCF)0
GOR
GOR Determination
Average BOE per Day0.000
Average MCFE per Day0.000

 Federal Financial Assurance  i

 Tribal Well  i No
