COGIS - WELL SCOUT CARD
Click image to view related facilities. Related  Click image to view inspection information. InspClick image to view MIT information. MITGIS Map GISOld GIS Map Old GISClick image to view imaged documents for this well/facility. DocClick image to view imaged documents for this well/facility. COAClick image to view wellbore completion diagram. WellboreClick image to search for orders within this facility's section. OrdersClick image to view bradenhead scoutcard data. Bradenhead
 Surface Location
 API# 05-123-21886		Well Classification: GW Status: PA - 3/4/2025
Well Name/No:P & H #22-42
(Click Well Name for Production Data)		Click Here for Transporter Gatherer Info
Operator:PDC ENERGY INC - 69175
(Click Operator Name for Company Detail Report)		Federal Or State Lease #:
Facility Status:PAStatus Date3/4/2025
FacilityID:270410LocationID:332138
County:WELD #123Location:SENE 22 5N64W 6
Field:WATTENBERG - #90750Elevation:4579 ft.
Basin:DENVER (DJ) BASIN
Planned Location:1830FNL  843 FELLat/Long: 40.386986 / -104.529494Lat/Long Source: Calculated From Footages
As Drilled Location:Footages Not AvailableLat/Long: 40.387030 / -104.529440Lat/Long Source: Field Measured
 Wellbore And Formation Details -- select either a wellbore Or formation to expand.

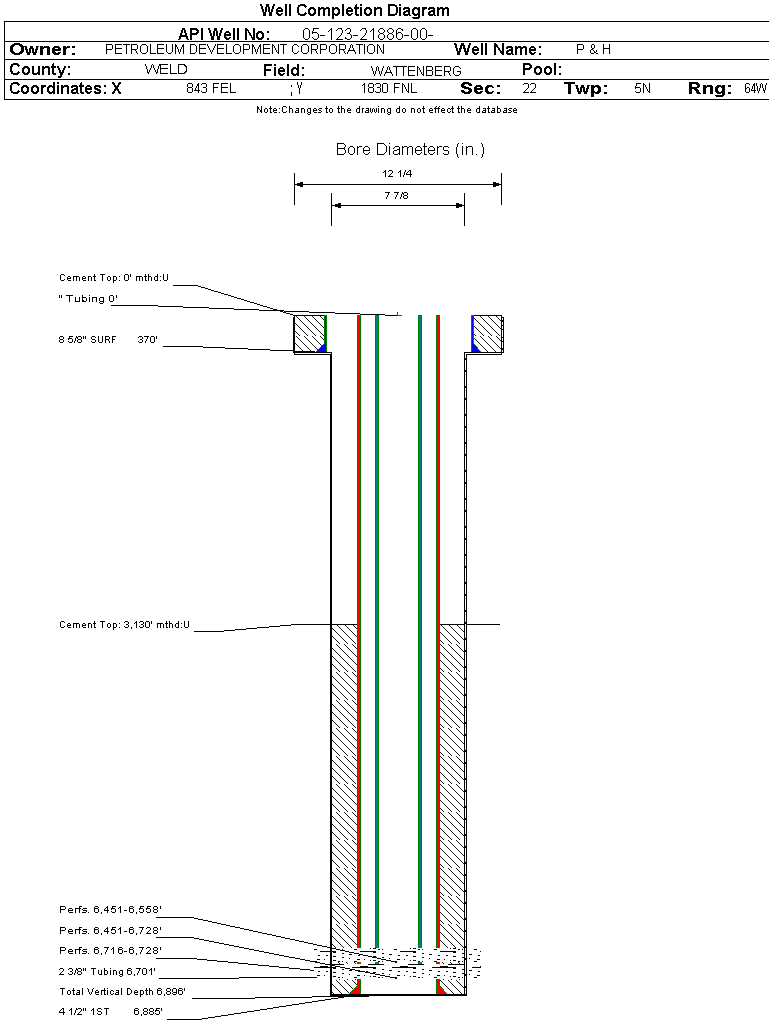

Wellbore #00             Wellbore Classification: GW             Status: AB - 3/4/2025             Measured TD: 6896 ft.

 Wellbore Data for Original WellboreWellbore Classification: GW        AB - 3/4/2025
Wellbore PermitDRIFTED
Permit #:20032378 Expiration Date:12/14/2004
Proposed Depth/Form:6900 ft.
Surface Mineral Owner Same:Yes
Mineral Owner:FEESurface Owner:FEE
Unit: Unit Number:
Formation And Spacing:Code: CODL , Formation: CODELL , Order: 407 , Unit Acreage: 80, Drill Unit: E1/2NE
Formation And Spacing:Code: NBRR , Formation: NIOBRARA , Order: 407 , Unit Acreage: 80, Drill Unit: E1/2NE
Wellbore Completed
Completion Date:6/15/2004
Spud Date:3/29/2004Spud Date Is:ACTUAL
Measured TD:6896 ft.Measured PB depth:6813 ft.
True Vertical TD:True Vertical PB depth:
Log Types:DIL - CNL - FDC - GR - SP AND CALIPER, CBL
Casing:String Type: SURF, Hole Size: 12.25 in., Size: 8.625 in., Top: 0 ft., Depth: 370 ft., Weight: 24 , Citings Type: ACTUAL
Cement:Sacks: 300, Top: 0 ft., Bottom: 370 ft., Determination Method: VISU
Casing:String Type: 1ST, Hole Size: 7.875 in., Size: 4.5 in., Top: 0 ft., Depth: 6885 ft., Weight: 11.6 , Citings Type: ACTUAL
Cement:Sacks: 390, Top: 3130 ft., Bottom: 6885 ft., Determination Method: CBL
FormationInterval TopLog BottomCoredDSTs
NIOBRARA6456 ft.NN
CODELL6715 ft.NN

Formation CODL                     Formation Classification:  GW                     Status:  CM - 4/1/2008                  Interval Top: 6716 ft.    Interval Bottom: 6728 ft.

 Completed Information for Formation CODELL
1st Production Date:N/AChoke Size:
Formation Name:CODELLCommingled:Yes
Production Method:
Open Hole Completion:No
Formation Treatment
Treatment Date:1/23/2008
Treatment Summary:REPERF'D CODL 6716'-6728' (36 HOLES). REFRAC'D CODL USING 643 BBLS VISTAR 24# PAD; 1871 BBLS VISTAR 24# FLUID SYSTEM, 217,640# 20/40 WHITE SAND & 8000# SB EXCEL 20/40 RESIN COATED PROPPANT.
Tubing Size:Tubing Setting Depth:
Tubing Packer Depth:Tubing Multiple Packer:
Open Hole Top:Open Hole Bottom:
No Initial Test Data was found for formation CODL.
Perforation Data:
Interval Top:6716 ft.# Of Holes:46
Interval Bottom:6728 ft.Hole Size:0.41 in.

Formation NB-CD                   Formation Classification:  OW                   Status:  AB - 3/4/2025                  Interval Top: 6451 ft.    Interval Bottom: 6728 ft.

 Completed Information for Formation NIOBRARA-CODELL
1st Production Date:6/29/2004Choke Size:
Formation Name:NIOBRARA-CODELLCommingled:
Production Method:
Open Hole Completion:No
Formation Treatment
Treatment Date:6/15/2004
Treatment Summary:
Tubing Size:Tubing Setting Depth:
Tubing Packer Depth:Tubing Multiple Packer:
Open Hole Top:Open Hole Bottom:
Initial Test Data:
Test Date:N/ATest Method:
Hours Tested:Gas Type:
Gas Disposal:
Test TypeMeasure
BBLS_H2O 12
BBLS_OIL 36
BTU_GAS 1367
CALC_BBLS_H2O 12
CALC_BBLS_OIL 36
CALC_GOR 6972
CALC_MCF_GAS 251
CASING_PRESS 650
GRAVITY_OIL 50
MCF_GAS 251
TUBING_PRESS 300
Perforation Data:
Interval Top:6451 ft.# Of Holes:96
Interval Bottom:6728 ft.Hole Size:0.41 in.

Formation NBRR                     Formation Classification:  GW                     Status:  CM - 4/1/2008                  Interval Top: 6451 ft.    Interval Bottom: 6558 ft.

 Completed Information for Formation NIOBRARA
1st Production Date:N/AChoke Size:
Formation Name:NIOBRARACommingled:Yes
Production Method:
Open Hole Completion:No
Formation Treatment
Treatment Date:1/25/2008
Treatment Summary:REPERF'D NBRR A 6460-6468' (8 HOLES; NBRR B 6546-6558' (36 HOLES). REFRAC'D NBRR USING 500 GAL 15% HCL; 1536 BBL SLICKWATER PAD; 212 BBLS VISTAR 18# PAD; 2424 BBLS VISTAR 18# FLUID SYSTEM; 245,480# 30/50 WHT SND & 8100# SB EXCEL 20/40 RESIN COATED PROPP.
Tubing Size:Tubing Setting Depth:
Tubing Packer Depth:Tubing Multiple Packer:
Open Hole Top:Open Hole Bottom:
Initial Test Data:
Test Date:N/ATest Method:
Hours Tested:Gas Type:SHALE
Gas Disposal:
Test TypeMeasure
BBLS_H2O 28
BBLS_OIL 83
CALC_GOR 2506
CASING_PRESS 750
MCF_GAS 208
Perforation Data:
Interval Top:6451 ft.# Of Holes:50
Interval Bottom:6558 ft.Hole Size:0.38 in.
Primary Well Designation:
None      i
            All DesignationsDate
Reported PluggedY03/04/2025
Out Of Service RepurposedN
Out Of ServiceYPlugging Due Date
12/31/2029
Inactive ExceptionN
Noticed InactiveN
Defined InactiveN
Low ProducingN

BOE/MCFE/GOR Calculations
Production for Previous 12 Months
January 2025 - December 2025i
Total Oil Produced (Barrels)0
Total Gas Produced (MCF)0
GOR
GOR DeterminationMCFE
Average BOE per Day0.000
Average MCFE per Day0.000

 Federal Financial Assurance  i

 Tribal Well  i No
