COGIS - WELL SCOUT CARD

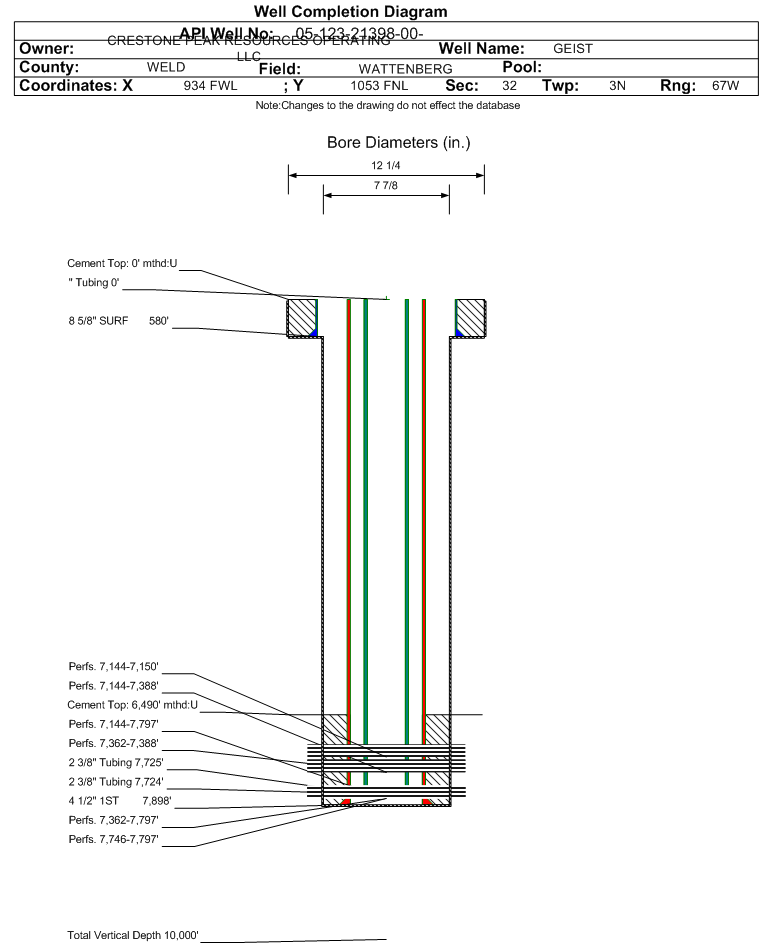

Click image to view related facilities. Related  Click image to view inspection information. InspClick image to view MIT information. MITClick image to access interactive map at well/facility location. GISClick image to view imaged documents for this well/facility. DocClick image to view imaged documents for this well/facility. COAClick image to view wellbore completion diagram. WellboreClick image to search for orders within this facility's section. OrdersClick image to view bradenhead scoutcard data. Bradenhead
 Surface Location
 API# 05-123-21398		Well Classification: GW Status: PA - 11/13/2018
Well Name/No:GEIST #11-32
(Click Well Name for Production Data)		Click Here for Transporter Gatherer Info
Operator:CRESTONE PEAK RESOURCES OPERATING LLC - 10633
(Click Operator Name for Company Detail Report)		Federal Or State Lease #:
Facility Status:PAStatus Date11/13/2018
FacilityID:266813LocationID:331851
County:WELD #123Location:NWNW 32 3N67W 6
Field:WATTENBERG - #90750Elevation:4802 ft.
Planned Location:1053FNL  934 FWLLat/Long: 40.186846 / -104.920184Lat/Long Source: Calculated From Footages
As Drilled Location:Footages Not AvailableLat/Long: 40.186812 / -104.919809Lat/Long Source: Field Measured
 Wellbore And Formation Details -- select either a wellbore Or formation to expand.


Wellbore #00             Wellbore Classification: GW             Status: PA - 11/13/2018             Measured TD: 7897 ft.

 Wellbore Data for Original WellboreWellbore Classification: GW        PA - 11/13/2018
Wellbore PermitDIRECTIONAL
Permit #:20030550 Expiration Date:3/30/2004
Proposed Depth/Form:7900 ft.
Surface Mineral Owner Same:Yes
Mineral Owner:FEESurface Owner:FEE
Unit: Unit Number:
Formation And Spacing:Code: CODL , Formation: CODELL , Order: 407,407-66, Unit Acreage: 320, Drill Unit: W/2
Formation And Spacing:Code: JSND , Formation: J SAND , Order: 232,318A , Unit Acreage: 320, Drill Unit: W/2
Wellbore Completed
Completion Date:9/16/2003
Spud Date:9/4/2003Spud Date Is:ACTUAL
Measured TD:7897 ft.Measured PB depth:7881 ft.
True Vertical TD:True Vertical PB depth:
Top PZ Location:Sec: Twp: Footage: 580 FNL  534 FWL
Bottom Hole Location:Sec: Twp: Footage: 577 FNL  531 FWL
Log Types:CBL, MICRO LOG, ARRAY INDUCTION, COMPENSATED NEU.
Casing:String Type: SURF, Hole Size: 12.25 in., Size: 8.625 in., Top: 0 ft., Depth: 580 ft., Weight: 24 , Citings Type: ACTUAL
Cement:Sacks: 235, Top: 0 ft., Bottom: 580 ft., Determination Method: VISU
Casing:String Type: 1ST, Hole Size: 7.875 in., Size: 4.5 in., Top: 0 ft., Depth: 7898 ft., Weight: 11.6 , Citings Type: ACTUAL
Cement:Sacks: 230, Top: 6490 ft., Bottom: 7898 ft., Determination Method: CBL
FormationInterval TopLog BottomCoredDSTs
SUSSEX4136 ft.NN
NIOBRARA7089 ft.NN
FORT HAYS7341 ft.NN
CARLILE7363 ft.NN
CODELL7363 ft.NN
GREENHORN7420 ft.NN
BENTONITE7420 ft.NN
MOWRY7727 ft.NN
J-2 SAND7745 ft.NN
SKULL CREEK7847 ft.NN

Formation JSND                     Formation Classification:  GW                     Status:  AB - 11/13/2018                Interval Top: 7746 ft.    Interval Bottom: 7797 ft.

 Completed Information for Formation J SAND
1st Production Date:N/AChoke Size:
Formation Name:J SANDCommingled:No
Production Method:FLOWING
Open Hole Completion:No
Formation Treatment
Treatment Date:9/16/2003
Treatment Summary:PERF'D THE J SAND FROM 7746-7752, 7758-7780, 7782-7784, 7786-7792, 7795-7797 W/4 SPF. FRAC'D W;/194,000 GAL SLICK WATER CONTIANING 161,280# 20/40 SAND. FLOW BACK WELL. RIH W/TBG. LAND FOR PROD@7725'. SWAB.
Tubing Size:2.375 in.Tubing Setting Depth:7725 ft.
Tubing Packer Depth:Tubing Multiple Packer:
Open Hole Top:Open Hole Bottom:
Initial Test Data:
Test Date:10/10/2003Test Method:FLOWING
Hours Tested:24Gas Type:
Gas Disposal:
Test TypeMeasure
BBLS_H2O 41
BBLS_OIL 6
CALC_BBLS_H2O 41
CALC_BBLS_OIL 6
CALC_GOR 160
CALC_MCF_GAS 959
CASING_PRESS 770
MCF_GAS 959
TUBING_PRESS 550
Perforation Data:
Interval Top:7746 ft.# Of Holes:152
Interval Bottom:7797 ft.Hole Size:

Formation CODL                     Formation Classification:  GW                     Status:  CM - 10/10/2003                Interval Top: 7362 ft.    Interval Bottom: 7388 ft.

 Completed Information for Formation CODELL
1st Production Date:N/AChoke Size:
Formation Name:CODELLCommingled:Yes
Production Method:
Open Hole Completion:No
Formation Treatment
Treatment Date:9/16/2003
Treatment Summary:FRAC'D THE CODELL 7362-7388 W/131,500 GAL FRAC FLUID AND 300,000# SAND. 3/18/04.
Tubing Size:Tubing Setting Depth:
Tubing Packer Depth:Tubing Multiple Packer:
Open Hole Top:Open Hole Bottom:
Initial Test Data:
Test Date:N/ATest Method:
Hours Tested:Gas Type:
Gas Disposal:
Test TypeMeasure
BBLS_H2O 25
BBLS_OIL 20
CALC_BBLS_H2O 25
CALC_BBLS_OIL 20
CALC_GOR 3750
CALC_MCF_GAS 75
CASING_PRESS 240
MCF_GAS 75
Perforation Data:
Interval Top:7362 ft.# Of Holes:104
Interval Bottom:7388 ft.Hole Size:

Formation J-CDL                   Formation Classification:  GW                   Status:  CM - 4/7/2004                  Interval Top: 7362 ft.    Interval Bottom: 7797 ft.

 Completed Information for Formation J-CODELL
1st Production Date:N/AChoke Size:
Formation Name:J-CODELLCommingled:Yes
Production Method:FLOWING
Open Hole Completion:No
Formation Treatment
Treatment Date:9/16/2003
Treatment Summary:JSND - CODELL COMMINGLE
Tubing Size:2.375 in.Tubing Setting Depth:7724 ft.
Tubing Packer Depth:Tubing Multiple Packer:
Open Hole Top:Open Hole Bottom:
Initial Test Data:
Test Date:4/7/2004Test Method:FLOWING
Hours Tested:Gas Type:
Gas Disposal:SOLD
Test TypeMeasure
BBLS_H2O 13
BBLS_OIL 35
CALC_BBLS_H2O 13
CALC_BBLS_OIL 35
CALC_GOR 5714
CALC_MCF_GAS 200
CASING_PRESS 840
MCF_GAS 200
TUBING_PRESS 520
Perforation Data:
Interval Top:7362 ft.# Of Holes:256
Interval Bottom:7797 ft.Hole Size:

Formation JNBCD                   Formation Classification:  GW                   Status:  CM - 10/12/2018                Interval Top: 7144 ft.    Interval Bottom: 7797 ft.

 Completed Information for Formation J-NIOBRARA-CODELL
1st Production Date:N/AChoke Size:
Formation Name:J-NIOBRARA-CODELLCommingled:
Production Method:
Open Hole Completion:
Formation Treatment
Treatment Date:9/16/2003
Treatment Summary:JSND-NBRR-CDL COMMINGLE RELEASED RBP @7240'. 02/15/09. RELEASED RBP @ 7450' TO COMMINGLE THE JSND-NBRR-CDL. 02/16/09.
Tubing Size:Tubing Setting Depth:
Tubing Packer Depth:Tubing Multiple Packer:
Open Hole Top:Open Hole Bottom:
Initial Test Data:
Test Date:N/ATest Method:
Hours Tested:Gas Type:
Gas Disposal:
Test TypeMeasure
BBLS_H2O 3
BBLS_OIL 3
BTU_GAS 1228
CALC_BBLS_H2O 3
CALC_BBLS_OIL 3
CALC_GOR 20000
CALC_MCF_GAS 60
CASING_PRESS 483
GRAVITY_OIL 60
MCF_GAS 60
TUBING_PRESS 244
Perforation Data:
Interval Top:7144 ft.# Of Holes:288
Interval Bottom:7797 ft.Hole Size:0.42 in.

Formation NB-CD                   Formation Classification:  GW                   Status:  AB - 11/13/2018                Interval Top: 7144 ft.    Interval Bottom: 7388 ft.

 Completed Information for Formation NIOBRARA-CODELL
1st Production Date:2/16/2009Choke Size:
Formation Name:NIOBRARA-CODELLCommingled:
Production Method:
Open Hole Completion:
Formation Treatment
Treatment Date:2/11/2009
Treatment Summary:NBRR-CDL RE-FRAC AND RECOMPLETION. SET RBP @7450'. 02/02/09. RE-FRAC'D THE CODELL W/112,098 GAL 26 TO 24 VISTAR HYBRID CROSS LINKED GEL CONTAINING 251,060# 20/40 SAND. 02/11/09 SET RBP @ 7240'. 02/11/09/ FRAC'D THE NIOBRARA W/138,138 GAL 20# CONTNEXT PAGE
Tubing Size:Tubing Setting Depth:
Tubing Packer Depth:Tubing Multiple Packer:
Open Hole Top:Open Hole Bottom:
No Initial Test Data was found for formation NB-CD.
Perforation Data:
Interval Top:7144 ft.# Of Holes:136
Interval Bottom:7388 ft.Hole Size:0.42 in.

Formation NBRR                     Formation Classification:  GW                     Status:  CM - 10/23/2018                Interval Top: 7144 ft.    Interval Bottom: 7150 ft.

 Completed Information for Formation NIOBRARA
1st Production Date:N/AChoke Size:
Formation Name:NIOBRARACommingled:
Production Method:
Open Hole Completion:
Tubing Size:Tubing Setting Depth:
Tubing Packer Depth:Tubing Multiple Packer:
Open Hole Top:Open Hole Bottom:
No Initial Test Data was found for formation NBRR.
Perforation Data:
Interval Top:7144 ft.# Of Holes:32
Interval Bottom:7150 ft.Hole Size:0.42 in.
Primary Well Designation:
None      i
            All DesignationsDate
Reported PluggedY11/13/2018
Out Of Service RepurposedN
Out Of ServiceN
Inactive ExceptionN
Noticed InactiveN
Defined InactiveN
Low ProducingN

BOE/MCFE/GOR Calculations
Production for Previous 12 Months
May 2024 - April 2025i
Total Oil Produced (Barrels)0
Total Gas Produced (MCF)0
GOR
GOR Determination
Average BOE per Day0.000
Average MCFE per Day0.000

 Federal Financial Assurance  i

 Tribal Well  i No
