COGIS - WELL SCOUT CARD

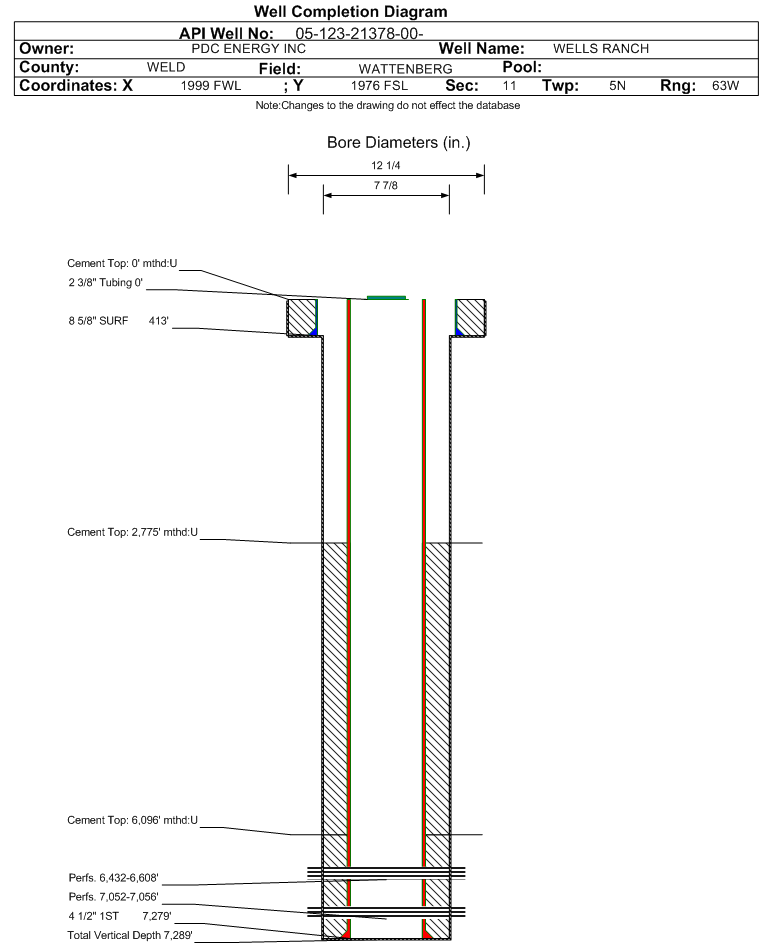

Click image to view related facilities. Related  Click image to view inspection information. InspClick image to view MIT information. MITClick image to access interactive map at well/facility location. GISClick image to view imaged documents for this well/facility. DocClick image to view imaged documents for this well/facility. COAClick image to view wellbore completion diagram. WellboreClick image to search for orders within this facility's section. OrdersClick image to view bradenhead scoutcard data. Bradenhead
 Surface Location
 API# 05-123-21378		Well Classification: OW Status: PA - 12/12/2017
Well Name/No:WELLS RANCH #23-11
(Click Well Name for Production Data)		Click Here for Transporter Gatherer Info
Operator:PDC ENERGY INC - 69175
(Click Operator Name for Company Detail Report)		Federal Or State Lease #:
Facility Status:PAStatus Date12/12/2017
FacilityID:266546LocationID:331839
County:WELD #123Location:NESW 11 5N63W 6
Field:WATTENBERG - #90750Elevation:4660 ft.
Basin:DENVER (DJ) BASIN
Planned Location:1976FSL  1999 FWLLat/Long: 40.412036 / -104.406210Lat/Long Source: Calculated From Footages
As Drilled Location:Footages Not AvailableLat/Long: 40.412500 / -104.406150Lat/Long Source: Field Measured
 Wellbore And Formation Details -- select either a wellbore Or formation to expand.


Wellbore #00             Wellbore Classification: OW             Status: PA - 12/12/2017             Measured TD: 7289 ft.    Vertical TD: 7289 ft.

 Wellbore Data for Original WellboreWellbore Classification: OW        PA - 12/12/2017
Wellbore Permit
Permit #:Expiration Date:12/11/2004
Proposed Depth/Form:7500 ft.
Surface Mineral Owner Same:No
Mineral Owner:FEESurface Owner:FEE
Unit: Unit Number:
Formation And Spacing:Code: JSND , Formation: J SAND , Order: 318 , Unit Acreage: 320, Drill Unit: S/2
Formation And Spacing:Code: NB-CD , Formation: NIOBRARA-CODELL , Order: 318 , Unit Acreage: 80, Drill Unit: W2SW4
Casing:String Type: SURF, Hole Size: 12.25 in., Size: 8.625 in., Top: , Depth: 413 ft., Weight: 24 , Citings Type: PLANNED
Cement:Sacks: 290, Top: 0 ft., Bottom: 413 ft.
Casing:String Type: 1ST, Hole Size: 7.875 in., Size: 4.5 in., Top: , Depth: 7289 ft., Weight: 10.5 , Citings Type: PLANNED
Cement:Sacks: 200, Top: 6096 ft., Bottom: 7279 ft.
Wellbore Completed
Completion Date:5/5/2003
Spud Date:3/12/2003Spud Date Is:ACTUAL
Measured TD:7289 ft.Measured PB depth:7279 ft.
True Vertical TD:7289 ft.True Vertical PB depth:7279 ft.
Log Types:GR, IND, DENSITY, NEUTRON, CBL
Casing:String Type: SURF, Hole Size: 12.25 in., Size: 8.625 in., Top: 0 ft., Depth: 413 ft., Weight: 24 , Citings Type: ACTUAL
Cement:Sacks: 290, Top: 0 ft., Bottom: 413 ft., Determination Method: VISU
Casing:String Type: 1ST, Hole Size: 7.875 in., Size: 4.5 in., Top: 0 ft., Depth: 7279 ft., Weight: 10.5 , Citings Type: ACTUAL
Cement:Sacks: 200, Top: 6096 ft., Bottom: 7279 ft., Determination Method: CBL
Casing:String Type: S.C. 1.1, Hole Size: , Size: , Top: , Depth: 7279 ft., Weight: , Citings Type: ACTUAL
Cement:Sacks: 230, Top: 2775 ft., Bottom: 6096 ft., Determination Method: CBL
FormationInterval TopLog BottomCoredDSTs
GREELEY SAND2065 ft.NN
PARKMAN3455 ft.NN
SUSSEX4008 ft.NN
SHANNON4304 ft.NN
NIOBRARA6335 ft.NN
FORT HAYS6552 ft.NN
CODELL6600 ft.NN
CARLILE6626 ft.NN
GREENHORN6643 ft.NN
J SAND7050 ft.NN

Formation JSND                     Formation Classification:  GW                     Status:  AB - 8/14/2003                 Interval Top: 7052 ft.    Interval Bottom: 7056 ft.

 Completed Information for Formation J SAND
1st Production Date:N/AChoke Size:
Formation Name:J SANDCommingled:No
Production Method:
Open Hole Completion:No
Formation Treatment
Treatment Date:5/5/2003
Treatment Summary:5/5/03 BJ SERVICES FRACED WITH 1699 BBL OF VISTAR 20# CROSS LINKED GEL USING 149,000# OF 20/40 SAND
Tubing Size:Tubing Setting Depth:
Tubing Packer Depth:Tubing Multiple Packer:
Open Hole Top:Open Hole Bottom:
Initial Test Data:
Test Date:7/3/2003Test Method:FLOWING
Hours Tested:24Gas Type:DRY
Gas Disposal:SOLD
Test TypeMeasure
BBLS_H2O 68
BBLS_OIL 0
BTU_GAS 1051
CASING_PRESS 1525
MCF_GAS 73
TUBING_PRESS 800
Perforation Data:
Interval Top:7052 ft.# Of Holes:24
Interval Bottom:7056 ft.Hole Size:

Formation NB-CD                   Formation Classification:  GW                   Status:  AB - 12/12/2017                Interval Top: 6432 ft.    Interval Bottom: 6608 ft.

 Completed Information for Formation NIOBRARA-CODELL
1st Production Date:N/AChoke Size:0.219 in.
Formation Name:NIOBRARA-CODELLCommingled:No
Production Method:PRODUCING
Open Hole Completion:No
Formation Treatment
Treatment Date:5/5/2003
Treatment Summary:8/15/03 BJ SERVICES FRACED WITH 3649 BBL OF VISTAR 20# GEL USING 336,440# OF 20/40 MESH SAND AND 16,000 OF 20/40 MESH SUPER LC RESIN SAND.
Tubing Size:2.375 in.Tubing Setting Depth:
Tubing Packer Depth:Tubing Multiple Packer:
Open Hole Top:Open Hole Bottom:
Initial Test Data:
Test Date:8/22/2003Test Method:FLOWING
Hours Tested:24Gas Type:SHALE
Gas Disposal:SOLD
Test TypeMeasure
BBLS_H2O 2
BBLS_OIL 24
BTU_GAS 1347
CALC_BBLS_H2O 2
CALC_BBLS_OIL 24
CALC_GOR 1417
CALC_MCF_GAS 24
CASING_PRESS 550
GRAVITY_OIL 48
MCF_GAS 34
Perforation Data:
Interval Top:6432 ft.# Of Holes:10
Interval Bottom:6608 ft.Hole Size:
Primary Well Designation:
None      i
            All DesignationsDate
Reported PluggedY12/12/2017
Out Of Service RepurposedN
Out Of ServiceN
Inactive ExceptionN
Noticed InactiveN
Defined InactiveN
Low ProducingN

BOE/MCFE/GOR Calculations
Production for Previous 12 Months
November 2024 - October 2025i
Total Oil Produced (Barrels)0
Total Gas Produced (MCF)0
GOR
GOR Determination
Average BOE per Day0.000
Average MCFE per Day0.000

 Federal Financial Assurance  i

 Tribal Well  i No
