Wellbore #00 Wellbore Classification: OW Status: SI - 1/1/2025 Measured TD: 7239 ft. Vertical TD: 7239 ft.| Wellbore Data for Original Wellbore | Wellbore Classification: OW SI - 1/1/2025 | | Wellbore Permit | | | Permit #: | 20030501 | Expiration Date: | 4/2/2004 | | Proposed Depth/Form: | 7450 ft. | | Surface Mineral Owner Same: | No | | Mineral Owner: | STATE | Surface Owner: | FEE | | Unit: | | Unit Number: | | | Formation And Spacing: | Code: CODL , Formation: CODELL , Order: 318A , Unit Acreage: 80, Drill Unit: W/2 | | Formation And Spacing: | Code: NB-CD , Formation: NIOBRARA-CODELL , Order: 318A , Unit Acreage: 80, Drill Unit: W/2 | | Formation And Spacing: | Code: NBRR , Formation: NIOBRARA , Order: 318A , Unit Acreage: 80, Drill Unit: W/2 |
| | |

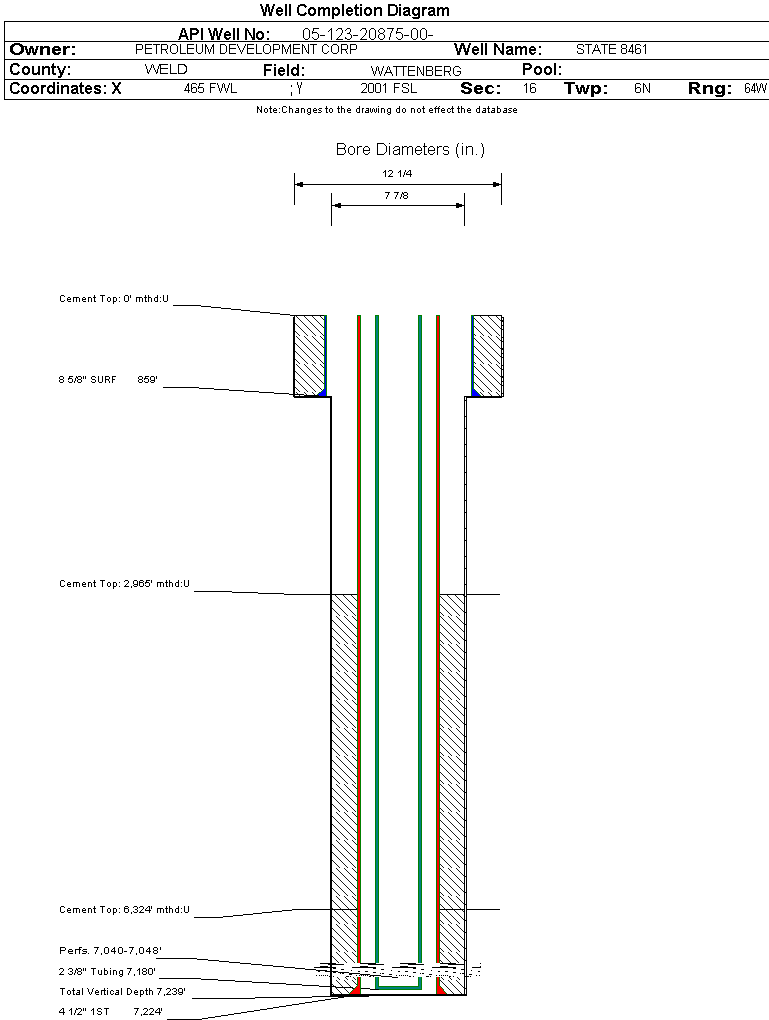

| Wellbore Completed | | Completion Date: | 1/20/2004 | | Spud Date: | 1/3/2004 | Spud Date Is: | ACTUAL | | Measured TD: | 7239 ft. | Measured PB depth: | 7224 ft. | | True Vertical TD: | 7239 ft. | True Vertical PB depth: | 7224 ft. | | Top PZ Location: | Sec: Twp: | Footage: FL FL | | Bottom Hole Location: | Sec: Twp: | Footage: FL FL | | Log Types: | GR, IND, DENSITY, NEUTRON, CBL | | Casing: | String Type: SURF, Hole Size: 12.25 in., Size: 8.625 in., Top: 0 ft., Depth: 859 ft., Weight: 24 , Citings Type: ACTUAL | | Cement: | Sacks: 605, Top: 0 ft., Bottom: 859 ft., Determination Method: CALC | | Casing: | String Type: 1ST, Hole Size: 7.875 in., Size: 4.5 in., Top: 0 ft., Depth: 7224 ft., Weight: 10.5 , Citings Type: ACTUAL | | Cement: | Sacks: 150, Top: 6324 ft., Bottom: 7224 ft., Determination Method: CBL | | Casing: | String Type: S.C. 1.1, Hole Size: , Size: , Top: , Depth: 7224 ft., Weight: , Citings Type: ACTUAL | | Cement: | Sacks: 250, Top: 2965 ft., Bottom: 6324 ft., Determination Method: CBL | | Formation | Interval Top | Log Bottom | Cored | DSTs | | GREELEY SAND | 2845 ft. | | N | N | | PARKMAN | 3742 ft. | | N | N | | SUSSEX | 4235 ft. | | N | N | | SHANNON | 4500 ft. | | N | N | | NIOBRARA | 6785 ft. | | N | N | | FORT HAYS | 7000 ft. | | N | N | | CODELL | 7035 ft. | | N | N | | CARLILE | 7068 ft. | | N | N | | GREENHORN | 7102 ft. | | N | N |
Formation CODL Formation Classification: OW Status: SI - 11/1/2024 Interval Top: 7040 ft. Interval Bottom: 7048 ft.| Completed Information for Formation CODELL | | 1st Production Date: | 2/24/2004 | Choke Size: | | | Formation Name: | CODELL | Commingled: | No | | Production Method: | | | Open Hole Completion: | No |
| | Formation Treatment | | Treatment Date: | 1/20/2004 | | Treatment Summary: | 01/20/04 BJ SERVICES FRACED WITH 2713 BBL OD 20# VISTAR GEL, 217,500# OF 20/40 MESH SAND AND 8,000# OF 20/40 MESH SUPER LC RESIN SAND. |
| | Tubing Size: | | Tubing Setting Depth: | | | Tubing Packer Depth: | | Tubing Multiple Packer: | | | Open Hole Top: | | Open Hole Bottom: | | | Initial Test Data: | | Test Date: | N/A | Test Method: | | | Hours Tested: | | Gas Type: | | | Gas Disposal: | | |
| Test Type | Measure |
|---|
| BBLS_H2O | 11 | | BBLS_OIL | 50 | | BTU_GAS | 1385 | | CALC_GOR | 400 | | CASING_PRESS | 190 | | GRAVITY_OIL | 45 | | MCF_GAS | 20 |
| | Perforation Data: | | Interval Top: | 7040 ft. | # Of Holes: | 24 | | Interval Bottom: | 7048 ft. | Hole Size: | 0.34 in. |
|
|
|
|
|
|
|
| Reported Plugged | N | |
| Out Of Service Repurposed | N | |
| Out Of Service | N | |
| Inactive Exception | N | |
| Noticed Inactive | Y | Noticed Date
03/31/2026 |
| Defined Inactive (SI) | Y | Last Production
10/31/2024 |
| Low Producing | Y | Production Period
01/2025 - 12/2025 |
| Total Oil Produced (Barrels) | 0 |
| Total Gas Produced (MCF) | 0 |
| GOR | |
| GOR Determination | |
| Average BOE per Day | 0.000 |
| Average MCFE per Day | 0.000 |
| Federal Financial Assurance | i | |
|
|
