COGIS - WELL SCOUT CARD

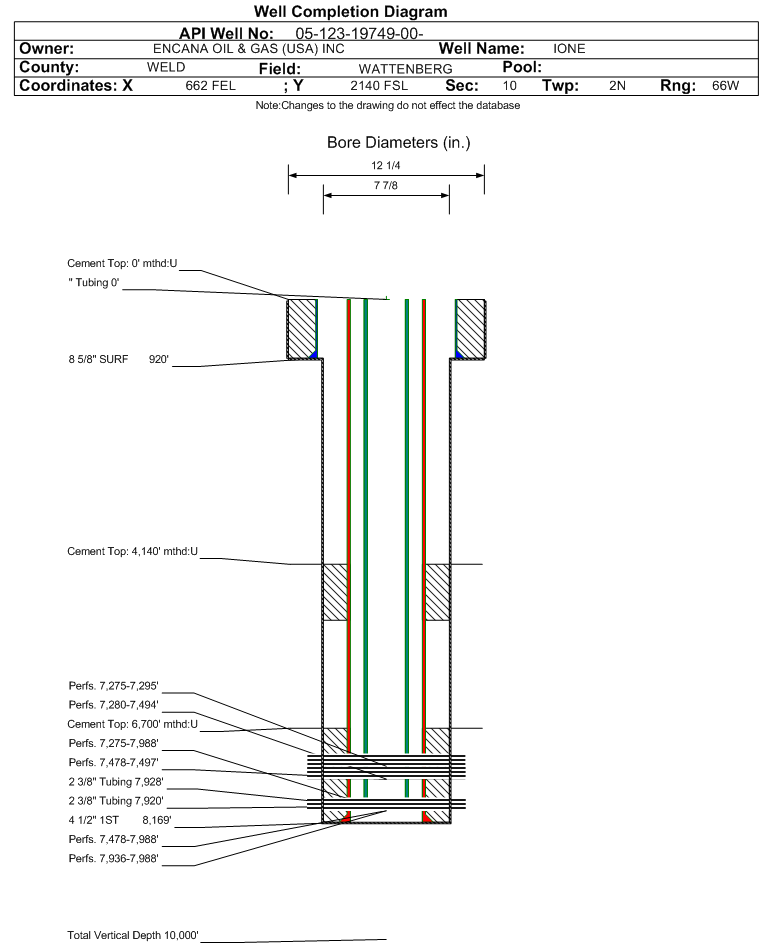

Click image to view related facilities. Related  Click image to view inspection information. InspClick image to view MIT information. MITClick image to access interactive map at well/facility location. GISClick image to view imaged documents for this well/facility. DocClick image to view imaged documents for this well/facility. COAClick image to view wellbore completion diagram. WellboreClick image to search for orders within this facility's section. OrdersClick image to view bradenhead scoutcard data. Bradenhead
 Surface Location
 API# 05-123-19749
Well Classification: GW Status: SI - 7/1/2022
Well Name/No:IONE #43-10
(Click Well Name for Production Data)
Click Here for Transporter Gatherer Info
Operator:CRESTONE PEAK RESOURCES OPERATING LLC - 10633
(Click Operator Name for Company Detail Report)
Federal Or State Lease #:
Facility Status:SIStatus Date7/1/2022
FacilityID:89444LocationID:330844
County:WELD #123Location:NESE 10 2N66W 6
Field:WATTENBERG - #90750Elevation:5030 ft.
Planned Location:2140FSL  662 FELLat/Long: 40.151197 / -104.756279Lat/Long Source: Calculated From Footages
As Drilled Location:Footages Not AvailableLat/Long: 40.151343 / -104.756155Lat/Long Source: Field Measured

FracFocus
Disclosure: Sidetrack #00
Start Date: 2/8/2012
End Date: 2/8/2012
Reported: 6/28/2012
Prior to rule 205A.b.(2)(A)
Days to report: 141
 Wellbore And Formation Details -- select either a wellbore Or formation to expand.


Wellbore #00             Wellbore Classification: GW             Status: SI - 7/1/2022             Measured TD: 8171 ft.

 Wellbore Data for Original WellboreWellbore Classification: GW        SI - 7/1/2022
Wellbore Permit
Permit #:Expiration Date:1/23/2002
Proposed Depth/Form:8171 ft.
Surface Mineral Owner Same:No
Mineral Owner:FEESurface Owner:FEE
Unit: Unit Number:
Formation And Spacing:Code: CODL , Formation: CODELL , Order: 407,407-66, Unit Acreage: 320, Drill Unit: E2
Formation And Spacing:Code: DKTA , Formation: DAKOTA , Order: 232 , Unit Acreage: 320, Drill Unit: E2
Formation And Spacing:Code: JSND , Formation: J SAND , Order: 232 , Unit Acreage: 320, Drill Unit: E2
Casing:String Type: STAGE TOOL, Hole Size: , Size: , Top: , Depth: 4900 ft., Weight: , Citings Type: PLANNED
Cement:Sacks: 250, Top: 4200 ft., Bottom: 4900 ft.

Wellbore Completed
Completion Date:8/22/2000
Spud Date:7/19/2000Spud Date Is:ACTUAL
Measured TD:8171 ft.Measured PB depth:8156 ft.
True Vertical TD:True Vertical PB depth:
Log Types:COMP DENS, COMP NEU GR, DUAL IND GL GR, CBL GR.
Casing:String Type: SURF, Hole Size: 12.25 in., Size: 8.625 in., Top: 0 ft., Depth: 920 ft., Weight: 24 , Citings Type: ACTUAL
Cement:Sacks: 600, Top: 0 ft., Bottom: 920 ft., Determination Method: VISU
Casing:String Type: 1ST, Hole Size: 7.875 in., Size: 4.5 in., Top: 0 ft., Depth: 8169 ft., Weight: 11.6 , Citings Type: ACTUAL
Cement:Sacks: 250, Top: 6700 ft., Bottom: 8169 ft., Determination Method: CBL
Casing:String Type: S.C. 1.1, Hole Size: , Size: , Top: , Depth: 5013 ft., Weight: , Citings Type: ACTUAL
Cement:Sacks: 230, Top: 4140 ft., Bottom: 5013 ft., Determination Method: CBL
FormationInterval TopLog BottomCoredDSTs
SUSSEX4482 ft.NN
SHANNON5138 ft.NN
NIOBRARA7237 ft.NN
CODELL7476 ft.NN
CARLILE7494 ft.NN
GREENHORN7538 ft.NN
BENTONITE7753 ft.NN
GRANEROS7754 ft.NN
MOWRY7908 ft.NN
J-2 SAND7934 ft.NN
SKULL CREEK8037 ft.NN
DAKOTA8123 ft.NN

Formation JSND                     Formation Classification:  GW                     Status:  SI - 7/1/2022                  Interval Top: 7936 ft.    Interval Bottom: 7988 ft.

 Completed Information for Formation J SAND
1st Production Date:N/AChoke Size:
Formation Name:J SANDCommingled:No
Production Method:
Open Hole Completion:No
Formation Treatment
Treatment Date:8/22/2000
Treatment Summary:
Tubing Size:Tubing Setting Depth:
Tubing Packer Depth:Tubing Multiple Packer:
Open Hole Top:Open Hole Bottom:
Initial Test Data:
Test Date:N/ATest Method:
Hours Tested:Gas Type:
Gas Disposal:
Test TypeMeasure
BBLS_H2O 33
BBLS_OIL 2
CALC_BBLS_H2O 33
CALC_BBLS_OIL 2
CALC_GOR 159500
CALC_MCF_GAS 319
CASING_PRESS 430
MCF_GAS 319
TUBING_PRESS 230
Perforation Data:
Interval Top:7936 ft.# Of Holes:88
Interval Bottom:7988 ft.Hole Size:

Formation CODL                     Formation Classification:  OG                     Status:  CM - 5/30/2012                 Interval Top: 7478 ft.    Interval Bottom: 7497 ft.

 Completed Information for Formation CODELL
1st Production Date:10/22/2001Choke Size:
Formation Name:CODELLCommingled:Yes
Production Method:
Open Hole Completion:No
Formation Treatment
Treatment Date:2/8/2012
Treatment Summary:Set CIBP @ 7530 on 2/8/12; drilled out 3/29/12. Frac 7478-7494 w/ 115,778 gal frac fluid and 221,652 # sand. (2/8/12)
Formation Treatment
Treatment Date:8/22/2000
Treatment Summary:
Tubing Size:Tubing Setting Depth:
Tubing Packer Depth:Tubing Multiple Packer:
Open Hole Top:Open Hole Bottom:
Initial Test Data:
Test Date:N/ATest Method:
Hours Tested:Gas Type:
Gas Disposal:
Test TypeMeasure
BBLS_H2O 3
BBLS_OIL 20
CALC_BBLS_H2O 3
CALC_BBLS_OIL 20
CALC_GOR 1800
CALC_MCF_GAS 34
MCF_GAS 36
Perforation Data:
Interval Top:7478 ft.# Of Holes:64
Interval Bottom:7497 ft.Hole Size:

Formation J-CDL                   Formation Classification:  GW                   Status:  CM - 3/25/2002                 Interval Top: 7478 ft.    Interval Bottom: 7988 ft.

 Completed Information for Formation J-CODELL
1st Production Date:N/AChoke Size:0.250 in.
Formation Name:J-CODELLCommingled:No
Production Method:FLOWING
Open Hole Completion:No
Formation Treatment
Treatment Date:8/22/2000
Treatment Summary:DRILL OUT CIBP. TIH W/PROD TBG. FLOW WELL BACK
Tubing Size:2.375 in.Tubing Setting Depth:7928 ft.
Tubing Packer Depth:Tubing Multiple Packer:
Open Hole Top:Open Hole Bottom:
Initial Test Data:
Test Date:3/25/2002Test Method:FLOWING
Hours Tested:24Gas Type:
Gas Disposal:SOLD
Test TypeMeasure
BBLS_H2O 2
BBLS_OIL 14
CALC_BBLS_H2O 2
CALC_BBLS_OIL 14
CALC_GOR 9681
CALC_MCF_GAS 131
CASING_PRESS 1050
MCF_GAS 131
TUBING_PRESS 600
Perforation Data:
Interval Top:7478 ft.# Of Holes:120
Interval Bottom:7988 ft.Hole Size:

Formation NB-CD                   Formation Classification:  GW                   Status:  SI - 7/1/2022                  Interval Top: 7280 ft.    Interval Bottom: 7494 ft.

 Completed Information for Formation NIOBRARA-CODELL
1st Production Date:4/2/2009Choke Size:
Formation Name:NIOBRARA-CODELLCommingled:Yes
Production Method:
Open Hole Completion:No
Formation Treatment
Treatment Date:3/20/2009
Treatment Summary:NB-CD REFRAC & RECOMPLETE: SET CBP @7560'. 3/18/09. REFRAC'D CODL W/109,200 GAL 28# TO 22# VISTAR HYBRID CROSS LINKED GEL CONTAINING 250,020# 20/40 SAND. 3/19/09. SET CFP @ 7400' 3/19/09. (SEE OPER'S COMMENTS-NEXT PAGE-FOR REMAINDER
Tubing Size:Tubing Setting Depth:
Tubing Packer Depth:Tubing Multiple Packer:
Open Hole Top:Open Hole Bottom:
No Initial Test Data was found for formation NB-CD.
Perforation Data:
Interval Top:7280 ft.# Of Holes:100
Interval Bottom:7494 ft.Hole Size:0.42 in.

Formation JNBCD                   Formation Classification:  OG                   Status:  CM - 5/30/2012                 Interval Top: 7275 ft.    Interval Bottom: 7988 ft.

 Completed Information for Formation J-NIOBRARA-CODELL
1st Production Date:7/23/2000Choke Size:
Formation Name:J-NIOBRARA-CODELLCommingled:No
Production Method:
Open Hole Completion:No
Formation Treatment
Treatment Date:8/22/2000
Treatment Summary:NBRR-CDL COMMINGLE. DRILLED OUT CFP @ 7400' AND CBP @ 7650' TO COMMINGLE THE JSND-NBRR-CODL. 4/2/09.
Tubing Size:2.375 in.Tubing Setting Depth:7920 ft.
Tubing Packer Depth:Tubing Multiple Packer:
Open Hole Top:Open Hole Bottom:
Initial Test Data:
Test Date:4/8/2012Test Method:Flow
Hours Tested:6Gas Type:DRY
Gas Disposal:SOLD
Test TypeMeasure
BBLS_H2O 1
BBLS_OIL 17
BTU_GAS 1
CALC_BBLS_H2O 4
CALC_BBLS_OIL 68
CALC_GOR 9470
CALC_MCF_GAS 644
CASING_PRESS 785
GRAVITY_OIL 59
MCF_GAS 161
TUBING_PRESS 603
Perforation Data:
Interval Top:7275 ft.# Of Holes:248
Interval Bottom:7988 ft.Hole Size:0.38 in.

Formation NBRR                     Formation Classification:  OG                     Status:  CM - 10/23/2012                Interval Top: 7275 ft.    Interval Bottom: 7295 ft.

 Completed Information for Formation NIOBRARA
1st Production Date:4/2/2009Choke Size:
Formation Name:NIOBRARACommingled:Yes
Production Method:
Open Hole Completion:No
Formation Treatment
Treatment Date:4/29/2012
Treatment Summary:Re-perf Niobrara 7275-7280, 7290-7295, 4 spf, 40 shots. Frac w/130,229 gal frac fluid and 244,950 # sand. (2/29/12)
Tubing Size:Tubing Setting Depth:
Tubing Packer Depth:Tubing Multiple Packer:
Open Hole Top:Open Hole Bottom:
No Initial Test Data was found for formation NBRR.
Perforation Data:
Interval Top:7275 ft.# Of Holes:80
Interval Bottom:7295 ft.Hole Size:
Primary Well Designation:
Out Of Service      i
            All DesignationsDate
Reported PluggedN
Out Of Service RepurposedN
Out Of ServiceYPlugging Due Date
12/31/2030
Inactive ExceptionN
Noticed InactiveN
Defined Inactive (SI )YDefined Inactive
06/30/2022
Low ProducingYProduction Period
05/2024 - 04/2025

BOE/MCFE/GOR Calculations
Production for Previous 12 Months
May 2024 - April 2025i
Total Oil Produced (Barrels)0
Total Gas Produced (MCF)0
GOR
GOR DeterminationMCFE
Average BOE per Day0.000
Average MCFE per Day0.000

 Federal Financial Assurance  i

 Tribal Well  i No
