COGIS - WELL SCOUT CARD

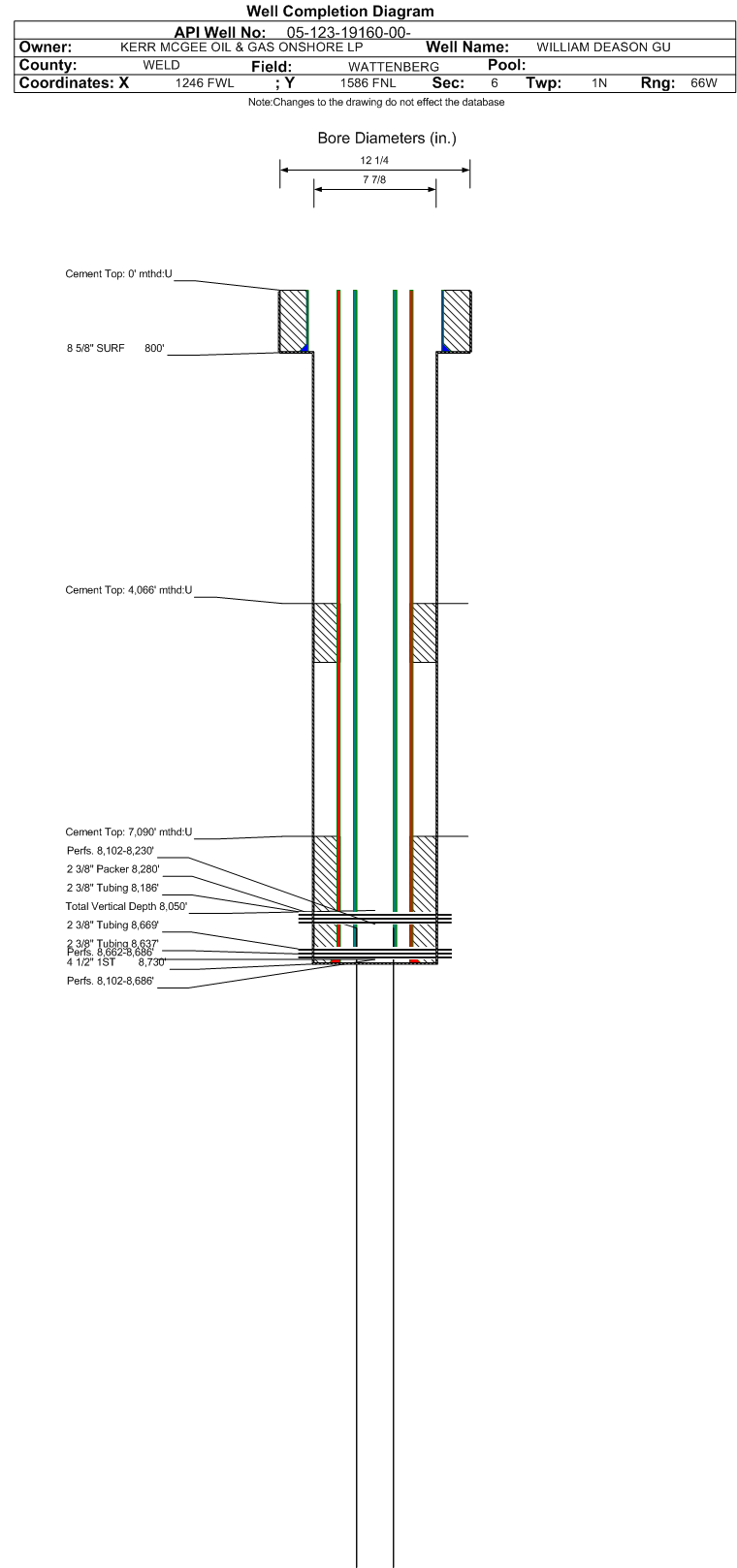

Click image to view related facilities. Related  Click image to view inspection information. InspClick image to view MIT information. MITGIS Map GISClick image to view imaged documents for this well/facility. DocClick image to view imaged documents for this well/facility. COAClick image to view wellbore completion diagram. WellboreClick image to search for orders within this facility's section. OrdersClick image to view bradenhead scoutcard data. Bradenhead
 Surface Location
 API# 05-123-19160		Well Classification: GW Status: PA - 6/20/2017
Well Name/No:WILLIAM DEASON GU #2
(Click Well Name for Production Data)		Click Here for Transporter Gatherer Info
Operator:KERR MCGEE OIL & GAS ONSHORE LP - 47120
(Click Operator Name for Company Detail Report)		Federal Or State Lease #:
Facility Status:PAStatus Date6/20/2017
FacilityID:251357LocationID:332903
County:WELD #123Location:SWNW 6 1N66W 6
Field:WATTENBERG - #90750Elevation:4888 ft.
Basin:DENVER (DJ) BASIN
Planned Location:1586FNL  1246 FWLLat/Long: 40.083000 / -104.825531Lat/Long Source: Field Measured
As Drilled Location:Footages Not AvailableLat/Long: 40.083000 / -104.825531Lat/Long Source: Field Measured
 Wellbore And Formation Details -- select either a wellbore Or formation to expand.


Wellbore #00             Wellbore Classification: GW             Status: PA - 6/20/2017             Measured TD: 8745 ft.    Vertical TD: 8050 ft.

 Wellbore Data for Original WellboreWellbore Classification: GW        PA - 6/20/2017
Wellbore PermitDIRECTIONAL
Permit #:Expiration Date:9/22/2010
Proposed Top PZ Location:Sec: Twp: Footage: 1486 FNL  2231 FEL
Bottom Hole Location:Sec:6 Twp: 1N 66W Footage: 1459 FNL  1686 FEL
Proposed Depth/Form:8745 ft.
Surface Mineral Owner Same:No
Mineral Owner:FEESurface Owner:FEE
Unit: Unit Number:
Formation And Spacing:Code: CODL , Formation: CODELL , Order: 318A , Unit Acreage: 160, Drill Unit: NW4
Formation And Spacing:Code: JSND , Formation: J SAND , Order: 0 , Unit Acreage: 320, Drill Unit: E2
Formation And Spacing:Code: SUSX , Formation: SUSSEX , Order: 250-11 , Unit Acreage: 160, Drill Unit: E2NW W2NE
Casing:String Type: SURF, Hole Size: 12.25 in., Size: 8.625 in., Top: , Depth: 800 ft., Weight: 24 , Citings Type: PLANNED
Cement:Sacks: 550, Top: 11 ft., Bottom: 800 ft.
Casing:String Type: 1ST, Hole Size: 7.875 in., Size: 4.5 in., Top: , Depth: 8730 ft., Weight: 11.6 , Citings Type: PLANNED
Cement:Sacks: 250, Top: 7104 ft., Bottom: 8730 ft.
Casing:String Type: STAGE TOOL, Hole Size: , Size: , Top: , Depth: 4826 ft., Weight: , Citings Type: PLANNED
Cement:Sacks: 260, Top: 4004 ft., Bottom: 4826 ft.
Wellbore Completed
Completion Date:6/11/1996
Spud Date:5/8/1996Spud Date Is:ACTUAL
Measured TD:8745 ft.Measured PB depth:8715 ft.
True Vertical TD:8050 ft.True Vertical PB depth:
Top PZ Location:Sec:6 Twp: 1N 66WFootage: 1486 FNL  2231 FWL
Log Types:PHASOR INDCT. THERMAL DECAY CBL
Casing:String Type: SURF, Hole Size: 12.25 in., Size: 8.625 in., Top: 0 ft., Depth: 800 ft., Weight: 24 , Citings Type: ACTUAL
Cement:Sacks: 550, Top: 0 ft., Bottom: 800 ft., Determination Method: VISU
Casing:String Type: 1ST, Hole Size: 7.875 in., Size: 4.5 in., Top: 0 ft., Depth: 8730 ft., Weight: 12.6 , Citings Type: ACTUAL
Cement:Sacks: 250, Top: 7090 ft., Bottom: 8730 ft., Determination Method: CBL
Casing:String Type: S.C. 1.1, Hole Size: , Size: , Top: , Depth: , Weight: , Citings Type: ACTUAL
Cement:Sacks: 260, Top: 4066 ft., Bottom: 4830 ft., Determination Method: CBL
FormationInterval TopLog BottomCoredDSTs
PIERRE780 ft.NN
NIOBRARA7954 ft.NN
CODELL8222 ft.NN
J SAND8662 ft.NN

Formation JSND                     Formation Classification:  GW                     Status:  AB - 6/20/2017                 Interval Top: 8662 ft.    Interval Bottom: 8686 ft.

 Completed Information for Formation J SAND
1st Production Date:6/15/1996Choke Size:
Formation Name:J SANDCommingled:Yes
Production Method:FLOWING
Open Hole Completion:No
Formation Treatment
Treatment Date:6/11/1996
Treatment Summary:1428 BBLS OF PAD-X-LINK GELLED BRINE WATER AND 3519 BBLS OF X-LINK WITH 550,000 LBS OF 20-40 SAND. FLUSHED WITH 134 BBLS OF 3% KCL. MAX PSI: 3,300, MAX RATE: 30.0 BPM.
Tubing Size:2.375 in.Tubing Setting Depth:8669 ft.
Tubing Packer Depth:Tubing Multiple Packer:
Open Hole Top:Open Hole Bottom:
Initial Test Data:
Test Date:6/15/1996Test Method:FLOWING
Hours Tested:12Gas Type:
Gas Disposal:
Test TypeMeasure
BBLS_H2O 186
CALC_BBLS_H2O 372
CALC_MCF_GAS 1562
CASING_PRESS 1500
MCF_GAS 781
TUBING_PRESS 1100
Perforation Data:
Interval Top:8662 ft.# Of Holes:96
Interval Bottom:8686 ft.Hole Size:0.38 in.

Formation JNBCD                   Formation Classification:  GW                   Status:  CM - 6/30/2000                 Interval Top: 8102 ft.    Interval Bottom: 8686 ft.

 Completed Information for Formation J-NIOBRARA-CODELL
1st Production Date:5/10/2000Choke Size:
Formation Name:J-NIOBRARA-CODELLCommingled:Yes
Production Method:PLUNGER LIFT
Open Hole Completion:No
Formation Treatment
Treatment Date:6/11/1996
Treatment Summary:REMOVED CIBP AND CM JNBCD.
Tubing Size:2.375 in.Tubing Setting Depth:8637 ft.
Tubing Packer Depth:Tubing Multiple Packer:
Open Hole Top:Open Hole Bottom:
Initial Test Data:
Test Date:6/30/2000Test Method:PLUNGER
Hours Tested:24Gas Type:
Gas Disposal:SOLD
Test TypeMeasure
BBLS_OIL 7
CALC_BBLS_OIL 7
CALC_GOR 37714
CALC_MCF_GAS 264
CASING_PRESS 375
GRAVITY_OIL 60
MCF_GAS 264
TUBING_PRESS 300
Perforation Data:
Interval Top:8102 ft.# Of Holes:
Interval Bottom:8686 ft.Hole Size:

Formation NB-CD                   Formation Classification:  GW                   Status:  AB - 6/20/2017                 Interval Top: 8102 ft.    Interval Bottom: 8230 ft.

 Completed Information for Formation NIOBRARA-CODELL
1st Production Date:9/28/1999Choke Size:
Formation Name:NIOBRARA-CODELLCommingled:Yes
Production Method:PLUNGER LIST
Open Hole Completion:No
Formation Treatment
Treatment Date:6/11/1996
Treatment Summary:FRAC'D NB-CD W/5500# 100 MESH; 262320# 20/40 MESH; 93198 GAL.
Tubing Size:2.375 in.Tubing Setting Depth:8186 ft.
Tubing Packer Depth:8300 ft.Tubing Multiple Packer:
Open Hole Top:Open Hole Bottom:
Initial Test Data:
Test Date:10/30/1999Test Method:PLUNGER LIFT
Hours Tested:24Gas Type:SHALE
Gas Disposal:SOLD
Test TypeMeasure
BBLS_H2O 0
BBLS_OIL 10
CALC_BBLS_H2O 0
CALC_BBLS_OIL 10
CALC_GOR 11400
CALC_MCF_GAS 114
CASING_PRESS 350
GRAVITY_OIL 60
MCF_GAS 114
TUBING_PRESS 275
Perforation Data:
Interval Top:8102 ft.# Of Holes:
Interval Bottom:8230 ft.Hole Size:
Primary Well Designation:
None      i
            All DesignationsDate
Reported PluggedY06/20/2017
Out Of Service RepurposedN
Out Of ServiceN
Inactive ExceptionN
Noticed InactiveN
Defined InactiveN
Low ProducingN

BOE/MCFE/GOR Calculations
Production for Previous 12 Months
December 2024 - November 2025i
Total Oil Produced (Barrels)0
Total Gas Produced (MCF)0
GOR
GOR Determination
Average BOE per Day0.000
Average MCFE per Day0.000

 Federal Financial Assurance  i

 Tribal Well  i No
