COGIS - WELL SCOUT CARD

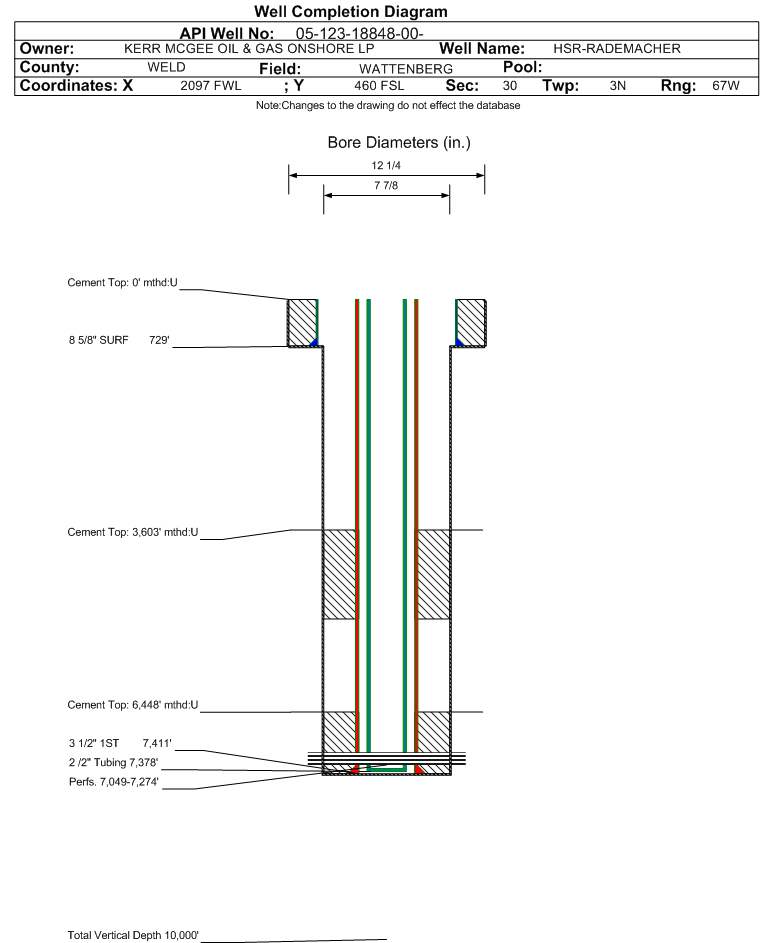

Click image to view related facilities. Related  Click image to view inspection information. InspClick image to view MIT information. MITClick image to access interactive map at well/facility location. GISClick image to view imaged documents for this well/facility. DocClick image to view imaged documents for this well/facility. COAClick image to view wellbore completion diagram. WellboreClick image to search for orders within this facility's section. OrdersClick image to view bradenhead scoutcard data. Bradenhead
 Surface Location
 API# 05-123-18848		Well Classification: GW Status: PA - 12/4/2014
Well Name/No:HSR-RADEMACHER #14-30
(Click Well Name for Production Data)		Click Here for Transporter Gatherer Info
Operator:KERR MCGEE OIL & GAS ONSHORE LP - 47120
(Click Operator Name for Company Detail Report)		Federal Or State Lease #:64621
Facility Status:PAStatus Date12/4/2014
FacilityID:251045LocationID:336118
County:WELD #123Location:SESW 30 3N67W 6
Field:WATTENBERG - #90750Elevation:4848 ft.
Basin:DENVER (DJ) BASIN
Planned Location:460FSL  2097 FWLLat/Long: 40.191126 / -104.934435Lat/Long Source: Calculated From Footages
As Drilled Location:Footages Not AvailableLat/Long: 40.191140 / -104.934270Lat/Long Source: Field Measured
 Wellbore And Formation Details -- select either a wellbore Or formation to expand.


Wellbore #00             Wellbore Classification: GW             Status: PA - 12/4/2014             Measured TD: 7416 ft.    Vertical TD: 0 ft.

 Wellbore Data for Original WellboreWellbore Classification: GW        PA - 12/4/2014
Wellbore Permit
Permit #:950014 Expiration Date:7/4/1995
Proposed Depth/Form:
Surface Mineral Owner Same:Not available
Mineral Owner:FEESurface Owner:Not available
Unit: Unit Number:
Formation And Spacing:Code: NB-CD , Formation: NIOBRARA-CODELL , Order: 0 , Unit Acreage: 80, Drill Unit: E2SW
Wellbore Completed
Completion Date:2/18/1995
Measured TD:7416 ft.Measured PB depth:7371 ft.
True Vertical TD:0 ft.True Vertical PB depth:
Casing:String Type: SURF, Hole Size: 12.25 in., Size: 8.625 in., Top: 0 ft., Depth: 729 ft., Weight: 23 , Citings Type: ACTUAL
Cement:Sacks: 510, Top: 0 ft., Bottom: 729 ft., Determination Method: VISU
Casing:String Type: 1ST, Hole Size: 7.875 in., Size: 3.5 in., Top: 0 ft., Depth: 7411 ft., Weight: 7.7 , Citings Type: ACTUAL
Cement:Sacks: 395, Top: 6448 ft., Bottom: 7411 ft., Determination Method: CBL
Casing:String Type: S.C. 1.1, Hole Size: , Size: , Top: , Depth: 4994 ft., Weight: , Citings Type: ACTUAL
Cement:Sacks: 165, Top: 3603 ft., Bottom: 4994 ft., Determination Method: CBL
FormationInterval TopLog BottomCoredDSTs
FOX HILLS100 ft.
SUSSEX4078 ft.
SHANNON4608 ft.
NIOBRARA6982 ft.
FORT HAYS7220 ft.
CODELL7263 ft.
CARLILE7286 ft.
GREENHORN7314 ft.

Formation NB-CD                   Formation Classification:  GW                   Status:  AB - 12/4/2014                 Interval Top: 7049 ft.    Interval Bottom: 7274 ft.

 Completed Information for Formation NIOBRARA-CODELL
1st Production Date:2/18/1995Choke Size:30.000 in.
Formation Name:NIOBRARA-CODELLCommingled:No
Production Method:PLUNGER
Open Hole Completion:No
Formation Treatment
Treatment Date:2/18/1995
Treatment Summary:FRACED W/125,034 GALLON GELLED FLUID, 154283 LBS 20/40 WALKER-WEDRON-OTTAWA, PERFORATE CODELL FROM 7265 TO 7275
Tubing Size:2.0625 in.Tubing Setting Depth:7378 ft.
Tubing Packer Depth:Tubing Multiple Packer:
Open Hole Top:Open Hole Bottom:
Initial Test Data:
Test Date:2/22/2003Test Method:PLUNGER
Hours Tested:2Gas Type:SHALE
Gas Disposal:
Test TypeMeasure
BBLS_OIL 9
CALC_BBLS_OIL 9
CALC_GOR 4222
CALC_MCF_GAS 38
CASING_PRESS 574
MCF_GAS 38
TUBING_PRESS 425
Perforation Data:
Interval Top:7049 ft.# Of Holes:14
Interval Bottom:7274 ft.Hole Size:
Primary Well Designation:
None      i
            All DesignationsDate
Reported PluggedY12/04/2014
Out Of Service RepurposedN
Out Of ServiceN
Inactive ExceptionN
Noticed InactiveN
Defined InactiveN
Low ProducingN

BOE/MCFE/GOR Calculations
Production for Previous 12 Months
September 2024 - August 2025i
Total Oil Produced (Barrels)0
Total Gas Produced (MCF)0
GOR
GOR Determination
Average BOE per Day0.000
Average MCFE per Day0.000

 Federal Financial Assurance  i

 Tribal Well  i No
