COGIS - WELL SCOUT CARD
Click image to view related facilities. Related  Click image to view inspection information. InspClick image to view MIT information. MITClick image to access interactive map at well/facility location. GISClick image to view imaged documents for this well/facility. DocClick image to view imaged documents for this well/facility. COAClick image to view wellbore completion diagram. WellboreClick image to search for orders within this facility's section. OrdersClick image to view bradenhead scoutcard data. Bradenhead
 Surface Location
 API# 05-123-18672		Well Classification: GW Status: PA - 11/17/2023
Well Name/No:WERNING #2-3
(Click Well Name for Production Data)		Click Here for Transporter Gatherer Info
Operator:PDC ENERGY INC - 69175
(Click Operator Name for Company Detail Report)		Federal Or State Lease #:60181
Facility Status:PAStatus Date11/17/2023
FacilityID:250869LocationID:330230
Municipality/County:EVANS / WELD #123Location:NWNE 3 4N66W 6
Field:WATTENBERG - #90750Elevation:4685 ft.
Basin:DENVER (DJ) BASIN
Planned Location:860FNL  2230 FELLat/Long: 40.346215 / -104.762041Lat/Long Source: Calculated From Footages
As Drilled Location:Footages Not AvailableLat/Long: 40.346310 / -104.761750Lat/Long Source: Field Measured
 Wellbore And Formation Details -- select either a wellbore Or formation to expand.

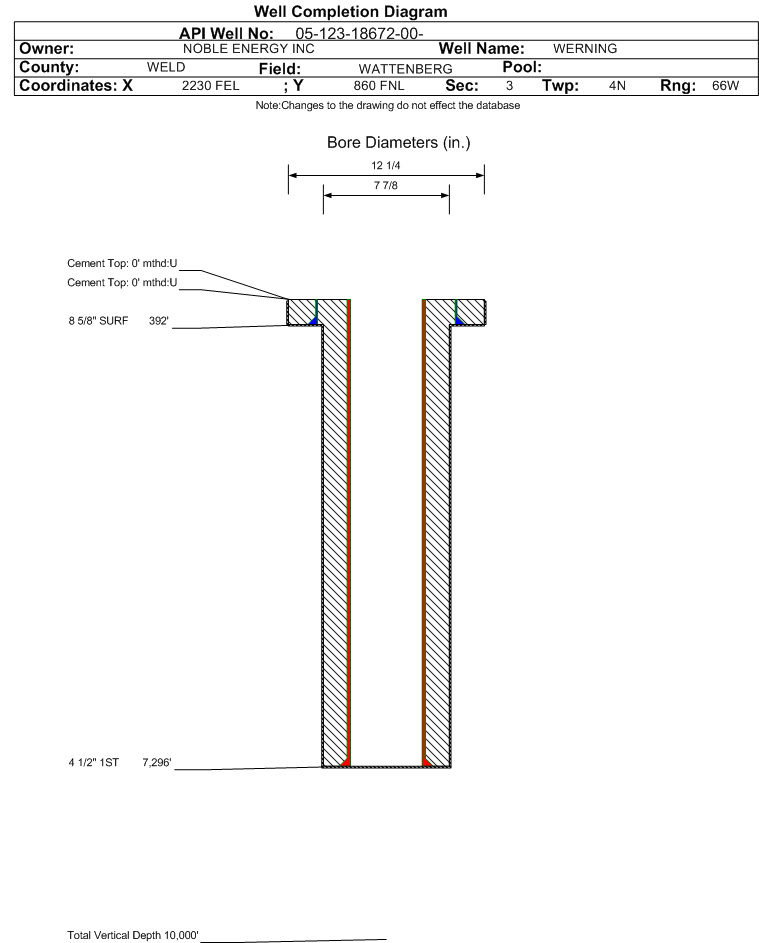

Wellbore #00             Wellbore Classification: GW             Status: PA - 11/17/2023             Measured TD: 7349 ft.    Vertical TD: 0 ft.

 Wellbore Data for Original WellboreWellbore Classification: GW        PA - 11/17/2023
Wellbore Permit
Permit #:941525 Expiration Date:3/4/1995
Proposed Depth/Form:
Surface Mineral Owner Same:Not available
Mineral Owner:FEESurface Owner:Not available
Unit: Unit Number:
Formation And Spacing:Code: NB-CD , Formation: NIOBRARA-CODELL , Order: 0 , Unit Acreage: 80, Drill Unit: W2NE
Wellbore Completed
Completion Date:1/14/1995
Measured TD:7349 ft.Measured PB depth:0 ft.
True Vertical TD:0 ft.True Vertical PB depth:
Casing:String Type: SURF, Hole Size: 12.25 in., Size: 8.625 in., Top: 0 ft., Depth: 392 ft., Weight: 24 , Citings Type: ACTUAL
Cement:Sacks: , Top: 0 ft., Bottom: 392 ft., Determination Method: VISU
Casing:String Type: 1ST, Hole Size: 7.875 in., Size: 4.5 in., Top: 0 ft., Depth: 7296 ft., Weight: 11.6 , Citings Type: ACTUAL
Cement:Sacks: 200, Top: 5930 ft., Bottom: 7296 ft., Determination Method: CBL
Casing:String Type: S.C. 1.1, Hole Size: , Size: , Top: , Depth: 5110 ft., Weight: , Citings Type: ACTUAL
Cement:Sacks: 325, Top: 3632 ft., Bottom: 5110 ft., Determination Method: CBL
FormationInterval TopLog BottomCoredDSTs
PIERRE1300 ft.
GREELEY SAND2615 ft.
PARKMAN3615 ft.
SUSSEX4311 ft.
SHANNON4766 ft.
NIOBRARA6847 ft.
CODELL7184 ft.
CARLILE7203 ft.

Formation NB-CD                   Formation Classification:  GW                   Status:  AB - 11/17/2023

 Completed Information for Formation NIOBRARA-CODELL
1st Production Date:1/14/1995Choke Size:864.000 in.
Formation Name:NIOBRARA-CODELLCommingled:
Production Method:
Open Hole Completion:
Tubing Size:Tubing Setting Depth:
Tubing Packer Depth:Tubing Multiple Packer:
Open Hole Top:Open Hole Bottom:
No Initial Test Data was found for formation NB-CD.
No Perforation Data was found for formation NB-CD.
Primary Well Designation:
None      i
            All DesignationsDate
Reported PluggedY11/17/2023
Out Of Service RepurposedN
Out Of ServiceN
Inactive ExceptionN
Noticed InactiveYNoticed Date
02/14/2024
Defined InactiveN
Low ProducingN

BOE/MCFE/GOR Calculations
Production for Previous 12 Months
October 2024 - September 2025i
Total Oil Produced (Barrels)0
Total Gas Produced (MCF)0
GOR
GOR DeterminationMCFE
Average BOE per Day0.000
Average MCFE per Day0.000

 Federal Financial Assurance  i

 Tribal Well  i No
