COGIS - WELL SCOUT CARD
Click image to view related facilities. Related  Click image to view inspection information. InspClick image to view MIT information. MITClick image to access interactive map at well/facility location. GISClick image to view imaged documents for this well/facility. DocClick image to view imaged documents for this well/facility. COAClick image to view wellbore completion diagram. WellboreClick image to search for orders within this facility's section. OrdersClick image to view bradenhead scoutcard data. Bradenhead
 Surface Location
 API# 05-123-15785		Well Classification: GW Status: SI - 1/1/2025
Well Name/No:HSR-MAYNE #2-10
(Click Well Name for Production Data)		Click Here for Transporter Gatherer Info
Operator:KERR MCGEE OIL & GAS ONSHORE LP - 47120
(Click Operator Name for Company Detail Report)		Federal Or State Lease #:
Facility Status:SIStatus Date1/1/2025
FacilityID:247987LocationID:336694
County:WELD #123Location:NWNE 10 3N66W 6
Field:WATTENBERG - #90750Elevation:4866 ft.
Planned Location:660FNL  1980 FELLat/Long: 40.244876 / -104.761000Lat/Long Source: Calculated From Footages
As Drilled Location:Footages Not AvailableLat/Long: 40.244920 / -104.760940Lat/Long Source: Field Measured
 Wellbore And Formation Details -- select either a wellbore Or formation to expand.


Wellbore #00             Wellbore Classification: GW             Status: SI - 1/1/2025             Measured TD: 7972 ft.

 Wellbore Data for Original WellboreWellbore Classification: GW        SI - 1/1/2025
Wellbore Permit
Permit #:19980559 Expiration Date:6/14/1999
Proposed Depth/Form:7940 ft.
Surface Mineral Owner Same:No
Mineral Owner:FEESurface Owner:FEE
Unit: Unit Number:
Formation And Spacing:Code: JSND , Formation: J SAND , Order: 318A , Unit Acreage: 320, Drill Unit: N2
Formation And Spacing:Code: NB-CD , Formation: NIOBRARA-CODELL , Order: , Unit Acreage: 80, Drill Unit: W2NE
Wellbore Completed
Completion Date:7/10/1998
Spud Date:6/3/1992Spud Date Is:ACTUAL
Measured TD:7972 ft.Measured PB depth:
True Vertical TD:True Vertical PB depth:
Log Types:DIL/SFL/GR; CBL; DEN/CNL/GR
Log Types:CND IND CBL

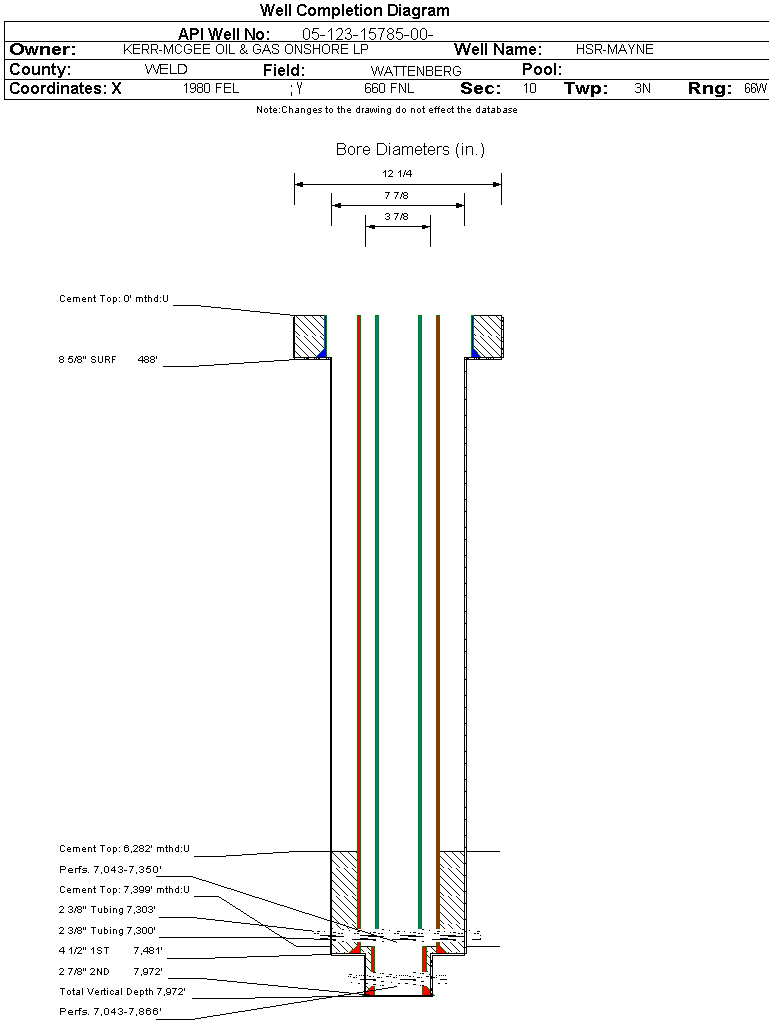

Casing:String Type: SURF, Hole Size: 12.25 in., Size: 8.625 in., Top: 0 ft., Depth: 488 ft., Weight: 24 , Citings Type: ACTUAL
Cement:Sacks: 350, Top: 0 ft., Bottom: 488 ft., Determination Method: VISU
Casing:String Type: 1ST, Hole Size: 7.875 in., Size: 4.5 in., Top: 0 ft., Depth: 7481 ft., Weight: 11.6 , Citings Type: ACTUAL
Cement:Sacks: 465, Top: 4090 ft., Bottom: 7481 ft., Determination Method: CBL
Casing:String Type: 1ST LINER, Hole Size: 3.875 in., Size: 2.875 in., Top: 7399 ft., Depth: 7966 ft., Weight: 6.5 , Citings Type: ACTUAL
Cement:Sacks: 25, Top: 7411 ft., Bottom: 7966 ft., Determination Method: CBL
FormationInterval TopLog BottomCoredDSTs
NIOBRARA7042 ft.NN
FORT HAYS7313 ft.NN
CODELL7334 ft.NN

Formation JNBCD                   Formation Classification:  GW                   Status:  CM - 8/22/2001                 Interval Top: 7043 ft.    Interval Bottom: 7866 ft.

 Completed Information for Formation J-NIOBRARA-CODELL
1st Production Date:8/8/1998Choke Size:0.281 in.
Formation Name:J-NIOBRARA-CODELLCommingled:
Production Method:PLUNGER 500
Open Hole Completion:
Formation Treatment
Treatment Date:7/10/1998
Treatment Summary:COMMINGLED.
Tubing Size:2.375 in.Tubing Setting Depth:7300 ft.
Tubing Packer Depth:Tubing Multiple Packer:
Open Hole Top:Open Hole Bottom:
Initial Test Data:
Test Date:8/22/2001Test Method:PLUNGER 500
Hours Tested:22.9Gas Type:
Gas Disposal:
Test TypeMeasure
BBLS_H2O 0
BBLS_OIL 11
CALC_GOR 27455
CASING_PRESS 418
MCF_GAS 302
TUBING_PRESS 246
Perforation Data:
Interval Top:7043 ft.# Of Holes:
Interval Bottom:7866 ft.Hole Size:

Formation NB-CD                   Formation Classification:  GW                   Status:  SI - 1/1/2025                  Interval Top: 7043 ft.    Interval Bottom: 7350 ft.

 Completed Information for Formation NIOBRARA-CODELL
1st Production Date:6/20/1992Choke Size:0.281 in.
Formation Name:NIOBRARA-CODELLCommingled:
Production Method:PLUNGER
Open Hole Completion:
Formation Treatment
Treatment Date:7/10/1998
Treatment Summary:7334-7350' FRAC'D W/350,000# 20/40 MESH SAND +75,807 GAL GELLED FLUID. 7042-7217' FRAC'D W/228,000# 20/40 MESH SAND + 72,122 GAL GELLED FLUID, 1992. // FRACED W/ 120,210 GALS GELLED FLUID; 262,500# 20/40 UNIMIN-LUCERNE, REPERF CODL FROM 7338-7346', 2001.
Tubing Size:2.375 in.Tubing Setting Depth:7303 ft.
Tubing Packer Depth:Tubing Multiple Packer:
Open Hole Top:Open Hole Bottom:
Initial Test Data:
Test Date:6/28/1992Test Method:FLOWING
Hours Tested:24Gas Type:SHALE
Gas Disposal:SOLD
Test TypeMeasure
BBLS_H2O 0
BBLS_OIL 25
CALC_BBLS_OIL 25
CALC_GOR 11760
CALC_MCF_GAS 294
CASING_PRESS 1700
GRAVITY_OIL 60
MCF_GAS 294
TUBING_PRESS 1500
Perforation Data:
Interval Top:7043 ft.# Of Holes:43
Interval Bottom:7350 ft.Hole Size:0.38 in.

Formation JSND                     Formation Classification:  GW                     Status:  SI - 3/1/2024

 Completed Information for Formation J SAND
1st Production Date:8/8/1998Choke Size:0.250 in.
Formation Name:J SANDCommingled:
Production Method:PLUNGER 500
Open Hole Completion:
Formation Treatment
Treatment Date:7/10/1998
Treatment Summary:FRAC'D JSAND W/301,100# 20/40 SAND & 240,954 GALS GELLED FLUID.
Tubing Size:Tubing Setting Depth:
Tubing Packer Depth:Tubing Multiple Packer:
Open Hole Top:Open Hole Bottom:
No Initial Test Data was found for formation JSND.
No Perforation Data was found for formation JSND.
Primary Well Designation:
Reported Plugged      i
            All DesignationsDate
Reported PluggedY06/03/2025
Out Of Service RepurposedN
Out Of ServiceN
Inactive ExceptionN
Noticed InactiveN
Defined InactiveN
Low ProducingYProduction Period
05/2024 - 04/2025

BOE/MCFE/GOR Calculations
Production for Previous 12 Months
May 2024 - April 2025i
Total Oil Produced (Barrels)0
Total Gas Produced (MCF)1
GOR
GOR DeterminationMCFE
Average BOE per Day0.000
Average MCFE per Day0.003

 Federal Financial Assurance  i

 Tribal Well  i No
