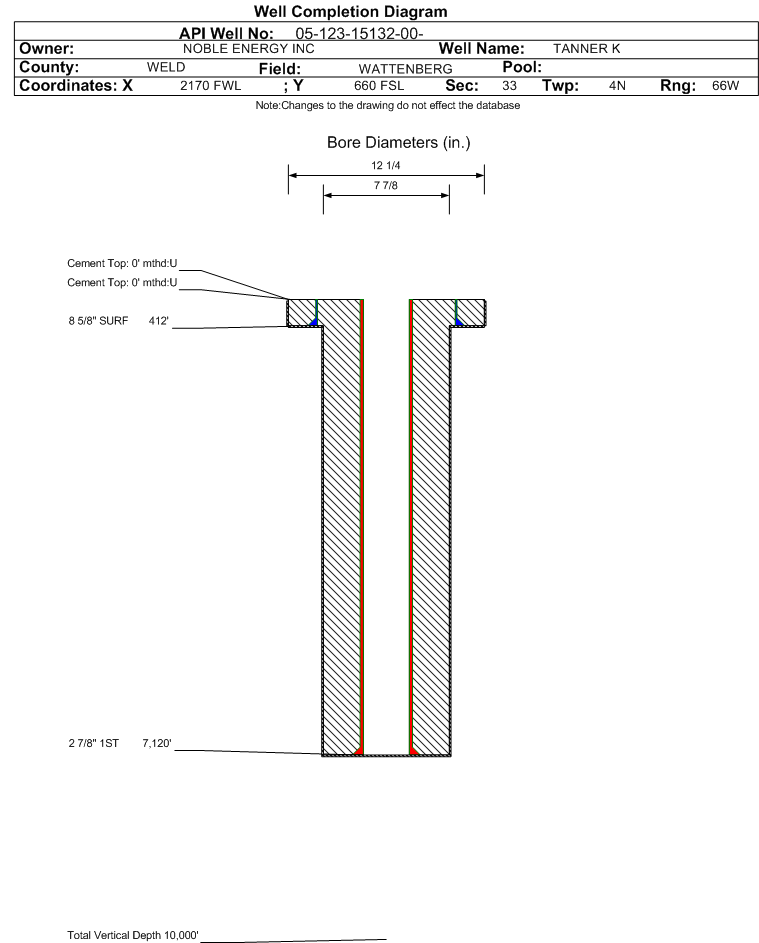

Click image to view related facilities. Related  Click image to view inspection information. InspClick image to view MIT information. MITGIS Map GISClick image to view imaged documents for this well/facility. DocClick image to view imaged documents for this well/facility. COAClick image to view wellbore completion diagram. WellboreClick image to search for orders within this facility's section. OrdersClick image to view bradenhead scoutcard data. Bradenhead
 Surface Location
 API# 05-123-15132		Well Classification: GW Status: PA - 1/21/2021
Well Name/No:TANNER K #33-14
(Click Well Name for Production Data)		Click Here for Transporter Gatherer Info
Operator:PDC ENERGY INC - 69175
(Click Operator Name for Company Detail Report)		Federal Or State Lease #:63033
Facility Status:PAStatus Date1/21/2021
FacilityID:247335LocationID:327771
County:WELD #123Location:SESW 33 4N66W 6
Field:WATTENBERG - #90750Elevation:4787 ft.
Basin:DENVER (DJ) BASIN
Planned Location:660FSL  2170 FWLLat/Long: 40.262616 / -104.784231Lat/Long Source: Calculated From Footages
As Drilled Location:Footages Not AvailableLat/Long: 40.262160 / -104.784075Lat/Long Source: Field Measured
 Wellbore And Formation Details -- select either a wellbore Or formation to expand.


Wellbore #00             Wellbore Classification: GW             Status: PA - 1/21/2021             Measured TD: 7450 ft.    Vertical TD: 0 ft.

 Wellbore Data for Original WellboreWellbore Classification: GW        PA - 1/21/2021
Wellbore Permit
Permit #:910652 Expiration Date:12/6/1991
Proposed Depth/Form:
Surface Mineral Owner Same:Not available
Mineral Owner:FEESurface Owner:Not available
Unit: Unit Number:
Formation And Spacing:Code: CODL , Formation: CODELL , Order: 407-87 , Unit Acreage: 80, Drill Unit: E/2SW/4
Wellbore Completed
Completion Date:10/17/1991
Measured TD:7450 ft.Measured PB depth:7428 ft.
True Vertical TD:0 ft.True Vertical PB depth:
Casing:String Type: SURF, Hole Size: 12.25 in., Size: 8.625 in., Top: 0 ft., Depth: 412 ft., Weight: 24 , Citings Type: ACTUAL
Cement:Sacks: 330, Top: 0 ft., Bottom: 412 ft., Determination Method: VISU
Casing:String Type: 1ST, Hole Size: 7.875 in., Size: 2.875 in., Top: 0 ft., Depth: 7439 ft., Weight: 7.9 , Citings Type: ACTUAL
Cement:Sacks: 300, Top: 6600 ft., Bottom: 7439 ft., Determination Method: CBL
FormationInterval TopLog BottomCoredDSTs
SUSSEX4286 ft.
NIOBRARA6980 ft.
CODELL7292 ft.

Formation CODL                     Formation Classification:  GW                     Status:  AB - 1/21/2021                 Interval Top: 7293 ft.    Interval Bottom: 7309 ft.

 Completed Information for Formation CODELL
1st Production Date:10/17/1991Choke Size:1,264.000 in.
Formation Name:CODELLCommingled:
Production Method:
Open Hole Completion:
Formation Treatment
Treatment Date:1/25/2001
Treatment Summary:136,626 gals Vistar w/ 22# and 20# gel loading and +/- 245,460 LBS of 20/40 Ottawa sand
Formation Treatment
Treatment Date:10/17/1991
Treatment Summary:72,000 gals. MY-T-FRAC, 200,000# 20/40 sand
Tubing Size:Tubing Setting Depth:
Tubing Packer Depth:Tubing Multiple Packer:
Open Hole Top:Open Hole Bottom:
No Initial Test Data was found for formation CODL.
Perforation Data:
Interval Top:7293 ft.# Of Holes:104
Interval Bottom:7309 ft.Hole Size:
Primary Well Designation:
None      i
            All DesignationsDate
Reported PluggedY01/21/2021
Out Of Service RepurposedN
Out Of ServiceN
Inactive ExceptionN
Noticed InactiveN
Defined InactiveN
Low ProducingN

BOE/MCFE/GOR Calculations
Production for Previous 12 Months
December 2024 - November 2025i
Total Oil Produced (Barrels)0
Total Gas Produced (MCF)0
GOR
GOR Determination
Average BOE per Day0.000
Average MCFE per Day0.000

 Federal Financial Assurance  i

 Tribal Well  i No
