COGIS - WELL SCOUT CARD
Click image to view related facilities. Related  Click image to view inspection information. InspClick image to view MIT information. MITClick image to access interactive map at well/facility location. GISClick image to view imaged documents for this well/facility. DocClick image to view imaged documents for this well/facility. COAClick image to view wellbore completion diagram. WellboreClick image to search for orders within this facility's section. OrdersClick image to view bradenhead scoutcard data. Bradenhead
 Surface Location
 API# 05-123-15110		Well Classification: GW Status: PA - 11/5/2015
Well Name/No:GRANT BROTHERS #3-23
(Click Well Name for Production Data)		Click Here for Transporter Gatherer Info
Operator:CRESTONE PEAK RESOURCES OPERATING LLC - 10633
(Click Operator Name for Company Detail Report)		Federal Or State Lease #:
Facility Status:PAStatus Date11/5/2015
FacilityID:247313LocationID:327751
Municipality/County:FREDERICK / WELD #123Location:SWSE 23 2N68W 6
Field:WATTENBERG - #90750Elevation:4935 ft.
Basin:DENVER (DJ) BASIN
Planned Location:990FSL  1650 FELLat/Long: 40.119577 / -104.966985Lat/Long Source: Calculated From Footages
As Drilled Location:Footages Not AvailableLat/Long: 40.119589 / -104.966805Lat/Long Source: Field Measured
 Wellbore And Formation Details -- select either a wellbore Or formation to expand.


Wellbore #00             Wellbore Classification: GW             Status: PA - 11/5/2015             Measured TD: 8110 ft.

 Wellbore Data for Original WellboreWellbore Classification: GW        PA - 11/5/2015
Wellbore Permit
Permit #:19910602 Expiration Date:11/20/1991
Proposed Depth/Form:8300 ft.
Surface Mineral Owner Same:Yes
Mineral Owner:FEESurface Owner:FEE
Unit: Unit Number:
Formation And Spacing:Code: DKTA , Formation: DAKOTA , Order: , Unit Acreage: 320, Drill Unit:
Wellbore Completed
Completion Date:12/22/1991
Spud Date:8/19/1991Spud Date Is:ACTUAL
Measured TD:8110 ft.Measured PB depth:8054 ft.
True Vertical TD:True Vertical PB depth:
Log Types:CAL/FDC/GR/CAC, DIL/SFL/GR/CAC, CBL

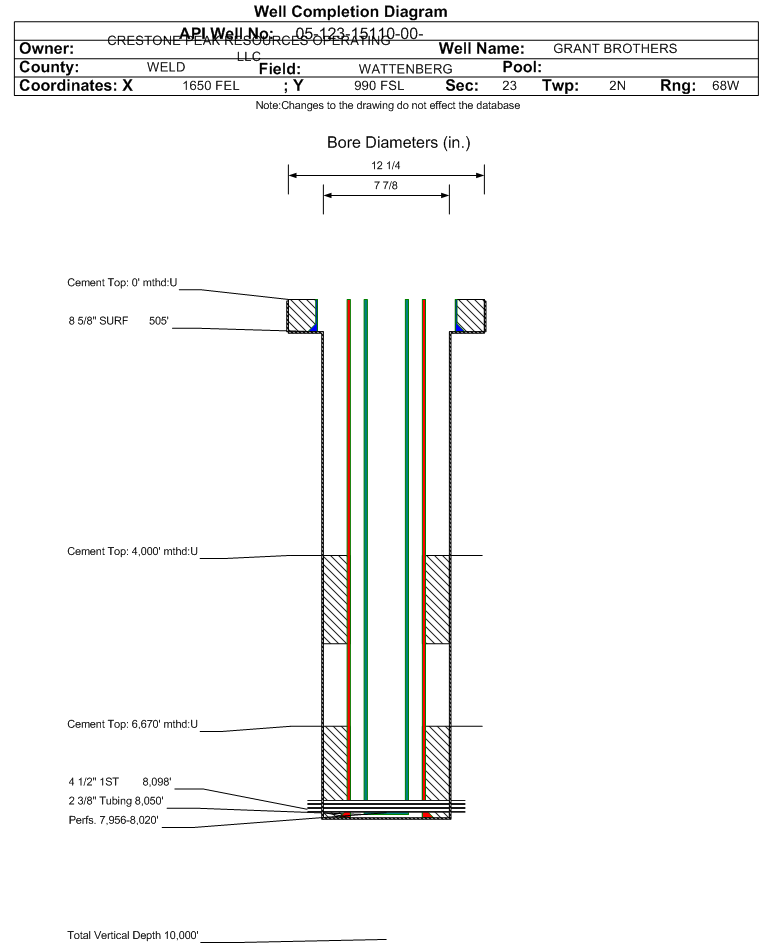

Casing:String Type: SURF, Hole Size: 12.25 in., Size: 8.625 in., Top: 0 ft., Depth: 505 ft., Weight: 24 , Citings Type: ACTUAL
Cement:Sacks: 360, Top: 0 ft., Bottom: 505 ft., Determination Method: VISU
Casing:String Type: 1ST, Hole Size: 7.875 in., Size: 4.5 in., Top: 0 ft., Depth: 8098 ft., Weight: 11.6 , Citings Type: ACTUAL
Cement:Sacks: 300, Top: 6670 ft., Bottom: 8110 ft., Determination Method: CBL
Casing:String Type: S.C. 1.1, Hole Size: , Size: , Top: , Depth: 5380 ft., Weight: , Citings Type: ACTUAL
Cement:Sacks: 420, Top: 4000 ft., Bottom: 5380 ft., Determination Method: CBL
FormationInterval TopLog BottomCoredDSTs
SUSSEX4710 ft.NN
SHANNON5250 ft.NN
NIOBRARA7200 ft.NN
FORT HAYS7490 ft.NN
CARLILE7510 ft.NN
BENTONITE7770 ft.NN
J SAND7920 ft.NN
MOWRY7920 ft.NN
SKULL CREEK8025 ft.NN

Formation JSND                     Formation Classification:  GW                     Status:  AB - 11/5/2015                 Interval Top: 7956 ft.    Interval Bottom: 8020 ft.

 Completed Information for Formation J SAND
1st Production Date:12/22/1991Choke Size:0.406 in.
Formation Name:J SANDCommingled:
Production Method:FLOWING
Open Hole Completion:
Formation Treatment
Treatment Date:12/22/1991
Treatment Summary:583,400# 20-40 SAND; 224,136 GALS X-LINKED GEL FLUID
Tubing Size:2.375 in.Tubing Setting Depth:8050 ft.
Tubing Packer Depth:Tubing Multiple Packer:
Open Hole Top:Open Hole Bottom:
Initial Test Data:
Test Date:12/25/1991Test Method:FLOWING
Hours Tested:24Gas Type:
Gas Disposal:SOLD
Test TypeMeasure
BBLS_H2O 116
BBLS_OIL 9
CALC_BBLS_H2O 116
CALC_BBLS_OIL 9
CALC_GOR 133333
CALC_MCF_GAS 1200
CASING_PRESS 1000
MCF_GAS 1200
TUBING_PRESS 650
Perforation Data:
Interval Top:7956 ft.# Of Holes:120
Interval Bottom:8020 ft.Hole Size:0.38 in.
Primary Well Designation:
None      i
            All DesignationsDate
Reported PluggedY11/05/2015
Out Of Service RepurposedN
Out Of ServiceN
Inactive ExceptionN
Noticed InactiveN
Defined InactiveN
Low ProducingN

BOE/MCFE/GOR Calculations
Production for Previous 12 Months
September 2024 - August 2025i
Total Oil Produced (Barrels)0
Total Gas Produced (MCF)0
GOR
GOR Determination
Average BOE per Day0.000
Average MCFE per Day0.000

 Federal Financial Assurance  i

 Tribal Well  i No
