COGIS - WELL SCOUT CARD
Click image to view related facilities. Related  Click image to view inspection information. InspClick image to view MIT information. MITClick image to access interactive map at well/facility location. GISClick image to view imaged documents for this well/facility. DocClick image to view imaged documents for this well/facility. COAClick image to view wellbore completion diagram. WellboreClick image to search for orders within this facility's section. OrdersClick image to view bradenhead scoutcard data. Bradenhead
 Surface Location
 API# 05-123-14458		Well Classification: GW Status: PA - 7/26/2017
Well Name/No:UPRR 53 PAN AM UT S #1
(Click Well Name for Production Data)		Click Here for Transporter Gatherer Info
Operator:KERR MCGEE OIL & GAS ONSHORE LP - 47120
(Click Operator Name for Company Detail Report)		Federal Or State Lease #:
Facility Status:PAStatus Date7/26/2017
FacilityID:246661LocationID:327298
County:WELD #123Location:NENE 33 3N65W 6
Field:WATTENBERG - #90750Elevation:4837 ft.
Planned Location:1000FNL  1000 FELLat/Long: 40.186347 / -104.662846Lat/Long Source: Calculated From Footages
As Drilled Location:Footages Not AvailableLat/Long: 40.186483 / -104.662717Lat/Long Source: Field Measured
 Wellbore And Formation Details -- select either a wellbore Or formation to expand.


Wellbore #00             Wellbore Classification: GW             Status: PA - 7/26/2017             Measured TD: 7795 ft.

 Wellbore Data for Original WellboreWellbore Classification: GW        PA - 7/26/2017
Wellbore PermitDRIFTED
Permit #:20050543 Expiration Date:3/10/2006
Proposed Depth/Form:7795 ft.
Surface Mineral Owner Same:No
Mineral Owner:FEESurface Owner:FEE
Unit: Unit Number:
Formation And Spacing:Code: DKTA , Formation: DAKOTA , Order: 318A , Unit Acreage: 320, Drill Unit: N2
Formation And Spacing:Code: JSND , Formation: J SAND , Order: , Unit Acreage: 320, Drill Unit: N2
Formation And Spacing:Code: NB-CD , Formation: NIOBRARA-CODELL , Order: 407-87 , Unit Acreage: 160, Drill Unit: NE4
Wellbore Completed
Completion Date:4/5/1990
Spud Date:11/18/1989Spud Date Is:ACTUAL
Measured TD:7795 ft.Measured PB depth:7749 ft.
True Vertical TD:True Vertical PB depth:
Log Types:DIL/DENSITY-SP-GR-CNL-LDT-GR-CAL

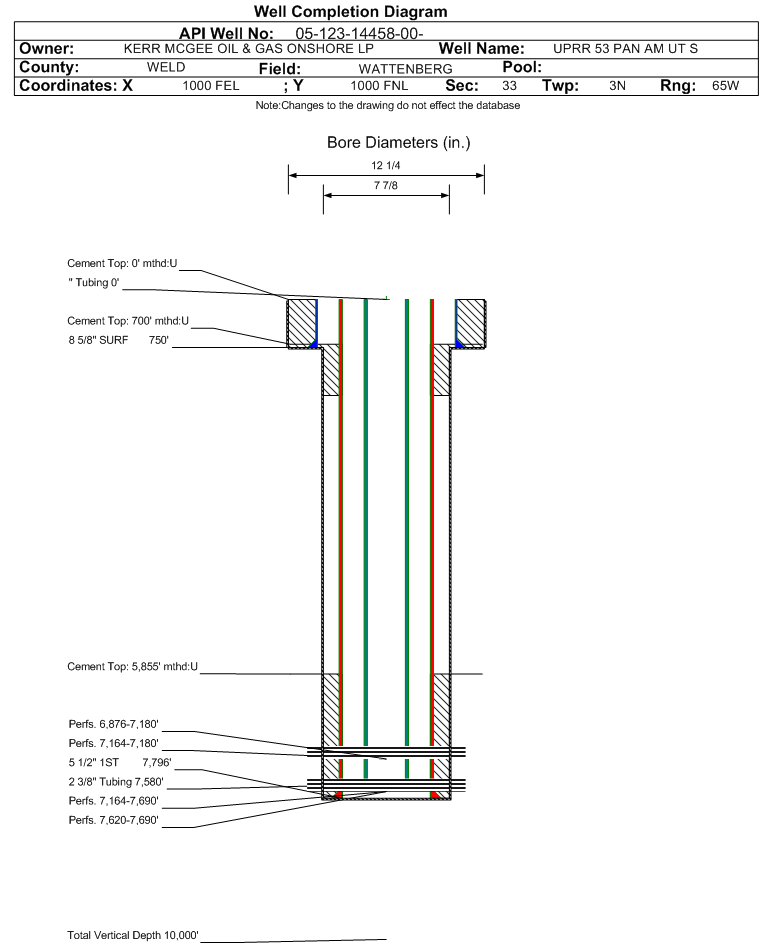

Casing:String Type: SURF, Hole Size: 12.25 in., Size: 8.625 in., Top: 0 ft., Depth: 750 ft., Weight: 24 , Citings Type: ACTUAL
Cement:Sacks: 450, Top: 0 ft., Bottom: 750 ft., Determination Method: VISU
Casing:String Type: 1ST, Hole Size: 7.875 in., Size: 5.5 in., Top: 0 ft., Depth: 7796 ft., Weight: 17 , Citings Type: ACTUAL
Cement:Sacks: 350, Top: 5855 ft., Bottom: 7796 ft., Determination Method: CBL
Casing:String Type: S.C. 1.1, Hole Size: , Size: , Top: , Depth: 1500 ft., Weight: , Citings Type: ACTUAL
Cement:Sacks: 312, Top: 700 ft., Bottom: 1500 ft., Determination Method: CALC
FormationInterval TopLog BottomCoredDSTs
J SAND7614 ft.NN

Formation JSND                     Formation Classification:  GW                     Status:  AB - 7/26/2017                 Interval Top: 7620 ft.    Interval Bottom: 7690 ft.

 Completed Information for Formation J SAND
1st Production Date:3/20/1990Choke Size:
Formation Name:J SANDCommingled:No
Production Method:
Open Hole Completion:No
Formation Treatment
Treatment Date:8/30/2010
Treatment Summary:Set CIBP @ 7350' w/ 2 sacks of sand for mechanical integrity.
Formation Treatment
Treatment Date:4/5/1990
Treatment Summary:TUBING RAN, WELL COMMINGLED.
Tubing Size:Tubing Setting Depth:
Tubing Packer Depth:Tubing Multiple Packer:
Open Hole Top:Open Hole Bottom:
Initial Test Data:
Test Date:N/ATest Method:
Hours Tested:Gas Type:
Gas Disposal:
Test TypeMeasure
BBLS_H2O 30
BBLS_OIL 0
CALC_GOR 348000
CASING_PRESS 480
MCF_GAS 348
TUBING_PRESS 200
Perforation Data:
Interval Top:7620 ft.# Of Holes:280
Interval Bottom:7690 ft.Hole Size:0.5 in.

Formation CODL                     Formation Classification:  GW                     Status:  CM - 9/30/2010                 Interval Top: 7164 ft.    Interval Bottom: 7180 ft.

 Completed Information for Formation CODELL
1st Production Date:9/22/2010Choke Size:
Formation Name:CODELLCommingled:Yes
Production Method:
Open Hole Completion:No
Formation Treatment
Treatment Date:9/10/2010
Treatment Summary:Reperf CODL 7165-7179 Holes 28 Size 0.38. Refrac CODL w/ 127,075 gal Super Z LpH & 261,760# 20/40 sand & 4,000# SB Excel.
Formation Treatment
Treatment Date:4/5/1990
Treatment Summary:TUBING RAN, WELL COMMINGLED.
Tubing Size:Tubing Setting Depth:
Tubing Packer Depth:Tubing Multiple Packer:
Open Hole Top:Open Hole Bottom:
Initial Test Data:
Test Date:N/ATest Method:
Hours Tested:Gas Type:
Gas Disposal:
Test TypeMeasure
BBLS_OIL 38
CALC_BBLS_OIL 38
CALC_GOR 4400
CALC_MCF_GAS 167
CASING_PRESS 947
GRAVITY_OIL 49
MCF_GAS 167
TUBING_PRESS 580
Perforation Data:
Interval Top:7164 ft.# Of Holes:92
Interval Bottom:7180 ft.Hole Size:0.38 in.

Formation J-CDL                   Formation Classification:  GW                   Status:  CM - 3/3/2009                  Interval Top: 7164 ft.    Interval Bottom: 7690 ft.

 Completed Information for Formation J-CODELL
1st Production Date:2/25/2009Choke Size:0.375 in.
Formation Name:J-CODELLCommingled:No
Production Method:
Open Hole Completion:No
Formation Treatment
Treatment Date:4/5/1990
Treatment Summary:
Tubing Size:2.375 in.Tubing Setting Depth:7580 ft.
Tubing Packer Depth:Tubing Multiple Packer:
Open Hole Top:Open Hole Bottom:
Initial Test Data:
Test Date:3/3/2009Test Method:FLOWING
Hours Tested:Gas Type:WET
Gas Disposal:SOLD
Test TypeMeasure
BTU_GAS 1187
CALC_BBLS_OIL 1
CALC_GOR 56000
CALC_MCF_GAS 56
CASING_PRESS 720
GRAVITY_OIL 53
TUBING_PRESS 550
Perforation Data:
Interval Top:7164 ft.# Of Holes:344
Interval Bottom:7690 ft.Hole Size:

Formation NB-CD                   Formation Classification:  GW                   Status:  AB - 7/26/2017                 Interval Top: 6876 ft.    Interval Bottom: 7180 ft.

 Completed Information for Formation NIOBRARA-CODELL
1st Production Date:9/22/2010Choke Size:
Formation Name:NIOBRARA-CODELLCommingled:No
Production Method:
Open Hole Completion:No
Formation Treatment
Treatment Date:9/10/2010
Treatment Summary:NBRR Perf 6876-7024 Holes 52 Size 0.42 CODL Perf 7164-7180 Holes 92 Size 0.38 Frac NBRR w/ 250 gal 15% HCl & 169,833 gal Super Z LpH Hybrid & 247,980# 20/40 sand & 4,000# SB Excel.
Tubing Size:Tubing Setting Depth:
Tubing Packer Depth:Tubing Multiple Packer:
Open Hole Top:Open Hole Bottom:
Initial Test Data:
Test Date:9/30/2010Test Method:FLOWING
Hours Tested:24Gas Type:SHALE
Gas Disposal:SOLD
Test TypeMeasure
BBLS_OIL 33
BTU_GAS 1279
CALC_BBLS_OIL 33
CALC_GOR 2364
CALC_MCF_GAS 78
CASING_PRESS 2820
GRAVITY_OIL 67
MCF_GAS 78
Perforation Data:
Interval Top:6876 ft.# Of Holes:144
Interval Bottom:7180 ft.Hole Size:0.38 in.
Primary Well Designation:
None      i
            All DesignationsDate
Reported PluggedY07/26/2017
Out Of Service RepurposedN
Out Of ServiceN
Inactive ExceptionN
Noticed InactiveN
Defined InactiveN
Low ProducingN

BOE/MCFE/GOR Calculations
Production for Previous 12 Months
May 2024 - April 2025i
Total Oil Produced (Barrels)0
Total Gas Produced (MCF)0
GOR
GOR Determination
Average BOE per Day0.000
Average MCFE per Day0.000

 Federal Financial Assurance  i

 Tribal Well  i No
