COGIS - WELL SCOUT CARD

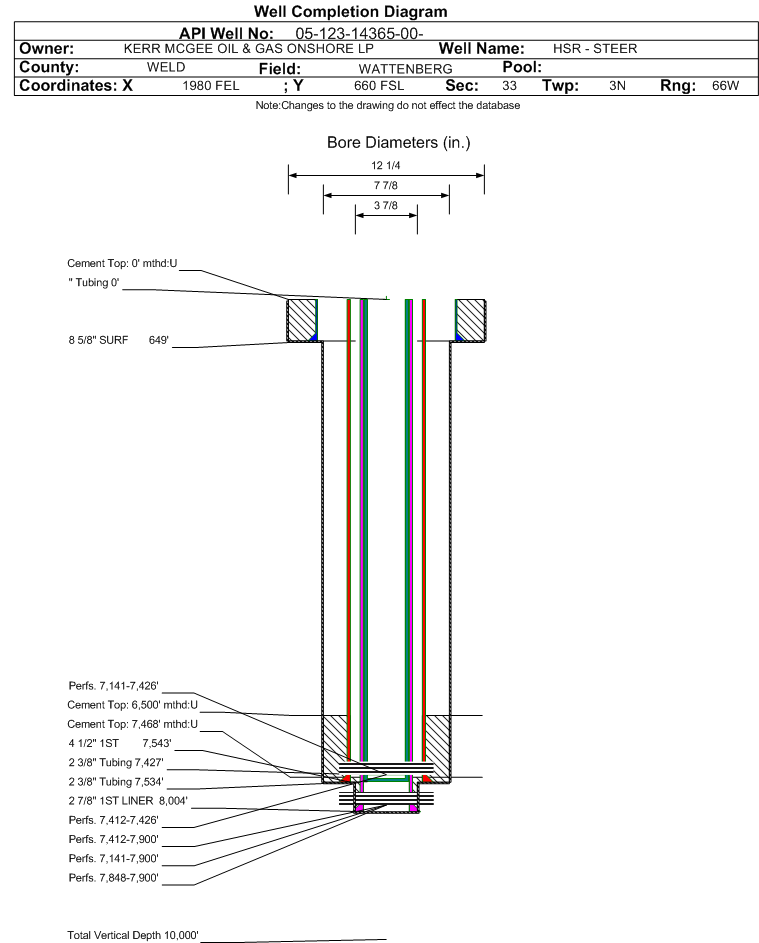

Click image to view related facilities. Related  Click image to view inspection information. InspClick image to view MIT information. MITClick image to access interactive map at well/facility location. GISClick image to view imaged documents for this well/facility. DocClick image to view imaged documents for this well/facility. COAClick image to view wellbore completion diagram. WellboreClick image to search for orders within this facility's section. OrdersClick image to view bradenhead scoutcard data. Bradenhead
 Surface Location
 API# 05-123-14365		Well Classification: GW Status: PA - 9/11/2018
Well Name/No:HSR - STEER #15-33A
(Click Well Name for Production Data)		Click Here for Transporter Gatherer Info
Operator:KERR MCGEE OIL & GAS ONSHORE LP - 47120
(Click Operator Name for Company Detail Report)		Federal Or State Lease #:
Facility Status:PAStatus Date9/11/2018
FacilityID:246568LocationID:327237
County:WELD #123Location:SWSE 33 3N66W 6
Field:WATTENBERG - #90750Elevation:4937 ft.
Planned Location:660FSL  1980 FELLat/Long: 40.176089 / -104.779775Lat/Long Source: Field Measured
As Drilled Location:Footages Not AvailableLat/Long: 40.176089 / -104.779775Lat/Long Source: Field Measured
 Wellbore And Formation Details -- select either a wellbore Or formation to expand.


Wellbore #00             Wellbore Classification: GW             Status: PA - 9/11/2018             Measured TD: 7550 ft.

 Wellbore Data for Original WellboreWellbore Classification: GW        PA - 9/11/2018
Wellbore PermitDRIFTED
Permit #: Expiration Date:8/3/2012
Proposed Depth/Form:8004 ft.
Surface Mineral Owner Same:No
Mineral Owner:FEESurface Owner:FEE
Unit: Unit Number:
Formation And Spacing:Code: CODL , Formation: CODELL , Order: , Unit Acreage: 80, Drill Unit: S2SE4
Formation And Spacing:Code: JSND , Formation: J SAND , Order: 318A , Unit Acreage: 320, Drill Unit: S2S2SE4
Formation And Spacing:Code: NBRR , Formation: NIOBRARA , Order: 407 , Unit Acreage: 80, Drill Unit: S/2SE4
Casing:String Type: SURF, Hole Size: 12.25 in., Size: 8.625 in., Top: , Depth: 649 ft., Weight: 24 , Citings Type: PLANNED
Cement:Sacks: 325, Top: 10 ft., Bottom: 649 ft.
Casing:String Type: 1ST, Hole Size: 7.875 in., Size: 4.5 in., Top: , Depth: 7543 ft., Weight: 11.6 , Citings Type: PLANNED
Cement:Sacks: 180, Top: 6510 ft., Bottom: 7543 ft.
Casing:String Type: 1ST LINER, Hole Size: 3.875 in., Size: 2.875 in., Top: , Depth: 8004 ft., Weight: 6.5 , Citings Type: PLANNED
Cement:Sacks: 30, Top: 7468 ft., Bottom: 8004 ft.
Wellbore Completed
Completion Date:12/19/1989
Spud Date:7/29/1989Spud Date Is:ACTUAL
Measured TD:7550 ft.Measured PB depth:7503 ft.
True Vertical TD:True Vertical PB depth:
Log Types:DIGITAL SONIC LOG, BOND LOG, DIFL/GR, CNL/GR
Log Types:CBL DEN - NEUT IND
Casing:String Type: SURF, Hole Size: 12.25 in., Size: 8.625 in., Top: 0 ft., Depth: 649 ft., Weight: 24 , Citings Type: ACTUAL
Cement:Sacks: 325, Top: 0 ft., Bottom: 649 ft., Determination Method: VISU
Casing:String Type: 1ST, Hole Size: 7.875 in., Size: 4.5 in., Top: 0 ft., Depth: 7543 ft., Weight: 11.6 , Citings Type: ACTUAL
Cement:Sacks: 180, Top: 6500 ft., Bottom: 7543 ft., Determination Method: CBL
Casing:String Type: 1ST LINER, Hole Size: 3.875 in., Size: 2.875 in., Top: , Depth: 8004 ft., Weight: 6.5 , Citings Type: ACTUAL
Cement:Sacks: 30, Top: 7468 ft., Bottom: 8004 ft., Determination Method: CBL
FormationInterval TopLog BottomCoredDSTs
NIOBRARA7136 ft.NN
FORT HAYS7386 ft.NN
CODELL7408 ft.NN
GREENHORN7492 ft.NN
J SAND7846 ft.NN

Formation JSND                     Formation Classification:  OG                     Status:  AB - 9/11/2018                 Interval Top: 7848 ft.    Interval Bottom: 7900 ft.

 Completed Information for Formation J SAND
1st Production Date:10/11/1998Choke Size:
Formation Name:J SANDCommingled:Yes
Production Method:
Open Hole Completion:No
Formation Treatment
Treatment Type:
Treatment Date:3/8/2013Treatment End Date:N/A
Treatment Summary:CLEARED OUT SAND PLUG TO COMMINGLE JSND PRODUCTION WITH NB/CD PRODUCTION.
Total fluid used in treatment (bbls):Max pressure during treatment (psi):
Total gas used in treatment (mcf):Fluid density (lbs/gal):
Type Of gas:Number Of staged intervals:
Total acid used in treatment (bbls):Min frac gradient (psi/ft):
Recycled water used in treatment (bbls):Total flowback volume recovered (bbls):
Fresh water used in treatment (bbls):Disposition method For flowback:
Total proppant used (lbs):Green completions techniques utilized:--
Reason green techniques Not utilized:
Formation Treatment
Treatment Date:9/8/2010
Treatment Summary:Set sand plug @ 7473'.
Formation Treatment
Treatment Date:12/19/1989
Treatment Summary:560,940# 20-40 MESH; 287,994 GALS GELLED FLUID
Tubing Size:Tubing Setting Depth:
Tubing Packer Depth:Tubing Multiple Packer:
Open Hole Top:Open Hole Bottom:
No Initial Test Data was found for formation JSND.
Perforation Data:
Interval Top:7848 ft.# Of Holes:72
Interval Bottom:7900 ft.Hole Size:

Formation CODL                     Formation Classification:  OW                     Status:  CM - 10/25/2010                Interval Top: 7412 ft.    Interval Bottom: 7426 ft.

 Completed Information for Formation CODELL
1st Production Date:10/13/2010Choke Size:
Formation Name:CODELLCommingled:Yes
Production Method:
Open Hole Completion:No
Formation Treatment
Treatment Date:9/21/2010
Treatment Summary:Reperf CODL 7412-7426 Holes 28 Size 0.38. Tri-frac CODL w/ 134,055 gal pHaser & 220,680# 30/50 sand & 4,000# SB Excel.
Formation Treatment
Treatment Date:12/19/1989
Treatment Summary:ORIGINAL COMPLETION: FRA'C DW/ 24,000# 100 MESH, 300,000# 20-40 MESH, 76,550 GALS GELLED FLUID. 11/98: CM'D W/ JSND
Tubing Size:Tubing Setting Depth:
Tubing Packer Depth:Tubing Multiple Packer:
Open Hole Top:Open Hole Bottom:
Initial Test Data:
Test Date:N/ATest Method:
Hours Tested:Gas Type:
Gas Disposal:
Test TypeMeasure
BBLS_H2O 0
BBLS_OIL 35
CALC_BBLS_H2O 0
CALC_BBLS_OIL 35
CALC_GOR 2886
CALC_MCF_GAS 101
CASING_PRESS 1650
GRAVITY_OIL 60
MCF_GAS 101
TUBING_PRESS 850
Perforation Data:
Interval Top:7412 ft.# Of Holes:75
Interval Bottom:7426 ft.Hole Size:0.38 in.

Formation J-CDL                   Formation Classification:  OW                   Status:  CM - 11/25/1998                Interval Top: 7412 ft.    Interval Bottom: 7900 ft.

 Completed Information for Formation J-CODELL
1st Production Date:11/25/1998Choke Size:0.281 in.
Formation Name:J-CODELLCommingled:
Production Method:
Open Hole Completion:
Tubing Size:2.375 in.Tubing Setting Depth:7427 ft.
Tubing Packer Depth:Tubing Multiple Packer:
Open Hole Top:Open Hole Bottom:
Initial Test Data:
Test Date:11/25/1998Test Method:FLOWING
Hours Tested:24Gas Type:
Gas Disposal:SOLD
Test TypeMeasure
BBLS_H2O 0
BBLS_OIL 10
CALC_BBLS_H2O 0
CALC_BBLS_OIL 10
CALC_GOR 56600
CALC_MCF_GAS 566
CASING_PRESS 570
GRAVITY_OIL 60
MCF_GAS 566
TUBING_PRESS 400
Perforation Data:
Interval Top:7412 ft.# Of Holes:
Interval Bottom:7900 ft.Hole Size:

Formation JNBCD                   Formation Classification:  OG                   Status:  CM - 2/12/2013                 Interval Top: 7141 ft.    Interval Bottom: 7900 ft.

 Completed Information for Formation J-NIOBRARA-CODELL
1st Production Date:2/11/2013Choke Size:
Formation Name:J-NIOBRARA-CODELLCommingled:No
Production Method:
Open Hole Completion:No
Formation Treatment
Treatment Type:
Treatment Date:2/12/2013Treatment End Date:N/A
Treatment Summary:CLEARED OUT SAND PLUG TO COMMINGLE JSND PRODUCTION WITH NB/CD PRODUCTION.
Total fluid used in treatment (bbls):Max pressure during treatment (psi):
Total gas used in treatment (mcf):Fluid density (lbs/gal):
Type Of gas:Number Of staged intervals:
Total acid used in treatment (bbls):Min frac gradient (psi/ft):
Recycled water used in treatment (bbls):Total flowback volume recovered (bbls):
Fresh water used in treatment (bbls):Disposition method For flowback:
Total proppant used (lbs):Green completions techniques utilized:--
Reason green techniques Not utilized:
Tubing Size:2.375 in.Tubing Setting Depth:7534 ft.
Tubing Packer Depth:Tubing Multiple Packer:
Open Hole Top:Open Hole Bottom:
Initial Test Data:
Test Date:2/12/2013Test Method:FLOWING
Hours Tested:24Gas Type:WET
Gas Disposal:SOLD
Test TypeMeasure
BBLS_OIL 1
BTU_GAS 1274
CALC_BBLS_OIL 1
CALC_GOR 23000
CALC_MCF_GAS 23
CASING_PRESS 704
GRAVITY_OIL 49
MCF_GAS 23
TUBING_PRESS 667
Perforation Data:
Interval Top:7141 ft.# Of Holes:168
Interval Bottom:7900 ft.Hole Size:0.38 in.

Formation NB-CD                   Formation Classification:  OW                   Status:  AB - 9/11/2018                 Interval Top: 7141 ft.    Interval Bottom: 7426 ft.

 Completed Information for Formation NIOBRARA-CODELL
1st Production Date:10/13/2010Choke Size:
Formation Name:NIOBRARA-CODELLCommingled:No
Production Method:
Open Hole Completion:No
Formation Treatment
Treatment Date:9/21/2010
Treatment Summary:NBRR Perf 7141-7290 Holes 68 Size 0.38 CODL Perf 7412-7426 Holes 75 Size 0.38 Frac NBRR w/ 171,034 gal pHaser Hybrid & 250,840# 20/40 sand & 4,000# SB Excel.
Tubing Size:Tubing Setting Depth:
Tubing Packer Depth:Tubing Multiple Packer:
Open Hole Top:Open Hole Bottom:
Initial Test Data:
Test Date:10/16/2010Test Method:FLOWING
Hours Tested:24Gas Type:SHALE
Gas Disposal:SOLD
Test TypeMeasure
BBLS_OIL 63
BTU_GAS 1219
CALC_BBLS_OIL 63
CALC_GOR 3810
CALC_MCF_GAS 240
CASING_PRESS 852
GRAVITY_OIL 51
MCF_GAS 240
Perforation Data:
Interval Top:7141 ft.# Of Holes:143
Interval Bottom:7426 ft.Hole Size:0.38 in.
Primary Well Designation:
None      i
            All DesignationsDate
Reported PluggedY09/11/2018
Out Of Service RepurposedN
Out Of ServiceN
Inactive ExceptionN
Noticed InactiveN
Defined InactiveN
Low ProducingN

BOE/MCFE/GOR Calculations
Production for Previous 12 Months
April 2024 - March 2025i
Total Oil Produced (Barrels)0
Total Gas Produced (MCF)0
GOR
GOR Determination
Average BOE per Day0.000
Average MCFE per Day0.000

 Federal Financial Assurance  i

 Tribal Well  i No
