Wellbore #00 Wellbore Classification: GW Status: AB - 2/4/2025 Measured TD: 7290 ft. Vertical TD: 0 ft.| Wellbore Data for Original Wellbore | Wellbore Classification: GW AB - 2/4/2025 | | Wellbore Permit | | | Permit #: | 860862 | Expiration Date: | 5/30/1997 | | Proposed Depth/Form: | | | Surface Mineral Owner Same: | Not available | | Mineral Owner: | FEE | Surface Owner: | Not available | | Unit: | | Unit Number: | | | Formation And Spacing: | Code: CODL , Formation: CODELL , Order: 0 , Unit Acreage: 80, Drill Unit: W2NW |
| | |

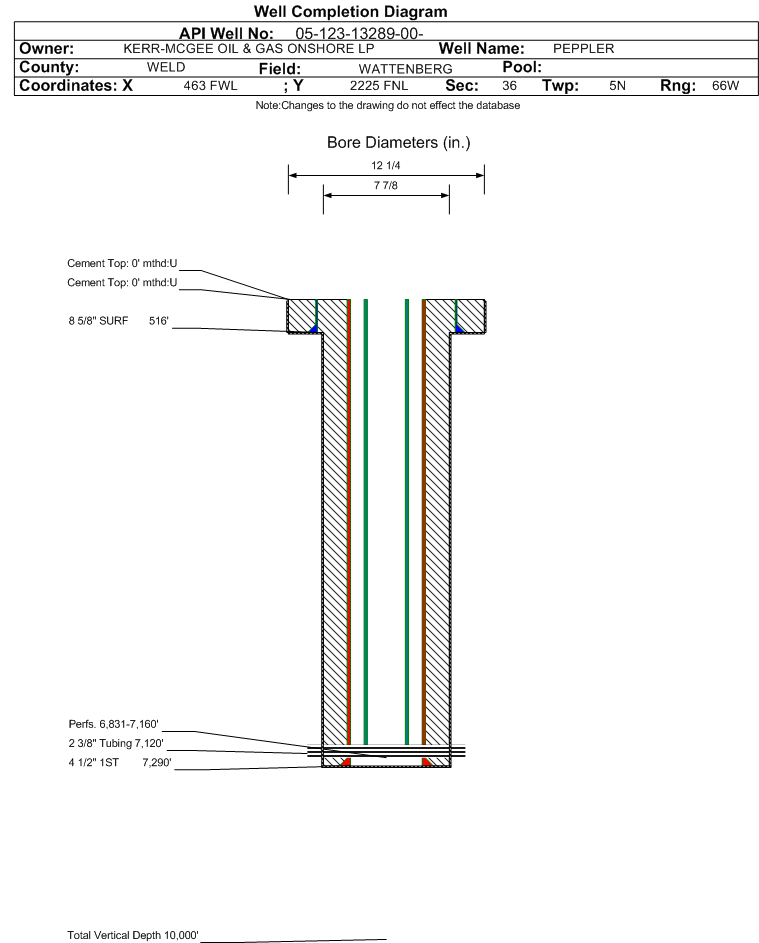

| Wellbore Completed | | Completion Date: | 2/13/1987 | | Measured TD: | 7290 ft. | Measured PB depth: | 7255 ft. | | True Vertical TD: | 0 ft. | True Vertical PB depth: | | | Casing: | String Type: SURF, Hole Size: 12.25 in., Size: 8.625 in., Top: 0 ft., Depth: 516 ft., Weight: 24 , Citings Type: ACTUAL | | Cement: | Sacks: 360, Top: 0 ft., Bottom: 516 ft., Determination Method: VISU | | Casing: | String Type: 1ST, Hole Size: 7.875 in., Size: 4.5 in., Top: 0 ft., Depth: 7290 ft., Weight: 11.6 , Citings Type: ACTUAL | | Cement: | Sacks: 230, Top: 6160 ft., Bottom: 7290 ft., Determination Method: CBL | | Formation | Interval Top | Log Bottom | Cored | DSTs | | NIOBRARA | 6925 ft. | | | | | CODELL | 7143 ft. | | | |
Formation CODL Formation Classification: GW Status: CM - 2/16/1987 Interval Top: 7143 ft.| Completed Information for Formation CODELL | | 1st Production Date: | 2/15/1987 | Choke Size: | 90,000.000 in. | | Formation Name: | CODELL | Commingled: | | | Production Method: | | | Open Hole Completion: | |
| | Tubing Size: | | Tubing Setting Depth: | | | Tubing Packer Depth: | | Tubing Multiple Packer: | | | Open Hole Top: | | Open Hole Bottom: | | | No Initial Test Data was found for formation CODL. |
| | No Perforation Data was found for formation CODL. |
|
Formation NB-CD Formation Classification: GW Status: AB - 2/4/2025 Interval Top: 6831 ft. Interval Bottom: 7160 ft.| Completed Information for Formation NIOBRARA-CODELL | | 1st Production Date: | N/A | Choke Size: | 18.000 in. | | Formation Name: | NIOBRARA-CODELL | Commingled: | No | | Production Method: | PLUNGER | | Open Hole Completion: | No |
| | Formation Treatment | | Treatment Date: | 2/13/1987 | | Treatment Summary: | FRACED W/ 90,520 GALLONS GELLED FLUID, , 261800 LBS 20/40 UNIMIN - LUCERNE, 0 LBS 0 LBS PERFORATE 7143'-7153' PRODUCTION REFLECTS NIOBRARA-CODELL FORMATIONS |
| | Tubing Size: | 2.375 in. | Tubing Setting Depth: | 7120 ft. | | Tubing Packer Depth: | | Tubing Multiple Packer: | | | Open Hole Top: | | Open Hole Bottom: | | | Initial Test Data: | | Test Date: | 4/22/2002 | Test Method: | PLUNGER | | Hours Tested: | 12 | Gas Type: | SHALE | | Gas Disposal: | | |
| Test Type | Measure |
|---|
| BBLS_OIL | 7 | | CALC_BBLS_OIL | 7 | | CALC_GOR | 38571 | | CALC_MCF_GAS | 270 | | CASING_PRESS | 652 | | MCF_GAS | 270 | | TUBING_PRESS | 419 |
| | Perforation Data: | | Interval Top: | 6831 ft. | # Of Holes: | 32 | | Interval Bottom: | 7160 ft. | Hole Size: | 0.3 in. |
|
|
|
|
|
|
|
| Reported Plugged | Y | 02/04/2025 |
| Out Of Service Repurposed | N | |
| Out Of Service | N | |
| Inactive Exception | N | |
| Noticed Inactive | Y | Noticed Date
02/15/2024 |
| Defined Inactive | N | |
| Low Producing | N | |
| Total Oil Produced (Barrels) | 0 |
| Total Gas Produced (MCF) | 0 |
| GOR | |
| GOR Determination | MCFE |
| Average BOE per Day | 0.000 |
| Average MCFE per Day | 0.000 |
| Federal Financial Assurance | i | |
|
|
