COGIS - WELL SCOUT CARD
Click image to view related facilities. Related  Click image to view inspection information. InspClick image to view MIT information. MITGIS Map GISOld GIS Map Old GISClick image to view imaged documents for this well/facility. DocClick image to view imaged documents for this well/facility. COAClick image to view wellbore completion diagram. WellboreClick image to search for orders within this facility's section. OrdersClick image to view bradenhead scoutcard data. Bradenhead
 Surface Location
 API# 05-123-12805		Well Classification: GW Status: PA - 10/19/2023
Well Name/No:ARISTOCRAT #31-10C
(Click Well Name for Production Data)		Click Here for Transporter Gatherer Info
Operator:CRESTONE PEAK RESOURCES OPERATING LLC - 10633
(Click Operator Name for Company Detail Report)		Federal Or State Lease #:
Facility Status:PAStatus Date10/19/2023
FacilityID:245010LocationID:311345
County:WELD #123Location:NWNE 10 3N65W 6
Field:ARISTOCRAT - #2925Elevation:4789 ft.
Basin:DENVER (DJ) BASIN
Planned Location:725FNL  1905 FELLat/Long: 40.245097 / -104.646516Lat/Long Source: Calculated From Footages
As Drilled Location:Footages Not AvailableLat/Long: 40.245087 / -104.646888Lat/Long Source: Field Measured
 Wellbore And Formation Details -- select either a wellbore Or formation to expand.

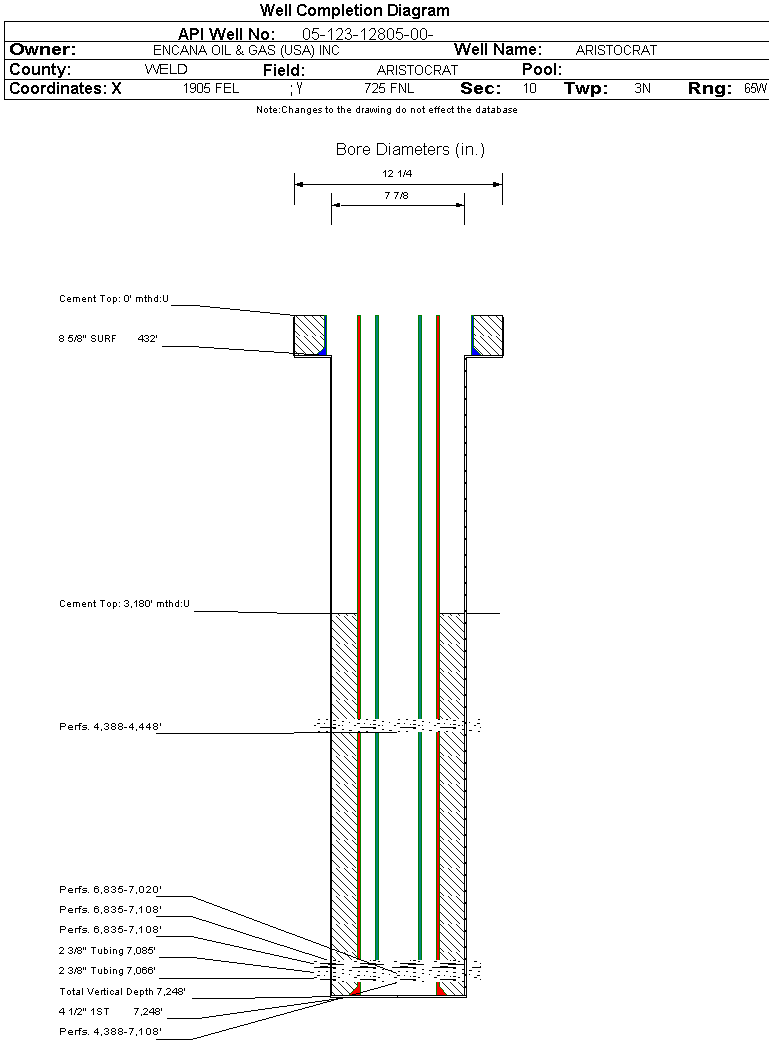

Wellbore #00             Wellbore Classification: GW             Status: PA - 10/19/2023             Measured TD: 7248 ft.

 Wellbore Data for Original WellboreWellbore Classification: GW        PA - 10/19/2023
Wellbore Permit
Permit #:19851602 Expiration Date:3/12/1986
Proposed Depth/Form:7250 ft.
Surface Mineral Owner Same:Yes
Mineral Owner:FEESurface Owner:FEE
Unit: Unit Number:
Formation And Spacing:Code: NB-CD , Formation: NIOBRARA-CODELL , Order: , Unit Acreage: 80, Drill Unit: W2NE
Wellbore Completed
Completion Date:12/18/1986
Spud Date:11/21/1985Spud Date Is:ACTUAL
Measured TD:7248 ft.Measured PB depth:7220 ft.
True Vertical TD:True Vertical PB depth:
Log Types:INDUCTION & COMP DENSITY
Casing:String Type: SURF, Hole Size: 12.25 in., Size: 8.625 in., Top: 0 ft., Depth: 432 ft., Weight: 24 , Citings Type: ACTUAL
Cement:Sacks: 280, Top: 0 ft., Bottom: 432 ft., Determination Method: CALC
Casing:String Type: 1ST, Hole Size: 7.875 in., Size: 4.5 in., Top: 0 ft., Depth: 7247 ft., Weight: 11.6 , Citings Type: ACTUAL
Cement:Sacks: 1290, Top: 3180 ft., Bottom: 7247 ft., Determination Method: CBL
FormationInterval TopLog BottomCoredDSTs
SUSSEX4307 ft.NN
NIOBRARA6795 ft.NN
CODELL7092 ft.NN

Formation CODL                     Formation Classification:  GW                     Status:  CM - 7/12/2023                 Interval Top: 7094 ft.    Interval Bottom: 7108 ft.

 Completed Information for Formation CODELL
1st Production Date:N/AChoke Size:
Formation Name:CODELLCommingled:Yes
Production Method:
Open Hole Completion:No
Formation Treatment
Treatment Date:12/18/1986
Treatment Summary:REMOVE CIBP @7070 3/11/2004
Tubing Size:Tubing Setting Depth:
Tubing Packer Depth:Tubing Multiple Packer:
Open Hole Top:Open Hole Bottom:
Initial Test Data:
Test Date:N/ATest Method:
Hours Tested:Gas Type:
Gas Disposal:
Test TypeMeasure
BBLS_H2O 0
BBLS_OIL 20
CALC_BBLS_OIL 20
CALC_GOR 3200
CALC_MCF_GAS 64
CASING_PRESS 2500
MCF_GAS 64
Perforation Data:
Interval Top:7094 ft.# Of Holes:29
Interval Bottom:7108 ft.Hole Size:0.36 in.

Formation NB-CD                   Formation Classification:  GW                   Status:  AB - 10/19/2023                Interval Top: 6823 ft.    Interval Bottom: 7108 ft.

 Completed Information for Formation NIOBRARA-CODELL
1st Production Date:N/AChoke Size:
Formation Name:NIOBRARA-CODELLCommingled:No
Production Method:
Open Hole Completion:No
Formation Treatment
Treatment Date:2/10/2010
Treatment Summary:NIOBRARA - REFRAC'D 6823-7020 WITH 144018 GAL FRAC FLUID AND 250020# SAND. CODELL - REFRAC'D 7094-7108 WITH 116382 GAL FRAC FLUID AND 250000# SAND.
Formation Treatment
Treatment Date:12/18/1986
Treatment Summary:FRAC W/ 113,000 GALS FRAC FLUID AND 200,000# 20/40 SAND, 2/15/2004. SEE ALSO SCANNED DOC#. 00627829.
Tubing Size:Tubing Setting Depth:
Tubing Packer Depth:Tubing Multiple Packer:
Open Hole Top:Open Hole Bottom:
Initial Test Data:
Test Date:N/ATest Method:
Hours Tested:Gas Type:
Gas Disposal:
Test TypeMeasure
BBLS_H2O 3
BBLS_OIL 7
BTU_GAS 1328
CALC_BBLS_H2O 36
CALC_BBLS_OIL 84
CALC_GOR 120142
CALC_MCF_GAS 1692
CASING_PRESS 487
GRAVITY_OIL 57
MCF_GAS 141
TUBING_PRESS 436
Perforation Data:
Interval Top:6823 ft.# Of Holes:149
Interval Bottom:7108 ft.Hole Size:0.38 in.

Formation NBRR                     Formation Classification:  GW                     Status:  CM - 7/12/2023                 Interval Top: 6823 ft.    Interval Bottom: 7020 ft.

 Completed Information for Formation NIOBRARA
1st Production Date:N/AChoke Size:
Formation Name:NIOBRARACommingled:Yes
Production Method:
Open Hole Completion:No
Formation Treatment
Treatment Date:12/18/1986
Treatment Summary:SET CBP @ 7070'. PERF'D NBRR FRM 6835'-6865' & 6990'-7020' W/2 SPF. SET PKR @ 4482'. FRAC'D W/113,000 GALS FRAC FLUID AND 200,000# 20/40 SAND. FLOW BACK WELL.
Tubing Size:Tubing Setting Depth:
Tubing Packer Depth:Tubing Multiple Packer:
Open Hole Top:Open Hole Bottom:
Initial Test Data:
Test Date:N/ATest Method:
Hours Tested:Gas Type:
Gas Disposal:
Test TypeMeasure
BBLS_H2O 11
BBLS_OIL 9
CALC_BBLS_H2O 11
CALC_BBLS_OIL 9
CALC_GOR 20556
CALC_MCF_GAS 185
CASING_PRESS 80
MCF_GAS 185
Perforation Data:
Interval Top:6823 ft.# Of Holes:120
Interval Bottom:7020 ft.Hole Size:0.38 in.

Formation NBCSX                   Formation Classification:  GW                   Status:  CM - 12/20/1995                Interval Top: 4388 ft.    Interval Bottom: 7108 ft.

 Completed Information for Formation NIOBRARA-CODELL-SUSSEX
1st Production Date:12/18/1986Choke Size:0.750 in.
Formation Name:NIOBRARA-CODELL-SUSSEXCommingled:
Production Method:FLOWING
Open Hole Completion:
Formation Treatment
Treatment Date:12/18/1986
Treatment Summary:SEE SCANNED DOCUMENT # 00627829
Tubing Size:2.375 in.Tubing Setting Depth:7066 ft.
Tubing Packer Depth:Tubing Multiple Packer:
Open Hole Top:Open Hole Bottom:
Initial Test Data:
Test Date:1/19/1996Test Method:FLOWING
Hours Tested:24Gas Type:SHALE
Gas Disposal:SOLD
Test TypeMeasure
BBLS_H2O 9
BBLS_OIL 6.52
CALC_BBLS_H2O 9
CALC_BBLS_OIL 6.52
CALC_GOR 37883
CALC_MCF_GAS 247
CASING_PRESS 249
MCF_GAS 247
TUBING_PRESS 240
Perforation Data:
Interval Top:4388 ft.# Of Holes:113
Interval Bottom:7108 ft.Hole Size:0.375 in.

Formation SUSX                     Formation Classification:  GW                     Status:  AB - 7/12/2023                 Interval Top: 4388 ft.    Interval Bottom: 4448 ft.

 Completed Information for Formation SUSSEX
1st Production Date:N/AChoke Size:
Formation Name:SUSSEXCommingled:No
Production Method:
Open Hole Completion:No
Formation Treatment
Treatment Date:12/18/1986
Treatment Summary:FRAC'D W/200,000# 20/40 MESH SAND & 100,000 10/20 MESH SD & 1179 BBLS OIL &660 BBLS WTR.
Tubing Size:Tubing Setting Depth:
Tubing Packer Depth:Tubing Multiple Packer:
Open Hole Top:Open Hole Bottom:
Initial Test Data:
Test Date:N/ATest Method:
Hours Tested:Gas Type:
Gas Disposal:
Test TypeMeasure
BBLS_H2O 60
BBLS_OIL 56
CALC_BBLS_H2O 60
CALC_BBLS_OIL 56
CALC_GOR 6804
CALC_MCF_GAS 381
CASING_PRESS 700
MCF_GAS 381
TUBING_PRESS 325
Perforation Data:
Interval Top:4388 ft.# Of Holes:29
Interval Bottom:4448 ft.Hole Size:0.375 in.
Primary Well Designation:
None      i
            All DesignationsDate
Reported PluggedY10/19/2023
Out Of Service RepurposedN
Out Of ServiceN
Inactive ExceptionN
Noticed InactiveN
Defined InactiveN
Low ProducingN

BOE/MCFE/GOR Calculations
Production for Previous 12 Months
December 2024 - November 2025i
Total Oil Produced (Barrels)0
Total Gas Produced (MCF)0
GOR
GOR Determination
Average BOE per Day0.000
Average MCFE per Day0.000

 Federal Financial Assurance  i

 Tribal Well  i No
