COGIS - WELL SCOUT CARD
Click image to view related facilities. Related  Click image to view inspection information. InspClick image to view MIT information. MITClick image to access interactive map at well/facility location. GISClick image to view imaged documents for this well/facility. DocClick image to view imaged documents for this well/facility. COAClick image to view wellbore completion diagram. WellboreClick image to search for orders within this facility's section. OrdersClick image to view bradenhead scoutcard data. Bradenhead
 Surface Location
 API# 05-123-12066		Well Classification: GW Status: PA - 12/8/2023
Well Name/No:MEINING #1
(Click Well Name for Production Data)		Click Here for Transporter Gatherer Info
Operator:PDC ENERGY INC - 69175
(Click Operator Name for Company Detail Report)		Federal Or State Lease #:68908
Facility Status:PAStatus Date12/8/2023
FacilityID:244272LocationID:332829
County:WELD #123Location:SENE 30 4N66W 6
Field:WATTENBERG - #90750Elevation:4755 ft.
Basin:DENVER (DJ) BASIN
Planned Location:1980FNL  720 FELLat/Long: 40.284265 / -104.813602Lat/Long Source: Calculated From Footages
As Drilled Location:Footages Not AvailableLat/Long: 40.284421 / -104.813533Lat/Long Source: Field Measured
 Wellbore And Formation Details -- select either a wellbore Or formation to expand.


Wellbore #00             Wellbore Classification: GW             Status: PA - 12/8/2023             Measured TD: 7400 ft.    Vertical TD: 7400 ft.

 Wellbore Data for Original WellboreWellbore Classification: GW        PA - 12/8/2023
Wellbore PermitDRIFTED
Permit #:841546 Expiration Date:2/21/1985
Proposed Depth/Form:
Surface Mineral Owner Same:Not available
Mineral Owner:FEESurface Owner:Not available
Unit: Unit Number:
Formation And Spacing:Code: NB-CD , Formation: NIOBRARA-CODELL , Order: 0 , Unit Acreage: 0, Drill Unit:
Wellbore Completed
Completion Date:2/10/1984
Spud Date:1/24/2012Spud Date Is:NOTICE
Measured TD:7400 ft.Measured PB depth:7384 ft.
True Vertical TD:7400 ft.True Vertical PB depth:

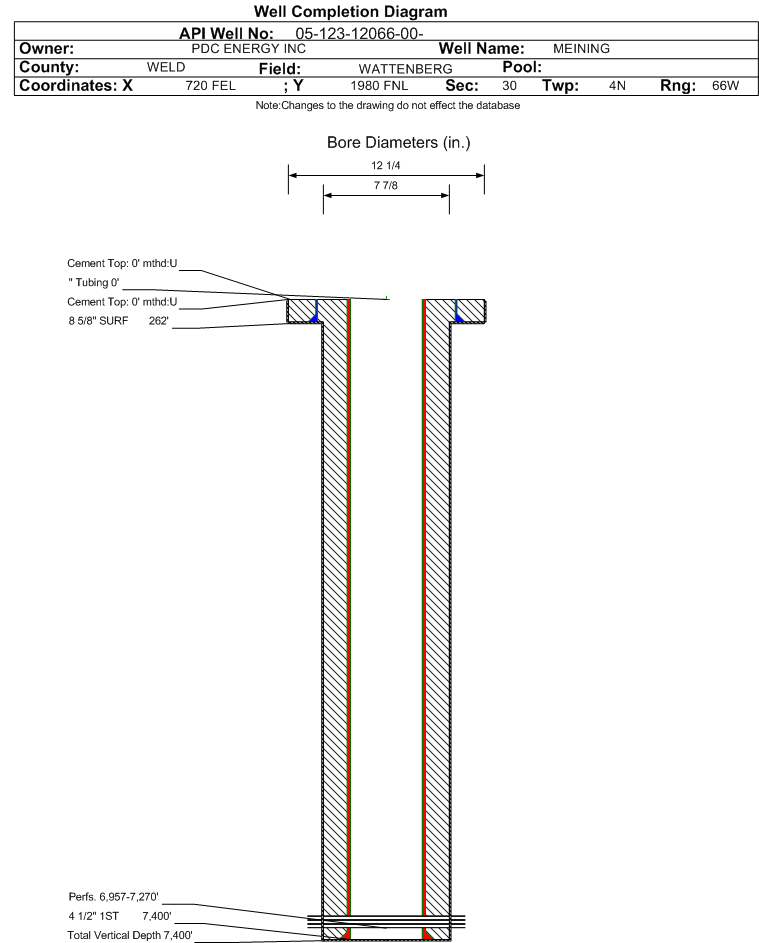

Casing:String Type: SURF, Hole Size: 12.25 in., Size: 8.625 in., Top: 0 ft., Depth: 266 ft., Weight: 24 , Citings Type: ACTUAL
Cement:Sacks: 280, Top: 0 ft., Bottom: 266 ft., Determination Method: VISU
Casing:String Type: 1ST, Hole Size: 7.875 in., Size: 4.5 in., Top: 0 ft., Depth: 7400 ft., Weight: 11.6 , Citings Type: ACTUAL
Cement:Sacks: 250, Top: 6470 ft., Bottom: 7400 ft., Determination Method: CBL
Casing:String Type: S.C. 1.1, Hole Size: , Size: , Top: , Depth: 4922 ft., Weight: , Citings Type: ACTUAL
Cement:Sacks: 250, Top: 4408 ft., Bottom: 4922 ft., Determination Method: CBL
FormationInterval TopLog BottomCoredDSTs
PARKMAN3680 ft.
SUSSEX4180 ft.
SHANNON4760 ft.
NIOBRARA6850 ft.
TIMPAS7236 ft.
CODELL7260 ft.
GREENHORN7335 ft.

Formation NB-CD                   Formation Classification:  GW                   Status:  AB - 12/8/2023                 Interval Top: 6957 ft.    Interval Bottom: 7270 ft.

 Completed Information for Formation NIOBRARA-CODELL
1st Production Date:N/AChoke Size:
Formation Name:NIOBRARA-CODELLCommingled:
Production Method:
Open Hole Completion:
Tubing Size:Tubing Setting Depth:
Tubing Packer Depth:Tubing Multiple Packer:
Open Hole Top:Open Hole Bottom:
No Initial Test Data was found for formation NB-CD.
Perforation Data:
Interval Top:6957 ft.# Of Holes:21
Interval Bottom:7270 ft.Hole Size:
Primary Well Designation:
None      i
            All DesignationsDate
Reported PluggedY12/08/2023
Out Of Service RepurposedN
Out Of ServiceYPlugging Due Date
12/31/2029
Inactive ExceptionN
Noticed InactiveYNoticed Date
04/26/2023
Defined InactiveN
Low ProducingN

BOE/MCFE/GOR Calculations
Production for Previous 12 Months
October 2024 - September 2025i
Total Oil Produced (Barrels)0
Total Gas Produced (MCF)0
GOR
GOR DeterminationMCFE
Average BOE per Day0.000
Average MCFE per Day0.000

 Federal Financial Assurance  i

 Tribal Well  i No
