COGIS - WELL SCOUT CARD
Click image to view related facilities. Related  Click image to view inspection information. InspClick image to view MIT information. MITClick image to access interactive map at well/facility location. GISClick image to view imaged documents for this well/facility. DocClick image to view imaged documents for this well/facility. COAClick image to view wellbore completion diagram. WellboreClick image to search for orders within this facility's section. OrdersClick image to view bradenhead scoutcard data. Bradenhead
 This operator is no longer active in the State of Colorado.
 Surface Location
 API# 05-123-11377		Well Classification: OW Status: PA - 2/16/2015
Well Name/No:NELSON #5
(Click Well Name for Production Data)		Click Here for Transporter Gatherer Info
Operator:TEXAS TEA OF COLORADO LLC DBA TEXAS TEA LLC - 87195
(Click Operator Name for Company Detail Report)		Federal Or State Lease #:
Facility Status:PAStatus Date2/16/2015
FacilityID:243585LocationID:319505
Municipality/County:FREDERICK / WELD #123Location:SWSW 32 2N68W 6
Field:SPINDLE - #77900Elevation:4949 ft.
Basin:DENVER (DJ) BASIN
Planned Location:1040FSL  660 FWLLat/Long: 40.090557 / -105.034597Lat/Long Source: Calculated From Footages
As Drilled Location:Footages Not AvailableLat/Long: 40.090555 / -105.034444Lat/Long Source: Field Measured
 Wellbore And Formation Details -- select either a wellbore Or formation to expand.

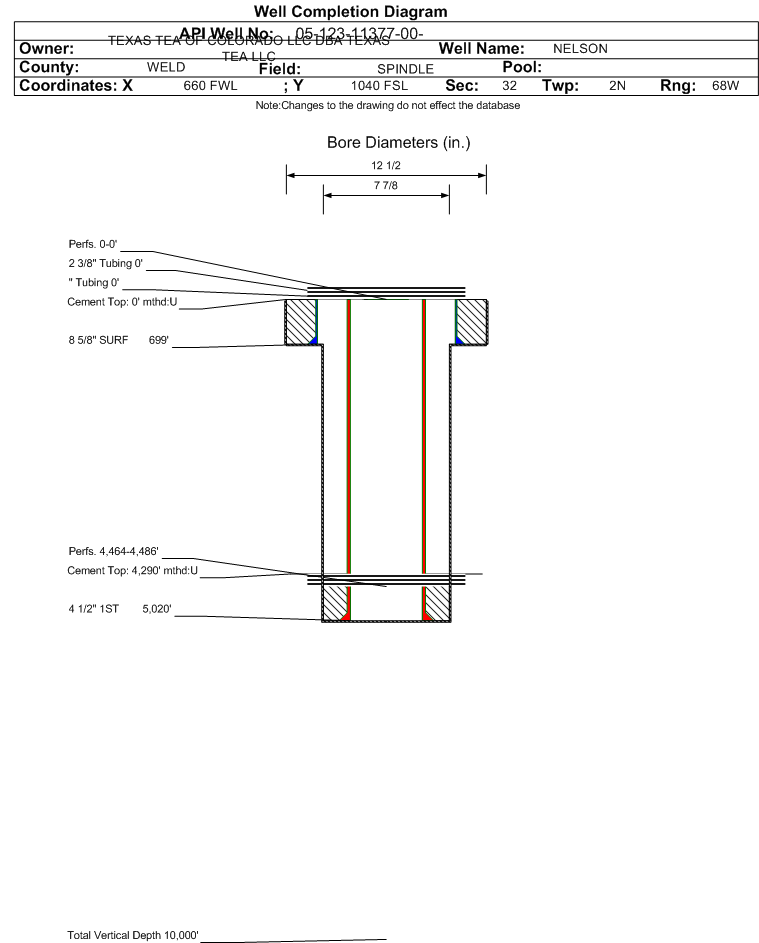

Wellbore #00             Wellbore Classification: OW             Status: PA - 2/16/2015             Measured TD: 5035 ft.

 Wellbore Data for Original WellboreWellbore Classification: OW        PA - 2/16/2015
Wellbore Permit
Permit #:19831123 Expiration Date:8/25/1994
Proposed Depth/Form:5035 ft.
Surface Mineral Owner Same:Yes
Mineral Owner:FEESurface Owner:FEE
Unit: Unit Number:
Formation And Spacing:Code: SNSD , Formation: SHANNON , Order: , Unit Acreage: 40, Drill Unit:
Formation And Spacing:Code: SUSX , Formation: SUSSEX , Order: , Unit Acreage: 40, Drill Unit:
Wellbore Completed
Completion Date:4/28/1994
Spud Date:9/18/1983Spud Date Is:ACTUAL
Measured TD:5035 ft.Measured PB depth:
True Vertical TD:True Vertical PB depth:
Log Types:IES, FDC
Casing:String Type: SURF, Hole Size: 12.5 in., Size: 8.625 in., Top: , Depth: 699 ft., Weight: 24 , Citings Type: ACTUAL
Cement:Sacks: 500, Top: 0 ft., Bottom: 699 ft., Determination Method: CALC
Casing:String Type: 1ST, Hole Size: 7.875 in., Size: 4.5 in., Top: , Depth: 5020 ft., Weight: 11.6 , Citings Type: ACTUAL
Cement:Sacks: 175, Top: 4290 ft., Bottom: 5020 ft., Determination Method: CBL
FormationInterval TopLog BottomCoredDSTs
SUSSEX4330 ft.NN
SHANNON4870 ft.NN

Formation SUSX                     Formation Classification:  GW                     Status:  AB - 2/16/2015                 Interval Top: 4464 ft.    Interval Bottom: 4486 ft.

 Completed Information for Formation SUSSEX
1st Production Date:4/28/1994Choke Size:
Formation Name:SUSSEXCommingled:
Production Method:FLOWING
Open Hole Completion:
Formation Treatment
Treatment Date:4/28/1994
Treatment Summary:225,000# 20/40 SAND; 18,000# 12/20 AC FRAC CR-5000 IN 75,305 GALS FLUID
Tubing Size:2.375 in.Tubing Setting Depth:
Tubing Packer Depth:Tubing Multiple Packer:
Open Hole Top:Open Hole Bottom:
Initial Test Data:
Test Date:4/29/1994Test Method:FLOWING
Hours Tested:24Gas Type:
Gas Disposal:SOLD
Test TypeMeasure
BBLS_H2O 0
BBLS_OIL 0
CALC_BBLS_H2O 0
CALC_BBLS_OIL 0
CALC_MCF_GAS 25
CASING_PRESS 40
MCF_GAS 25
TUBING_PRESS 40
Perforation Data:
Interval Top:4464 ft.# Of Holes:176
Interval Bottom:4486 ft.Hole Size:

Formation SNSD                     Formation Classification:  SI                     Status:  AB - 2/16/2015

 Completed Information for Formation SHANNON
1st Production Date:2/22/1984Choke Size:
Formation Name:SHANNONCommingled:
Production Method:
Open Hole Completion:
Formation Treatment
Treatment Date:4/28/1994
Treatment Summary:1,000 GALS 7.5% HCL ACID; 71,300 GALS 40# GEL WATER; 3,700 GALS 2% KCL WATER; 205,000# 20-40 SAND
Tubing Size:Tubing Setting Depth:
Tubing Packer Depth:Tubing Multiple Packer:
Open Hole Top:Open Hole Bottom:
Initial Test Data:
Test Date:N/ATest Method:
Hours Tested:Gas Type:
Gas Disposal:
Test TypeMeasure
BBLS_H2O 1
BBLS_OIL 14
CALC_BBLS_H2O 1
CALC_BBLS_OIL 14
CALC_MCF_GAS 84
CASING_PRESS 875
MCF_GAS 84
TUBING_PRESS 530
Perforation Data:
Interval Top:0 ft.# Of Holes:0
Interval Bottom:0 ft.Hole Size:
Primary Well Designation:
None      i
            All DesignationsDate
Reported PluggedY02/16/2015
Out Of Service RepurposedN
Out Of ServiceN
Inactive ExceptionN
Noticed InactiveN
Defined InactiveN
Low ProducingN

BOE/MCFE/GOR Calculations
Production for Previous 12 Months
October 2024 - September 2025i
Total Oil Produced (Barrels)0
Total Gas Produced (MCF)0
GOR
GOR Determination
Average BOE per Day0.000
Average MCFE per Day0.000

 Federal Financial Assurance  i

 Tribal Well  i No
