COGIS - WELL SCOUT CARD

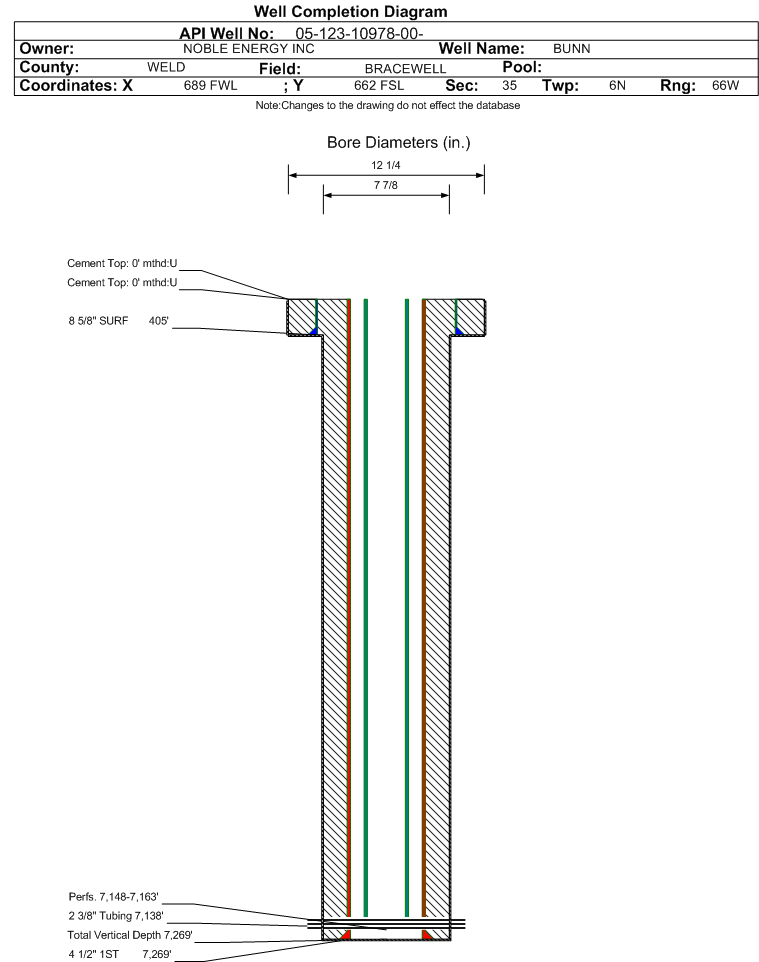

Click image to view related facilities. Related  Click image to view inspection information. InspClick image to view MIT information. MITGIS Map GISOld GIS Map Old GISClick image to view imaged documents for this well/facility. DocClick image to view imaged documents for this well/facility. COAClick image to view wellbore completion diagram. WellboreClick image to search for orders within this facility's section. OrdersClick image to view bradenhead scoutcard data. Bradenhead
 Surface Location
 API# 05-123-10978		Well Classification: GW Status: PA - 11/22/2023
Well Name/No:BUNN #1-35
(Click Well Name for Production Data)		Click Here for Transporter Gatherer Info
Operator:PDC ENERGY INC - 69175
(Click Operator Name for Company Detail Report)		Federal Or State Lease #:55409
Facility Status:PAStatus Date11/22/2023
FacilityID:243187LocationID:319270
County:WELD #123Location:SWSW 35 6N66W 6
Field:BRACEWELL - #7487Elevation:4680 ft.
Basin:DENVER (DJ) BASIN
Planned Location:662FSL  689 FWLLat/Long: 40.439184 / -104.752051Lat/Long Source: Calculated From Footages
As Drilled Location:603 FSL  695 FWLLat/Long: 40.438921 / -104.751939Lat/Long Source: Field Measured
 Wellbore And Formation Details -- select either a wellbore Or formation to expand.


Wellbore #00             Wellbore Classification: GW             Status: PA - 11/22/2023             Measured TD: 7269 ft.    Vertical TD: 7269 ft.

 Wellbore Data for Original WellboreWellbore Classification: GW        PA - 11/22/2023
Wellbore Permit
Permit #:822117 Expiration Date:4/29/1983
Bottom Hole Location:Sec:35 Twp: 6N 66W Footage: 603 FSL  695 FWL
Proposed Depth/Form:
Surface Mineral Owner Same:Not available
Mineral Owner:FEESurface Owner:Not available
Unit: Unit Number:
Formation And Spacing:Code: CODL , Formation: CODELL , Order: 0 , Unit Acreage: 80, Drill Unit: S2NW4
Wellbore Completed
Completion Date:10/23/1983
Measured TD:7269 ft.Measured PB depth:7269 ft.
True Vertical TD:7269 ft.True Vertical PB depth:
Casing:String Type: SURF, Hole Size: 12.25 in., Size: 8.625 in., Top: 0 ft., Depth: 405 ft., Weight: 24 , Citings Type: ACTUAL
Cement:Sacks: 300, Top: 0 ft., Bottom: 405 ft., Determination Method: VISU
Casing:String Type: 1ST, Hole Size: 7.875 in., Size: 4.5 in., Top: 0 ft., Depth: 7269 ft., Weight: 10.5 , Citings Type: ACTUAL
Cement:Sacks: 300, Top: 5934 ft., Bottom: 7269 ft., Determination Method: CBL
FormationInterval TopLog BottomCoredDSTs
SUSSEX4398 ft.
SHANNON4786 ft.
NIOBRARA6918 ft.
FORT HAYS7124 ft.
CODELL7145 ft.

Formation CODL                     Formation Classification:  GW                     Status:  AB - 11/22/2023                Interval Top: 7148 ft.    Interval Bottom: 7163 ft.

 Completed Information for Formation CODELL
1st Production Date:10/23/1983Choke Size:
Formation Name:CODELLCommingled:No
Production Method:FLOWING
Open Hole Completion:No
Formation Treatment
Treatment Date:10/23/1983
Treatment Summary:REPERF CODELL 7150' - 7163' ( 52 HOLES ) REFRAC CODELL W/129,864 GAL VISTAR 26/27/28# GEL & 244,344# 20/40 SAND, 1/27/04.
Tubing Size:2.375 in.Tubing Setting Depth:7138 ft.
Tubing Packer Depth:Tubing Multiple Packer:
Open Hole Top:Open Hole Bottom:
Initial Test Data:
Test Date:3/19/2004Test Method:FLOWING
Hours Tested:24Gas Type:WET
Gas Disposal:SOLD
Test TypeMeasure
BBLS_H2O 1
BBLS_OIL 5
BTU_GAS 1226
CALC_BBLS_H2O 1
CALC_BBLS_OIL 5
CALC_GOR 22600
CALC_MCF_GAS 113
CASING_PRESS 500
GRAVITY_OIL 55
MCF_GAS 113
TUBING_PRESS 350
Perforation Data:
Interval Top:7148 ft.# Of Holes:92
Interval Bottom:7163 ft.Hole Size:
Primary Well Designation:
None      i
            All DesignationsDate
Reported PluggedY11/22/2023
Out Of Service RepurposedN
Out Of ServiceN
Inactive ExceptionN
Noticed InactiveN
Defined InactiveN
Low ProducingN

BOE/MCFE/GOR Calculations
Production for Previous 12 Months
January 2025 - December 2025i
Total Oil Produced (Barrels)0
Total Gas Produced (MCF)0
GOR
GOR DeterminationMCFE
Average BOE per Day0.000
Average MCFE per Day0.000

 Federal Financial Assurance  i

 Tribal Well  i No
