COGIS - WELL SCOUT CARD

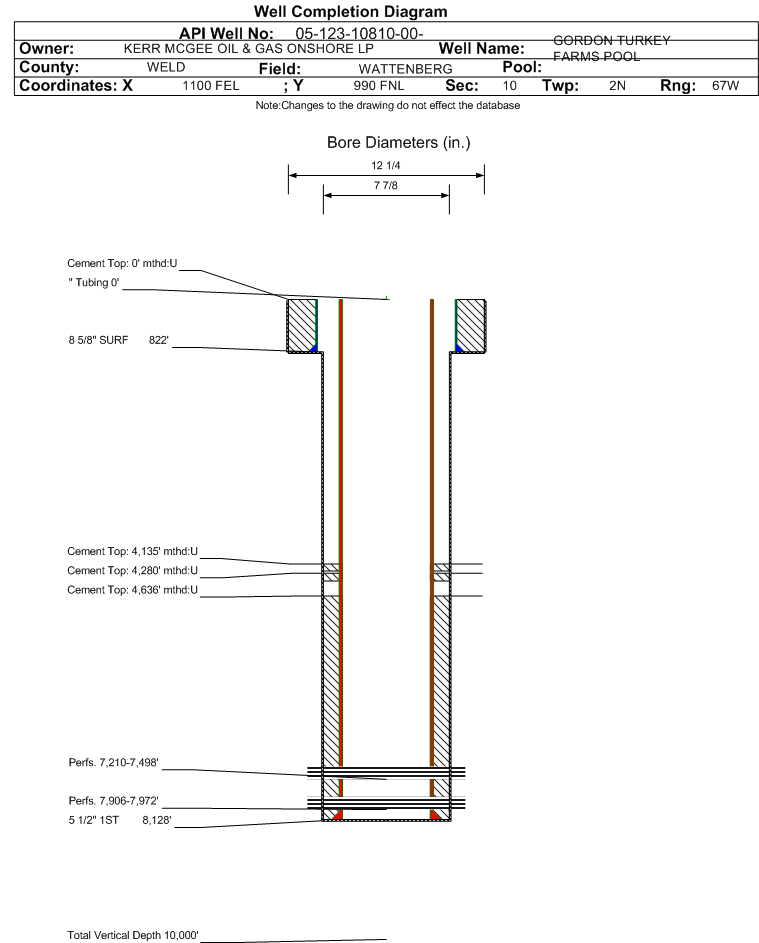

Click image to view related facilities. Related  Click image to view inspection information. InspClick image to view MIT information. MITGIS Map GISClick image to view imaged documents for this well/facility. DocClick image to view imaged documents for this well/facility. COAClick image to view wellbore completion diagram. WellboreClick image to search for orders within this facility's section. OrdersClick image to view bradenhead scoutcard data. Bradenhead
 Surface Location
 API# 05-123-10810		Well Classification: GW Status: PA - 4/10/2018
Well Name/No:GORDON TURKEY FARMS POOL #2
(Click Well Name for Production Data)		Click Here for Transporter Gatherer Info
Operator:KERR MCGEE OIL & GAS ONSHORE LP - 47120
(Click Operator Name for Company Detail Report)		Federal Or State Lease #:
Facility Status:PAStatus Date4/10/2018
FacilityID:243019LocationID:319164
County:WELD #123Location:NENE 10 2N67W 6
Field:WATTENBERG - #90750Elevation:4920 ft.
Basin:DENVER (DJ) BASIN
Planned Location:990FNL  1100 FELLat/Long: 40.157129 / -104.871053Lat/Long Source: Field Measured
As Drilled Location:Footages Not AvailableLat/Long: 40.157129 / -104.871053Lat/Long Source: Field Measured
 Wellbore And Formation Details -- select either a wellbore Or formation to expand.


Wellbore #00             Wellbore Classification: GW             Status: PA - 4/10/2018             Measured TD: 8120 ft.

 Wellbore Data for Original WellboreWellbore Classification: GW        PA - 4/10/2018
Wellbore Permit
Permit #: Expiration Date:5/18/2012
Proposed Depth/Form:8128 ft.
Surface Mineral Owner Same:Yes
Mineral Owner:FEESurface Owner:FEE
Unit: Unit Number:
Formation And Spacing:Code: JSND , Formation: J SAND , Order: 0 , Unit Acreage: 320, Drill Unit: E2
Formation And Spacing:Code: NB-CD , Formation: NIOBRARA-CODELL , Order: , Unit Acreage: 160, Drill Unit: NE/4
Wellbore Completed
Completion Date:N/A
Spud Date:9/4/1982Spud Date Is:ACTUAL
Measured TD:8120 ft.Measured PB depth:8055 ft.
True Vertical TD:True Vertical PB depth:
Log Types:CBL's run 6/2010 for SUSX squeeze
Log Types:
Log Types:SP-IES FDC-GR
Casing:String Type: SURF, Hole Size: 12.25 in., Size: 8.625 in., Top: 0 ft., Depth: 822 ft., Weight: 24 , Citings Type: ACTUAL
Cement:Sacks: 575, Top: 0 ft., Bottom: 822 ft., Determination Method: VISU
Casing:String Type: 1ST, Hole Size: 7.875 in., Size: 5.5 in., Top: 0 ft., Depth: 8128 ft., Weight: 17 , Citings Type: ACTUAL
Cement:Sacks: 1025, Top: 4636 ft., Bottom: 8128 ft., Determination Method: CBL
Casing:String Type: S.C. 1.1, Hole Size: , Size: , Top: , Depth: 4400 ft., Weight: , Citings Type: ACTUAL
Cement:Sacks: 300, Top: 4280 ft., Bottom: 4400 ft., Determination Method: CBL
Casing:String Type: S.C. 1.2, Hole Size: , Size: , Top: , Depth: 4245 ft., Weight: , Citings Type: ACTUAL
Cement:Sacks: 100, Top: 4135 ft., Bottom: 4245 ft., Determination Method: CBL
Casing:String Type: S.C. 1.3, Hole Size: , Size: , Top: , Depth: 1500 ft., Weight: , Citings Type: ACTUAL
Cement:Sacks: 400, Top: 836 ft., Bottom: 1500 ft., Determination Method: CBL
FormationInterval TopLog BottomCoredDSTs
SUSSEX4345 ft.
SHANNON4934 ft.
NIOBRARA7204 ft.
CODELL7494 ft.
J SAND7902 ft.

Formation JSND                     Formation Classification:  GW                     Status:  AB - 4/10/2018                 Interval Top: 7906 ft.    Interval Bottom: 7972 ft.

 Completed Information for Formation J SAND
1st Production Date:4/30/1983Choke Size:
Formation Name:J SANDCommingled:No
Production Method:
Open Hole Completion:No
Formation Treatment
Treatment Date:6/14/2010
Treatment Summary:TA J SAND FOR NB-CD RECOMPLETE.
Formation Treatment
Treatment Date:4/30/1983
Treatment Summary:SEE SCAN DOCUMENT
Tubing Size:Tubing Setting Depth:
Tubing Packer Depth:Tubing Multiple Packer:
Open Hole Top:Open Hole Bottom:
Initial Test Data:
Test Date:N/ATest Method:
Hours Tested:Gas Type:
Gas Disposal:
Test TypeMeasure
BBLS_OIL 7
CALC_BBLS_OIL 7
CALC_GOR 130000
CALC_MCF_GAS 910
GRAVITY_OIL 53
MCF_GAS 910
Perforation Data:
Interval Top:7906 ft.# Of Holes:264
Interval Bottom:7972 ft.Hole Size:0.38 in.

Formation NB-CD                   Formation Classification:  GW                   Status:  AB - 4/10/2018                 Interval Top: 7210 ft.    Interval Bottom: 7498 ft.

 Completed Information for Formation NIOBRARA-CODELL
1st Production Date:8/5/2010Choke Size:
Formation Name:NIOBRARA-CODELLCommingled:No
Production Method:
Open Hole Completion:
Formation Treatment
Treatment Date:7/1/2010
Treatment Summary:NB PERF 7210-7340 HOLES 38 SIZE 0.38 CD PERF 7476-7498 HOLES 55 SIZE 0.38 Frac Niobrara w/ 250 gal 15% HCl & 168,338 gal Dynaflow 2 Hybrid w/ 250,980# 20/40, 4,000# 20/40. Frac Codell w/ 129,696 gal Dynaflow 2 w/ 220,420# 20/40, 4,000# SB Excel
Tubing Size:Tubing Setting Depth:
Tubing Packer Depth:Tubing Multiple Packer:
Open Hole Top:Open Hole Bottom:
Initial Test Data:
Test Date:N/ATest Method:
Hours Tested:Gas Type:
Gas Disposal:
Test TypeMeasure
BBLS_OIL 3
BTU_GAS 1347
CALC_BBLS_OIL 3
CALC_GOR 2333
CALC_MCF_GAS 7
CASING_PRESS 1850
GRAVITY_OIL 48
MCF_GAS 7
TUBING_PRESS 1320
Perforation Data:
Interval Top:7210 ft.# Of Holes:82
Interval Bottom:7498 ft.Hole Size:0.38 in.
Primary Well Designation:
None      i
            All DesignationsDate
Reported PluggedY04/10/2018
Out Of Service RepurposedN
Out Of ServiceN
Inactive ExceptionN
Noticed InactiveN
Defined InactiveN
Low ProducingN

BOE/MCFE/GOR Calculations
Production for Previous 12 Months
December 2024 - November 2025i
Total Oil Produced (Barrels)0
Total Gas Produced (MCF)0
GOR
GOR Determination
Average BOE per Day0.000
Average MCFE per Day0.000

 Federal Financial Assurance  i

 Tribal Well  i No
