COGIS - WELL SCOUT CARD

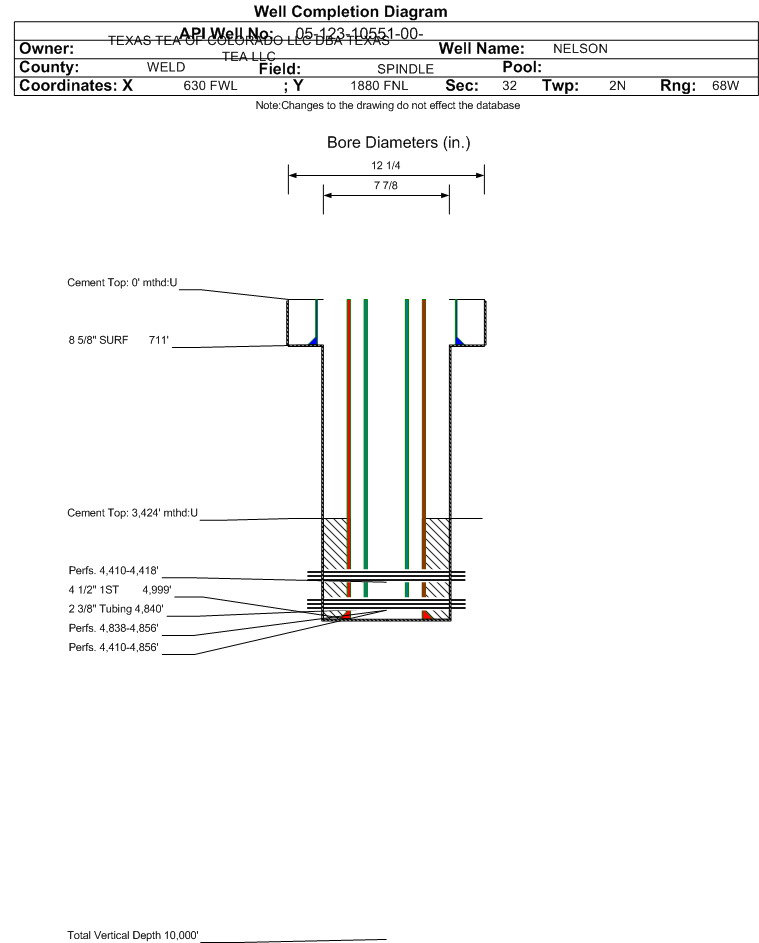

Click image to view related facilities. Related  Click image to view inspection information. InspClick image to view MIT information. MITClick image to access interactive map at well/facility location. GISClick image to view imaged documents for this well/facility. DocClick image to view imaged documents for this well/facility. COAClick image to view wellbore completion diagram. WellboreClick image to search for orders within this facility's section. OrdersClick image to view bradenhead scoutcard data. Bradenhead
 This operator is no longer active in the State of Colorado.
 Surface Location
 API# 05-123-10551		Well Classification: OW Status: PA - 7/15/2014
Well Name/No:NELSON #1-A
(Click Well Name for Production Data)		Click Here for Transporter Gatherer Info
Operator:TEXAS TEA OF COLORADO LLC DBA TEXAS TEA LLC - 87195
(Click Operator Name for Company Detail Report)		Federal Or State Lease #:
Facility Status:PAStatus Date7/15/2014
FacilityID:242760LocationID:336463
Municipality/County:FREDERICK / WELD #123Location:SWNW 32 2N68W 6
Field:SPINDLE - #77900Elevation:4939 ft.
Basin:DENVER (DJ) BASIN
Planned Location:1880FNL  630 FWLLat/Long: 40.097167 / -105.034737Lat/Long Source: Calculated From Footages
As Drilled Location:1789 FNL  669 FWLLat/Long: 40.097470 / -105.034500Lat/Long Source: Field Measured
 Wellbore And Formation Details -- select either a wellbore Or formation to expand.


Wellbore #00             Wellbore Classification: OW             Status: PA - 7/15/2014             Measured TD: 5011 ft.

 Wellbore Data for Original WellboreWellbore Classification: OW        PA - 7/15/2014
Wellbore Permit
Permit #:19820053 Expiration Date:5/19/1982
Proposed Depth/Form:5000 ft.
Surface Mineral Owner Same:Not available
Mineral Owner:FEESurface Owner:Not available
Unit: Unit Number:
Wellbore Completed
Completion Date:7/1/1984
Spud Date:1/22/1982Spud Date Is:ACTUAL
Measured TD:5011 ft.Measured PB depth:
True Vertical TD:True Vertical PB depth:
Log Types:FDC
Log Types:FDC & DUAL INDUCTION
Casing:String Type: SURF, Hole Size: 12.25 in., Size: 8.625 in., Top: , Depth: 711 ft., Weight: 24 , Citings Type: ACTUAL
Cement:Sacks: 600, Top: 0 ft., Bottom: 0 ft., Determination Method: VISU
Casing:String Type: 1ST, Hole Size: 7.875 in., Size: 4.5 in., Top: , Depth: 4999 ft., Weight: 10.5 , Citings Type: ACTUAL
Cement:Sacks: 250, Top: 3424 ft., Bottom: 4999 ft., Determination Method: CALC
FormationInterval TopLog BottomCoredDSTs
SUSSEX4400 ft.NN
BENTONITE4608 ft.NN
SHANNON4830 ft.NN

Formation SNSD                     Formation Classification:  GW                     Status:  AB - 7/15/2014                 Interval Top: 4838 ft.    Interval Bottom: 4856 ft.

 Completed Information for Formation SHANNON
1st Production Date:3/9/1982Choke Size:0.750 in.
Formation Name:SHANNONCommingled:
Production Method:FLOWING
Open Hole Completion:
Formation Treatment
Treatment Date:7/1/1984
Treatment Summary:500 GALS 10% MCA ACID; 84,000 GALS 40# GELLED WATER X LINKED; 55,000# 20/40 & 180,000# 10/20 SAND
Tubing Size:2.375 in.Tubing Setting Depth:4840 ft.
Tubing Packer Depth:Tubing Multiple Packer:
Open Hole Top:Open Hole Bottom:
Initial Test Data:
Test Date:3/10/1982Test Method:FLOWING
Hours Tested:24Gas Type:
Gas Disposal:SOLD
Test TypeMeasure
BBLS_H2O 8
BBLS_OIL 19
CALC_BBLS_H2O 8
CALC_BBLS_OIL 19
CALC_MCF_GAS 126
CASING_PRESS 460
GRAVITY_OIL 48
MCF_GAS 126
TUBING_PRESS 60
Perforation Data:
Interval Top:4838 ft.# Of Holes:72
Interval Bottom:4856 ft.Hole Size:

Formation SUSX                     Formation Classification:  GW                     Status:  AB - 7/15/2014                 Interval Top: 4410 ft.    Interval Bottom: 4418 ft.

 Completed Information for Formation SUSSEX
1st Production Date:7/1/1984Choke Size:
Formation Name:SUSSEXCommingled:
Production Method:
Open Hole Completion:
Tubing Size:Tubing Setting Depth:
Tubing Packer Depth:Tubing Multiple Packer:
Open Hole Top:Open Hole Bottom:
No Initial Test Data was found for formation SUSX.
Perforation Data:
Interval Top:4410 ft.# Of Holes:32
Interval Bottom:4418 ft.Hole Size:

Formation SX-SN                   Formation Classification:  GW                   Status:  AB - 7/15/2014                 Interval Top: 4410 ft.    Interval Bottom: 4856 ft.

 Completed Information for Formation SUSSEX-SHANNON
1st Production Date:3/9/1982Choke Size:
Formation Name:SUSSEX-SHANNONCommingled:
Production Method:PUMPING
Open Hole Completion:
Tubing Size:2.375 in.Tubing Setting Depth:4840 ft.
Tubing Packer Depth:Tubing Multiple Packer:
Open Hole Top:Open Hole Bottom:
Initial Test Data:
Test Date:7/1/1984Test Method:PUMPING
Hours Tested:24Gas Type:
Gas Disposal:SOLD
Test TypeMeasure
BBLS_H2O 27
BBLS_OIL 15
CALC_BBLS_H2O 27
CALC_BBLS_OIL 15
CALC_MCF_GAS 104
MCF_GAS 104
Perforation Data:
Interval Top:4410 ft.# Of Holes:104
Interval Bottom:4856 ft.Hole Size:
Primary Well Designation:
None      i
            All DesignationsDate
Reported PluggedY07/15/2014
Out Of Service RepurposedN
Out Of ServiceN
Inactive ExceptionN
Noticed InactiveN
Defined InactiveN
Low ProducingN

BOE/MCFE/GOR Calculations
Production for Previous 12 Months
October 2024 - September 2025i
Total Oil Produced (Barrels)0
Total Gas Produced (MCF)0
GOR
GOR Determination
Average BOE per Day0.000
Average MCFE per Day0.000

 Federal Financial Assurance  i

 Tribal Well  i No
